- About this Item
- • Daylight Viewable Ultra bright 2000nit, this makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight The light sensor ensures that the screen is readable in different environments and always protects your eye.

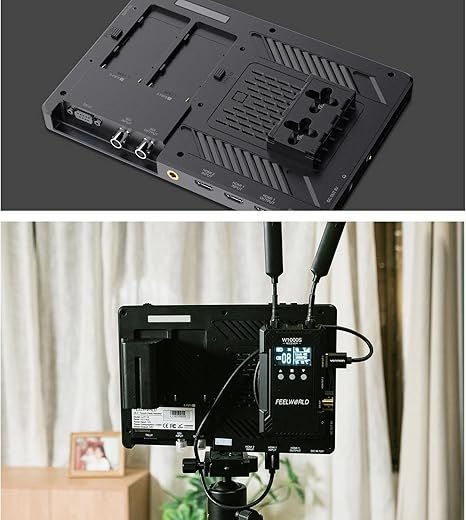

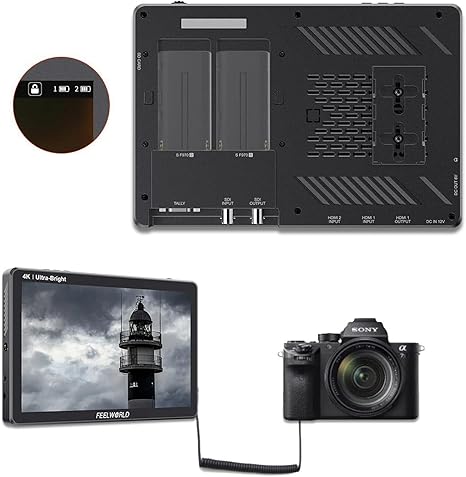

- • Innovative External Install and Power Design F970 external install and power kit design is added to the back of the monitor, reduces the need for photographers to connect to external wireless transmission, LED light, video converter and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.

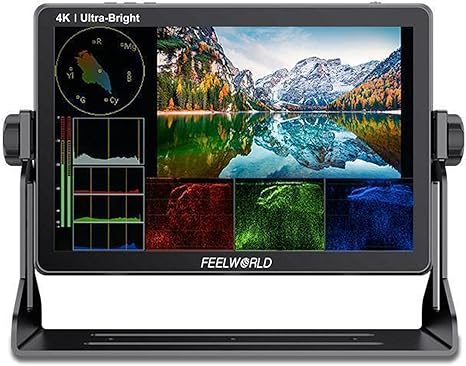

- • Touchscreen HDR and 3D LUT You can use simple tap and swipe gestures for the important monitoring functions. Display an HDR signal and support load up to 50 custom LUTs, to apply a look to the monitor so you get an idea of how the finished images will look like when editing. The LUT11S supports 3G-SDI signal LUT loop-out function.
Specifications & Details
| SKU | PIB0B7KB7ZNB |
|---|---|
| Package Dimensions | 10.39 x 9.69 x 4.41 inches |
| Item Weight | 1.538 kgs |
| Manufacturer | FEELWORLD |
Product description

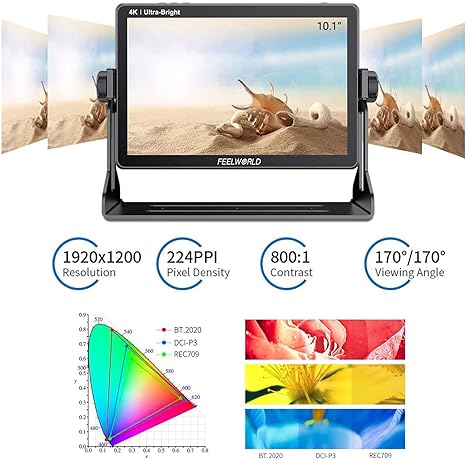

Model: LUT11S Screen Size: 10.1" IPS Resolution: 1920x1200 pixels Pixel Pitch: 0.113(W) x 0.113(H) (mm) Aspect Ratio: 16: 10 Brightness: 2000cd/m² Contrast Ratio: 800: 1 Viewing Angle: 85°/85°(L/R) 85°/85°(U/D) Input 2XHDMI 1X3G-SDI 1XTally: 9 Pin Connect Output 1XHDMI 1X3G-SDI 1XDC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor. Audio Audio: 3.5mm Stereo Headphone SDI Input Support Format 720p (60/59.94/50/30/29.97/25/24/23.98) 1080i(60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98) 2048x1080i (60/59.94/50) 2048x1080p (60/59.94/50/30/29.97/25/24/23.98) SDI Output Support Format 720p (60/59.94/50/30/29.97/25/24/23.98) 1080i(60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98) HDMI Input/ Output Support Format 480i/576i/480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29.97/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/23.98) 3840x2160p (60/50/30/29.97/25/24/23.98) 4096×2160p (60/50/30/29.97/25/24/23.98) General Input Voltage: DC7?24V Power Consumption: ?28W Install Way: 1/4"-20 Thread Socket (Left, Right, Bottom) Unit Weight: 810g Advanced Features Support 3D LUT Log to Rec.709, user 3D LUT Upload Support Touch Menu Parade (RGB, YUV, Y) All Waves Vector RGB Histogram Brightness Histogram Embedded Audio Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable) False Colors Zebra Exposure (1%~100% adjustable) Check Field (Red, Green, Blue, Gray) Scan Mode (Under Scan, Over Scan) Anamorphic Mode Image Flip (H, V, H/V) Image Freeze Center Marker Safety Marker Ratio Marker Marker Color Color Temperature Adjustment Nine Grid Zoom (100%~500%) Aspect Ratio Pixel to Pixel
