- About this Item

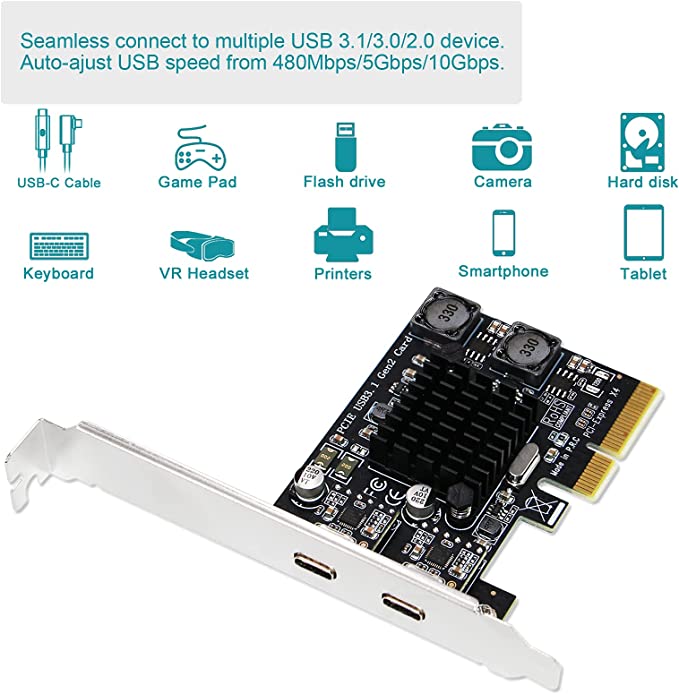

- • 1. FebSmart FS-C2-Pro allow users add 2X 10Gbps USB 3.1 GEN2 Type C port on Desktop PCs, Working Stations, and MAC Pros. The 2X USB 3.1 GEN2 Type C Ports can provide superspeed plus 10Gbps max (16Gbps in total) data tramsfer rate for high power consumption USB 3.1 GEN2 peripheral devices, such as NVME SSD enclosures, SATA SSD HDD enclosures, VR-Systems, 10Gbps USB hubs and USB-C video adapters.
- • 2. Built in FebSmart Self-Powered Technology. No need to plug any power cables from PCs PSU, but each USB 3.1 GEN2 port will get 5V 3A (5V 6A in total, NOT for fast charging) max power supply. Ensure connected USB 3.1 GEN2 devices running superspeed plus 10Gbps max. Enjoy super easy installation with Plug Play use on most Desktop PCs.
- • 3. Based on ASMedia ASM3142 the 3rd generation USB 3.1 GEN2 host controller. Supports USB 3.1 GEN2 Mutiple INs function, will auto-coordinate each USB 3.1 GEN2 port banwidth. The added-on Heat-Sink will help PCIE USB 3.1 GEN2 card core components stay away from overheat, make sure USB 3.1GEN2 devices always stay at peak speed 10Gbps max.
Specifications & Details
| SKU | PIB089YN57TD |
|---|---|
| Brand | FebSmart |
| Series | PCIE X4 Interface to 2X 10Gbps USB-C Ports Expansion Card |
| Item model number | FS-C2-Pro |
| Operating System | Windows 11, 10, 8.x, 7 (32/64), Windows Server 2008, 2012, 2012R2, 2016, 2019, 2022.Linux and MAC OS. |
| Item Weight | 0.095 kgs |
| Product Dimensions | 4.72 x 3.19 x 0.71 inches |
| Item Dimensions LxWxH | 4.72 x 3.19 x 0.71 inches |
| Color | Matte Black |
| Manufacturer | FebSmart Co,.Ltd |
| Is Discontinued By Manufacturer | No |
Product description
PCI Express USB 3.1 Gen 2 10Gbps Expansion Card,Add 2X USB-C 10Gbps Max Speed Ports on Desktop PCs
FebSmart FS-C2-Pro allow users add 2X USB 3.1 Gen2 Type C ultra-speed 10Gbps ports on desktop computers for video,audio,photos or files transfer and live data storage.Build in FebSmart Self-Powered Technology for HDD/SSD enclosure,VR sensors etc high power-consuming data devices.It also provides stable and fast connection for normal USB device which includes web cameras,mice,keyboard,smart phone,video capture,KVM switch,USB hub etc.It is a low cost and effective way to add USB 3.1 gen2 ports on desktop PCs.The 2X added on USB ports will not occupy mother baord USB Main Lan Speed,just an extra bandwidth by PCI Express X4 on computers or servers.
Product Features:
1.Expand to 2X USB 3.1 Gen2 Type C 10Gbps ports on newly build dektop computers by PCIE 3.0 X4 slot.
2.Support auto speed negotiation USB 3.1 Gen2 10Gbps,USB 3.0 5Gbps,USB 2.0 480Mbps,USB 1.1 12Mbps.
3.Build in FebSmart Self-Powered Technology,no need additional power supply,super easy install on computers.
4.Mounted with full height bracket for standard size desktop PCs,Packed with low-profile bracket,works on slim size PCs.
5.PCIE 3.0 standard and PCIE X4(X2 signal) interface design.Compatible with PCIE 1.0,2.0,3.0,4.0 standard on X4, X8,X16 slot.
6..PCI Express communicate speed: PCIE 3.0/4.0 16Gbps,PCIE 2.0 10Gbps,PCIE 1.0 5Gbps.Better use this card on PCIE 3.0/4.0 mother board.
7.Support USB 3.1Gen2 Multiple INs.Complaint with USB 3.1 specification revision 1.0 and Intel extensible host controller interface revision 1.1.
8.Added-on Heat-Sink will help PCIE USB card core components stay away from overheat,ensure connected USB device always stay at peak speed.

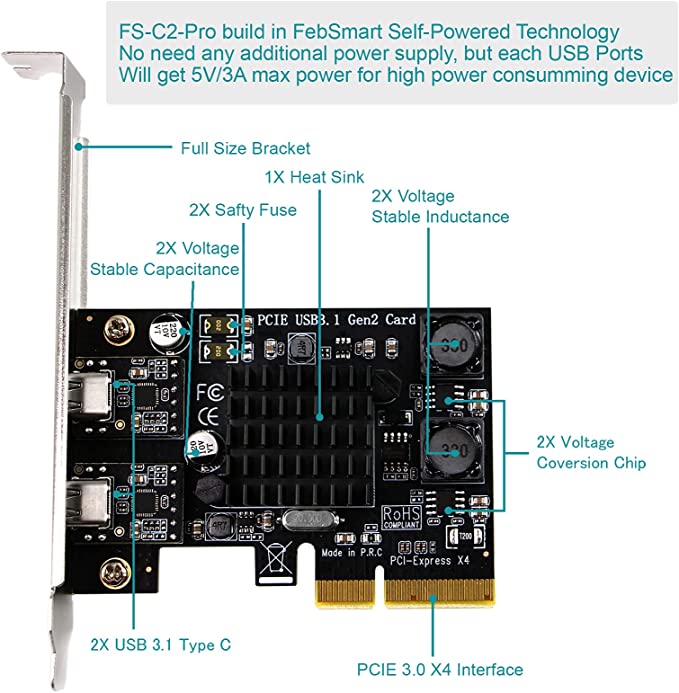

FebSmart Self-Powered Technology,No Need Any Power Cable,Get 5V/3A Max Power Each Port.
FebSmart Self-Powered Technology is a new solution to add more power supply on USB expansion cards.The old version PCI Express USB card need to plug a power cable from the desktop computer power control center.Even added-on additional power,USB ports still lack power when you running few high power-consuming devices simultaneously,such as HDD/SSD enclosure.PCI Express slot can provide 75W max power almost 12V/6.25A.We add on 1X voltage transformer on each USB port,can pick up 12/2.5A transfer to 5V/6A.Then we add 1X power module on each USB port distribute current to each port 5V/3A max power(NOT support fast charging).To protect USB device,we designed 2X electric circuit protector,2X voltage stable capacitance and 2X voltage stable inductance. Do not worry data loss or burning USB devices now.Add super fast USB 3.1 gen2 host controller card on PCs.Choose More Stable,Fast and Safe data connection with FebSmart.
Major Technical Specification:
Super Speed Plus 10Gbps Max Speed
1. Provide ultra-speed 10Gbps max data transfer speed,16Gbps total bandwidth.2X faster than USB 3.0(5Gbps),20X faster than USB 2.0 (0.48Gbps).
2. Stream more Pixels video source such as 4K/8K video source.Works with more high quality USB graphic cards.

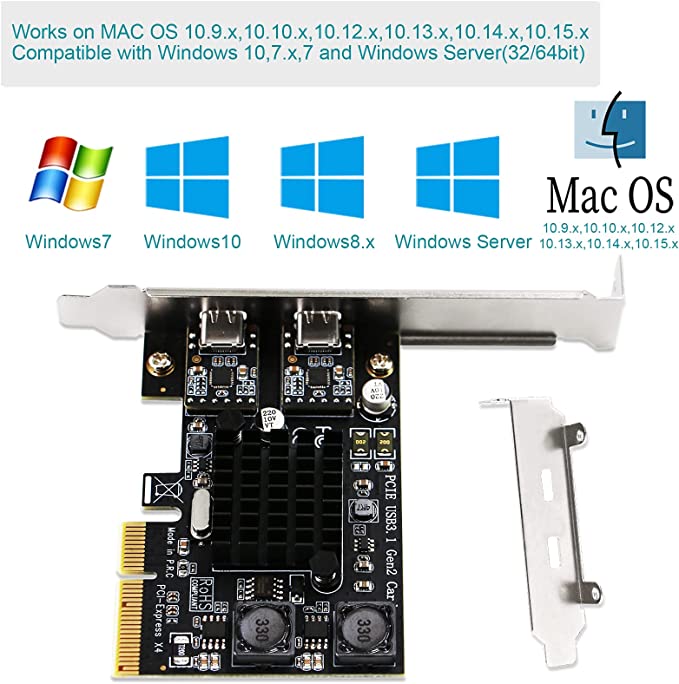

Support Windows and MAC OS System
1. Plug and Play on MAC OS 10.9.x,10.10.x, 10.12.x,10.13.x,10.14.x,10.15.x and later system.NOT works on MAC OS 10.11.x system.
2. Driver Free on Windows 10,8.1,8 and Server 2012,2012R2,2016,2019(32/64bit),Need to install driver on Windows7 and Server 2008,2008R2(32/64bit)
3. Support MAC Pro,Intel and AMD platform.
Easy Install,Safeguard Users Data
1. Build in FebSmart Self-Powered technology no need to plug any power cable from computer power source,enjoy super easy and safe installation.
2. Designed 2X electric circuit protector,2X voltage stable capacitance and 2X voltage stable inductance protect USB device from overcurrent,overload ensure data security.
Added Heat-sink on Major Chip

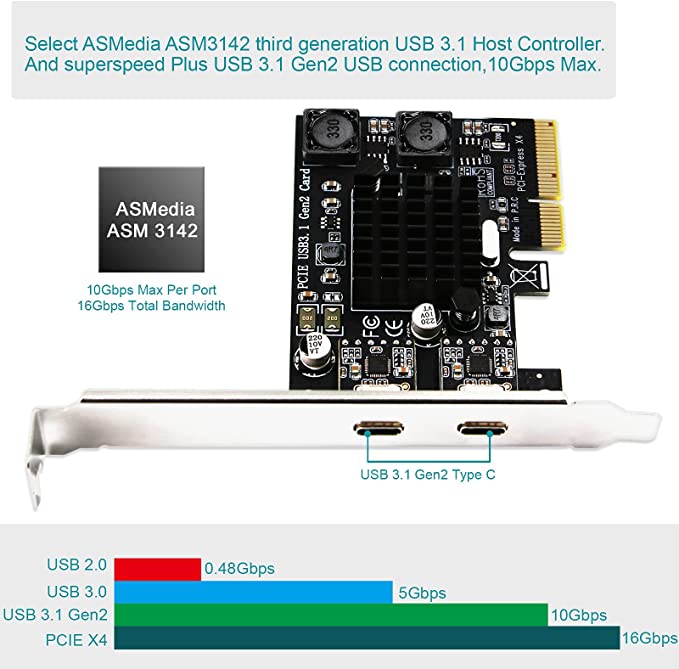

FebSmart designed 1X Heat-sink on major chip ASMedia ASM3142,it will help PCIE USB card core components stay away from overheat, make sure USB device always stay at peak speed 10Gbps.
PCI Express 3.0 X4 Interface Design
1. PCI Express 3.0 X4(X2 signal) design will compatible with PCIE 3.0/4.0 16Gbps ,PCIE 2.0 10Gbps,1.0 5Gbps.
2. Compatible with PCIE X4,X8,X16 slot,NOT support PCIE X1,X2 slot.

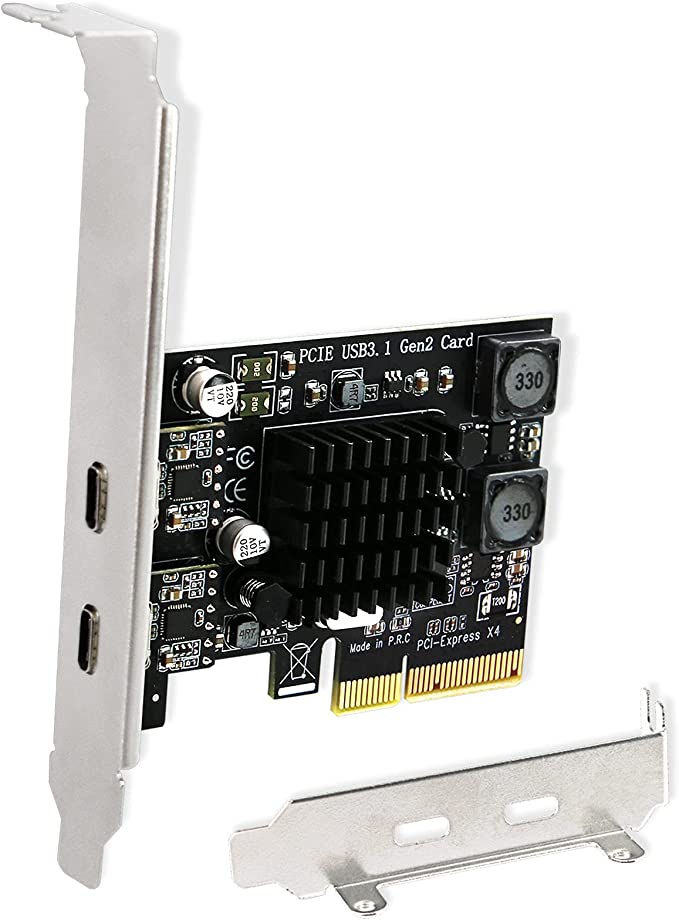

Works on Standard Size and Slim PCs
1. Mounted with standard size bracket for standard size PCs.
2. Packed with low-profile bracket,works on slim size PCs.Need change to the low profile braket by users.
Achieving 10 Gbps Data Rates in USB 3.1 Using Multiple INs and Hub Payload Buffering
What is USB 3.1 Gen2 Multiple-INs? Now USB 3.1 can handle multiple device data transfer simultaneously,without waiting the first device accomplish it's task,NOT like USB3.0/2.0 does.USB 3.1 device may receive a second ACK TP for a different endpoint before it has a chance to respond to the first ACK TP.A more complex USB 3.1 device would take advantage of the multiple INs by servicing the requests separately,possibly returning data to each one,reducing the likelihood that Not Ready would need to be used.
How is Multiple-INs improve USB bandwidth? When USB 3.0 Host Controller works with the external USB HUB is a “cut-through” model,upstream port and downstream ports on the hub were all operating at the same speed.When put in one USB 2.0 Hub all speed will down.Then USB 3.0 Host Cotroller can not run full speed.When USB 3.1 Gen2 Host Controller works with USB 3.1,3.0 Hubs "Cut-through" will not work,with the new "store and forward” service,USB 3.1 hubs take a much more active role in making sure that the flow of data is smooth and the user’s experienced performance is not interrupted.
FS-C2-Pro FS-AC-Pro FS-A2-Pro FS-E2C-Pro FS-A3C2-Pro FS-A5-Pro
USB Ports 2X USB-C 1X USB-A&1X USB-C 2X USB-A 2X Type E Key A 3X USB-A&2X USB-C 5X USB-A
USB Protocol USB 3.1/3.2 Gen2 USB 3.1/3.2 Gen2 USB 3.1/3.2 Gen2 USB 3.1/3.2 Gen2 USB 3.1/3.2 Gen2 USB 3.1/3.2 Gen2
USB Max Speed 10Gbps 10Gbps 10Gbps 10Gbps 10Gbps 10Gbps
Total Bandwidth 16Gbps 16Gbps 16Gbps 16Gbps 16Gbps 16Gbps
PCIE Interface PCIE 3.0 X4 PCIE 3.0 X4 PCIE 3.0 X4 PCIE 3.0 X4 PCIE 3.0 X4 PCIE 3.0 X4
Compatible Platform MAC,AMD,Intel MAC,AMD,Intel MAC,AMD,Intel MAC,AMD,Intel MAC,AMD,Intel MAC,AMD,Intel
Low Profile Bracket YES YES YES YES NO NO
Power Supply Type Self-Powered Self-Powered Self-Powered Self-Powered Self-Powered Self-Powered
System Campatibility Windows 7,8.0,8.1,10(32/64),Windows Server 2008,2012,2012R2,2016,2019.Linux and MAC OS Windows 7,8.0,8.1,10(32/64),Windows Server 2008,2012,2012R2,2016,2019.Linux and MAC OS Windows 7,8.0,8.1,10(32/64),Windows Server 2008,2012,2012R2,2016,2019.Linux and MAC OS Windows 7,8.0,8.1,10(32/64),Windows Server 2008,2012,2012R2,2016,2019.Linux and MAC OS Windows 7,8.0,8.1,10(32/64),Windows Server 2008,2012,2012R2,2016,2019.Linux and MAC OS Windows 7,8.0,8.1,10(32/64),Windows Server 2008,2012,2012R2,2016,2019.Linux and MAC OS
Easy Install on Desktop Computers
Product Descreption:
FebSmart FS-C2-Pro is a PCI Express USB 3.1 Gen2 10Gbps expansion card.It will provide 2X USB 3.1 Gen2 Type C 10Gbps ports on computers by PCIE 3.0 X4 interface.It was built in FebSmart Self-Powered Technology,users no need to plug any additional power supply,but get each USB port 5V/3A (5V/6A in total) max power.Allow all connected high-power consumption USB device get an ultra-fast 10Gbps(16Gbps in total) max speed for data transfer.It will be the best choice for USB 3.1 Gen2 peripheral device which including SSD enclosure,external HDDs,flash drives,USB hubs,4K vidoe adapter etc.
What is the FebSmart Self-Powered Technology?
FebSmart Self-Powered Technology is a new solution to add more power supply on USB expansion cards.The old version PCI Express USB card need to plug a power cable from the desktop computer power control center.Even added-on additional power,USB ports still lack power when you running few high power-consuming devices simultaneously,such as HDD/SSD enclosure.PCI Express slot can provide 75W max power almost 12V/6.25A.We add on 1X voltage transformer on each USB port,can pick up 12/2.5A transfer to 5V/6A.Then we add 1X power module on each USB port distribute current to each port 5V/3A max power(NOT support fast charging).To protect USB device,we designed 2X electric circuit protector,2X voltage stable capacitance and 2X voltage stable inductance. Do not worry data loss or burning USB devices now.Add super fast USB 3.1 gen2 host controller card on PCs.Choose More Stable,Fast and Safe data connection with FebSmart.
Product Features:
1.Expand to 2X USB 3.1 Gen2 Type C 10Gbps ports on newly build dektop computers by PCIE 3.0 X4 slot.
2.Build in FebSmart self-powered technology,no need additional power supply,provide each USB port 5V/3A (5V/6A in total) power for USB device.
3.The added-on Heat-Sink will help PCIE USB card core components stay away from overheat,make sure USB device always stay at peak speed. 4.Support auto speed negotiation USB 3.1 Gen2 10Gbps, USB 3.0 5Gbps, USB 2.0 480Mbps, USB 1.1 12Mbps.
5.PCIE 3.0 standard and PCIE X4(X2 signal) interface design. Compatible with PCIE 1.0, 2.0,3.0,4.0 standard on X4, X8, X16 slot.
6.Packed with standard size bracket and low-profile bracket,works on standard size and slim size PCs.
7.PCI Express communicate speed: PCIE 3.0/4.0 16Gbps,PCIE 2.0 10Gbps,PCIE 1.0 5Gbps.Suggest to use this card on PCIE 3.0/4.0 MOBO.
8.Complaint with USB 3.1 specification revision 1.0 and Intel extensible host controller interface revision 1.1.
System Requirements:
1. Plug and Play on MAC OS 10.9.x,10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system.NOT works on MAC OS 10.11.x system.
2. Driver Free on Windows 10, 8.1, 8 and Server 2012, 2012R2, 2016, 2019 (32/64bit),Need to install driver on Windows 7 and Server 2008, 2008R2 (32/64bit).
Package: 1X FS-C2-Pro 1X User Manual 1X Mount-screw 1X Low Profile Bracket 1X Driver CD
