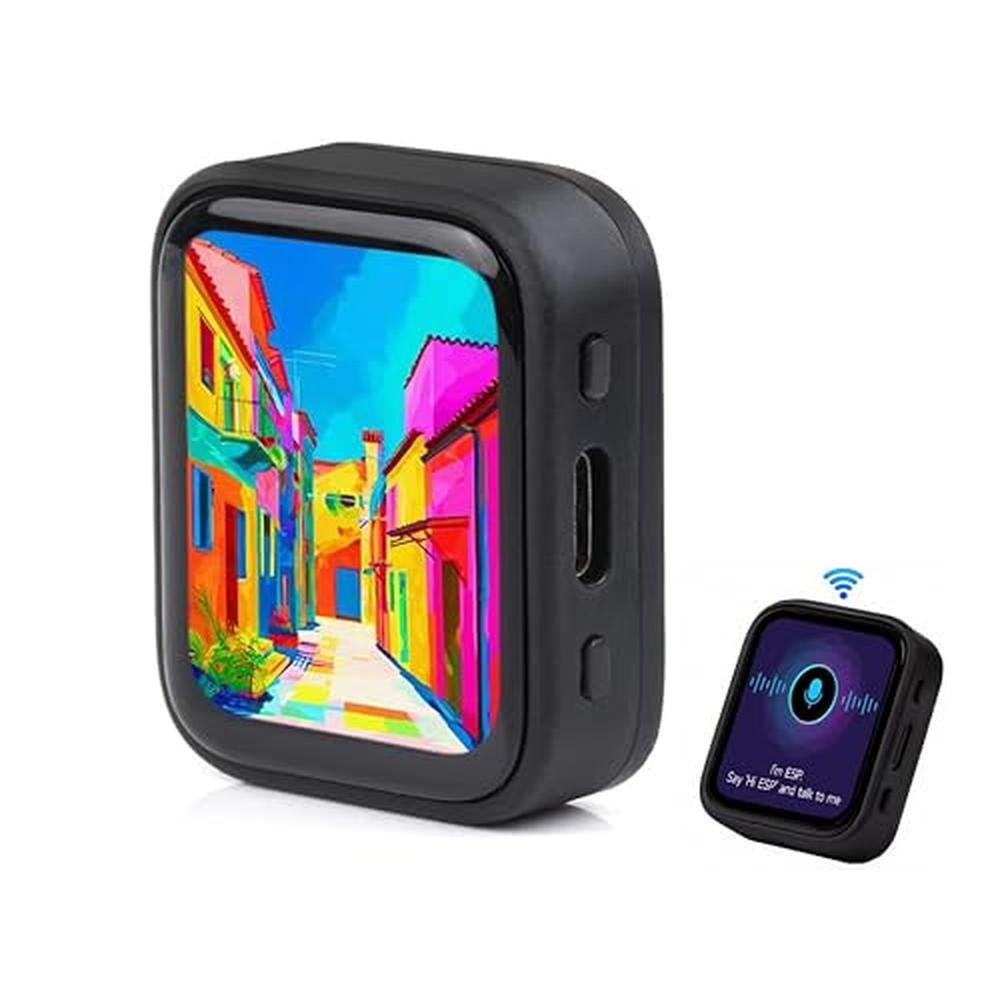

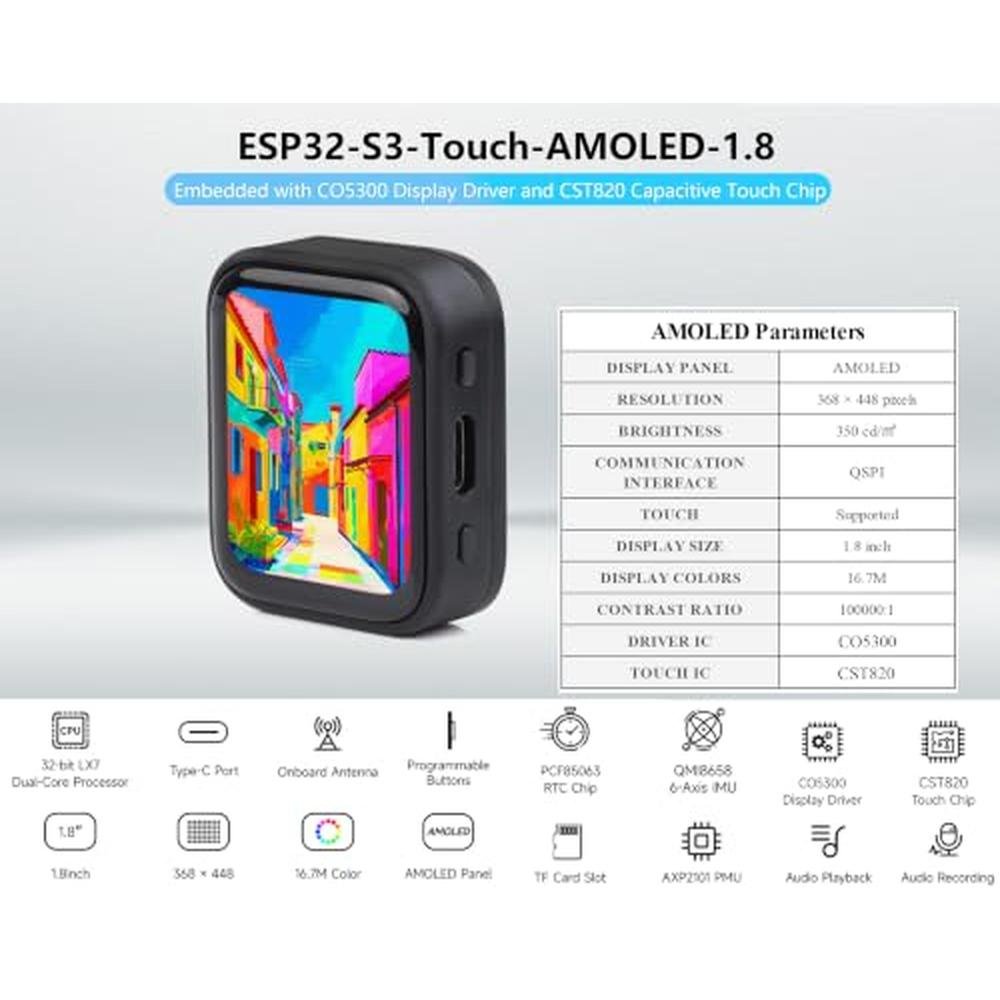

ESP32-S3 1.8inch AMOLED Touch Screen Development Board, 368x448 Pixels

Product description

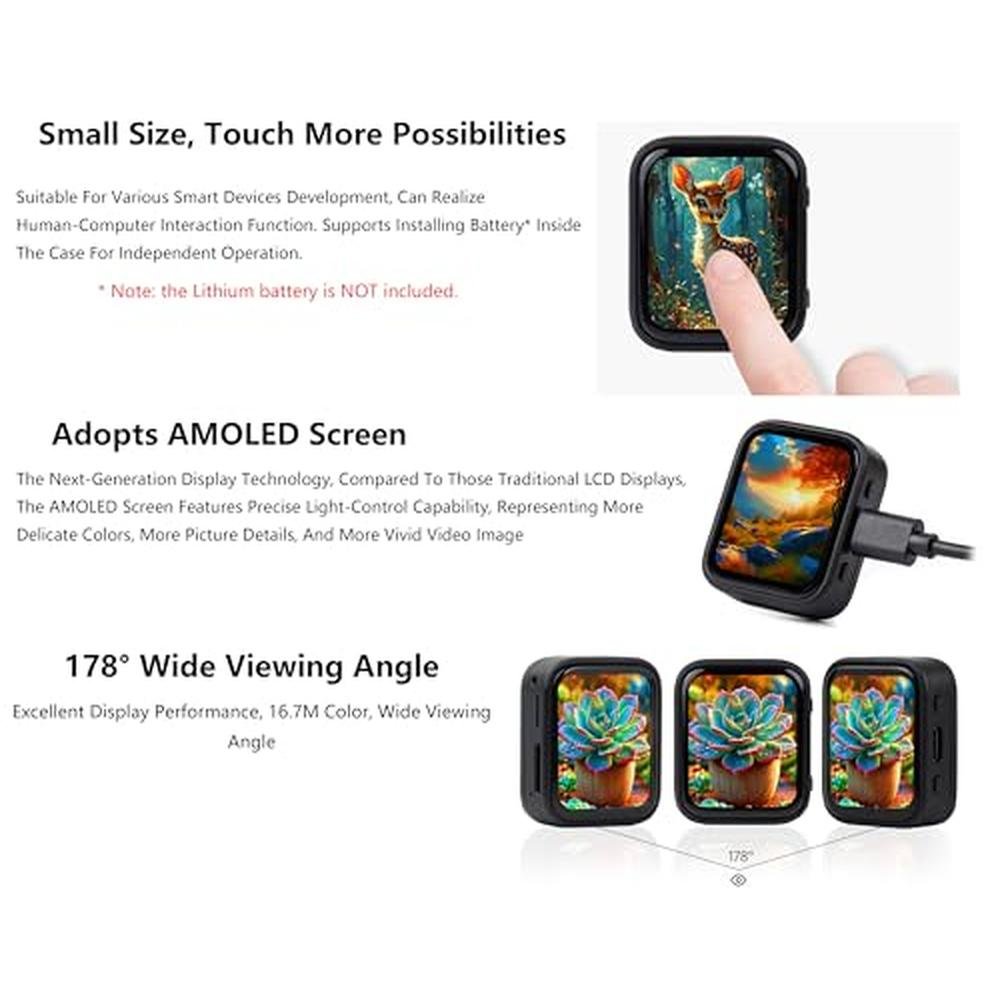

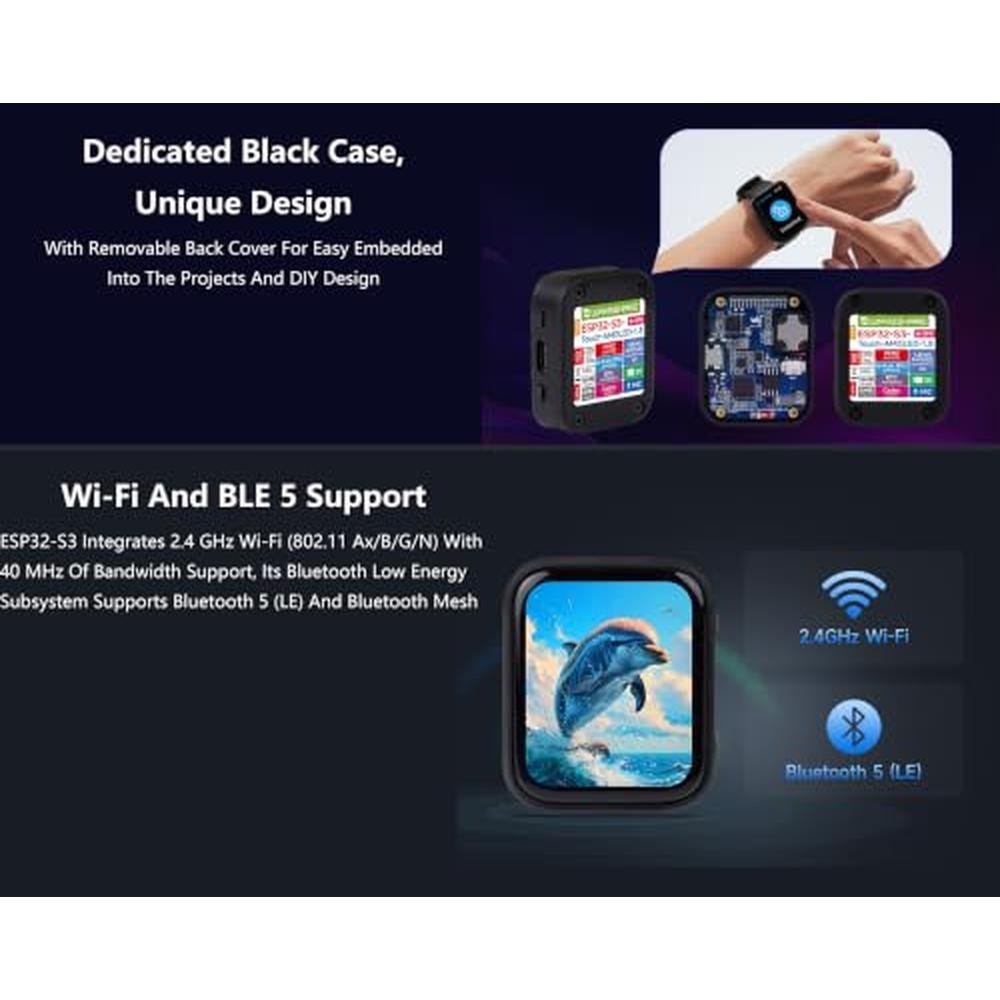

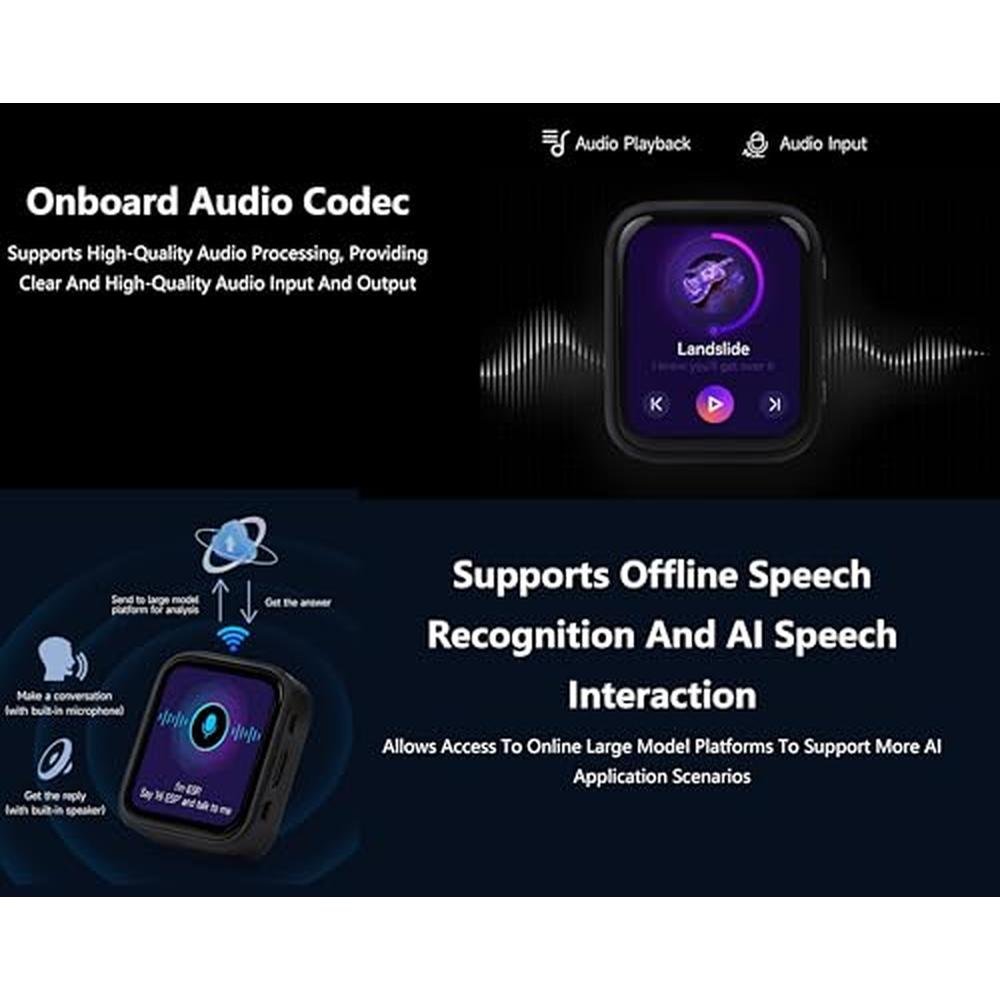

1. Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue--tooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. 2. AMOLED Touch Screen--- Onboard 1.8inch AMOLED display for clear color picture display, 368 x 448 resolution, 16.7M color, 178 wide viewing angle. Compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image. 3. Onboard Audio Codec---Supports high-quality audio processing, providing clear and high-quality audio input and output. Supports Offline Speech recognition and AI Speech Interaction---Allows access to online large model platforms to support more AI application scenarios. 4. For Various Smart Devices Development, Can Realize Human-Computer Interaction Function. Supports installing ba|tte|ry inside the case for independent operation. (Note: this version doesn't include ba|tte|ry) Dedicated Black Case---with removable back cover for easy embedded into the projects and DIY design. 5. Sensor and Chip---Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources. 6. Rich Interfaces---Type-C connector, easier to use. Reserved pads of 7 x GPIO, 1 x I2C, 1 x UART, and 1 x USB interface, for connecting peripherals and debugging. Onboard TF card slot. Onboard 3.7V MX1.25 Lithium ba|tte|ry recharge/discharge header, optional for 3.7V Lithium ba|tte|ry. Comes with Online Tutorial and Online Development Resource, Please check: n9.cl/isf3c Package Content ESP32-S3-Touch-AMOLED-1.8-EN.
