ELFJMZP PCIe 4.0 x16 to 4 Port M.2 NVMe SSD Adapter Card, PCIe Bifurcation RAID Controller, 4x 64Gbps Full Speed, Supports 4x NVMe SSD with Individual LED Activity Lights & Soft RAID for Windows 10/11, Black_1

Load image into Gallery viewer, ELFJMZP PCIe 4.0 x16 to 4 Port M.2 NVMe SSD Adapter Card, PCIe Bifurcation RAID Controller, 4x 64Gbps Full Speed, Supports 4x NVMe SSD with Individual LED Activity Lights & Soft RAID for Windows 10/11, Black_1

ELFJMZP PCIe 4.0 x16 to 4 Port M.2 NVMe SSD Adapter Card, PCIe Bifurcation RAID Controller, 4x 64Gbps Full Speed, Supports 4x NVMe SSD with Individual LED Activity Lights & Soft RAID for Windows 10/11, Black

Regular price: Rs. 4,569.00
Sale price: Rs. 4,569.00
Regular price: ~~Rs. 5,088.00~~
Unit price: per

Tax included. Free shipping

Brand: ELFJMZP

SKU: PIB0H4QHBMR1

Quantity

Estimated Delivery Date:

Quantity must be 1 or more

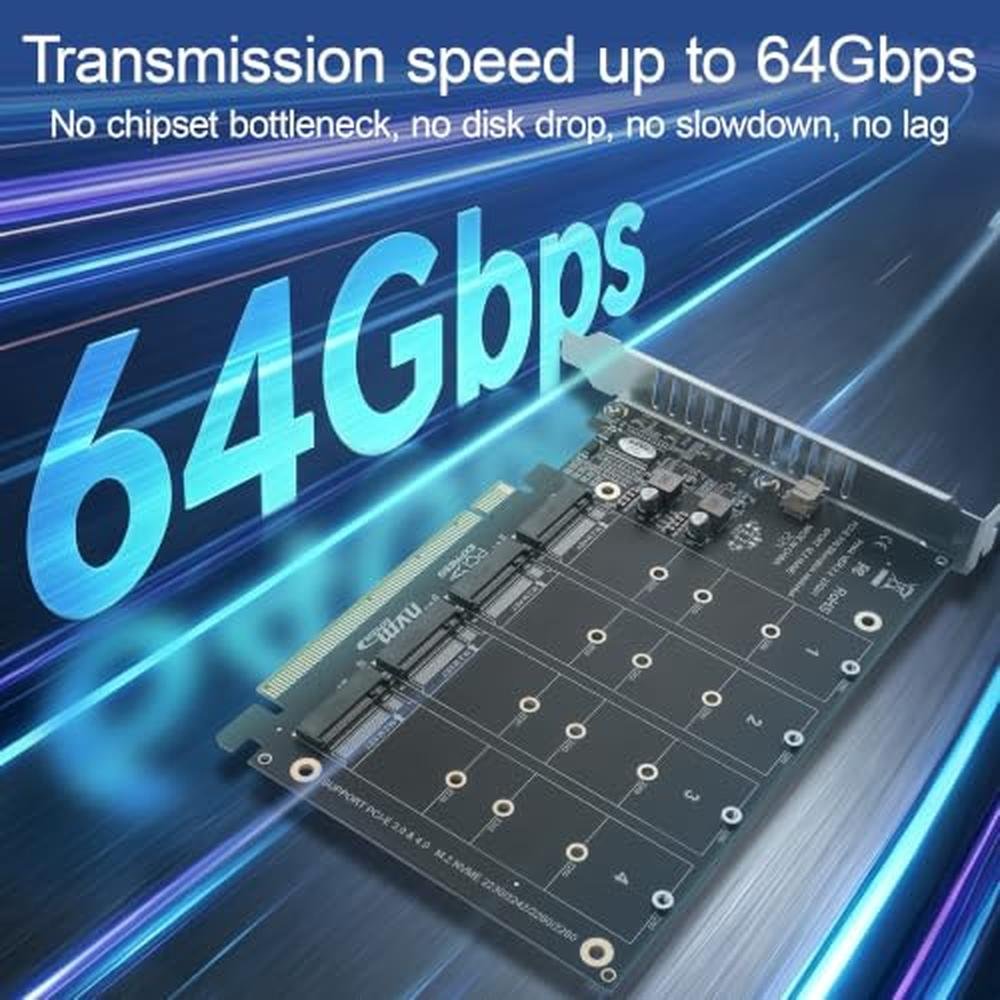

Unleash the full potential of your SSDs with true PCIe 4.0 support. This expansion card provides 4 independent M.2 NVMe slots running at x4 lanes each (Total x16), delivering up to 64Gbps per SSD. No chipset bottleneck means no disk drops, no slowdowns, and no blockages ideal for professional video editing, data analysis, or high-end gaming.
CRITICAL: This card requires Motherboard support for PCIe Bifurcation (x4x4x4x4 mode). It is a Signal Splitter Card, NOT a PLX Chip Card. Please ensure your BIOS allows setting the PCIe x16 slot to "4x4x4x4". Also supports PCIe RAID if your motherboard offers it. If your motherboard does not support Bifurcation, this card will NOT work.

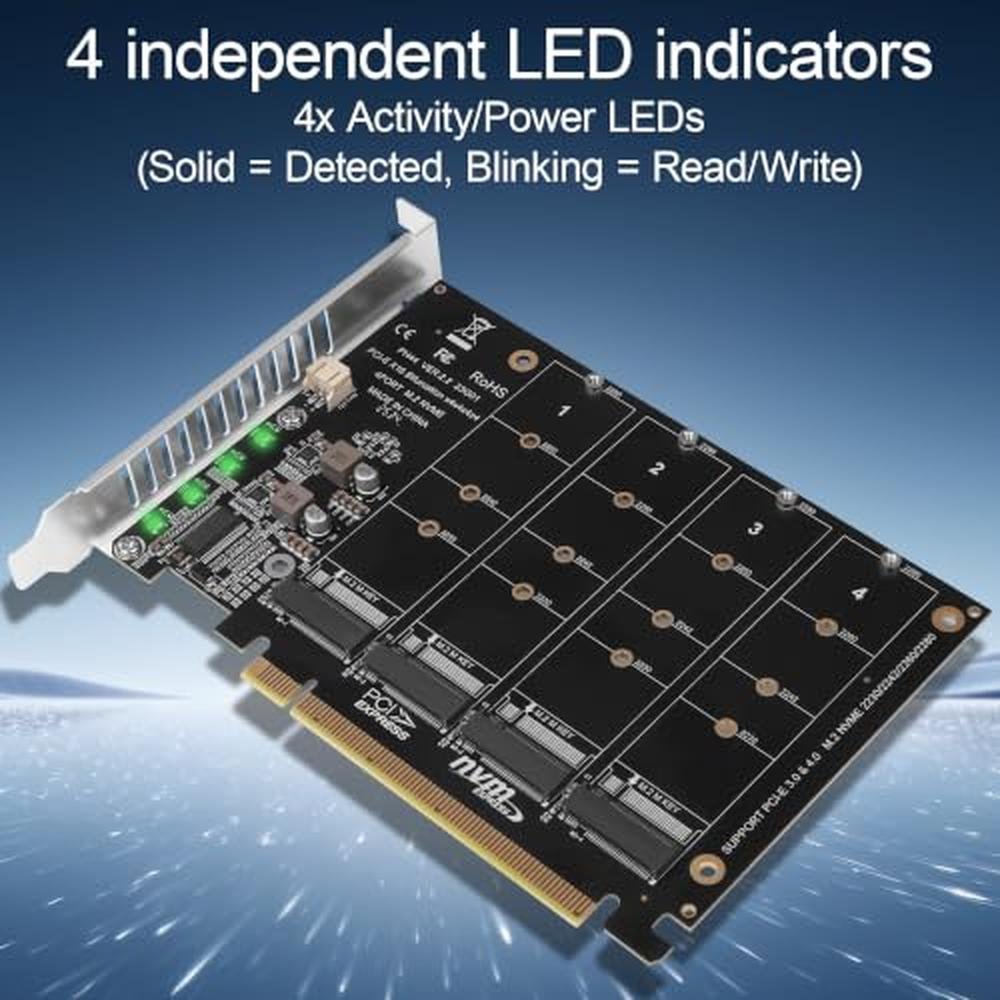

Take full control with 4 dedicated LEDs. Each LED corresponds to one NVMe SSD: The LED lights up solid when an SSD is detected, and flashes actively during read/write operations. This gives you real-time visual feedback on drive status and activity at a glance.
Easily configure Soft RAID (RAID 0, 1, 5, 10) via Windows 10/11 Storage Spaces or Disk Management. The card is plug-and-play with no driver needed for Windows 10/11. Note: Linux and older Windows versions may require generic NVMe drivers. The high-power DC chip ensures stable power delivery across all 4 drives.

Product description

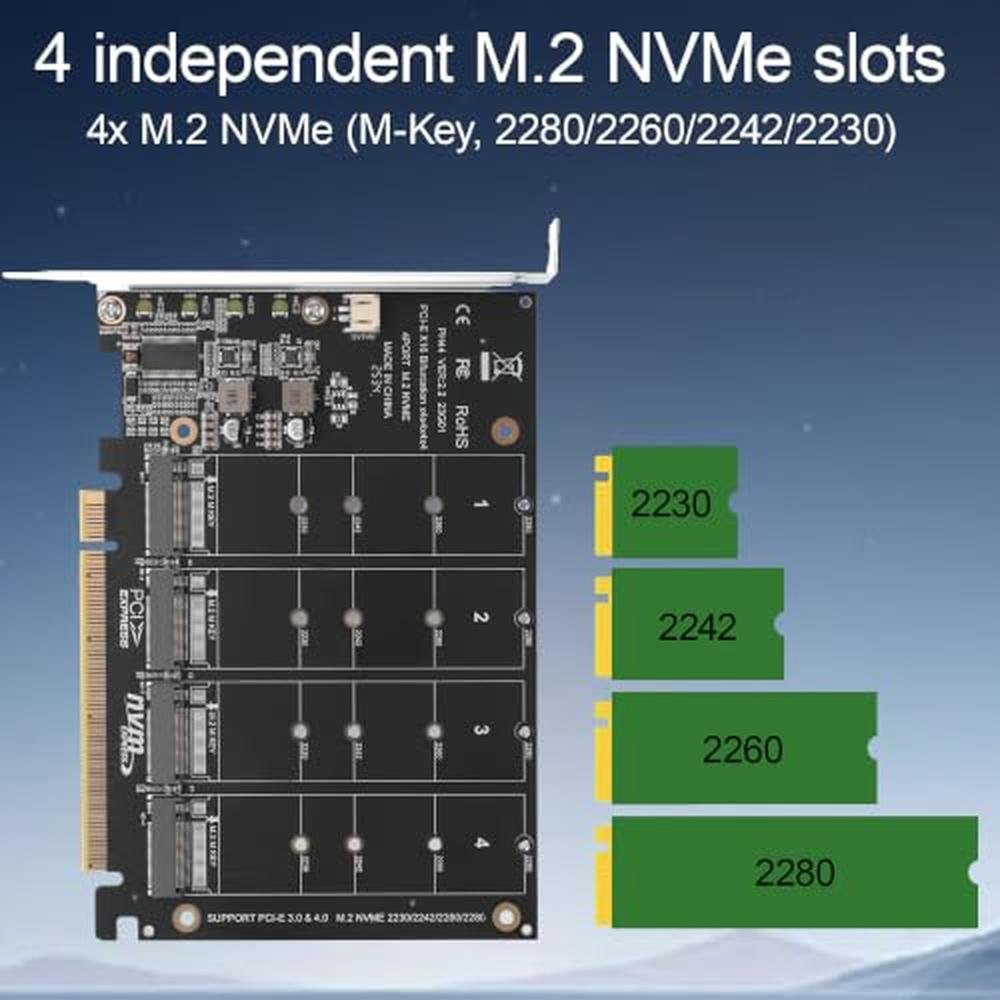

Upgrade your workstation or server with the PCIe to 4x M.2 NVMe Adapter Card. Whether you are a content creator dealing with 8K video, a data scientist, or a gamer, this card provides the fastest storage expansion available. Key Technical Specifications: Interface: PCI Express x16 (Physical x16 Slot required) Compatible SSDs: 4x M.2 NVMe (M-Key, 2280/2260/2242/2230) Transfer Protocol: PCIe 3.0 & 4.0 compliant Bandwidth: Up to 64Gbps per port (Total 256Gbps) LEDs: 4x Activity/Power LEDs (Solid = Detected, Blinking = Read/Write) Soft RAID Guide: While this card does not have a hardware RAID chip, it is fully optimized for Windows Software RAID. In Windows 10/11, use "Storage Spaces" or "Disk Management" to create Striped (RAID 0), Mirrored (RAID 1), or Parity (RAID 5) volumes easily. System Requirements (Please read before buying): 1.CPU: Must have enough PCIe lanes (Intel Core i5/i7/i9 HEDT or AMD Ryzen/Threadripper recommended). 2.Motherboard BIOS: Must support PCIe Bifurcation with the option to set the target PCIe x16 slot to x4x4x4x4 mode. 3.OS: Windows 10/11 (Driverless), Linux/macOS may require manual driver configuration. Package Includes: 1x 4 Port NVMe Adapter Card 11x M.2 Mounting Screws WICHTIGER HINWEIS / IMPORTANT NOTE: This product is a PCIe SIGNAL SPLITTER (Passive). It does NOT contain a PCIe Switch/PLX chip. You MUST verify your motherboard supports PCIe Bifurcation (x4x4x4x4) in the BIOS before purchasing. If your motherboard treats the slot as x16 only, only the first SSD will be recognized. Please contact us if you are unsure. "VAT is handled by Amazon according to European tax laws.".

Technical specifications

SKU	PIB0H4QHBMR1
Brand	ELFJMZP
Number of Items	1
Number of Packs	1
Manufacturer	ELFJMZP
Mfr Part Number	EP000293
