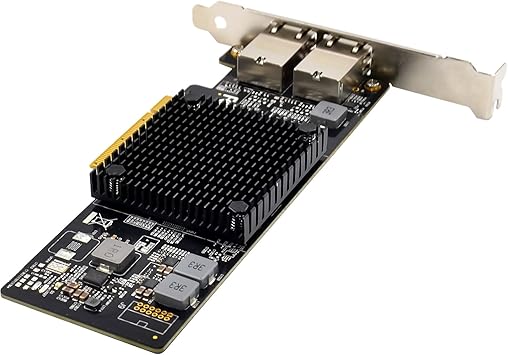

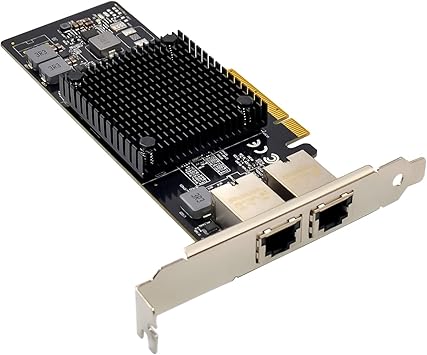

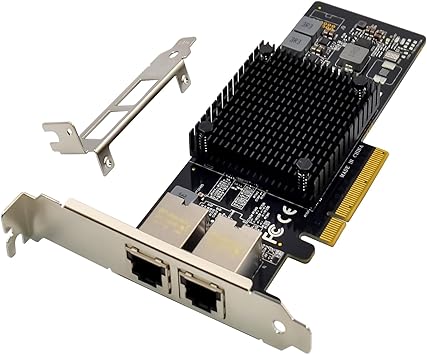

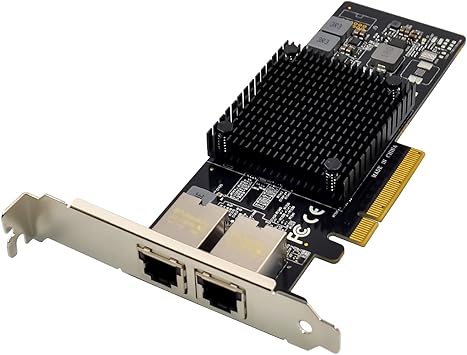

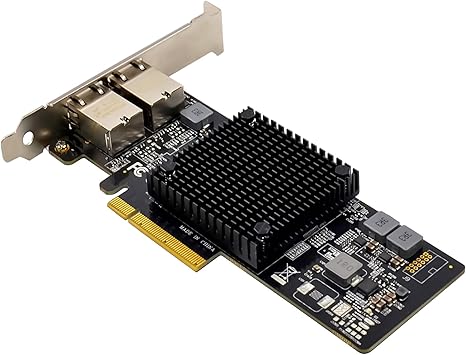

Dual-Port 10G PCIe X8 Network Adapter Card with Intel-X550AT 10GBASE-T & NBASE-T PCI Express Network Interface Adapter 10/5/2.5/1GbE Multi Gigabit Ethernet 5 Speed NIC LAN Card(ST7280-X550AT2)

Specifications & Details

Product description

PCI Express X8 Network adapter adopts Intel a high performance 10G network controller ELX550-AT2 ,By providing unparalleled features of virtualization, flexible features, and proven reliable performance, it solves the high requirements of the generation data center, it has dual 10Gbps RJ45 port which can setup a long-distance link with a file server or a remote workstation. Specification PCIe interface 3.0 – 8.0GT/s, 5.0GT/s and 2.5GT/s Two independent 10GBASE-T interfaces are used to connect the two X550 ports to external devices. Each 10GBASE-T interface can operate at any of the following speeds: 10 Gb/s, 10GBASE-T mode 5 Gb/s, NBASE-T mode 2.5 Gb/s, NBASE-T mode 1 Gb/s, 1000BASE-T mode 100 Mb/s, 100BASE-TX mode 10 GbE/1 GbE/100 Mb/s copper PHYs integrated on-chip Network Interfaces IEEE 802.3 Ethernet interface for 10GBASE-T, 1000BASE-T, 100BASE-TX (IEEE 802.3an, 802.3ab, 802.3u) NBASE-T technology support for 2.5GbE and 5.0GbE (pre-IEEE 802.3bz) Integrated Copper 10GBASE-T PHYs NBASE-T technology support (IEEE 802.3bzready) 802.3az Energy Efficient Ethernet (EEE) support Provides 2.5GbE and 5.0GbE link speeds over CAT5e/CAT6 cabling deployments. Firmware upgradable to IEEE 802.3bz¹ IEEE 1588 Protocol and IEEE 802.1AS Implementation Support jumbo frames of up to 15.5 KB MDIO interface Clause 45:Y (internally) VLAN Support: IEEE 801.1Q (VLAN) IEEE 802.1ad (Double VLAN) Automatic Cross-over Detection Function (MDI/MDI-X) I/O Features for Multi-core Processor Systems Networking Specifications Port Configuration:Dual Data Rate Per Port:10/5/2.5/1GbE (NBASE-T in Linux Only) System Interface Type:PCIe v3.0 (8.0 GT/s) NC Sideband Interface :Yes Jumbo Frames Supported:Yes Interfaces Supported:100Base-T, 1000Base-T, 10GBase-T Intel Virtualization Technology for Connectivity Flexible Port Partitioning? Yes Virtual Machine Device Queues (VMDq) :Yes PCI-SIG* SR-IOV Capable :Yes Advanced Technologies Intel Virtualization Technology for Connectivity (VT-c)?VMDq, SR-IOV Fiber Channel over Ethernet ?Yes MACsec IEEE 802.1 AE ?No IEEE 1588 ?Yes Supported Under Intel vPro Technology?No iWARP/RDMA ?No Intel Ethernet Power Management ?Yes Intel Data Direct I/O Technology ?Yes Intelligent Offloads?Yes Storage Over Ethernet?iSCSI, FCoE, NFS OS Support: Windows* Client: 7/8/8.1/10/11; Windows* Server: 2008R2/2012/2012R2/2016/2019/2022 WinPE 3.0 (2008 R2 PE), WinPE 4.0 (2012 PE), WinPE 5.0 (2012 R2 PE) Linux:RHEL9.2, 9.1 &8.8, 8.7,RHEL8.x (8.6 and previous),SLES15 SP4,SLES 15 SP3 and previous,SLES12 SP5,SLES12 SP4 and Previous,Ubuntu* 22.04 LTS,Ubuntu*20.04 LTS,Debian*11,FreeBSD*13 / 12.3/12.2 and Previous,Linux Stable Kernel version 2.6/3.x, Linux Stable Kernel version 4.x,UEFI 2.1, UEFI 2.3, UEFI 2.4, VMware ESXi 5.5/6.0 Package content ?1 x PCIe Network card ?1 x User’s Manual ?1 x CD Driver ?1 x Low profile bracket
