DSD TECH HM-10 | Bluetooth 4.0 | Advanced iBeacon UART Module | Black 4PIN

Product description

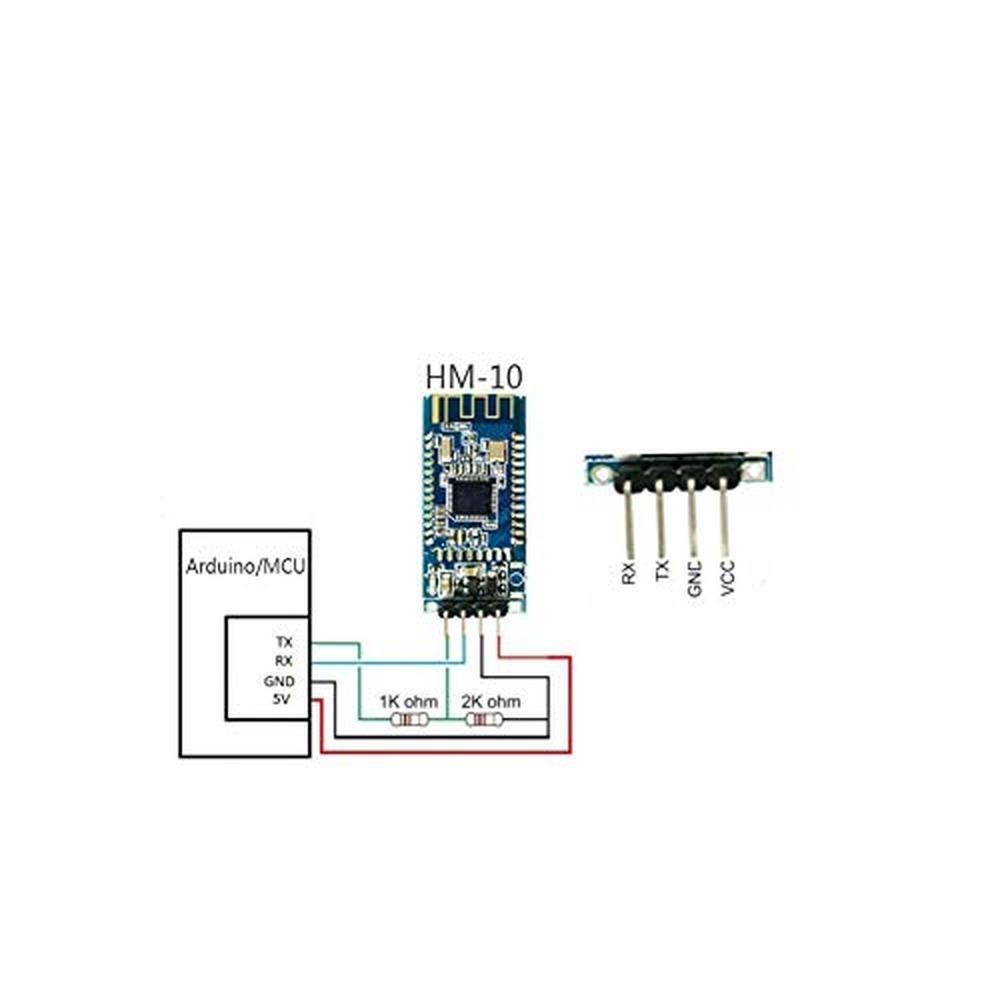

Venture into the world of innovative technology with the DSD TECH HM-10 Bluetooth 4.0 BLE iBeacon UART Module, a refined and sophisticated solution designed to seamlessly integrate with your Arduino projects, including the UNO R3, Mega 2560, and Nano. Curate your IoT projects with this premium-grade module, which boasts a 4PIN base board for effortless connectivity and compatibility. Engage with the limitless possibilities of Bluetooth 4.0 and iBeacon technology, allowing you to craft exquisite and world-class applications that showcase your creativity and expertise. As a leading brand in the tech industry, DSD TECH delivers high-quality products that meet the most stringent requirements, making the HM-10 module an ideal choice

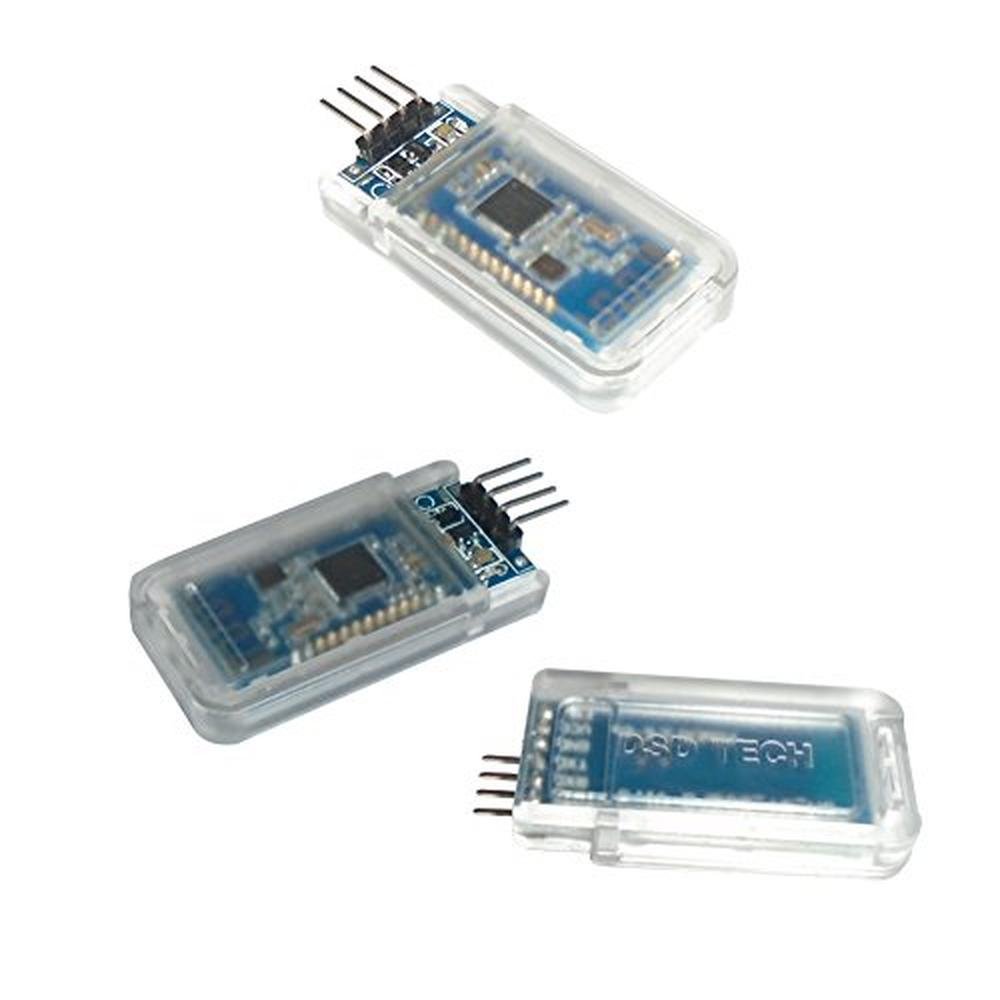

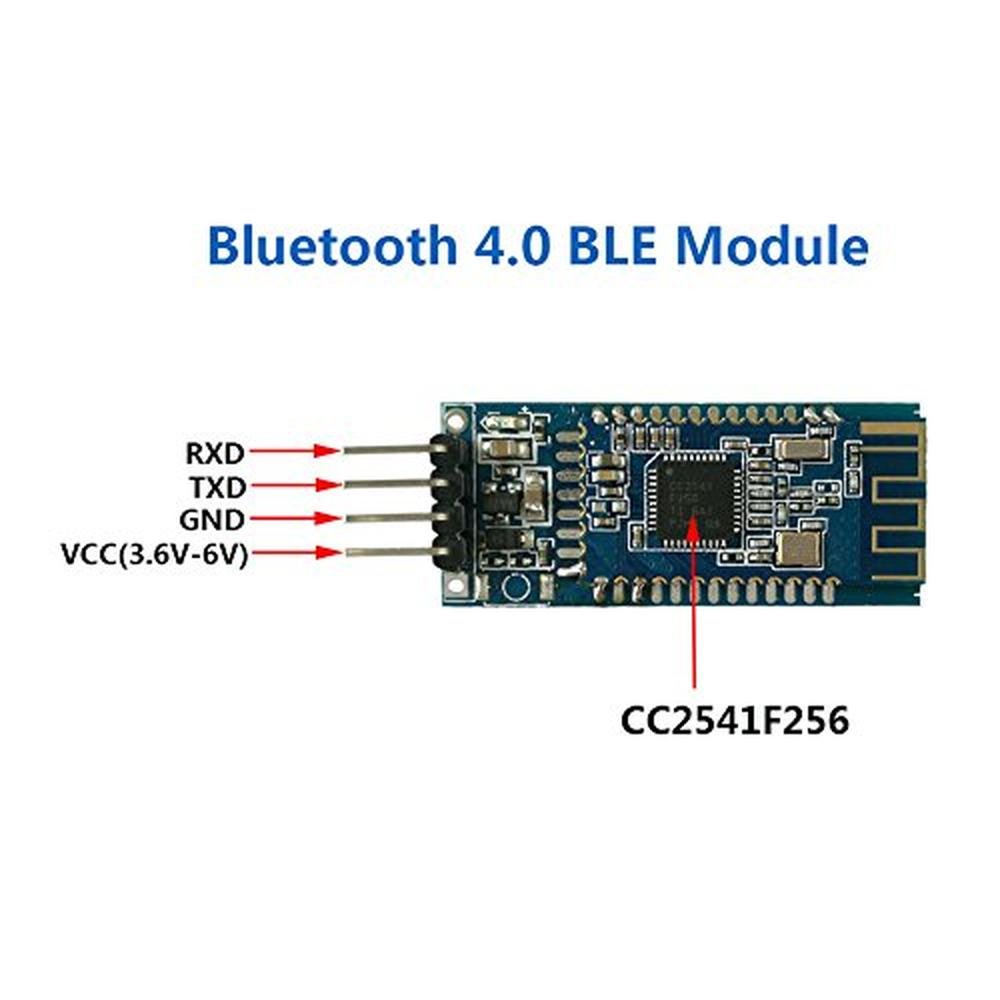

This is a Bluetooth 4.0 module with 4pin base board that can support iphone4s or later. But does not support the version is lower than the android 4.3 phone(it don't support classic bluetooth 2.0 spp features) The core module is HM-10 Base board from DSD TECH Operating voltage: 3.3V to 6VAbout APP We provide a free app for this module for you to test and use. Search for 'DSD TECH Bluetooth', which you can find in appstore and google play. How to Enable Apple Notification Center Service (ANCS) ANCS function 1.1 Please read apple notification ducument first 1.2 Send AT+TYPE3 command change to AUTH and BOND mode. 1.3 Send AT+ANCS1 command to open ANCS. 1.4 Send AT+PASS[para1] command to set passcode. Default passcode is '000000' 1.5 Send AT+RESET to restart module. Now you can use LightBlue to scan and made a connect with module. iOS will ask you input passcode. please input your passcode value. If all is okay, you should receive AT+ANCS[para1] command from module UART. About HM-10 Module Core module is the original HM-10 module, not fake. If you meet any question, please contact us, we will fix your issue within 24 hours.
