Product description

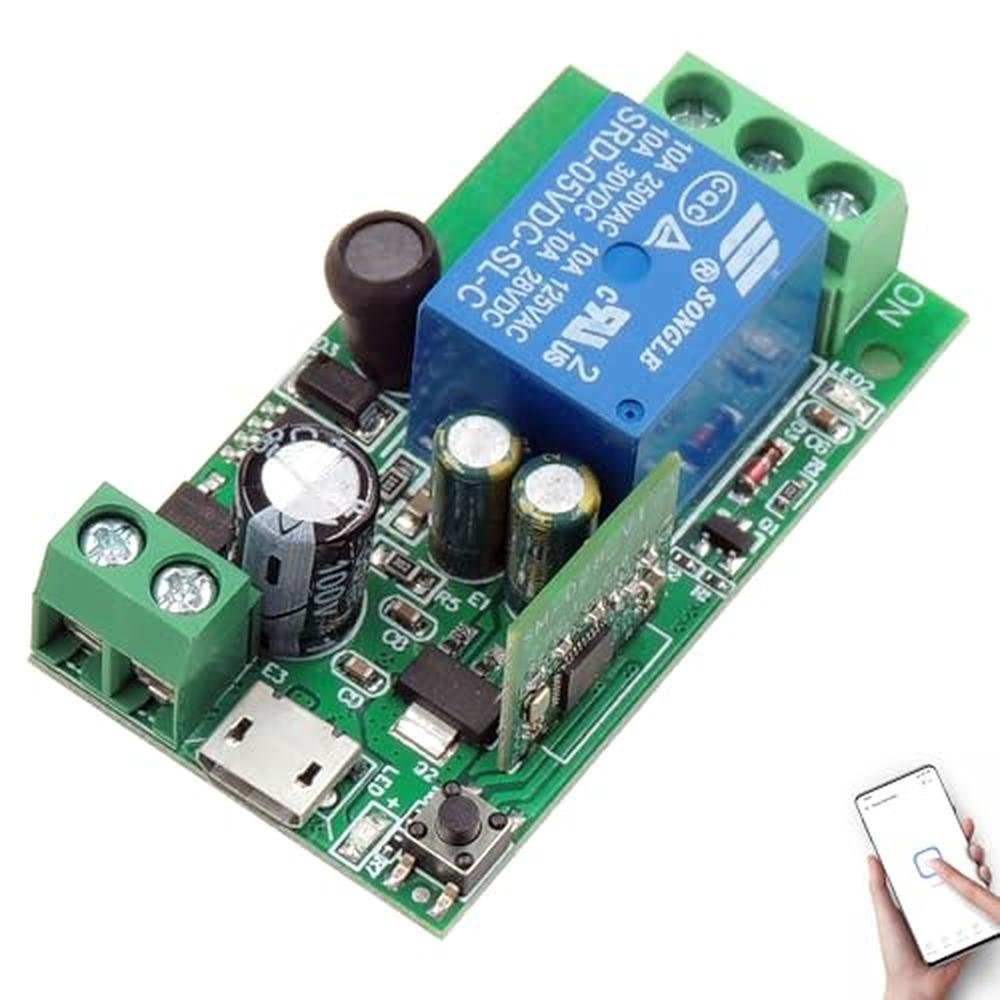

Package Include: 1x WIFI Controller Module 1x Product manual Controller Module Parameter: -Working Voltage: DC 5V or DC 7V~48V - Relay max current: 10A -Output type: passive output/ clean relay -Channel: 1 channel - WiFi: IEEE 802.11 b/g/n 2.4GHz - Support Remote Control: RM2.4G Bluetooth remote control -Size: 55*29*17 mm (2.2*1.1*0.7 in) - Working temperature: -30~+80 APP pairing: 1. Your phone has been connected to 2.4GHz Wi-Fi. And turn on the Bluetooth. 2. Long press pairing button for more than 5 seconds until blue LED indicator blinks twice quickly and keeps on once to enter pairing state. 3. Open eWelink APP, tap+ at the bottom of the screen, select Bluetooth Pairing, click Next, it will automatically scan device. And then operate according to the prompts on the APP interface. Notice: This package do not include RM2.4G Bluetooth remote control. If you purchased RM2.4G Bluetooth remote control, you can add the remote control and operate according to the prompts on the APP interface..
Technical specifications
| SKU | PIB0CGTM1G7J |
|---|---|
| Connector Type | Crimp |
| Contact Type | Normally Open |
| Current Rating | 10 A |
| Mounting Type | Surface Mount |
| Operation Mode | ON-OFF |
| Wattage | 360 watts |
| Coil Voltage | 5 volts_of_direct_current |
| Contact Current Rating | 10 A |
| Maximum Switching Current | 10 A |
| Minimum Switching Voltage | 5 volts_of_direct_current |
| Upper Temperature Rating | 80 C |
