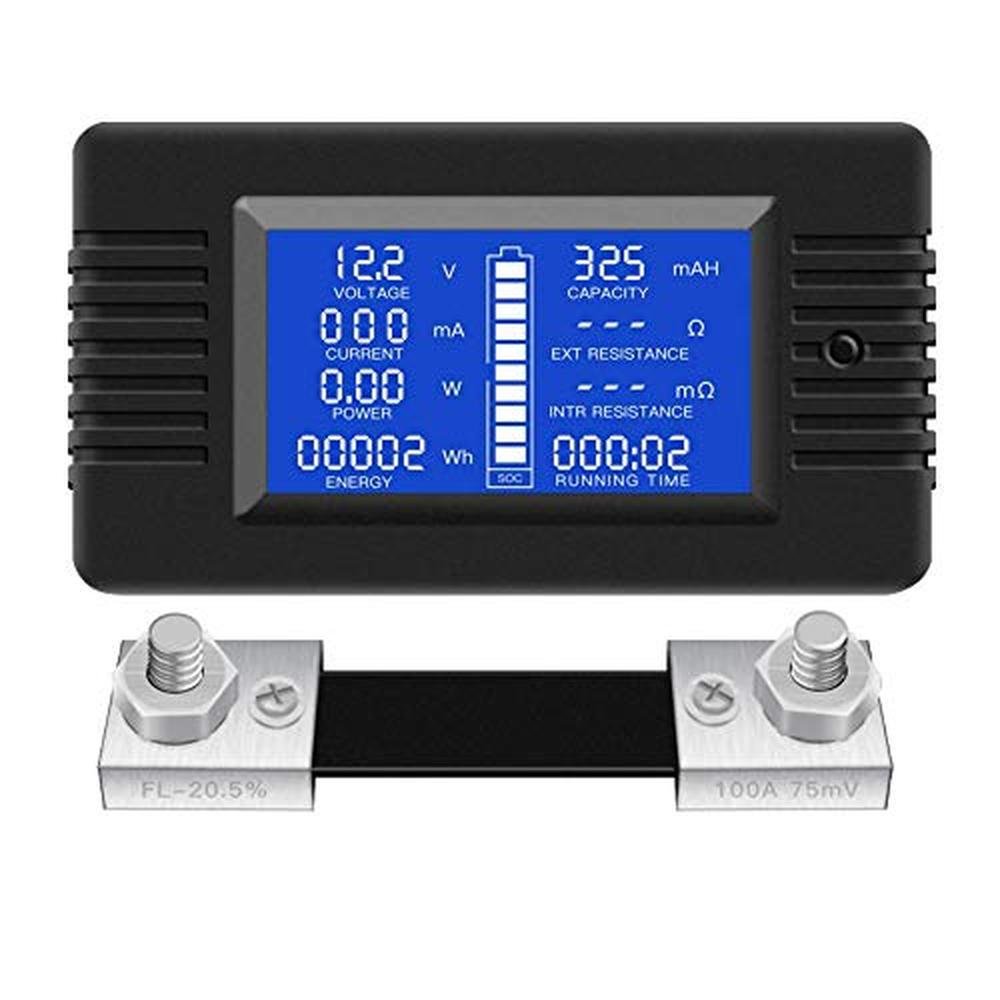

DC Multifunction Battery Tester Meter 0-200V 0-300A LCD Display Digital Current Voltage Solar Power Meter Multimeter Ammeter Voltmeter, Blue

Product description

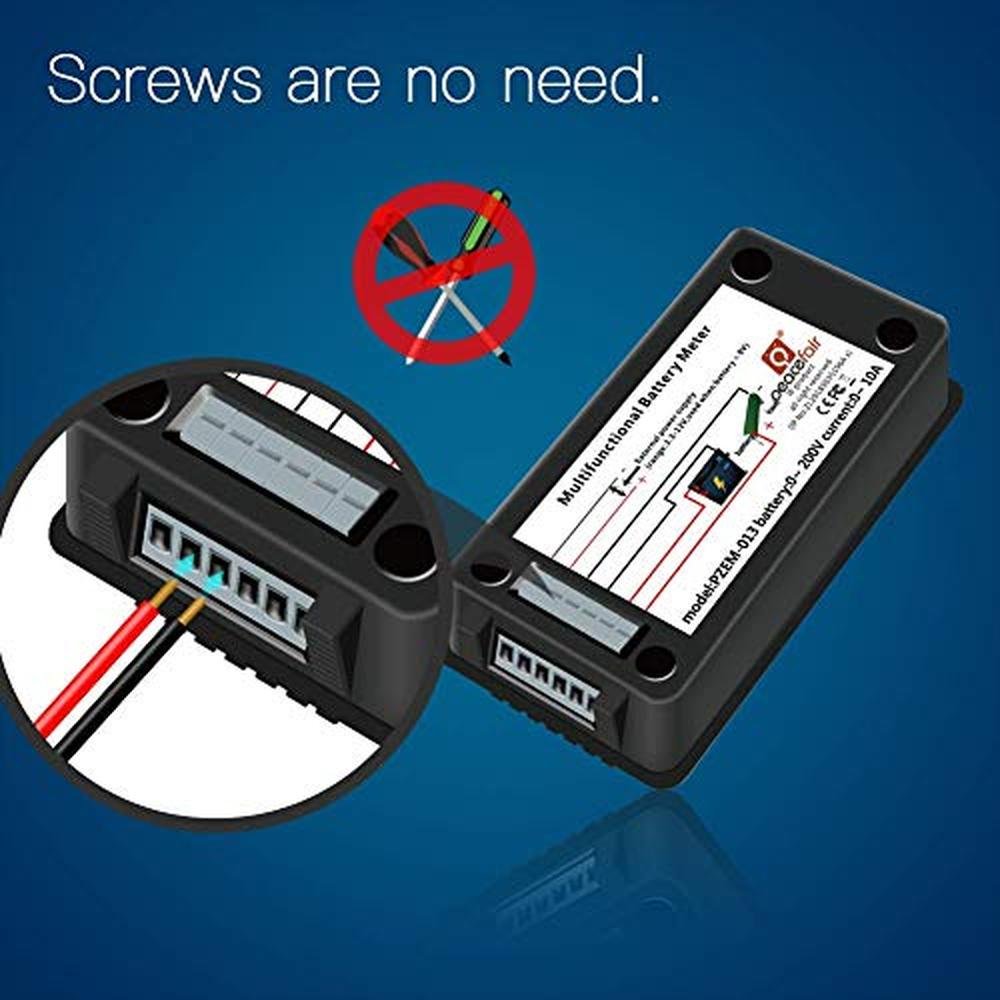

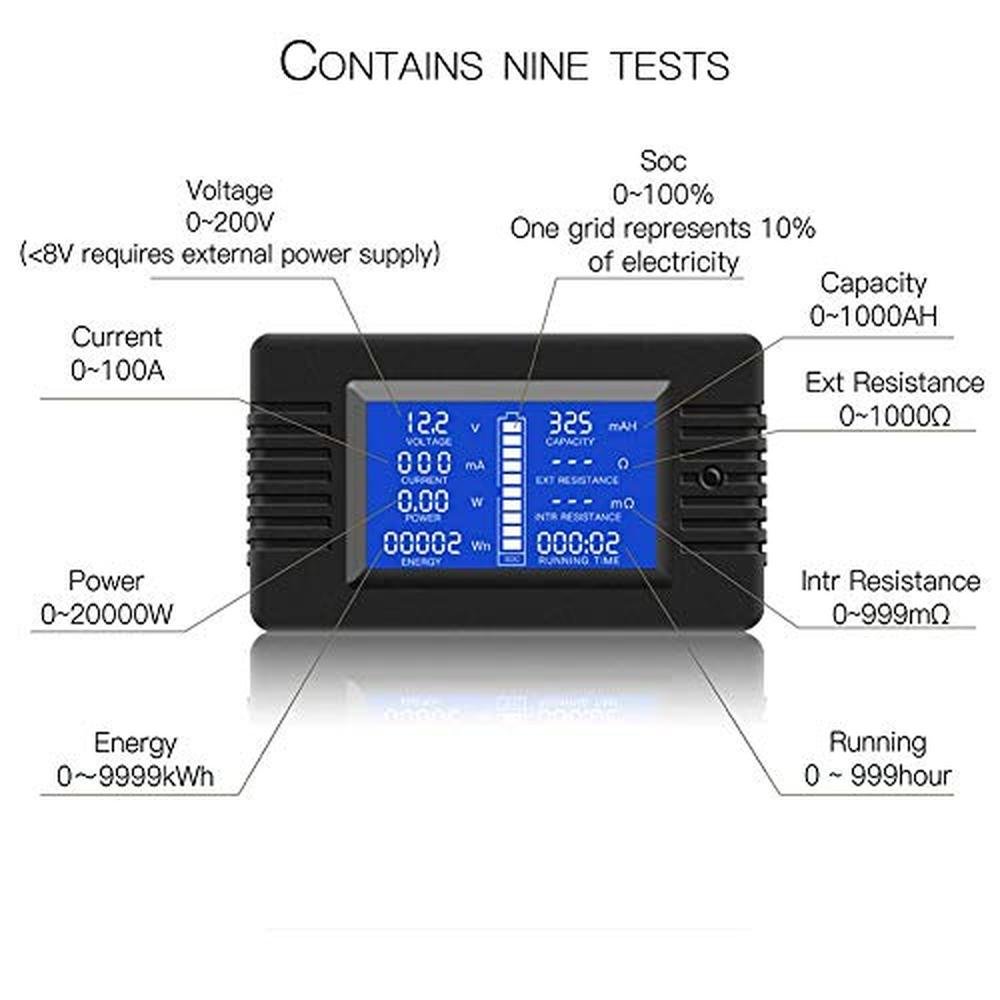

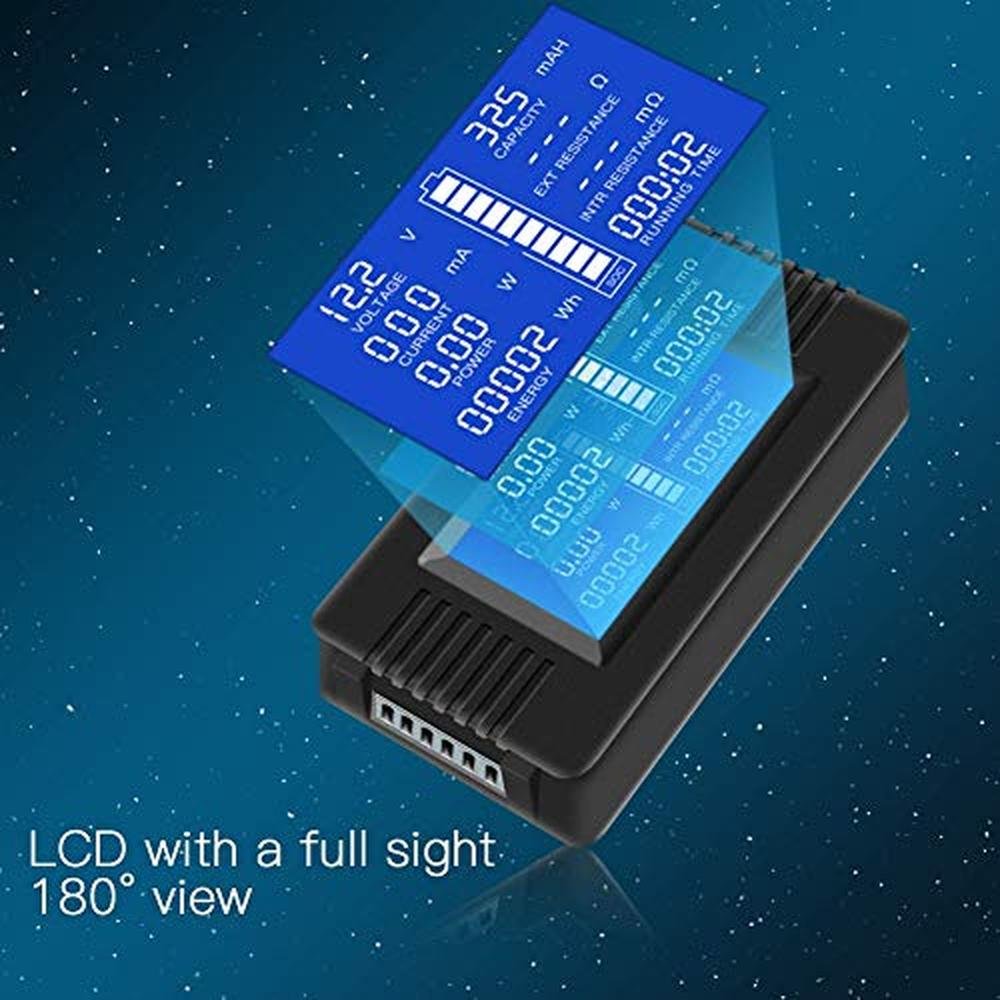

Multifunction Battery The PZEM-015 DC multifunction battery is mainly used to test all kinds of battery?s voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, dump energy, energy consumption and running time, and display the measurement data through LCD screen. Specification Power consumption Normal working state: 0.03-1.2 W Sleeping state: 0.5mW-0.5W Working temperature-20?C ~ +60?C. Display interface is large-screen LCD, it can display eight parameters at the same time. 1.Power: Measuring range: 0-20000W, Starting measure power: 0.2W Impedance: Measuring range: 0-1000? 2.Voltage: Measuring range: 0-200V. (when the test voltage is ?8V, please use the independent power supply mode) 3.Current: Measuring range: 0-300A. The starting test current: 20mA Internal resistance:Measuring range: 0-999m? 4.Capacity: Measuring range: 0-1000AH 5.dump energy?Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy. 6.accumulate energy consumption:1 Measuring range: 0?9999kWh. Note: 1Wh=0.001kWh=0.001 Kilowatt 7.Running time:Measuring range: 0 ~ 999 hour (without load the time will not accumulate) No screws design Push-on terminal, no need screws to connect. Wildly application DC multifunction battery meter wildly used for solar system/ industrial assembly line / Auromobile Etc. LCD Display Large-screen LCD with all sight 180 view The blue backlight can be turened on/off manually.
