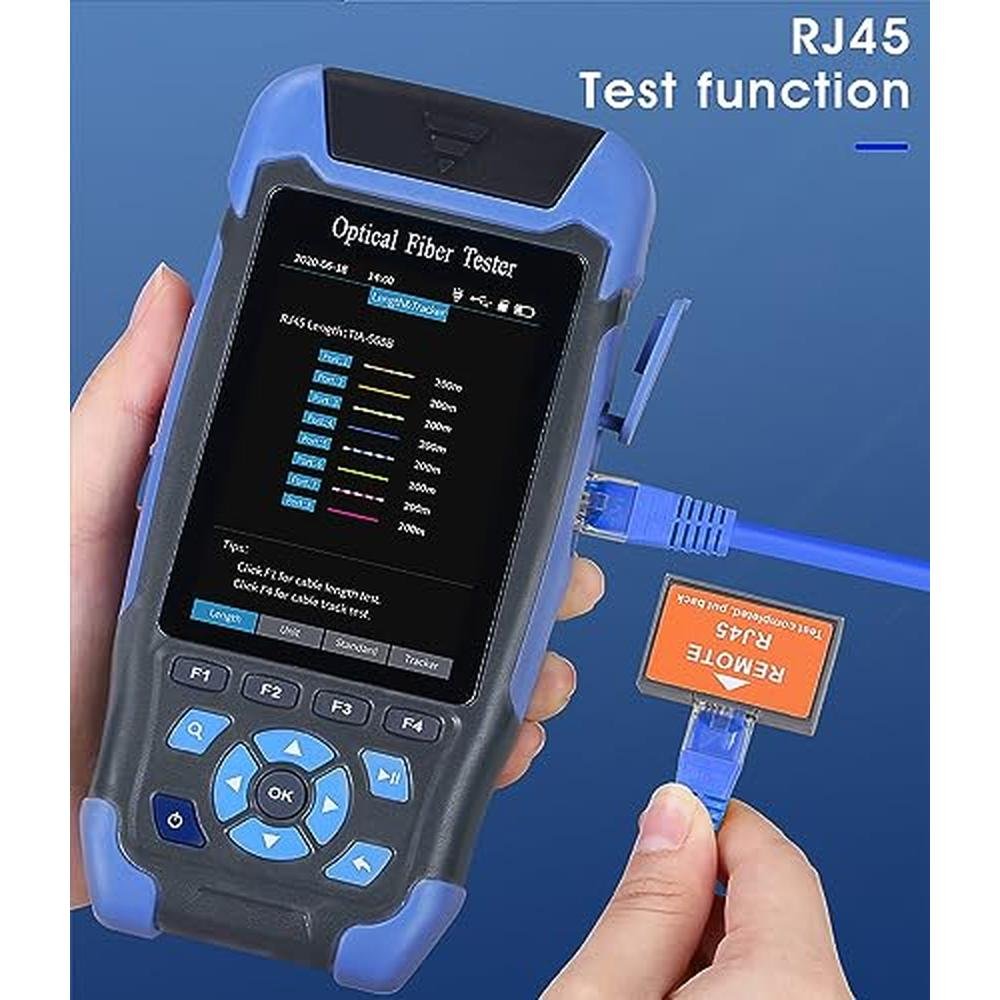

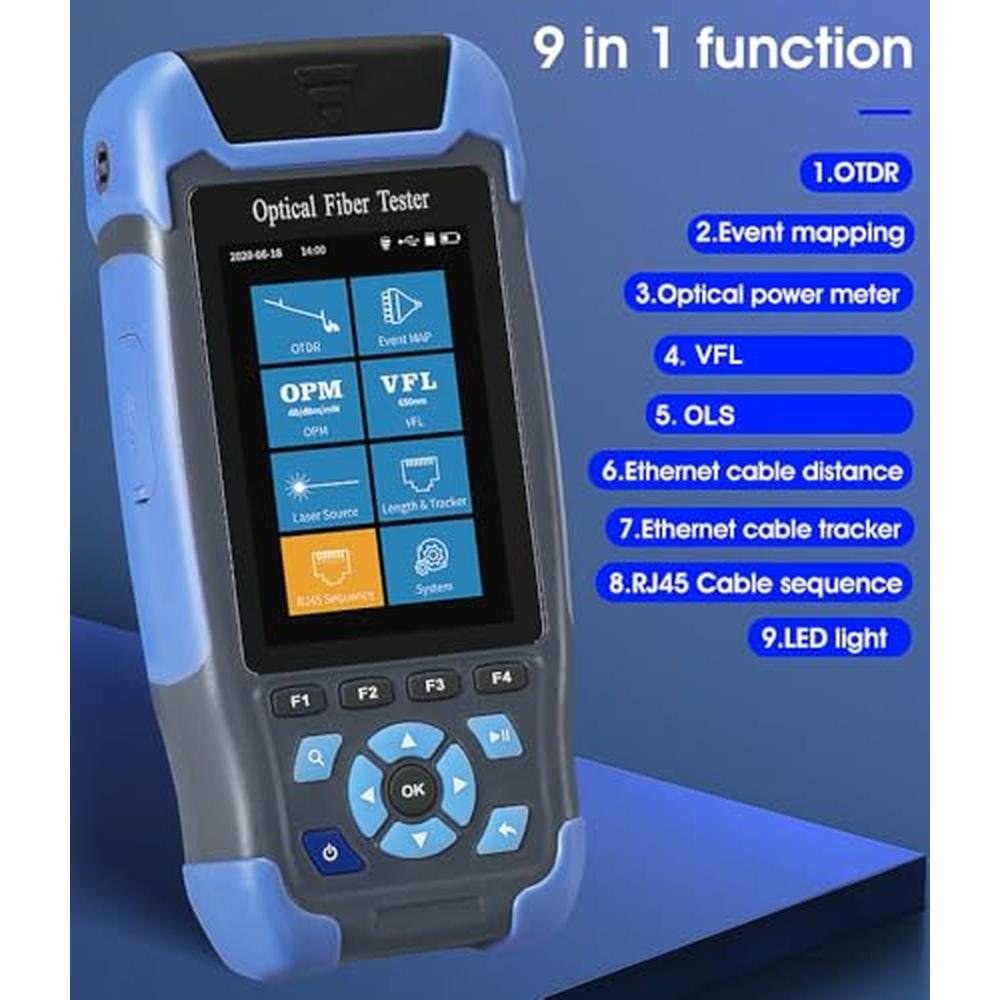

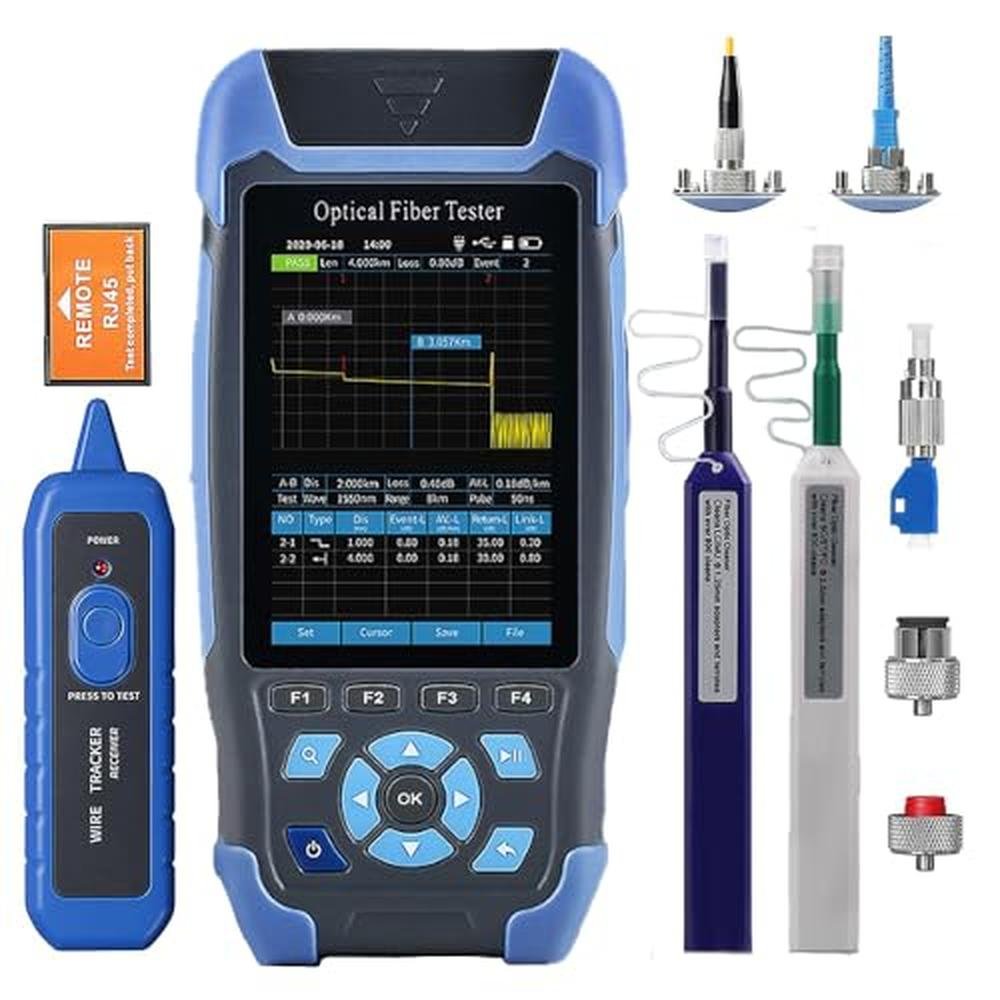

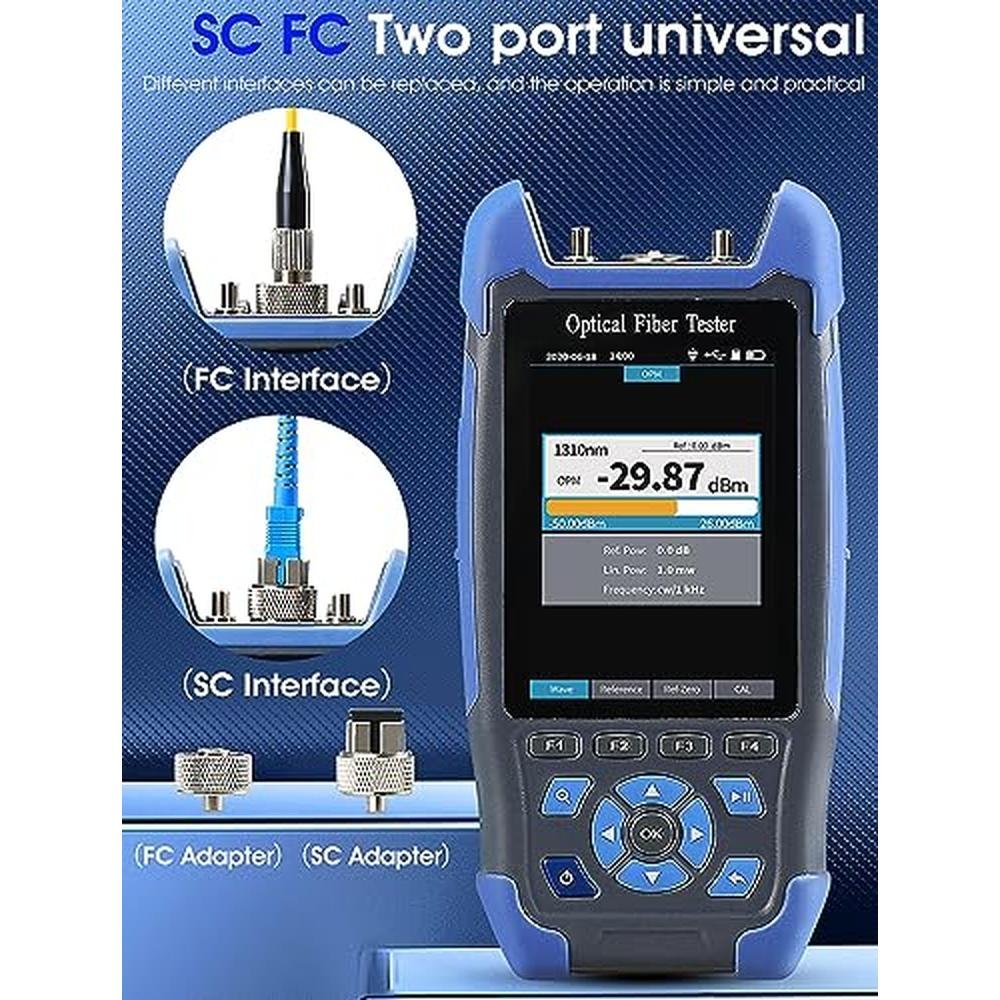

D YEDEMC Mini-Pro 1310/1550nm SM OTDR Mulit-Function Tester Built in OPM/OLS / RJ45 Test/VFL Test Rang 5m-60Km Dynamic Range 24dB/22dB Connector UPC (YD-3000-UPC)

INDIA Warehouse
Rs. 40,044.00
Rs. 40,044.00
Rs. 53,198.00
Sold out
Tax included. Shipping calculated at checkout.
SKU: PIB07Z1XCRBF

Product description

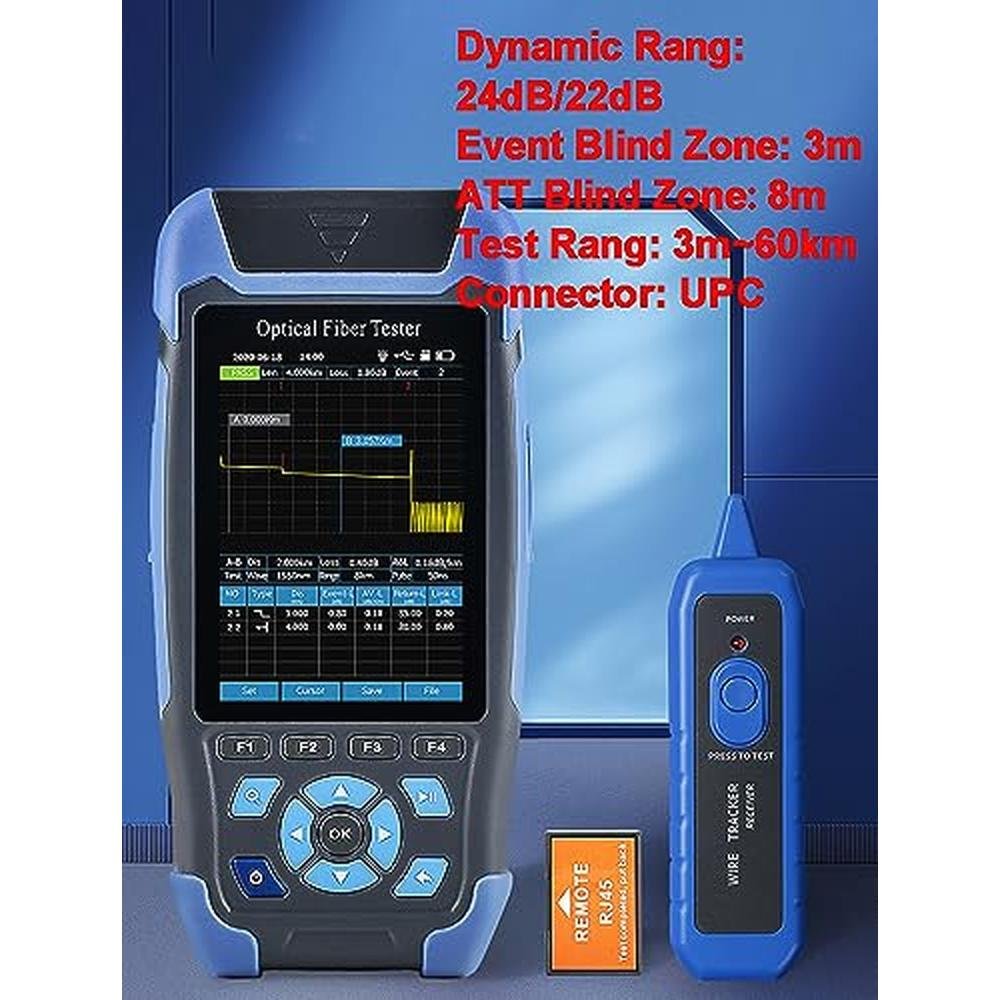

Technical Specifications: Mini-Pro OTDR Wavelength: 1310nm/1550nm20nm Fiber Type: G.652 Dynamic Range: 24dB/22dB Event Blind Zone: 3m ATT Blind Zone: 8m Test Range: 5m~60km Pulse Width: 3ns~10us Ranging accuracy: (1m+ Sampling interval +0.005%Test distance) Loss accuracy: 0.05dB/dB Sampling Points: 16k~128k Sampling resolution: 0.05m~8m Reflection accuracy: 3dB Data Storage: Internal:600;External:TF Card File format: SOR Standard file format Connector: FC/UPC(Interchangeable SCST) Other Parameters: Display: 3.5 inch Color LCD Data Interface: Micro USB External storage: TF Card Power SupplyPolymer Li-Battery:3.7V,4000mAh Adapter:5VDC,2A Battery Life: Standby>20h;Measuring time>12h Operating Temperature:-10C~+50C Storage Temperature: -40C~+70C Relative Humidity: 0~95%Non Condensing Size:173mm82mm37mm.
