D YEDEMC Mini-Pro | OTDR Tester | High-Performance 24dB/22dB Dynamic Range | UPC Connector 5m-60km

Product description

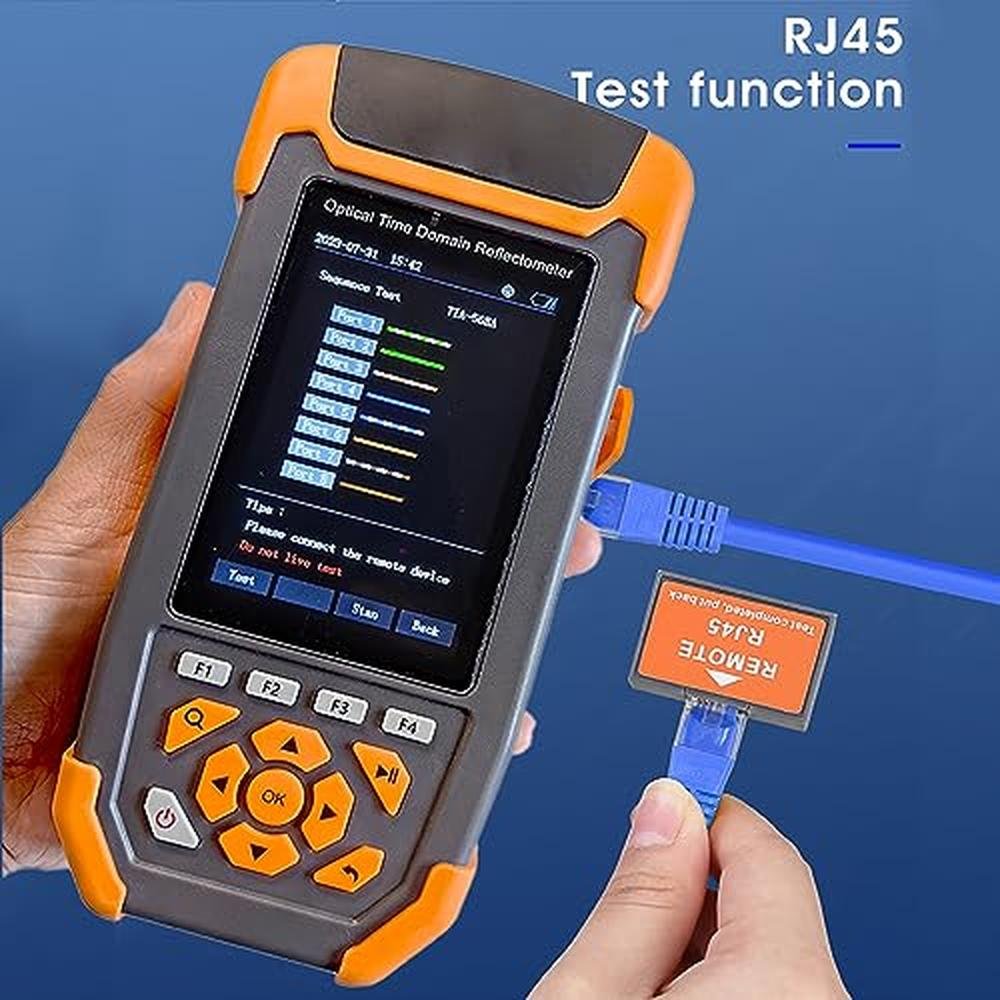

Reveal the full potential of your optical network testing with the D YEDEMC Mini-Pro 1310/1550nm SM OTDR Mulit-Function Tester, a sophisticated device designed to deliver premium-grade performance. This refined tool is built with a range of features, including a built-in OPM/OLS, RJ45 test, and VFL test, allowing you to engage in comprehensive testing of your optical networks with ease. Venture into the world of precise testing with the Mini-Pro's dynamic range of 5m-60Km and 24dB/22dB sensitivity, ensuring that you can identify even the smallest issues in your network. With its exquisite design and UPC connector, this tester is the perfect solution for anyone seeking a high-end optical testing experience.

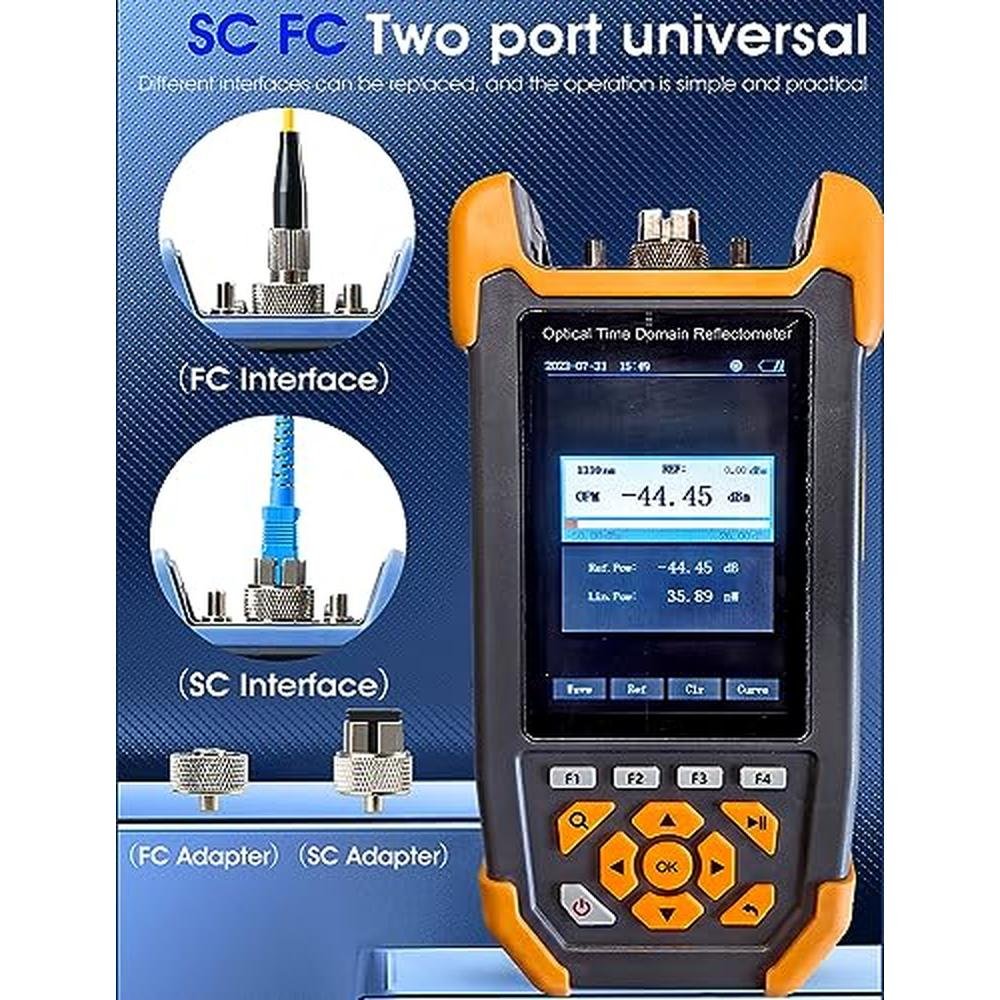

Technical Specifications: Mini-Pro OTDR Wavelength: 1310nm/1550nm, Fiber Type: G.652, Dynamic Range: 24dB/22dB, Event Blind Zone: 3m, ATT Blind Zone: 8m, Test Range: 5m~60km, Pulse Width: 3ns~10us, Ranging accuracy: (1m+ Sampling interval +0.005%Test distance), Loss accuracy: 0.05dB/dB, Sampling Points: 16k~128k, Sampling resolution: 0.05m~8m, Reflection accuracy: 3dB, Data Storage: Internal:600, External:TF Card, File format: SOR Standard file format, Connector: FC/UPC(Interchangeable SCST), Other Parameters: Display: 3.5 inch Color LCD, Data Interface: Micro USB, External storage: TF Card, Power Supply: Polymer Li-Battery:3.7V,4000mAh, Adapter:5VDC,2A, Battery Life: Standby>20h, Measuring time>12h, Operating Temperature:-10C~+50C, Storage Temperature: -40C~+70C, Relative Humidity: 0~95%Non Condensing, Size:173mm82mm37mm.

The D YEDEMC Mini-Pro 1310/1550nm SM OTDR Mulit-Function Tester is a top-tier device that offers a comprehensive range of features and benefits, making it an ideal choice for professionals seeking a high-performance optical testing solution. With its advanced technology and user-friendly interface, this tester is perfect for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses.

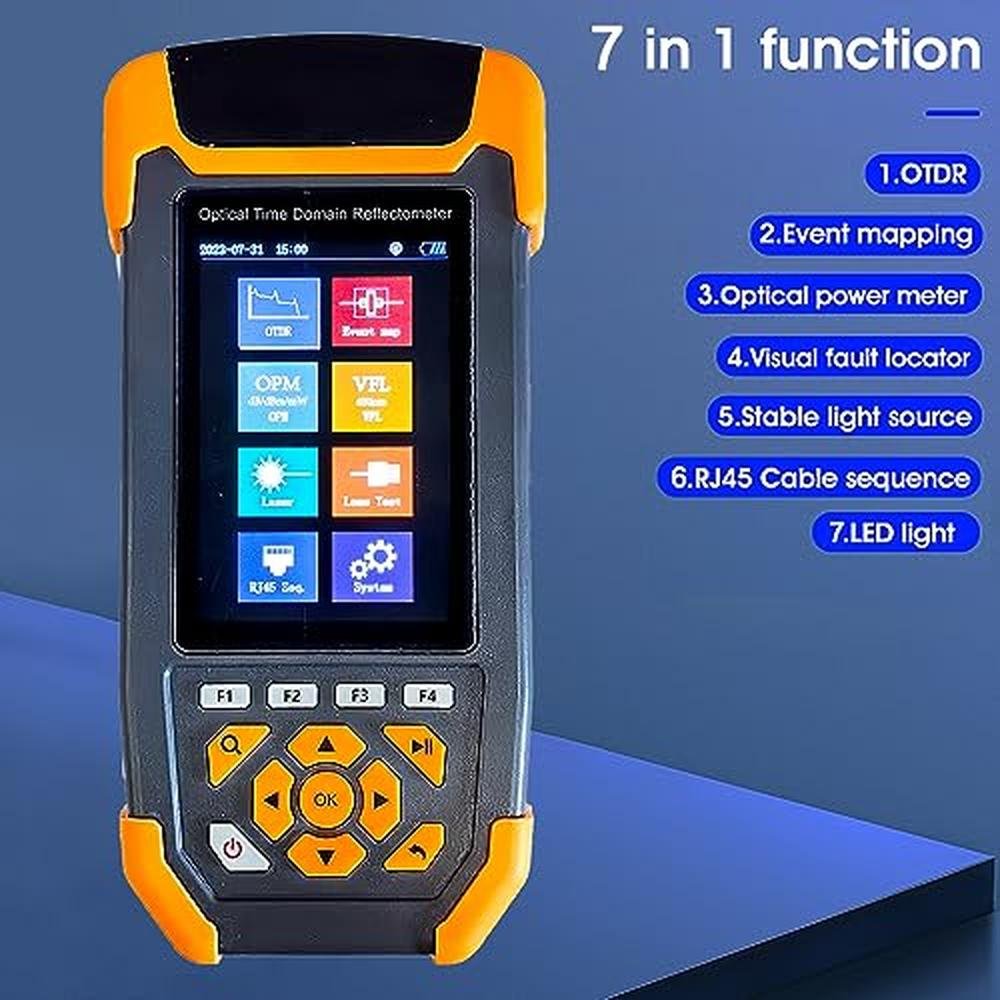

In addition to its technical specifications, the Mini-Pro also features a built-in 3.5 inch color display, OTDR, event map, power meter, cable length measurement tool, cable tracker, and RJ45 sequencer. The device also includes internal storage and external storage options, as well as analysis software for further data analysis or processing.

Overall, the D YEDEMC Mini-Pro 1310/1550nm SM OTDR Mulit-Function Tester is a superior device that offers a unique combination of high-performance features, advanced technology, and user-friendly interface, making it an excellent choice for professionals seeking a premium-grade optical testing solution.
