- About this Item

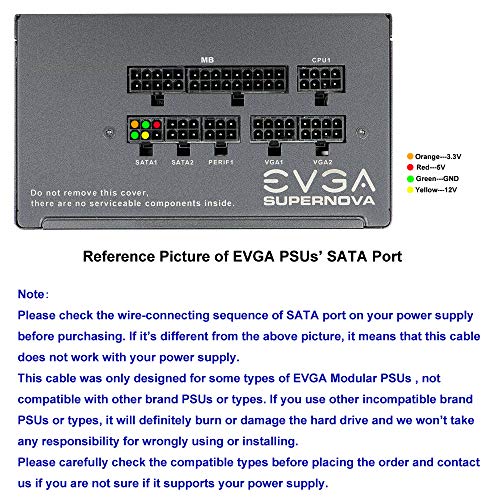

- • SATA Power Cable for EVGA PSUsCompatible with the Type1 pinout of EVGA modular PSUs including G1G1G2G3G5GSGAGM, B2B2BQ, P2T2, SuperNOVA nex650g 450GM550GM(Note Do not work with 1000PS850GS1050GS and semi modular power supply such as EVGA GQ series including 650GQ750GQ850GQ1000GQ.)
- • NoteThe cable was only designed for the brand and model as listed in the 1st Point. Using the cable with unsupported PSUs will definitely damage the PSUs, hard drives or other devices. Please do not use with any makes or models not listed in our compatibility list. Please carefully check the compatible types before purchasing and contact us if you are not sure if it supports your power supply
- • 6P - 15P SATA6 pin port to plug into EVGA PSU, 15 Pin SATA port to plug into hard drive, riser card or other devices with SATA port(NoteThere is no guarantee if you use this cable for mining.)

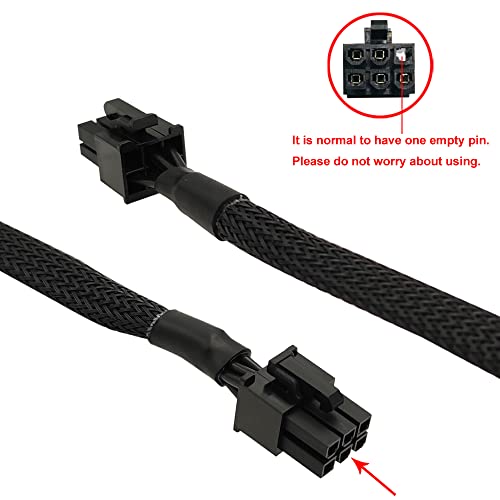

- • ConnectorConnector A 1x 6 pin male (only for some specific types of EVGA PSU as listed in the 1st point), Connector B 3x 15 pin SATA female
Specifications & Details
| SKU | PIB0B7N59WFR |
|---|---|
| Brand | COMeap |
| Cable Type | SATA |
| Compatible Devices | Charging Adapter |
| Special Feature | Data Transfer |
| Color | SATA Sleeved Port |
| Connector Gender | Male-to-Female |
| Shape | Round |
| Number of Pins | 6 |
| Unit Count | 1.0 Count |
| Item Weight | 0.060 kgs |
| Gauge | 18.0 |
| Specification Met | UL |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Number of Items | 1 |
| Maximum Voltage | 12 Volts |
| Manufacturer | COMeap |
| Package Dimensions | 7.8 x 5.35 x 0.59 inches |
| Item Weight | 0.060 kgs |
| Item model number | G63STSLV |
Product description

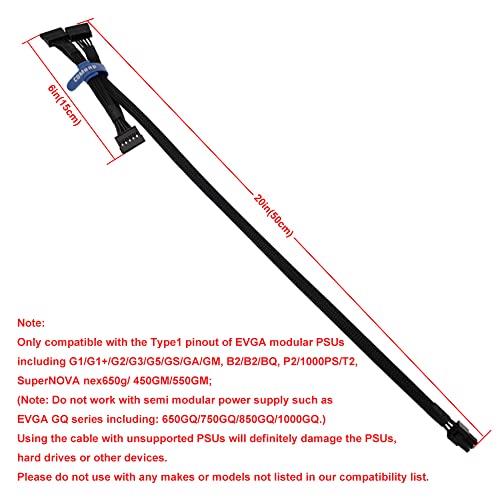

bFeaturesbbrbr The COMeap SATA Power Cable for EVGA PSUs is used to connect EVGA PSUs to riser card or hard drive.brbr bSupportbbrbr Only EVGA PSUs such asbrbr SuperNOVA G1(650G1750G11000G1), SuperNOVA G1(650G1750G1850G11000G1), GS(650GS850GS1000GS1050GS)brbr SuperNOVA G2(650G2750G2850G21000G21300G21600G2), SuperNOVA G3(550G3650G3750G3850G31000G3) brbr SuperNOVA G5(6507508501000), GA(550650750850), GM(550650750850)brbr SuperNOVA B2(750B2850B2), B3(450B3550B3650B3750B3850B3), BQ 650brbr SuperNOVA P2(650P2750P2850P21000P21200P21600P2)brbr SuperNOVA T2(750T2850T21000T21600T2), SuperNOVA nex650g, Supernova 450GM550GMbrbr Please note that it is not compatible with semi modular power supply such as EVGA GQ series including 650GQ750GQ850GQ1000GQ.brbr bSpecificationbbrbr Cable Length main 20inches(50cm)secondary 6inches(15cm)thridary 6inches(15cm) ,Between 2 SATA 6 inches(15cm)brbr Connectors 1x 6 pin male, 3x SATA 15 pin femalebrbr bIncludingbbrbr EVGA 6 Pin to 3x 15 Pin SATA hard drive power supply cable1pcsbrbr Self-adhesive tape1pcsbrbr bNotebbrbr 1.This cable is just allowed to connect 2pcs riser cards at most. It will be damaged or burned at any time for connecting 3pcs riser cardsbrbr b2.This cable was only designed for some specific types of EVGA PSUs, not compatible with other brand PSUs. If you use other brand PSUs, it will burn or damage the hard drive. Please check the points and desription about the compatible types bbrbr 3.It is not compatible with semi modular power supply such as EVGA GQ series including 650GQ750GQ850GQ1000GQ. We have another item to work with EVGA GQ series PSUs, the Asin is B08CT7FC1Kbrbr
