- About this Item

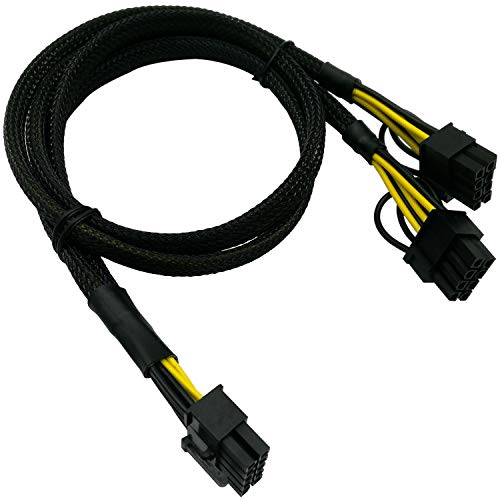

- • GPU Power Cable for HP DL580 DL585 DL980 G7 Server10 pin port to plug into power distribution board, 8 pin(62) port to plug into video graphics card

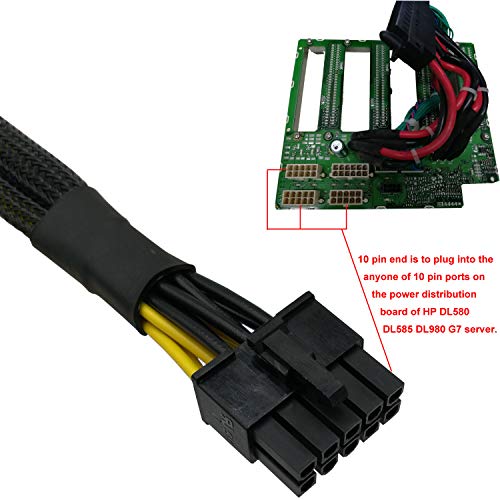

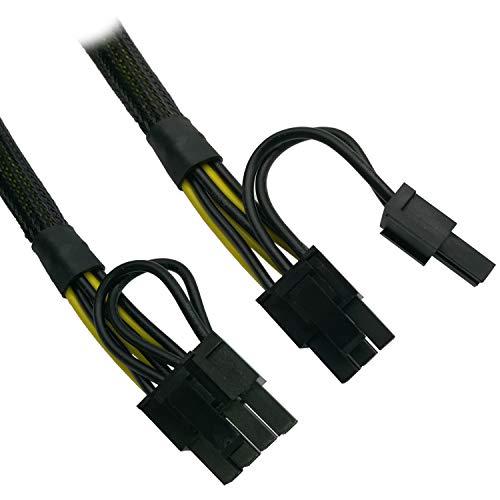

- • ConnectorConnector A 10 pin male (The 10 pin end must connect with the 10 pin port on the power distribution board of HP DL580 DL585 DL980 G7 server.), Connector B 2x 8 pin(62) male (8 pin (62) end could be used as 6 pin or 8 pin end by sliding onoff the 2 pin.)
- • CompatibilityOnly compatible with HP ProLiant DL580 DL585 DL980 G7, 360G6, 360G7, 380 G8, 380 G9 server, HP DL580 G8, DL580 G9, DL388 Gen9, DL580 Gen9, DL980 G7

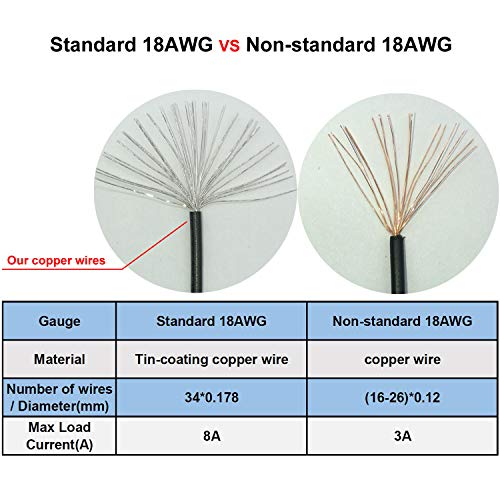

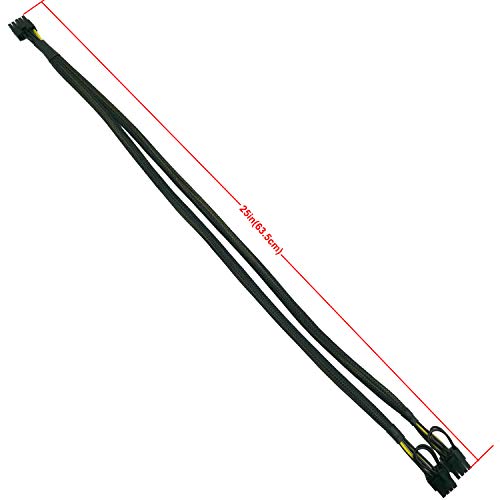

- • ParameterGauge 1007-18AWG (standard tin-coating copper wire), Length(including connectors)25inches(63.5cm)(please check the image 4th for detailed dimension), Quantity 1pcs, Self-adhesive tape1pcs
Specifications & Details
| SKU | PIB07LBKC21M |
|---|---|
| Brand | COMeap |
| Connector Type | Pci-e |
| Cable Type | VGA |
| Compatible Devices | Server |
| Special Feature | Braided |
| Recommended Uses For Product | Powering GPUs in specific HP server models |
| Color | Black |
| Connector Gender | Male-to-Male |
| Shape | Round |
| Number of Pins | 10 |
| Unit Count | 1 Count |
| Item Weight | 0.100 kgs |
| Gauge | 18.0 |
| Model Name | DL580 DL585 DL980 G7 |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Number of Items | 1 |
| Customer Package Type | FFP |
| Manufacturer | COMeap |
| UPC | 619317080089 |
| Package Dimensions | 7.68 x 5.55 x 0.83 inches |
| Item Weight | 0.100 kgs |
| Item model number | 619317080089 |
| Is Discontinued By Manufacturer | No |
Product description
bFeaturesbbrbr The COMeap GPU Power Cable for HP DL580 DL585 DL980 G7 Server is used to connect HP Server power distribution board to graphics card.brbr bSupportbbrbr Only HP ProLiant DL580 DL585 DL980 G7, 360G6, 360G7, 380 G8, 380 G9 server, HP DL580 G8, DL580 G9, DL388 Gen9, DL580 Gen9, DL980 G7brbr bSpecificationbbrbr Cable Length 25inches(63.5cm), please check the images for detailed dimensionbrbr Connectors 1x 10 pin male, 2x 8 pin(62) malebrbr bIncludingbbrbr 10 Pin to dual PCI-E 8 Pin(62) power cable 1pcsbrbr Self-adhesive tape1pcsbrbr bNOTEbbrbr 1. It is ONLY compatible with HP ProLiant DL580 DL585 DL980 G7 serverbrbr 2. The 8 pin (62) end could be used as 6 pin or 8 pin end by sliding onoff the 2 pin.brbr b3. The 10 pin end must connect with the 10 pin port on the power distribution board of HP ProLiant DL580 DL585 DL980 G7 serverbbrbr
