- About this Item

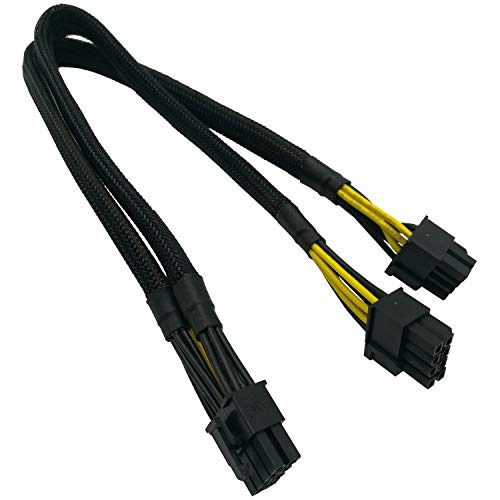

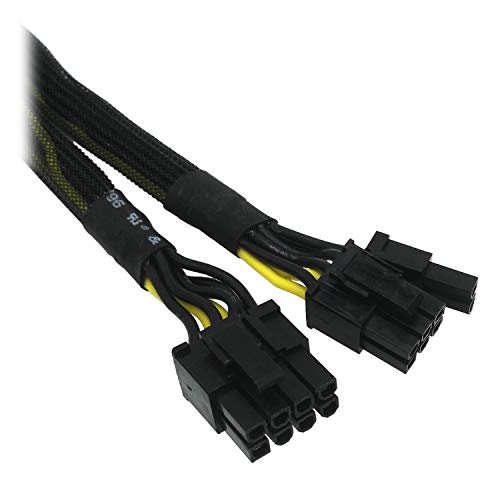

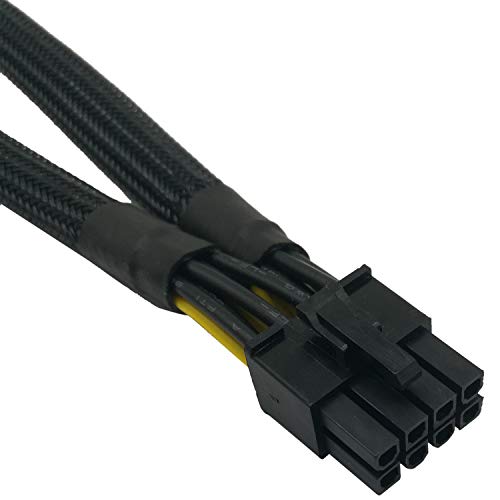

- • GPU Power Cable for Dell PowerEdge R720 720XD R730CPU 8 pin male end to plug into the power connector of Dell motherboard and two 8 pin(62) male ends to plug into the video graphics card (8 pin (62) end could be used as 6 pin or 8 pin end by sliding onoff). Please note that the CPU 8 pin end and two 8 pin(62) male ends cannot be used interchangeably
- • NoteThis cable was only designed for some types of Dell motherboard as listed in point 4th, not compatible with other motherboards or PSUs. If you use other incompatible brand motherboards or PSUs, it will definitely burn or damage the motherboards, PSUs or graphics cards and we wont take any responsibility for wrongly using or installing. Please carefully check the compatible types or contact us if you are not sure about it
- • CompatibilityCompatible with 6-pin 8-pin graphics cards from popular manufacturers such as ASUS, ASRock, Gigabyte, Radeon, Sapphire, NVIDIA Tesla GPU, etc. (The 8 pin (62) ends could be used as 6 pin or 8 pin end by sliding onoff the 2 pin.)
- • CompatibilityCompatible with Dell PowerEdge R530 R720 720XD R730 R730XD T620 T630 T640
Specifications & Details
| SKU | PIB07MV4CYMV |
|---|---|
| Brand | COMeap |
| Connector Type | 8 Pin Pcie, 8 Pin Cpu |
| Cable Type | PCIe |
| Compatible Devices | Personal Computer |
| Special Feature | Sliding |
| Recommended Uses For Product | Providing additional PCI Express connectors to compatible Dell servers |
| Color | 13-inch |
| Connector Gender | Male |
| Shape | Round |
| Number of Pins | 8 |
| Unit Count | 1 Count |
| Item Weight | 0.080 kgs |
| Gauge | 18.0 |
| Specification Met | Dell Poweredge Compatibility |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Number of Items | 1 |
| Manufacturer | COMeap |
| UPC | 619317080126 |
| Package Dimensions | 5.5 x 4.5 x 0.5 inches |
| Item Weight | 0.080 kgs |
| Item model number | COM8-D8(6+2) |
Product description

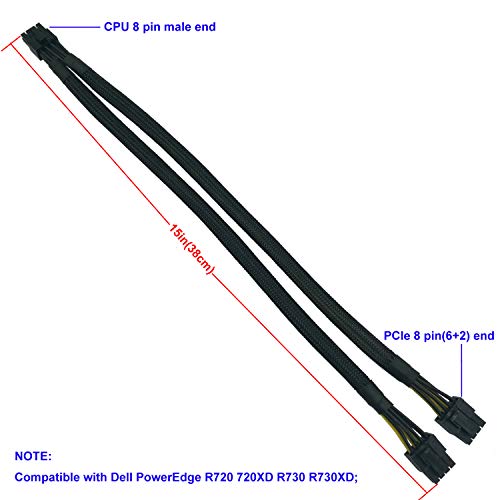

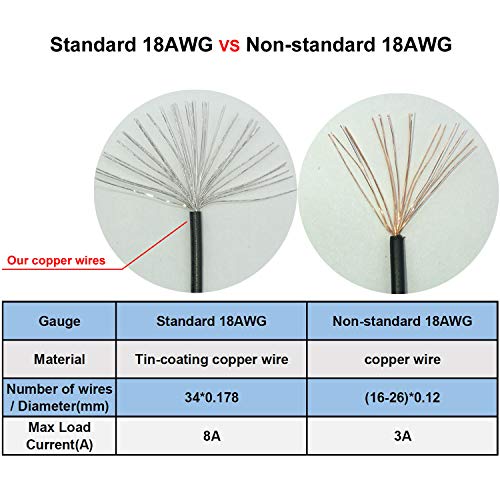

bFeaturesbbrbr The COMeap GPU Power Cable for Dell PowerEdge R720 720XD R730 is to provide a convenient solution for adding two extra PCI Express connectors to your Dell motherboardbrbr bSupportbbrbr Dell PowerEdge R530 R720 720XD R730 R730XDbrbr T620 T630 T640 ( For T620T630T640, its better to buy another longer item. Please refer to the product link httpswww.amazon.comdpB0833Q92Z6?refmyi_title_dp )brbr bSpecificationbbrbr Cable Length(including the connectors) 13-inch(34cm)brbr Connectors 2x 8 pin (62) PCIe male, 1x 8 pin CPU malebrbr Gauge 1007-18AWG(standard tin-coating copper wire)brbr bIncludingbbrbr CPU 8 Pin male to Dual 2x 8 Pin (62) male Dell cable1pcsbrbr Self-adhesive tape1pcsbrbr bNoteb brbr 1.Please check the specifications of your graphics card and PSU for power requirements when to use this cable.brbr 2.PCle male connector with a latch provide a safe connection to prevent accidental disconnection.Please depress the button before unpluggingbrbr 3.This cable was only designed for graphics vedio cards, it does not work with motherboardsbrbr 4.This cable was only designed for some types of Dell motherboard as listed, not compatible with other motherboards or PSUsbrbr 5.Do not plug the cable into wrong direction or connectorbrbr
