- About this Item
- • CompatibilityCompatible with HP Z200Z210Z220Z230Z240 server workstation motherboard which has 6 pin port, HP ProDesk 600 G1G2 SFF,690 G1 SFF, HP EliteDesk 800 G1G2,600880 G1 SFFTWR, HP Compaq SFFMTCMT Series (4000430060006005606060806206286300630563808000808081008180820082808380)
- • Best SolutionAllowing you to convert standard 24 pin ATX power supply to 6 pin HP server workstation connector. The updated cable eliminates the fan error beep.(Note It maybe cause the fan error when to use it on the HP Elite Desk G2HP Prodesk 600 G2 micro tower type.)

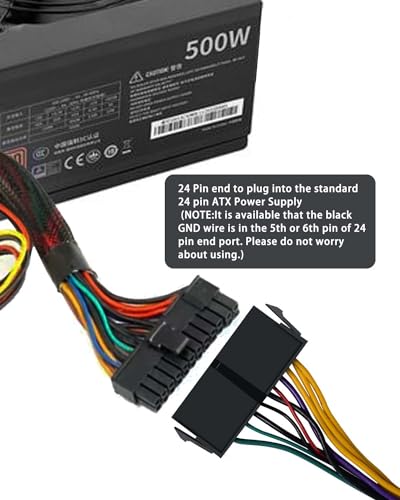

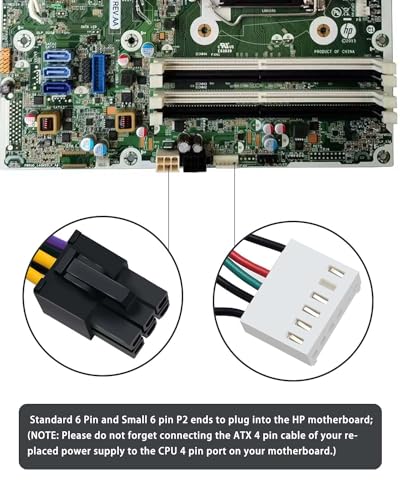

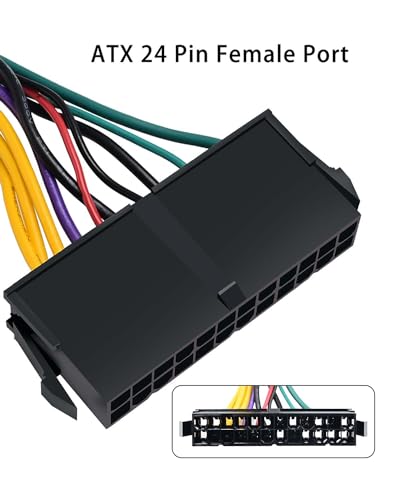

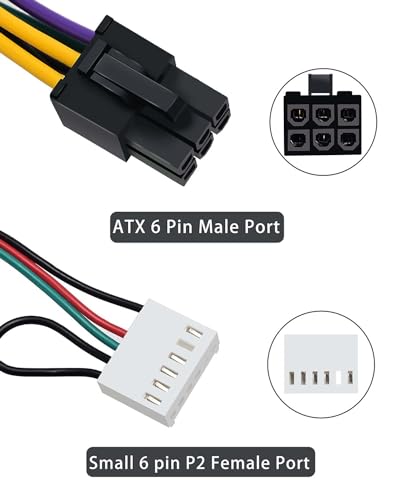

- • 24P-6P24 Pin end to plug into the standard 24 pin ATX Power Supply, standard 6 Pin and small 6 pin P2 ends to plug into the HP motherboard (NOTE Please refer to image 4th to confirm if it works with your pc type, and dont forget connecting the ATX 4 pin cable of your replaced power supply to the CPU 4 pin port on your motherboard.)

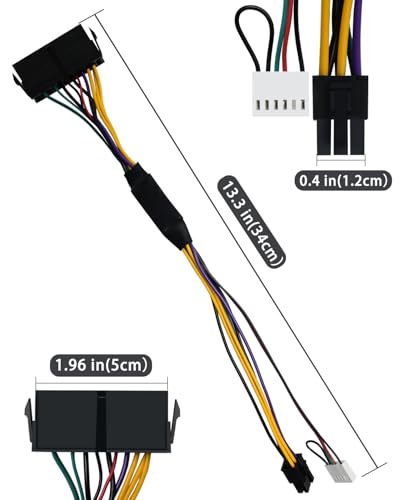

- • ParameterGauge 1007-18AWG (standard tin-coating copper wire), Length 13.3 inches(34cm), Maximum power 1000 watts, Quantity 1pcs, Self-adhesive tape1pcs
Specifications & Details
| SKU | PIB0CYBS1WZ5 |
|---|---|
| Brand | COMeap |
| Connector Type | 6 Pin Port to 24 Pin Port |
| Cable Type | Component |
| Compatible Devices | HP ProDesk 600 G1/G2 SFF,690 G1 SFF, HP EliteDesk 800 G1/G2,600/880 G1 SFF/TWR, HP Compaq SFF/MT/CMT Series (4000/4300/6000/6005/6060/6080/620/628/6300/6305/6380/8000/8080/8100/8180/8200/8280/8380), motherboard for HP Z220 Z230 Z240 SFF MT TWR Series |
| Special Feature | Data Transfer |
| Recommended Uses For Product | Connecting a 24-pin ATX power supply to a 6-pin HP server workstation motherboard |
| Color | Black |
| Connector Gender | Male-to-Male |
| Shape | Flat |
| Number of Pins | 30 |
| AC Adapter Current | 83.33 Amps |
| Unit Count | 1.0 Count |
| Item Weight | 0.040 kgs |
| Gauge | 18.0 |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Number of Items | 1 |
| Wattage | 1E+3 |
| Maximum Voltage | 12 Volts (DC) |
| Manufacturer | COMeap |
| Package Dimensions | 7.95 x 5.47 x 0.63 inches |
| Item Weight | 0.040 kgs |
| Item model number | Adaptador de 24 pines a 6 pines HP ATX |
Product description

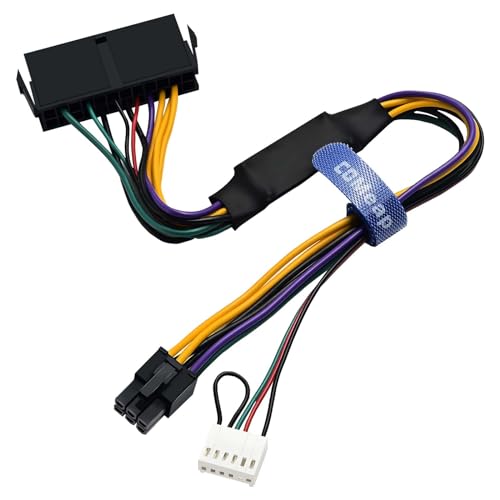

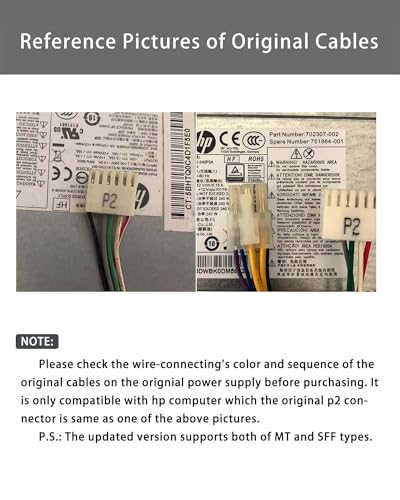

Features The COMeap 24 Pin to 6 Pin ATX power cable is to to convert standard 24 pin ATX power supply to 6 pin HP server workstation. Specification Cable Length 13inches(34cm) Connectors 1 x 24 pin port, 1 x 6 pin PCIe port, 1x 6 pin needle line port Including 24 Pin to 6 Pin ATX power cable1pcs Self-adhesive tape1pcs Note The listed types are only for your reference. In order to confirm if it works with your HP PC type, please carefully refer to the image 4 of original P2 connector with wires before purchasing. If you are still not sure about it, please feel free to contact us by Amazon Message.
