Product description

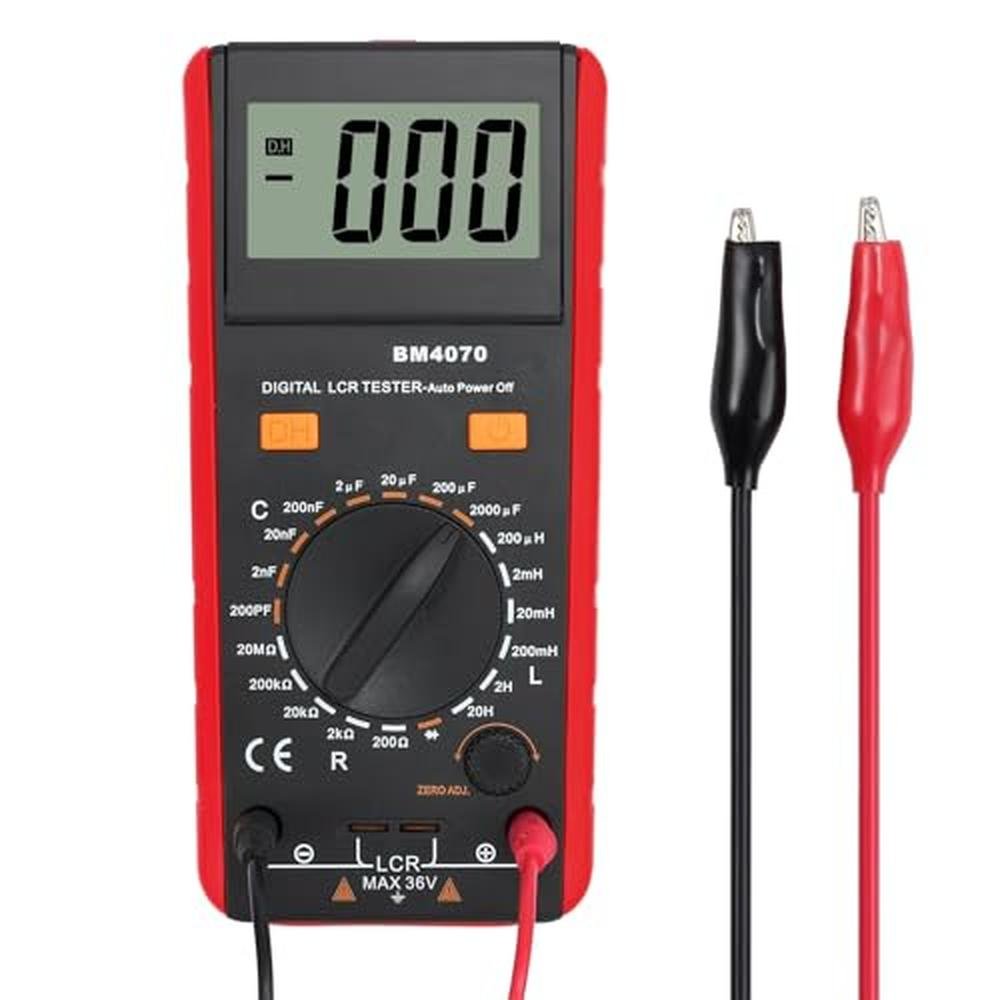

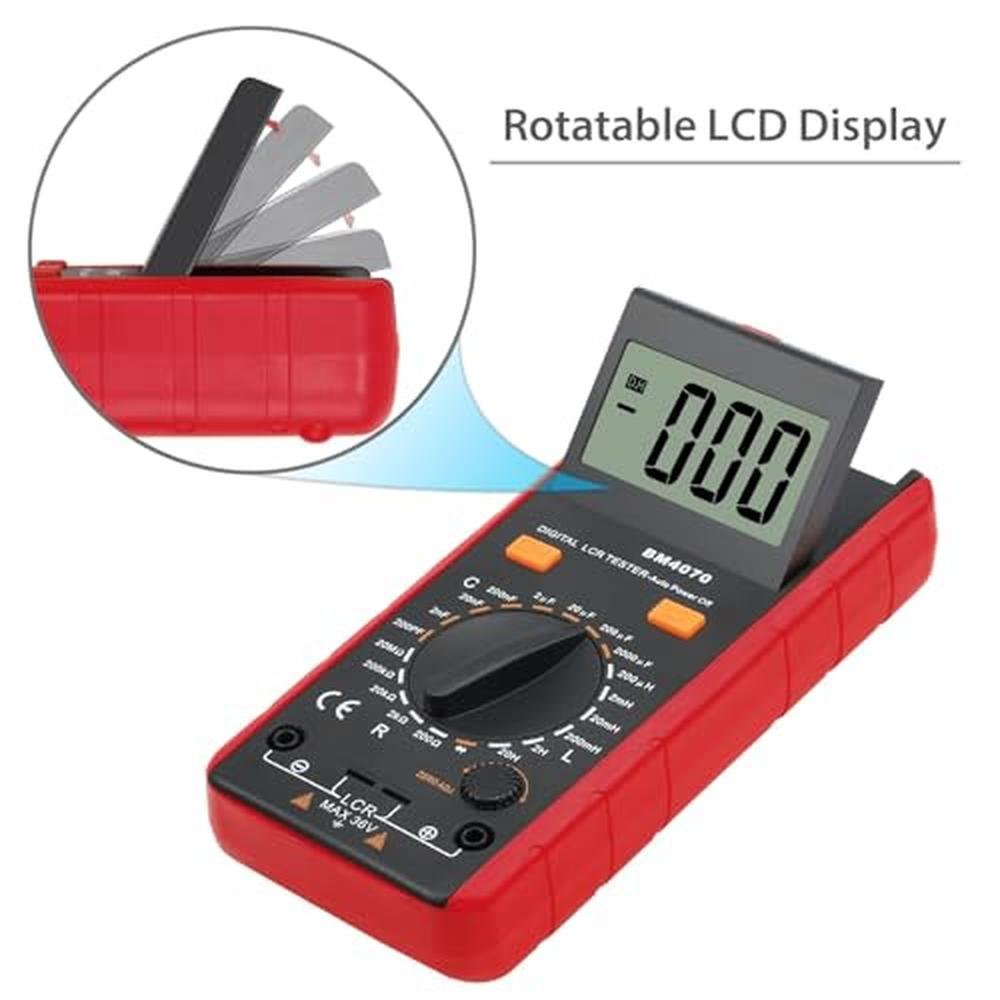

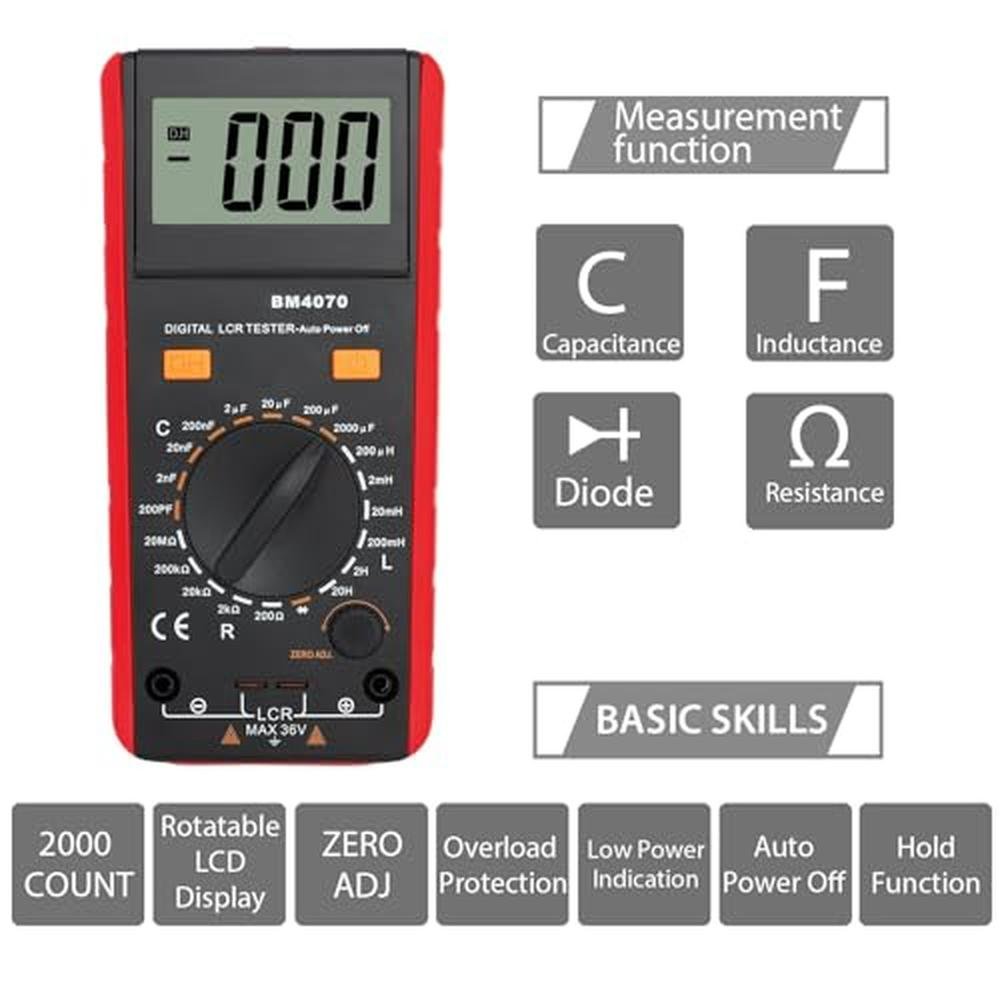

Features: 1. Dedicated to measuring Resistance, Capacitance, Inductance and Continuity Test, and can Detect Diodes, the maximum display digits reach 1999. 2. Zero Function for Capacitance, Low Battery Symbol Reminder, Auto Prower Off , Data hold. 3. Large LCD screen of our LCR Meter can be flipped for easier viewing of measurement data. Specification: Display : LCD Biggest Display Value : 1999 (3 1/2) Sampling Rate : 3 times per secondD Overrange Display : "1"at the higgest digit Measuring Method : Double integral A/D conversion Instruction for Low Voltage of Battery : showing "- + " Auto Power off and Data Hold function Working temperature: 0C to 40C Storage temperature: -10C to 50C Power: a 9V laminated battery(6F22) Environment temperature: 23C5C,Relativehumidity: <75% Capacitance (C): 200pF-2000uF, accuracy up to: 2.5%; Inductance (L): 200uH-20H, up to accuracy: 2.5%; Resistance (R): 200-20M, accuracy up to: 0.8%. Accuracy:(%reading+digits) Wiring length:1.5M Capacitance: Range:200pF;Resolution:0.1pF Range:2nF;Resolution:1pF Range:20nF;Resolution:10pF Range:200nF;Resolution:100pF Range:2uF;Resolution:1nF Range:20uF;Resolution:10nF Range:200uF;Resolution:100nF Range:2000uF;;Resolution;1uF PF=10-12F;nF=10-9F;F=10-6F;mF=10-3F Resistance: Range:200;Resolution:0.1 Range:2K;Resolution:1 Range:20K;Resolution:10 Range:200K;Resolution:100 Range:200M;Resolution:10K Inductance: Range:200uH;Resolution:0.1uH Range:2mH;Resolution:1uH Range:20mH;Resolution:10uH Range:200mH;Resolution:100uH Range:2H;Resolution:1mH Range:20H;Resolution:10mH H=10-6H ;mH=10-3H Package content : 1*LCR meter 1*pair of crocodile clip 1*9V battery 1*user manual 1*Portable bag.
