- About this Item
- • 5 FE PortsThis din rail switch include 4 ethernet ports and 1 uplink port, all support 10100Mbps adaptive. Plug and play, directly connected to the peer device, no need to configure the port

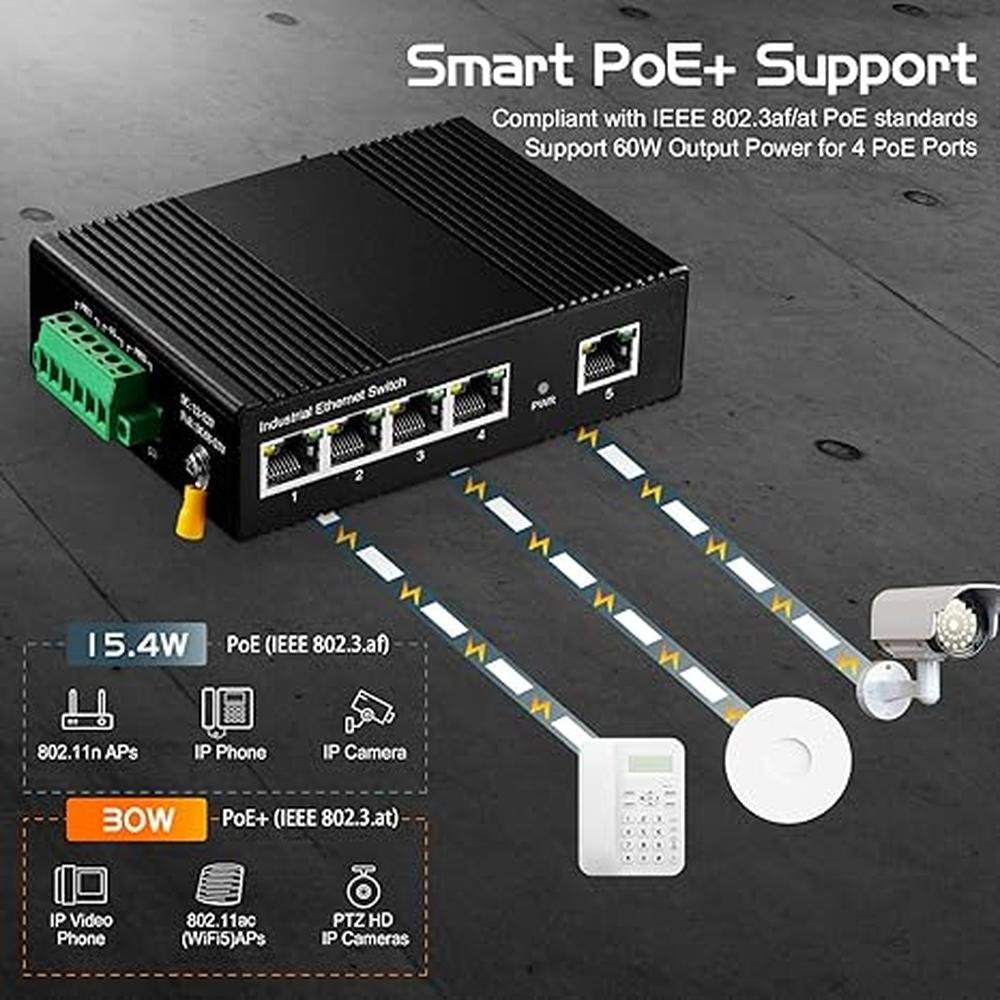

- • IEEE802.3afat PoEPort 1-4 support IEEE802.3afat standard, max 30W per port, connect multiple poe devices, such as POE cameraap, etc. Not support passive 24v poe. His POE input DC voltage is 48-55V, please use a input voltage above 48V to provide POE, if it is 12V, it cannot provide POE

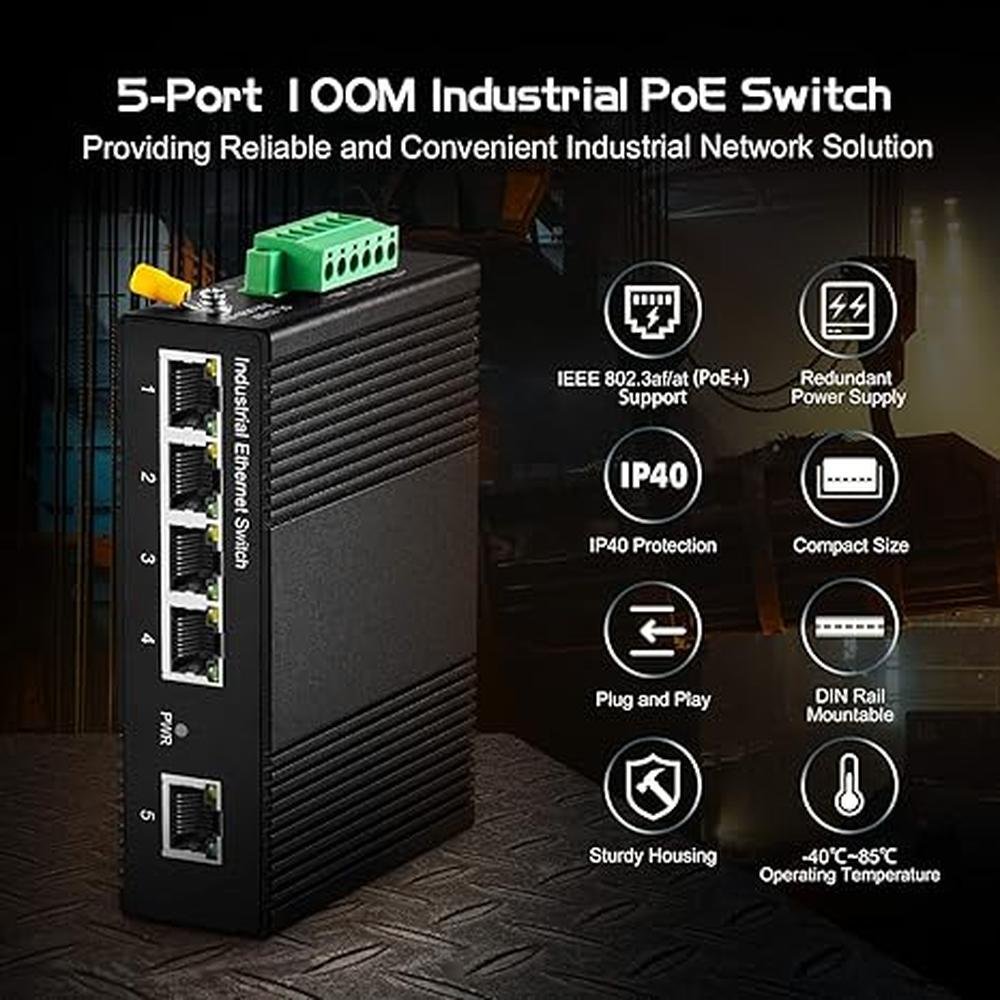

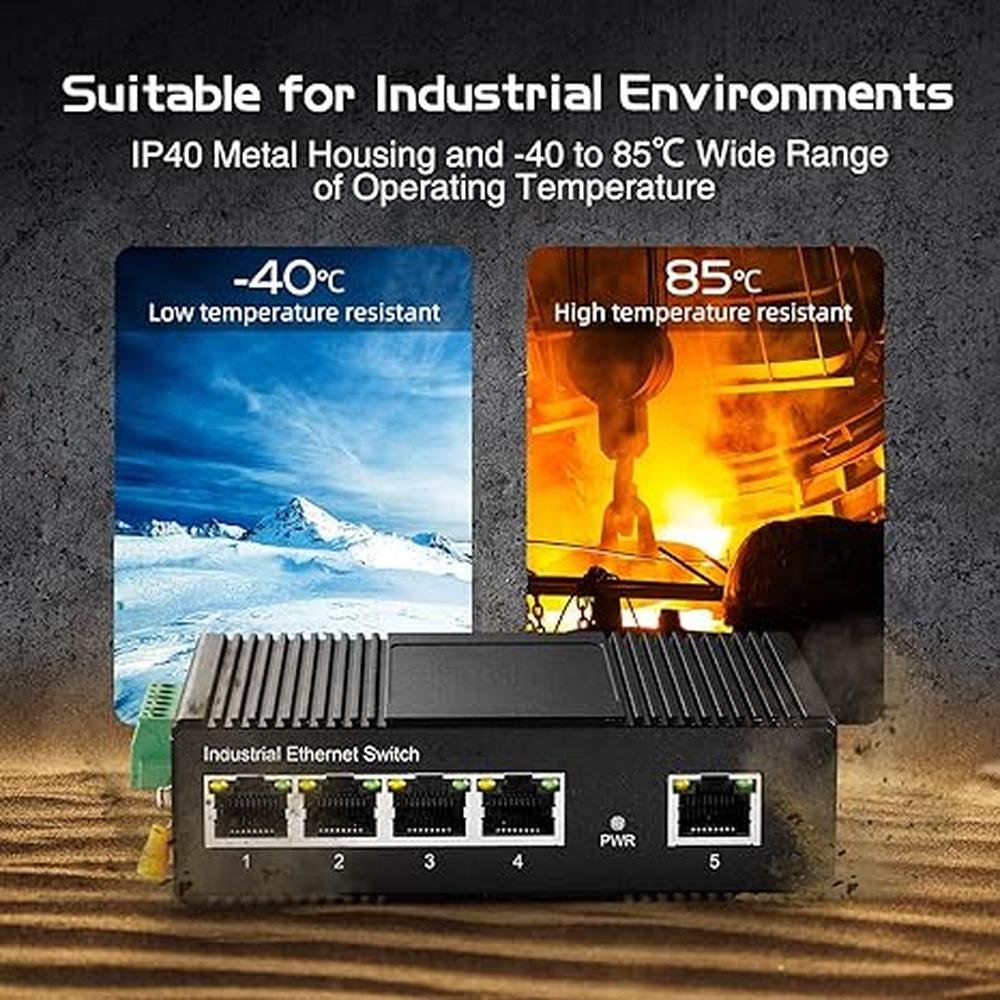

- • Industrial IP40This is a industrial grade switch, using sturdy aluminum alloy casing and industrial grade electronic components, working temperature -4075C(-40185F), anti-lightning, anti-static and anti-overload protection

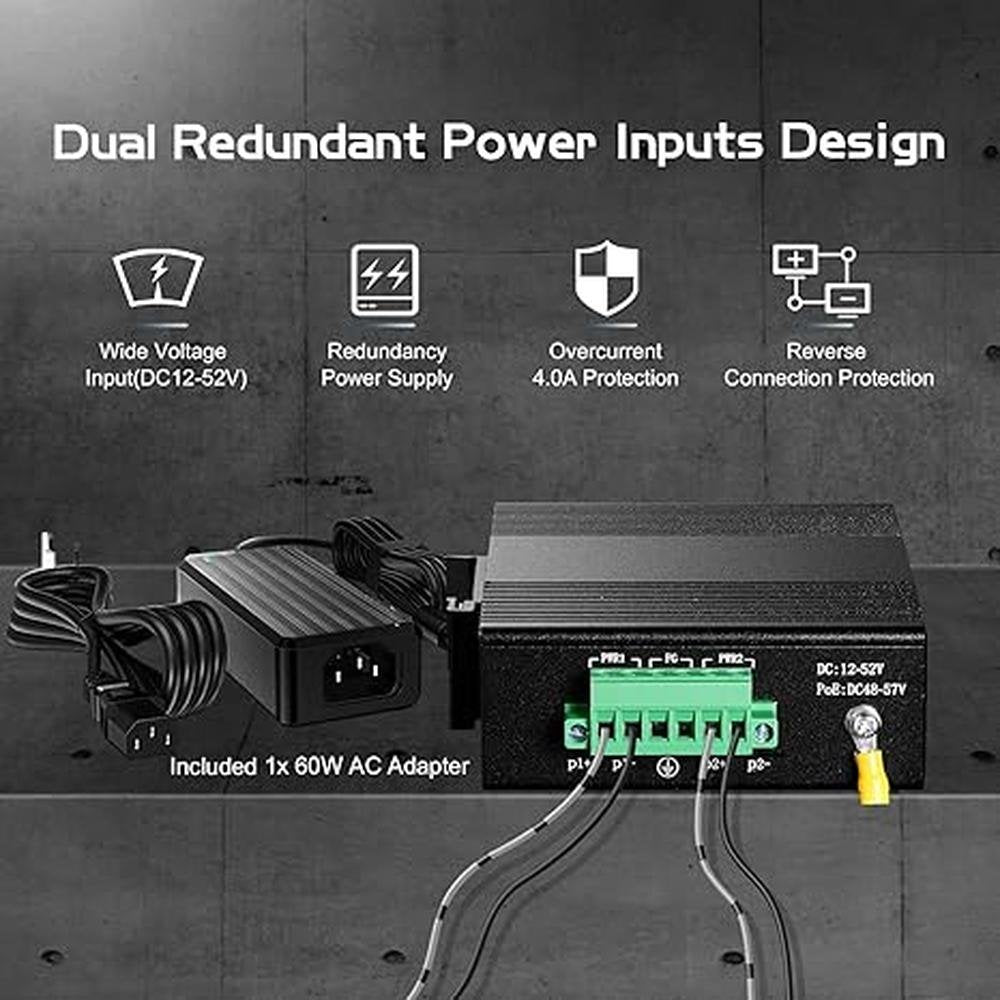

- • Redundant PowerSupport 2-way industrial grade power interface input, automatically switchover when 1-way fails without any downtime, high reliability ensures continuous business operation. Include one commercial power supply
Specifications & Details
| SKU | PIB0B77H413M |
|---|---|
| Item Weight | 1.280 kgs |
| Platform | Not Machine Specific |
| Voltage | 55 Volts |
| Case Material | Aluminum |
| Upper Temperature Rating | 75 Degrees Celsius |
| Interface Type | PoE |
| Data Transfer Rate | 100 Megabits Per Second |
| Manufacturer | Binardat |
| Package Dimensions | 9.61 x 8.54 x 2.64 inches |
| Item Weight | 1.275 kgs |
| Item model number | 5 Port 100M PoE |
Product description

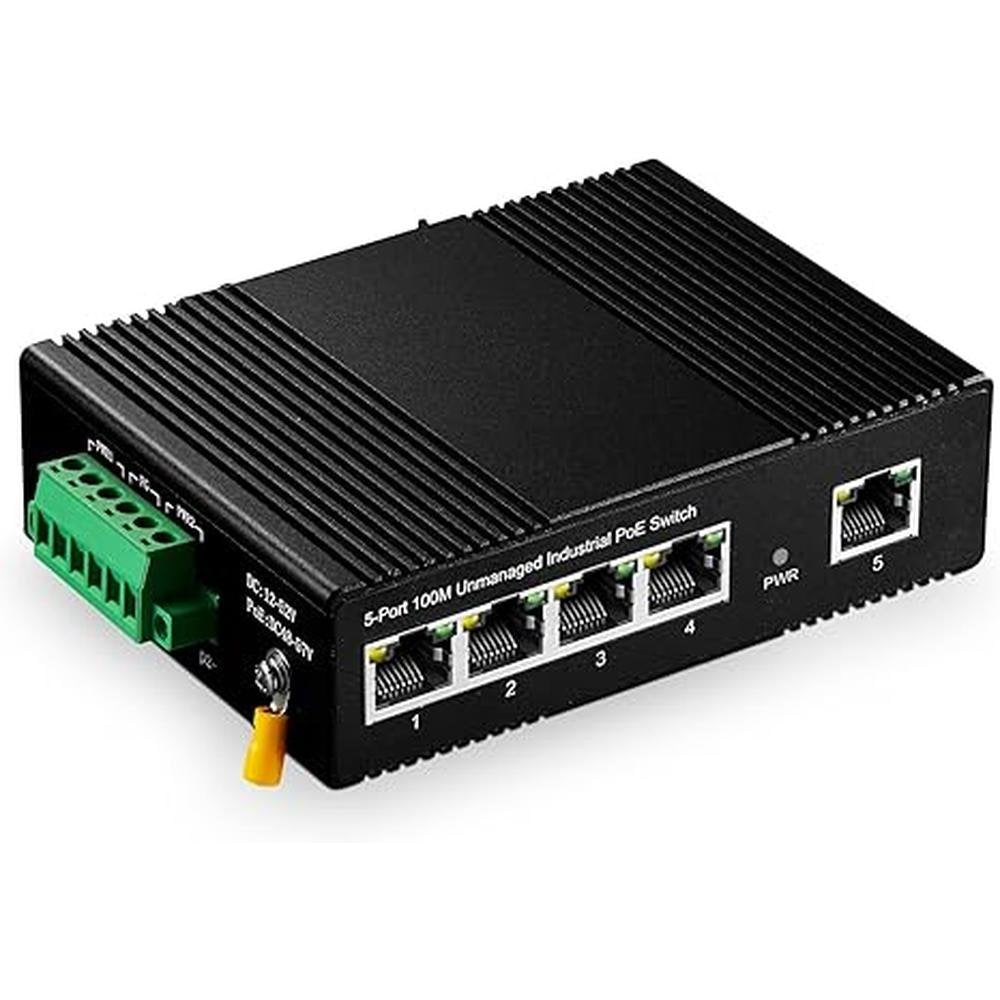

5 Port Industrial Switch PoE
