- About this Item

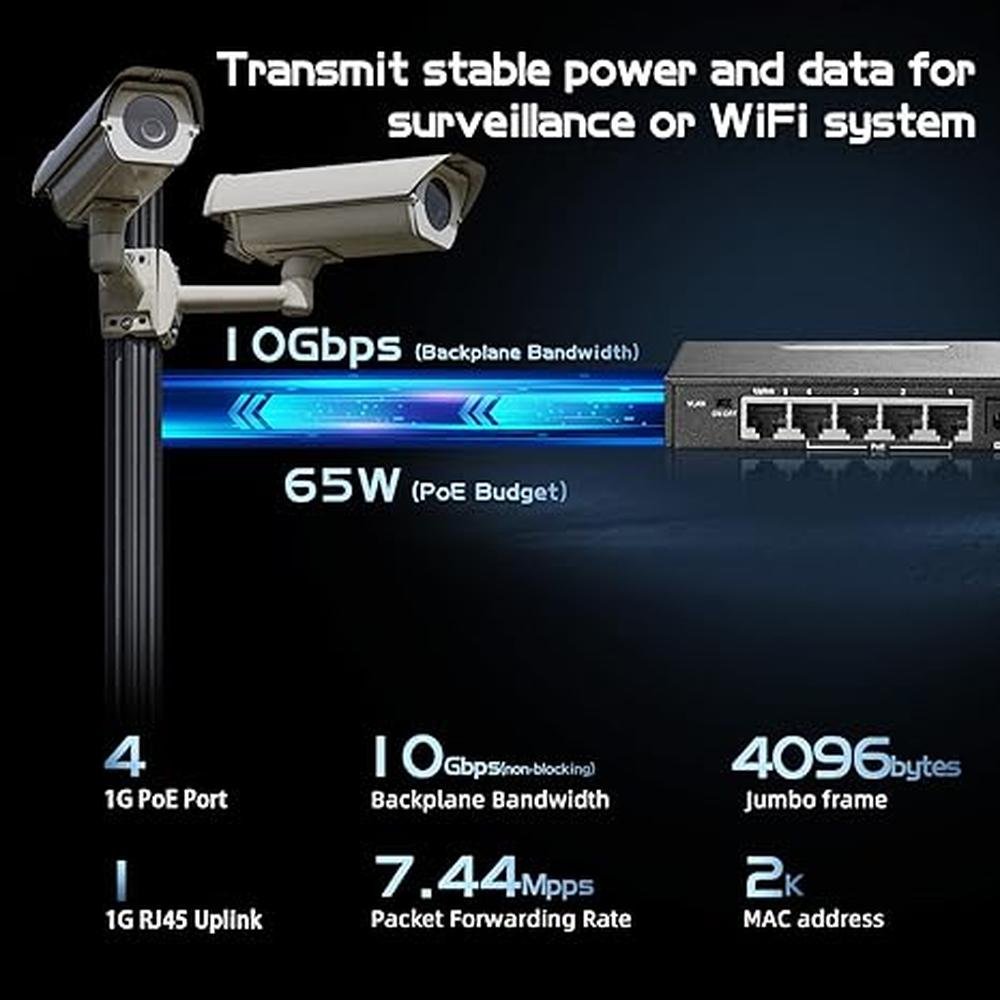

- • 5 Gigabit Ports Includes 4 Gigabit POE ports, 1 Gigabit Uplink Ports(not PoE), all ports support 101001000Mbps rate. The total bandwidth is 10Gbps, and each port can achieve gigabit rate

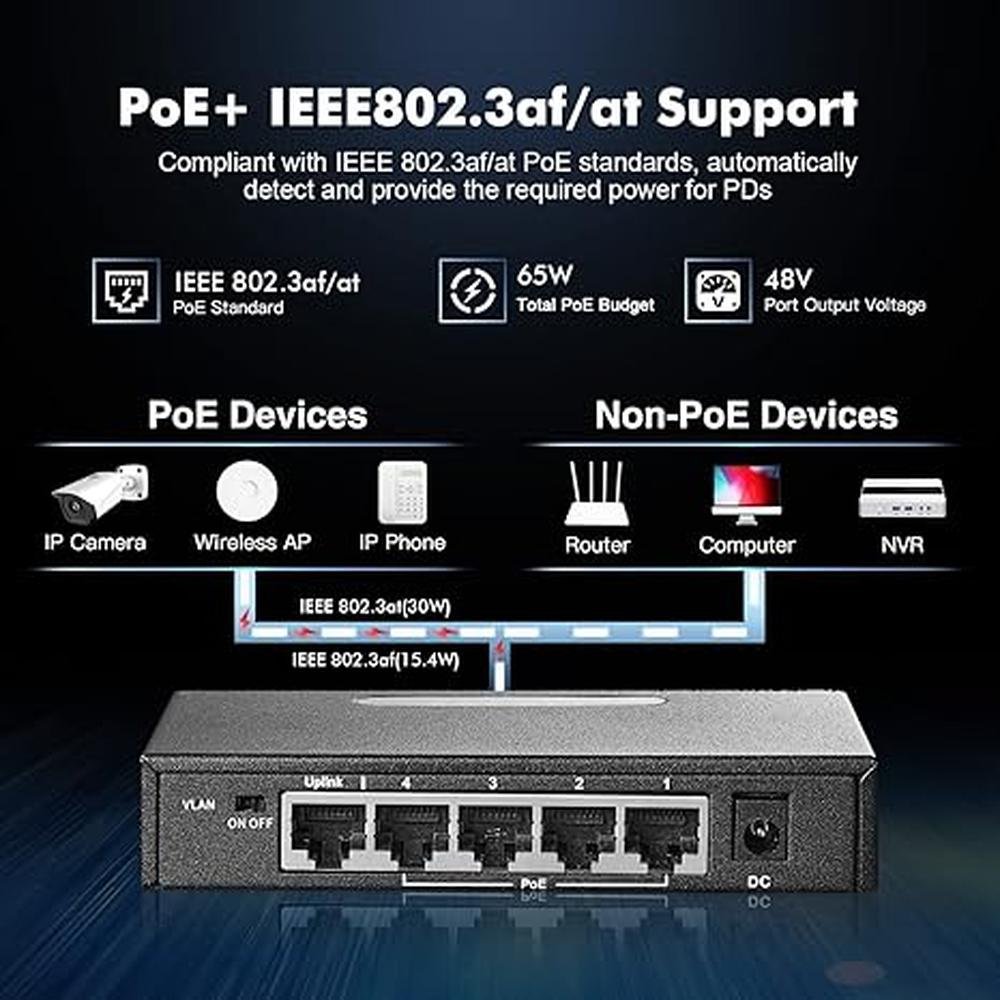

- • IEEE 802.3 afat Output IEEE 802.3afat standard PoE, with independent 65W power supply, port max power supply reached 30W. Output voltage is 4457V, not supply power to passive 24V PoE.

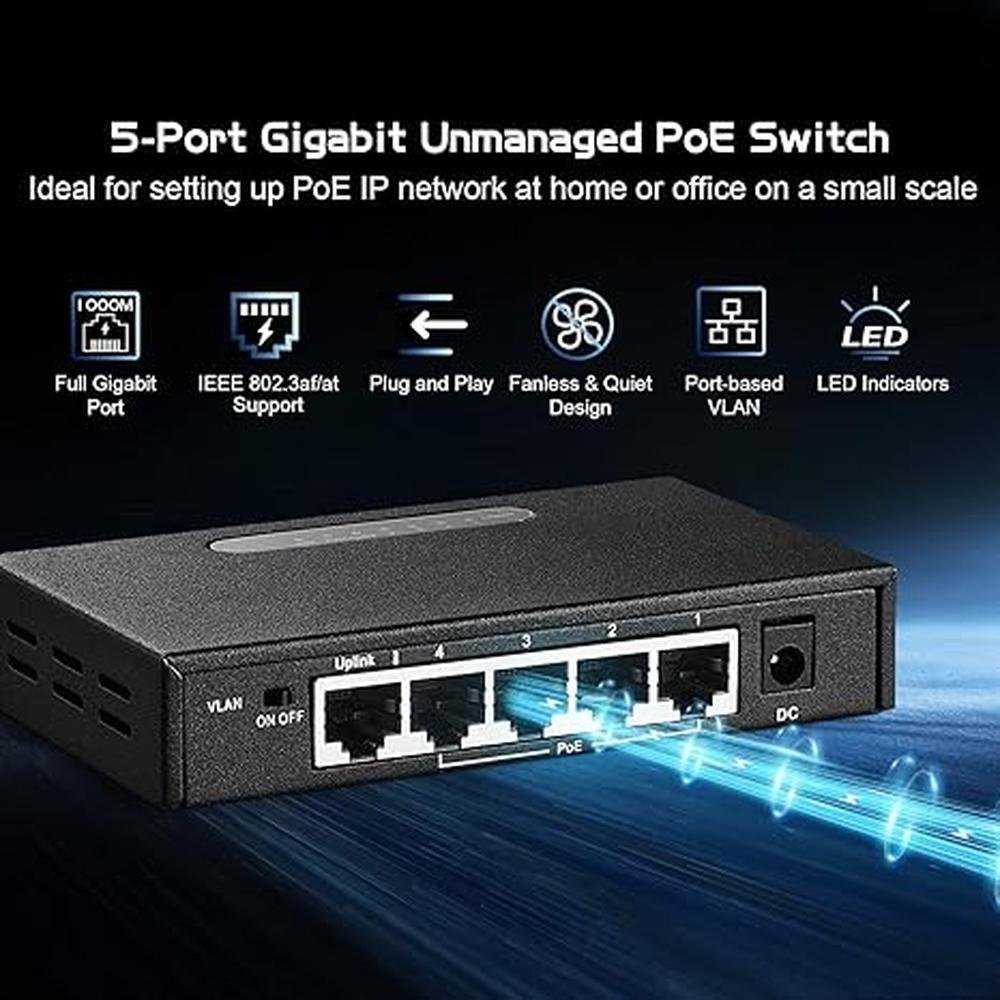

- • Unmanaged Plug Play Support Power Detection function, automatically detect PoE devices, can be compatible with non-POE devices to provide data. Plug and Play, just connect the power supply, connect the ethernet cable directly to the device, without configuration.

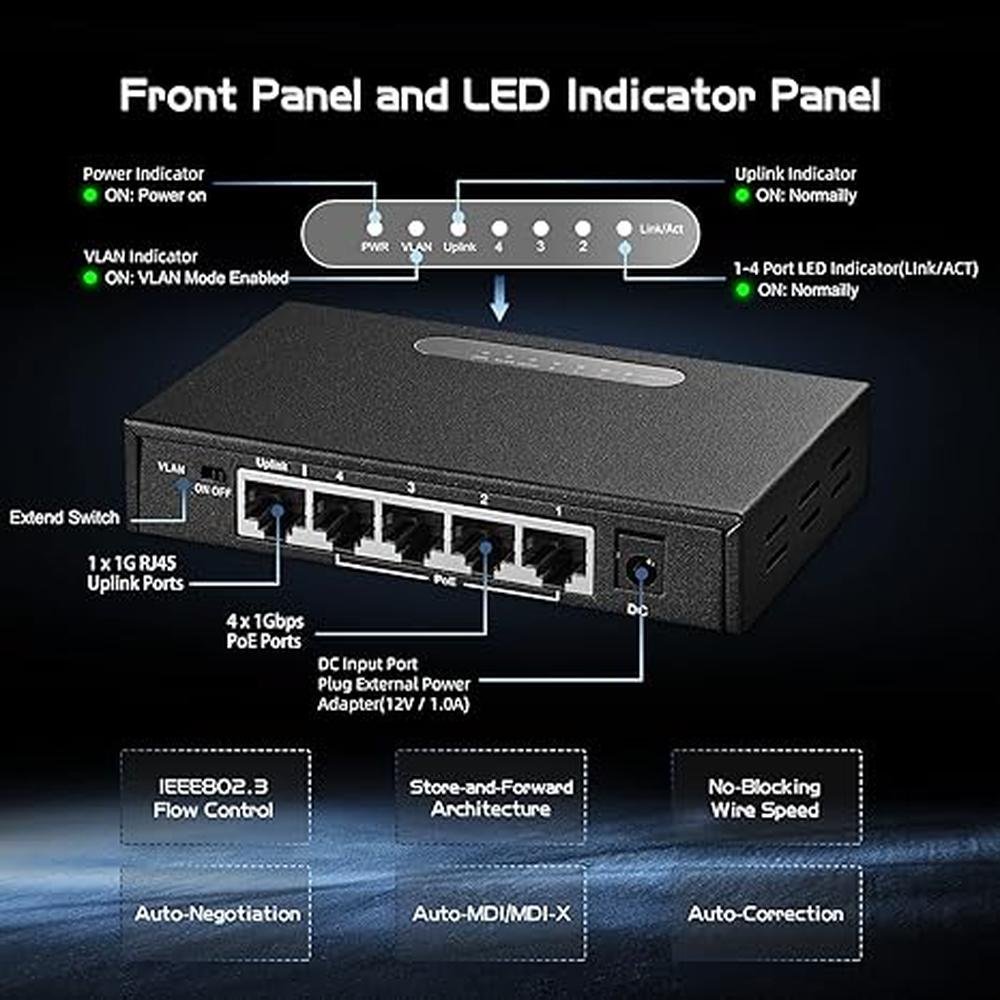

- • Easy Install Support wall mount, with external power, smaller size save space, fanless design, no noise during operation, suitable for many positions such as desktop, weak current box, cabinet, etc
Specifications & Details
| SKU | PIB0BX5L9G2W |
|---|---|
| Voltage | 57 Volts |
| Case Material | Metal |
| Interface Type | PoE |
| Data Transfer Rate | 1000 Megabits Per Second |
| Manufacturer | Binardat |
| Package Dimensions | 7.48 x 3.62 x 3.43 inches |
| Item Weight | 0.549 kgs |
| Item model number | 5x1G POE |
Product description

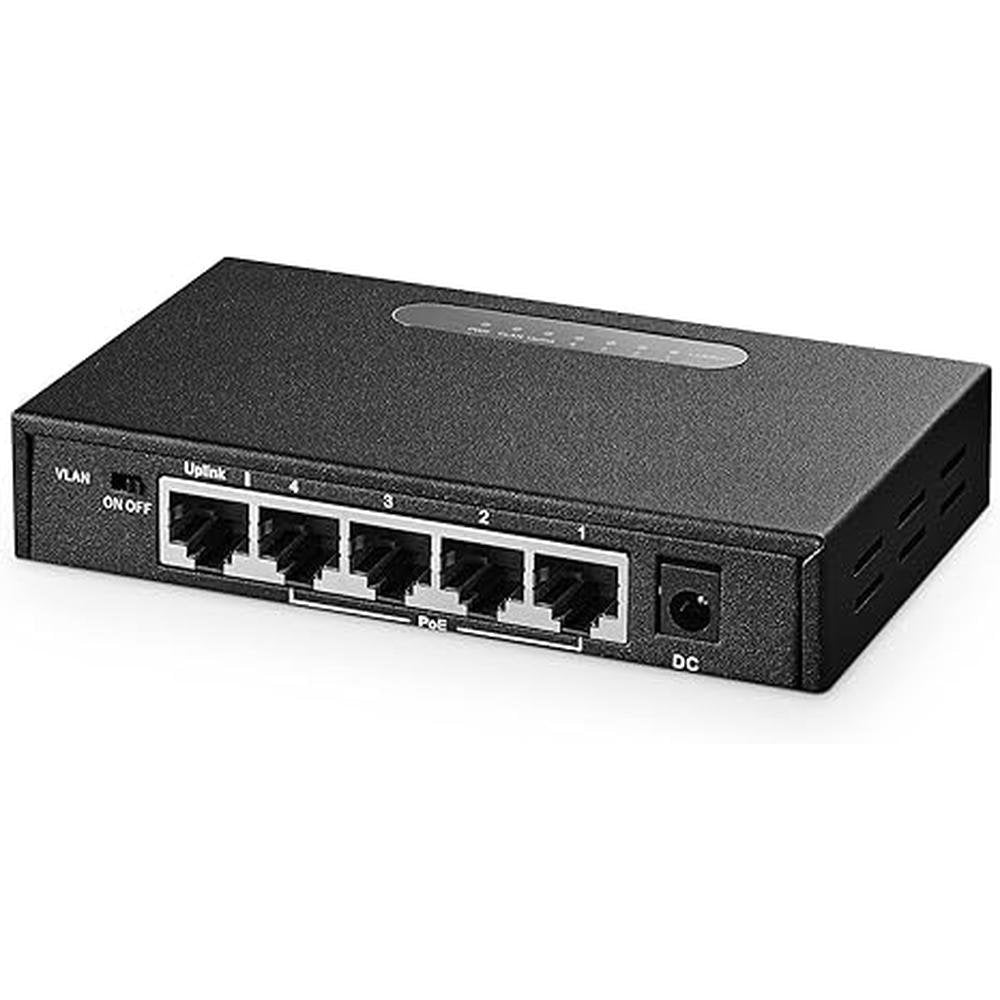

5 Port Gigabit POE Switch, 4 POE Ports 1000Mbps, 1 Gigabit Uplink, IEEE802.3afat, 65W Power Supply, Mini Metal Case Unmanaged Plug and Play
