- About this Item
- • 5 FE PortsThis din rail switch include 4 ethernet ports and 1 uplink port, all support 10100Mbps adaptive. Plug and play, directly connected to the peer device, no need to configure the port

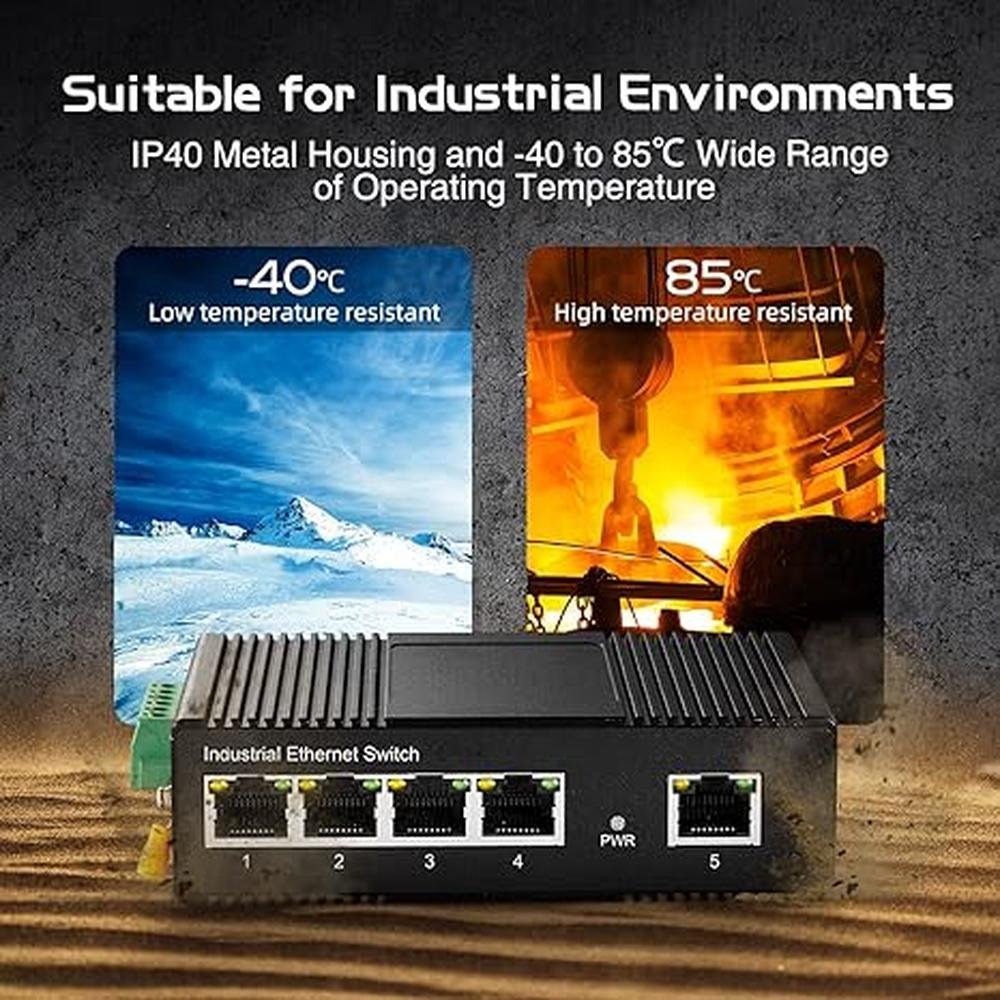

- • Industrial IP40This is a industrial grade switch, using sturdy aluminum alloy casing and industrial grade electronic components, working temperature -4075C(-40185F), anti-lightning, anti-static and anti-overload protection

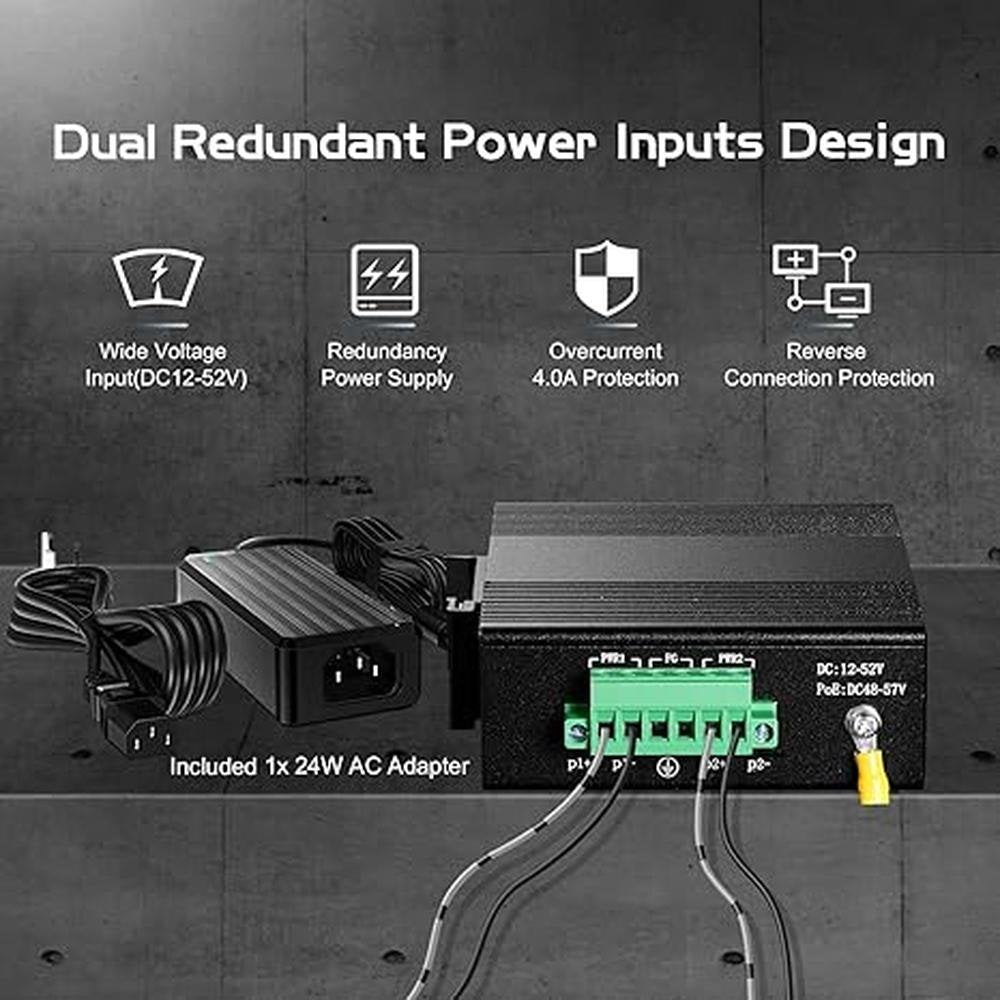

- • Redundant PowerSupport 2-way industrial grade power interface input, automatically switchover when 1-way fails without any downtime, high reliability ensures continuous business operation. Include one commercial power supply

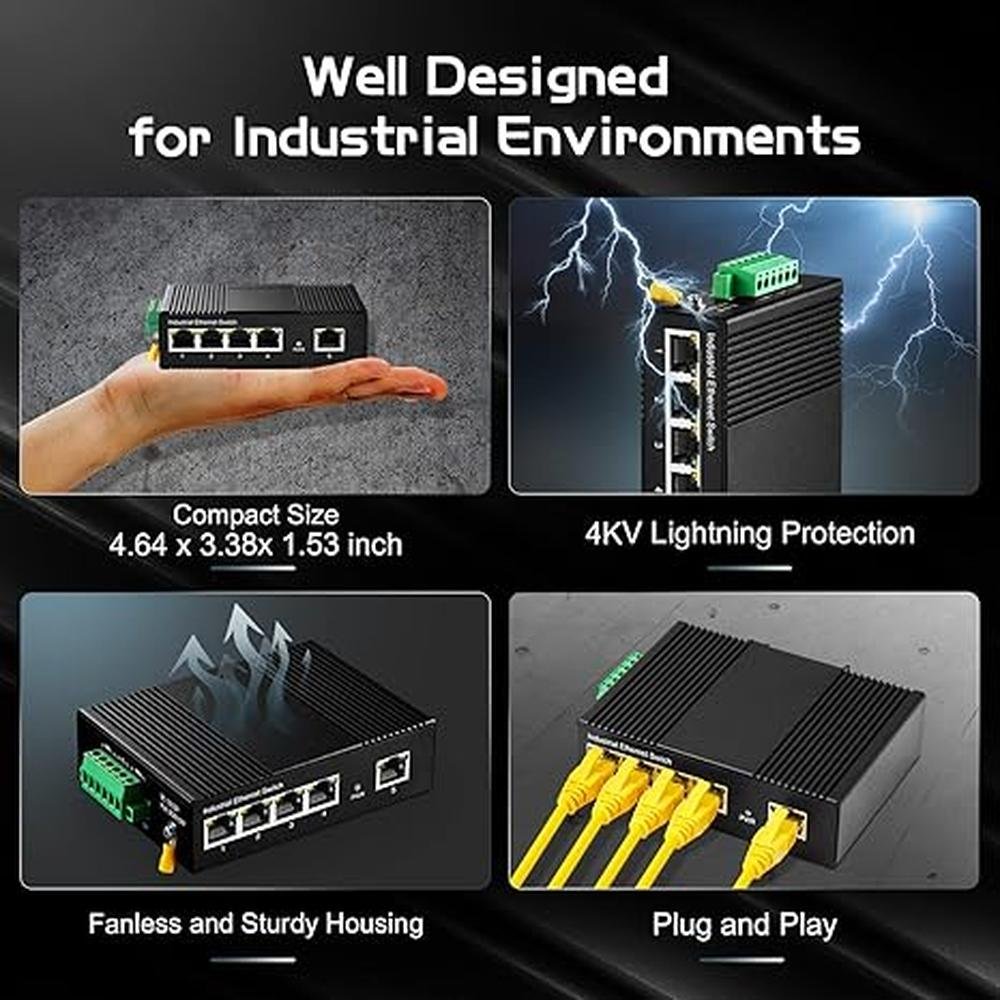

- • LED FanlessBoth the power supply and the port have LED indicators, which can clearly observe the running status of the device. Fanless design, heat sink for heat dissipation, quieter and energy saving during operation
Specifications & Details
| SKU | PIB0B77GFTJS |
|---|---|
| Platform | Not Machine Specific |
| Voltage | 12 Volts (DC) |
| Case Material | Aluminum |
| Upper Temperature Rating | 75 Degrees Celsius |
| Interface Type | RJ45 |
| Data Transfer Rate | 100 Megabits Per Second |
| Manufacturer | Binardat |
| Package Dimensions | 9.53 x 8.5 x 2.68 inches |
| Item Weight | 0.730 kgs |
| Item model number | 5 Port 100Mbps |
Product description

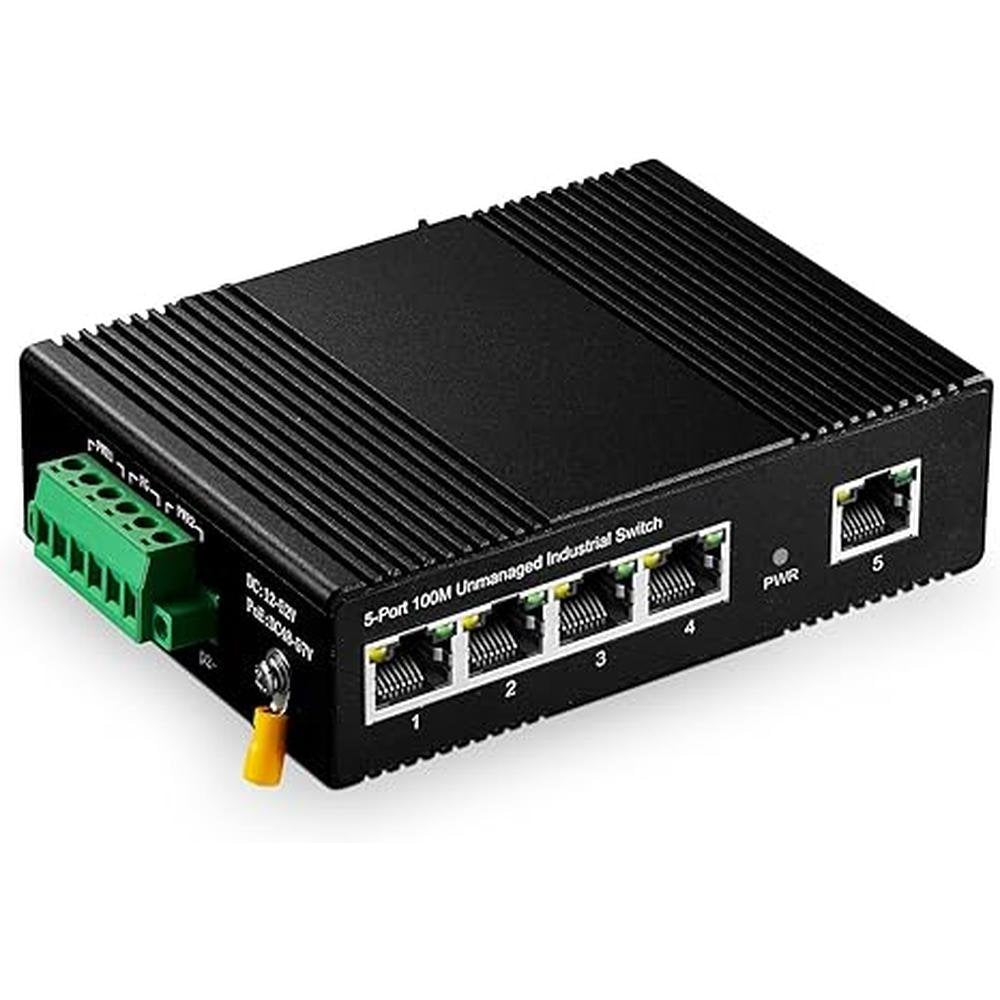

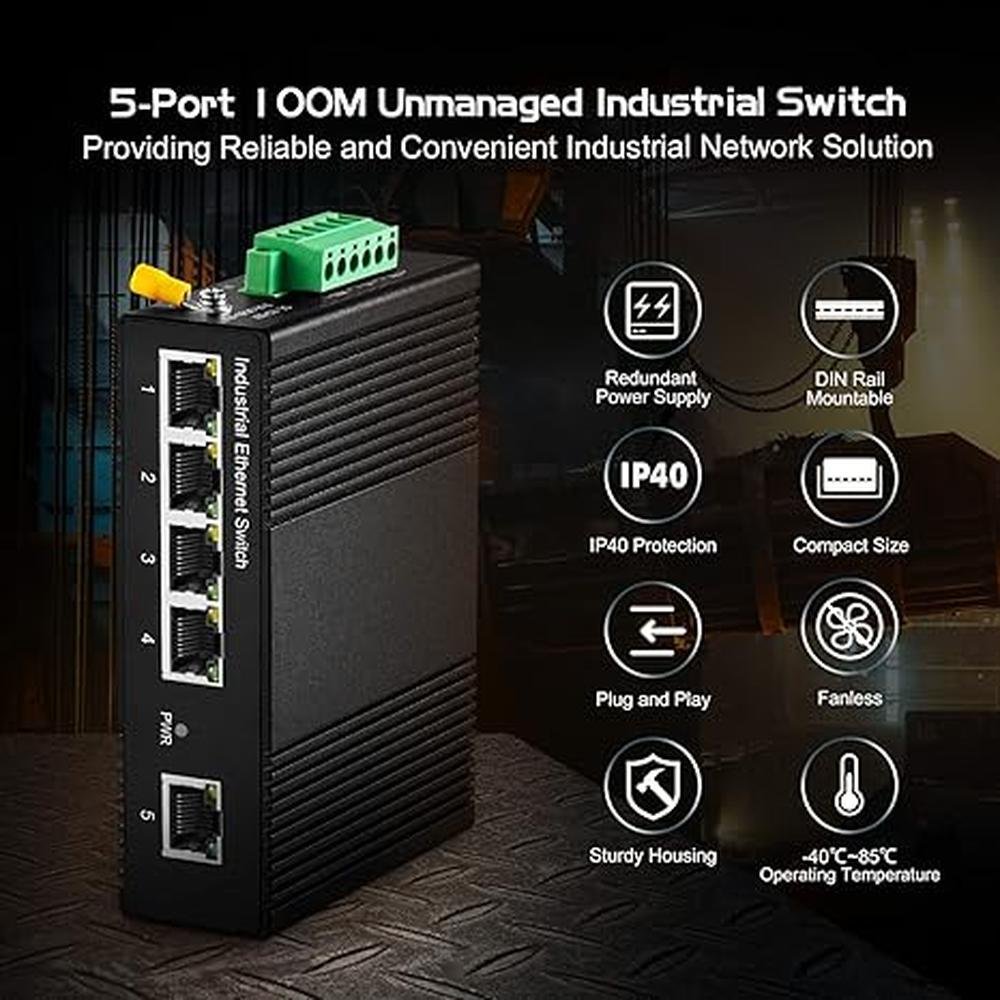

5 Port Industrial Switch
