- About this Item

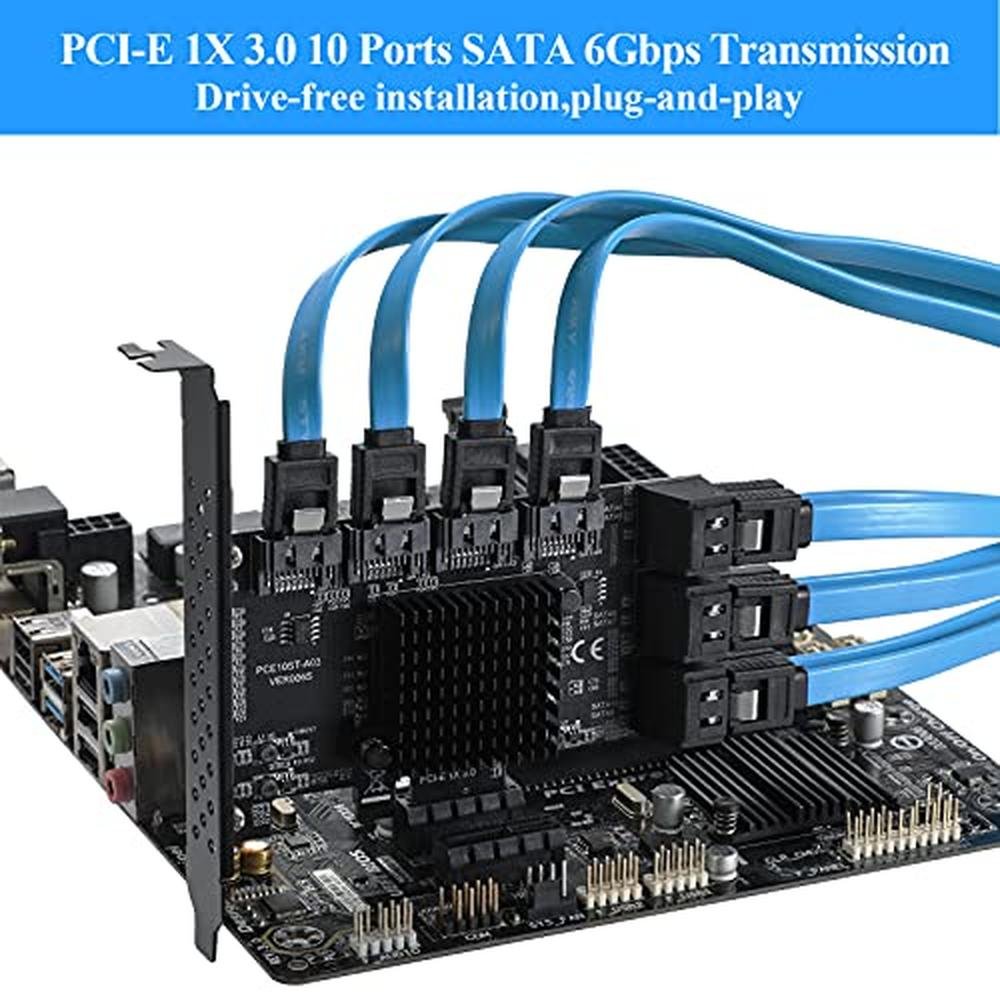

- • 10 Ports PCI-E to SATA 3.0This PCIE SATA CARD allows you to add 10 SATA 3.0 6Gbps devices to your computer. No need to drive, plug and play.

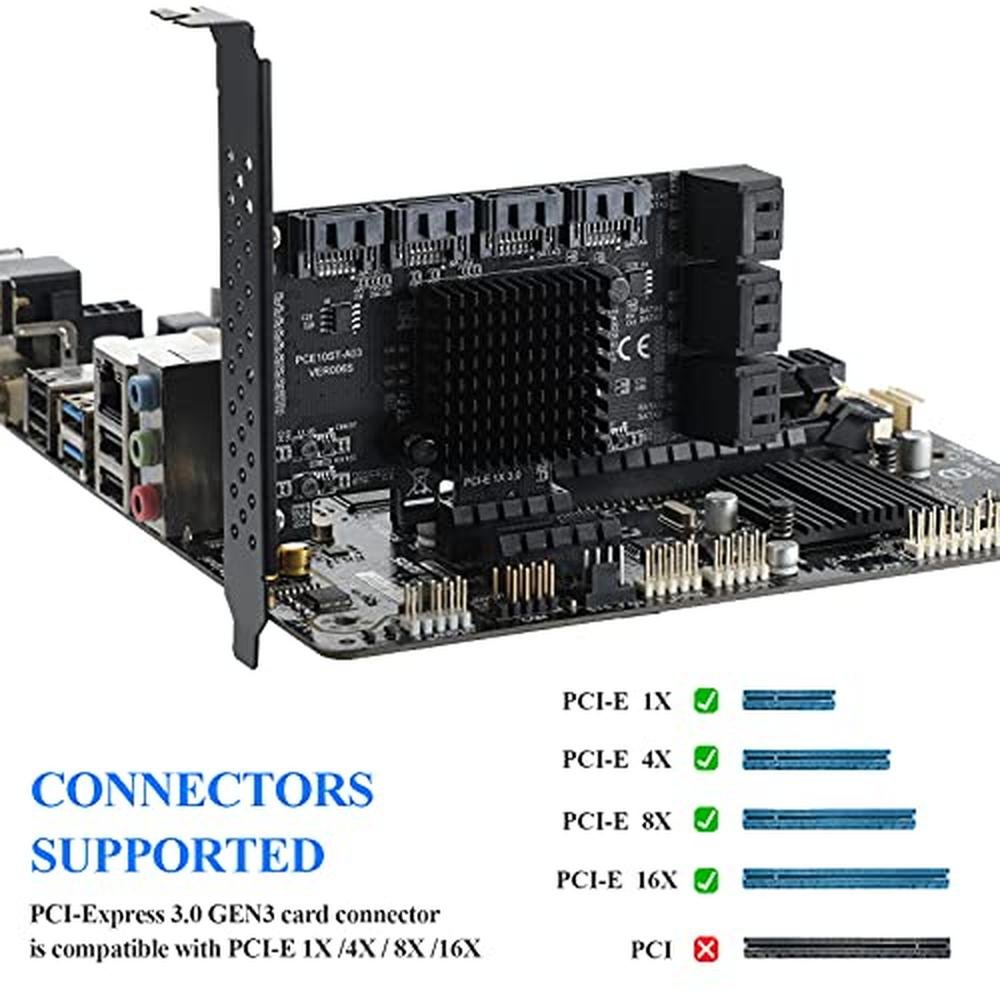

- • PCI-Express X1 interfaceCompatible with PCI-Express X1 X4 X8 X16 slots.(Recommended under PCI-E 3.0, faster use)
- • Powerful chipASMedia ASM1166 Chip, with heat sink, long-lasting high temperature resistance, high-speed and stable transmission.
- • System supportCompatible with Windows810UbuntuLinux.Support SATA interface hard diskoptical driveSSD solid state drive.
Specifications & Details
| SKU | PIB09F2NCZN9 |
|---|---|
| Brand | BEYIMEI |
| Item model number | BEYIMEI PCIE 1X SATA Card 10 Ports |
| Operating System | Windows 8 |
| Item Weight | 0.306 kgs |
| Package Dimensions | 6.1 x 4.96 x 2.01 inches |
| Manufacturer | BEYIMEI |
Product description
Product name 10-port SATA3.0 expansion cardbrProduct interface PCI-E1XbrProduct chip ASM1166brSupport system Windows 8 Windows10 Ubuntu Linux.br(Synology can only recognize 4 hard drives WIN7 users are not recommended to buy)brbrSpecificationbrComply with Serial ATA 3.0 specification, backward compatible with SATA2.0 SATA1.0brComply with PCI-Express v3.0 specification and backward compatible with PCI-Express v2.0 1.0.brSupport 6.0Gbs, 3.0 Gbits and 1.5 GbitsbrSupport hot swap.brCompatible with SATA6G, 3G and 1.5G hard drivesbrMotherboard applicable slot PCI-E 1X and above brbrNote RAID is not supported. The RAID in INTEL only applies to raw SATA. It is an expansion card that cannot support third-party chips.brbrSpeed description informationbr 1. Use SATA3.0 data cable to achieve the best results.br (We recommend using this SATA 3.0 card in the PCIE3.0 slot to get the fastest speed.)br2. PCI-E requires a slot above V2.0. For V1.0, the speed will not exceed 250M.br3. Motherboard BOIS setting SATA mode should be changed to AHCI.brAlthough some motherboards are PCIE 2.0 version, BOIS does not enable gen2 high-speed mode by default and needs to be turned on manually.brThe fastest speed of PCI-E 2.0 is 380-450 ms.brDifferent computer configurations and SATA SSDs have different speeds.brbrIf the detection is incomplete or unstable, please contact us to send the driver.brbrPacking ListbrPCIe 1X to 10 Ports SATA 3.0 card 1br5-port 15pin SATA POWER splitter cable 1brLow Profile Bracket 1brSATA cable 10
