Product description

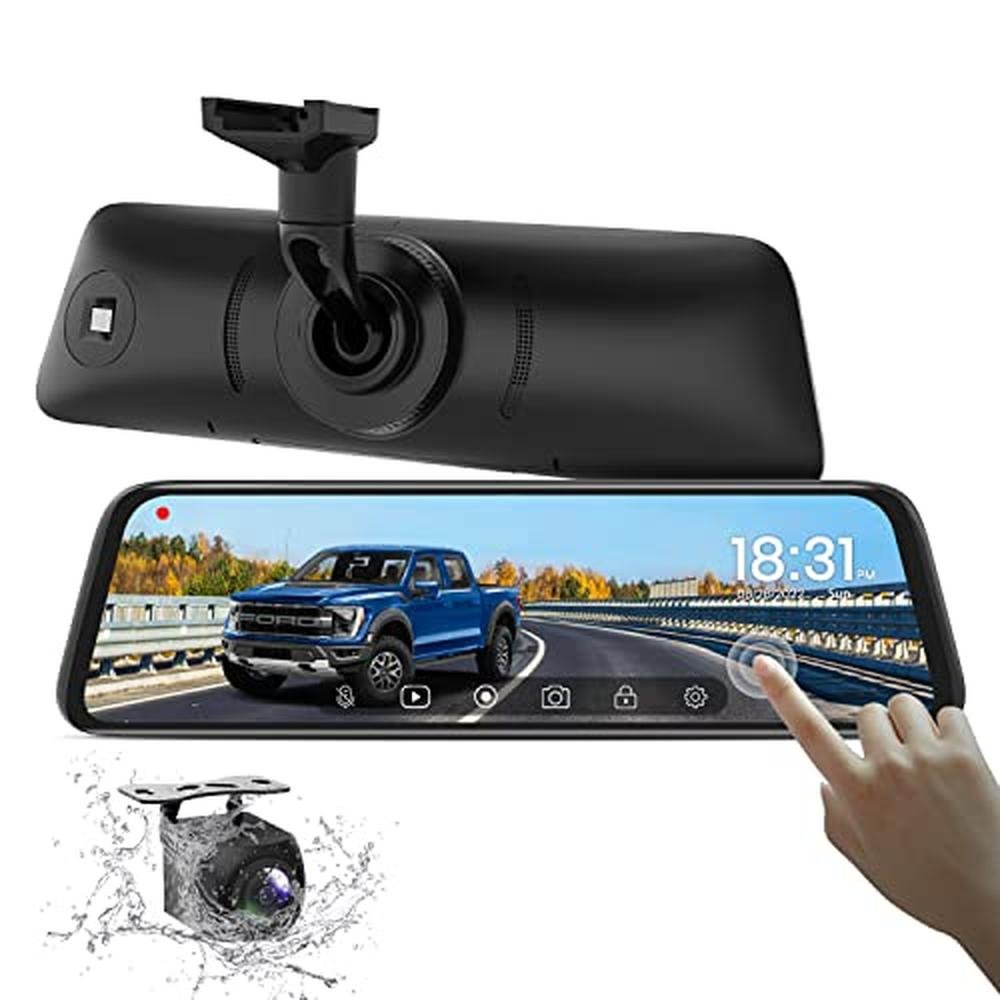

AUTO-VOX T9 backup camera, 9.35'' Stream Media full touch sceen rear viee mirror with OEM Look.
Specification
Display Screen?9.35 inch, resolution 1280*320
Resolution?1920x1080 @25fps
White Balance?Auto
Exposure? Auto
Video Signal?AHD
Lens?6G
Horizontal Angle?115°
Vertical Angle?61°
Minimal Illumination?0.1Lux
GPS?Support (buy separatedly)
Storage?8-64GB MicroSD (FAT 32) card Class 10 and above required.(buy separatedly)
TROUBLESHOOTING
1.Blank Screen
Answer: Reset or restore the default settings.
2. The machine is switched on and off repeatedly (when the memory card is inserted).
Answer: Take out the card. If the machine returns to normal, it may be a problem with the memory card. Please replace the memory card.
3. The recording time setting is 3 minutes, but the recorded clip is only 1 minute or 1 and a half minutes.
Answer: It may be caused by the unstable card speed or the card is broken. It is recommended to replace the SD card.
4. Insert a 64GB card, but the machine does not recognize the card.
Answer: Please insert the card into the machine and use the machine to format the card.

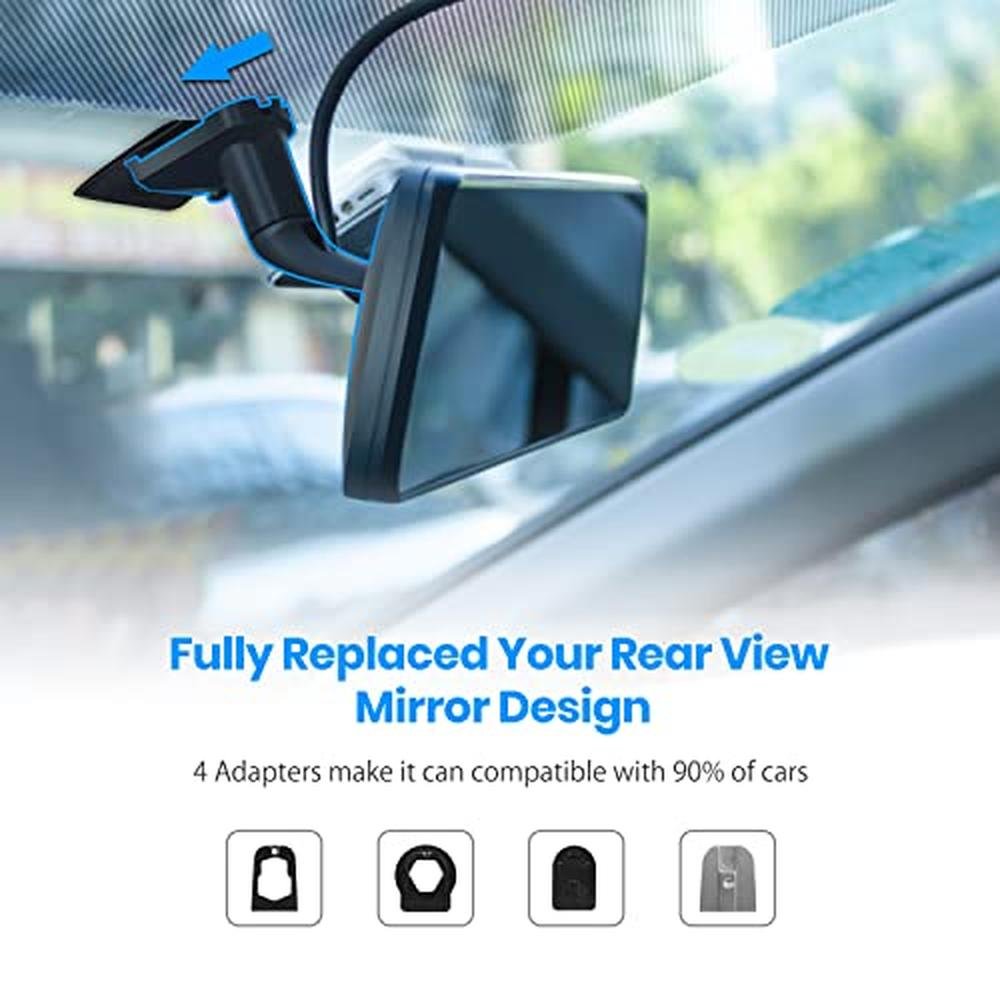

OEM Looking & 4 Adapters
T9 mirror replace your original mirror completely without any damage. 4 different adapters make it fits 90% of cars in the market.
Adjustable Parking Line
More convenient to park your car and just move up or down the 6 grid lines in non-gridlines area to adjust reversing view angle.
Loop Recording & Manual Locking
Insert a memory card, and recording will begin after power supply. If there is insufficient space on the memory card, loop recording will automatically overwrite the old files one by one.
The recording could be locked manually as emergency recording and cannot be overwritten by loop recording.

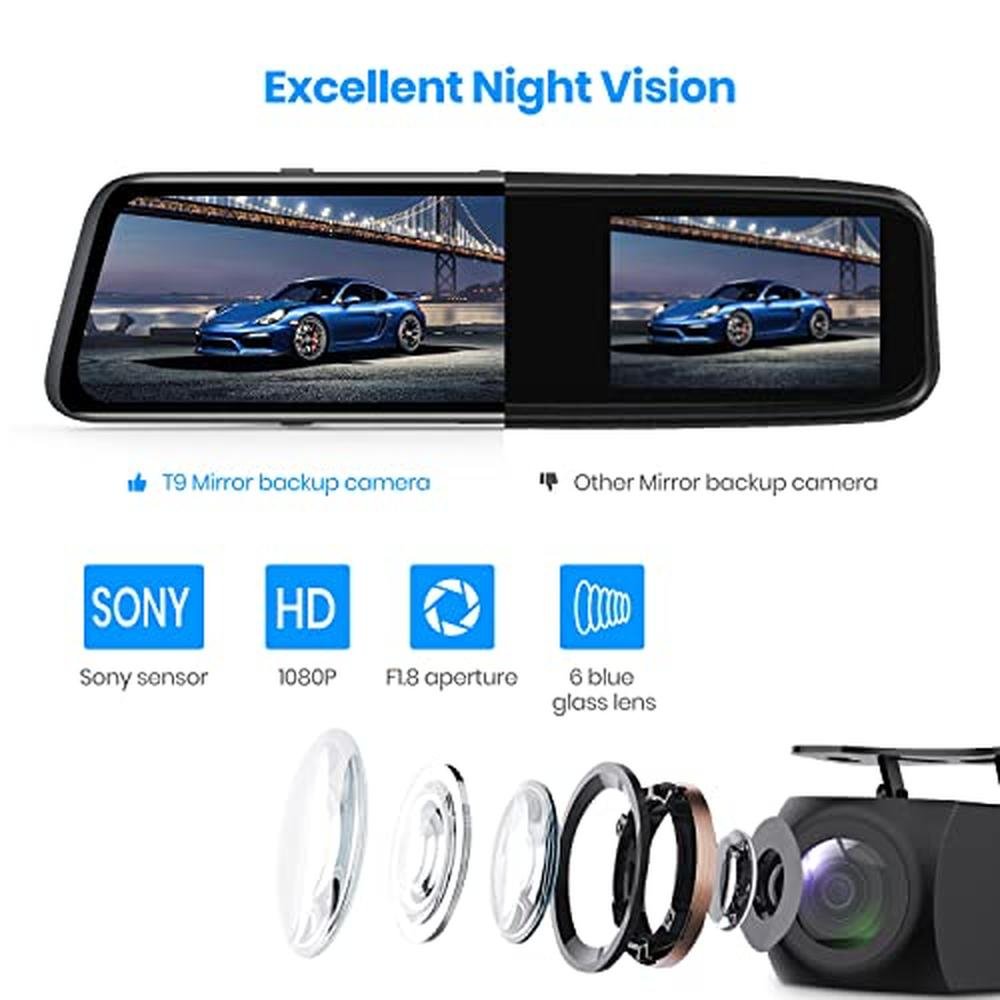

Durable Backup Camera
The backup camera is IP 68 waterproof standard, therefore you needn't to worry about the car wash or the rain. Temperature-resistant from - -4? to 149?, no need to worry about sudden attacks under extreme weather.
Optional GPS Tracking
When the optional GPS moudule is connected, the following functions can be used: a. GPS tracking system, automatically capture the speed, location and coordinates of your car. b. Driving mode, you can see the current speed and direction. c. Playback Mode, playback on PC
Noted: The GPS Module is not included in the package, you should buy it separately.
SD Card Is Not Included
Support to insert in 8-64GB Micro SD (FAT32) card Class 10 and above required.
Noted: Please format the SD card before first use.
The below adapters is not included in the package!!!
T9 T2 T1400U CS2 W7PRO

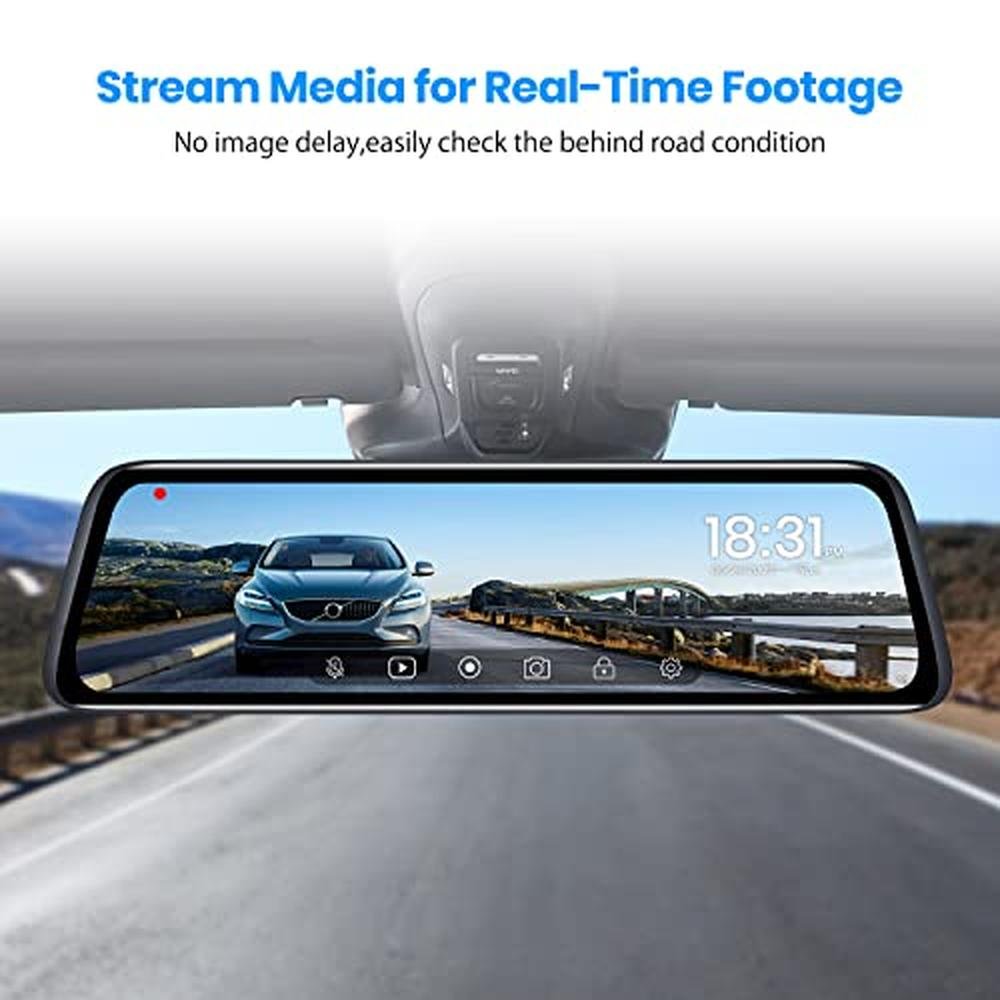

Stream Media ?
Screen Size 9.35'' 4.3'' 4.3'' 4.3'' 5''
Operation Touch screen Button Button Button Button

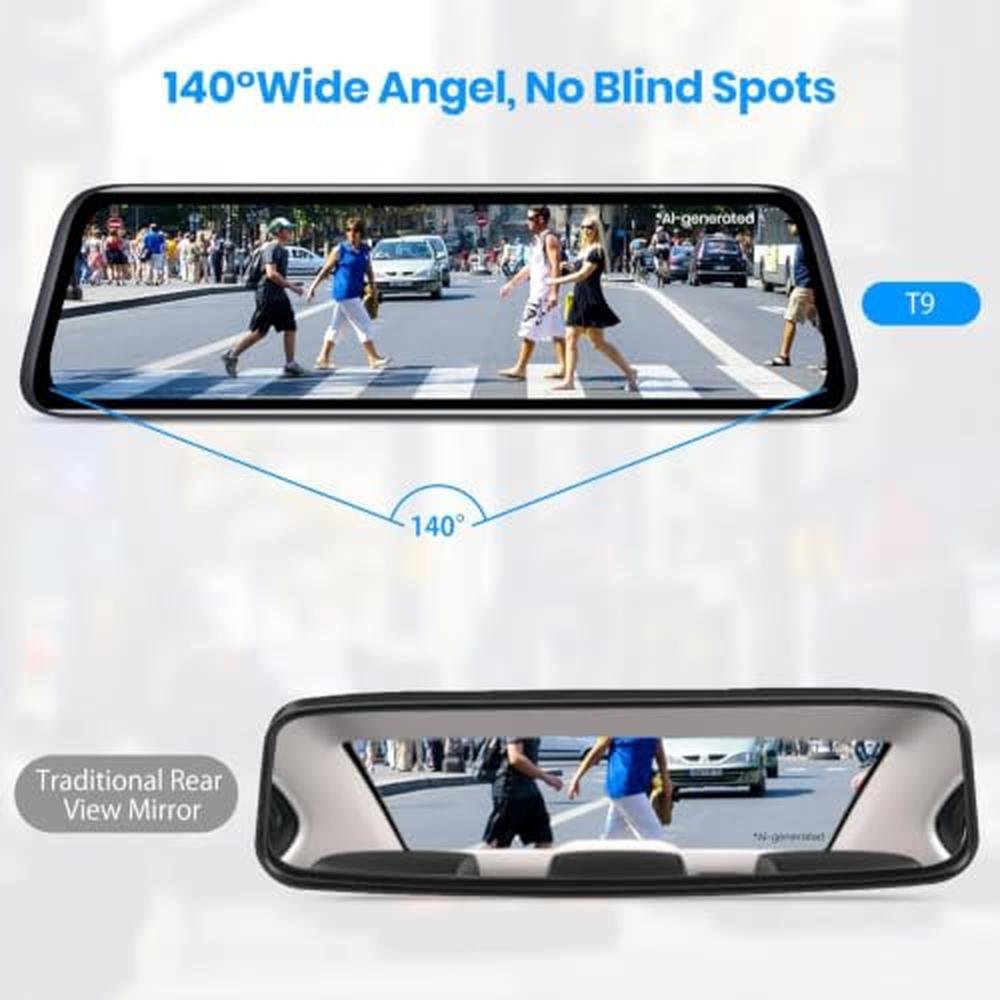

Wide Angle 140 degree 170 degree 170 degree 110 degree 110 degree
Auto-adjust Brightness ? ? ?
Adjustable Parking Lines ? ? ?
Loop Recording ?
Work as Normal Mirror ? ? ?
Monitor Insatllation Rear view mirror (with OEM Bracket? Rear view mirror (with OEM Bracket? Rear view mirror (with OEM Bracket? Dashboard or windshield(with suction mount) Dashboard or windshield(with suction mount)
Technical specifications
| SKU | PIB08FT4VC37 |
|---|---|
| Screen Size | 9.35 inches |
| Compatible Devices | NO |
| Voltage | 12 volts |
| Optical Sensor Technology | CMOS |
| Lens | Wide Angle |
| Real Angle of View | 140 degrees |
| Connector Type | Mirror |
| Optical Sensor Size | 1/3 inch |
| Field Of View | 140 degrees |
| Display Technology | LED |
| Effective Still Resolution | 2073600 pixels |
| Lux rating | 0.1 lux |
| Video Capture Resolution | 1080p |
