- About this Item

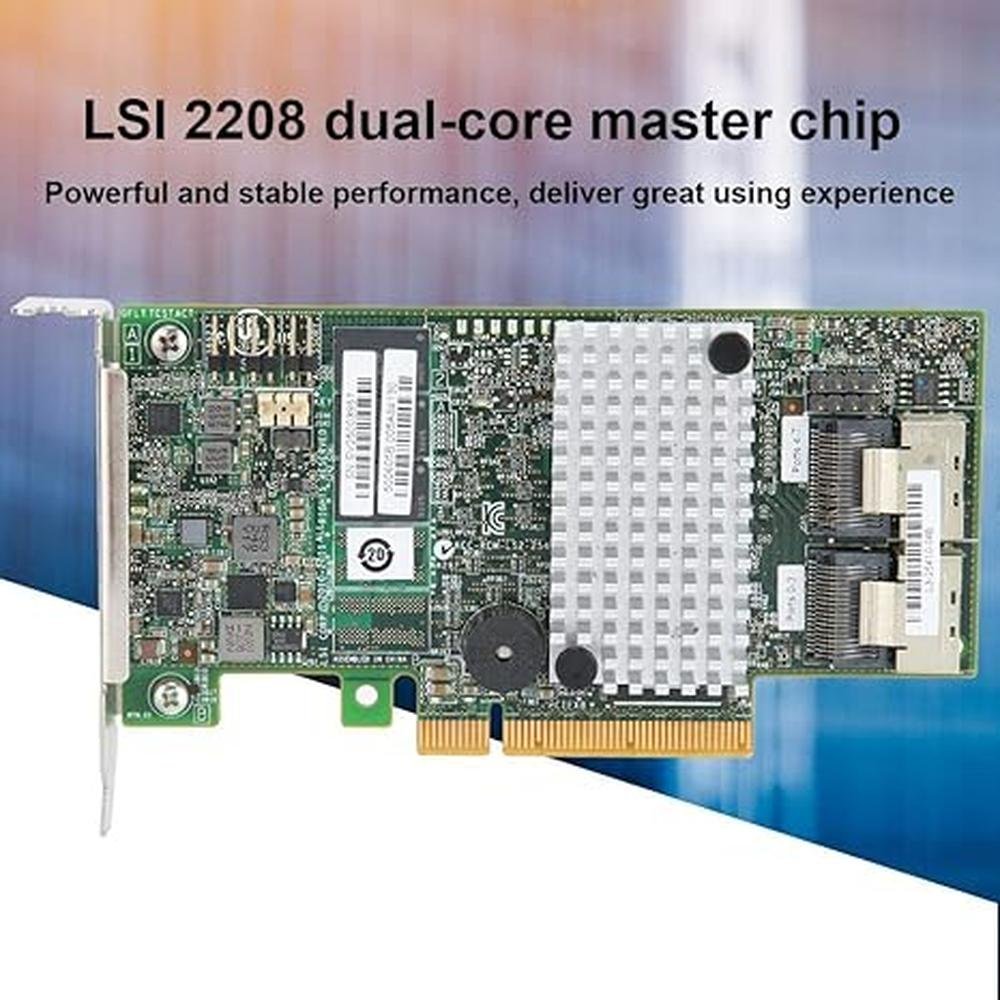

- • sas2208 dual-core master chip features powerful and stable performance for great using experience.

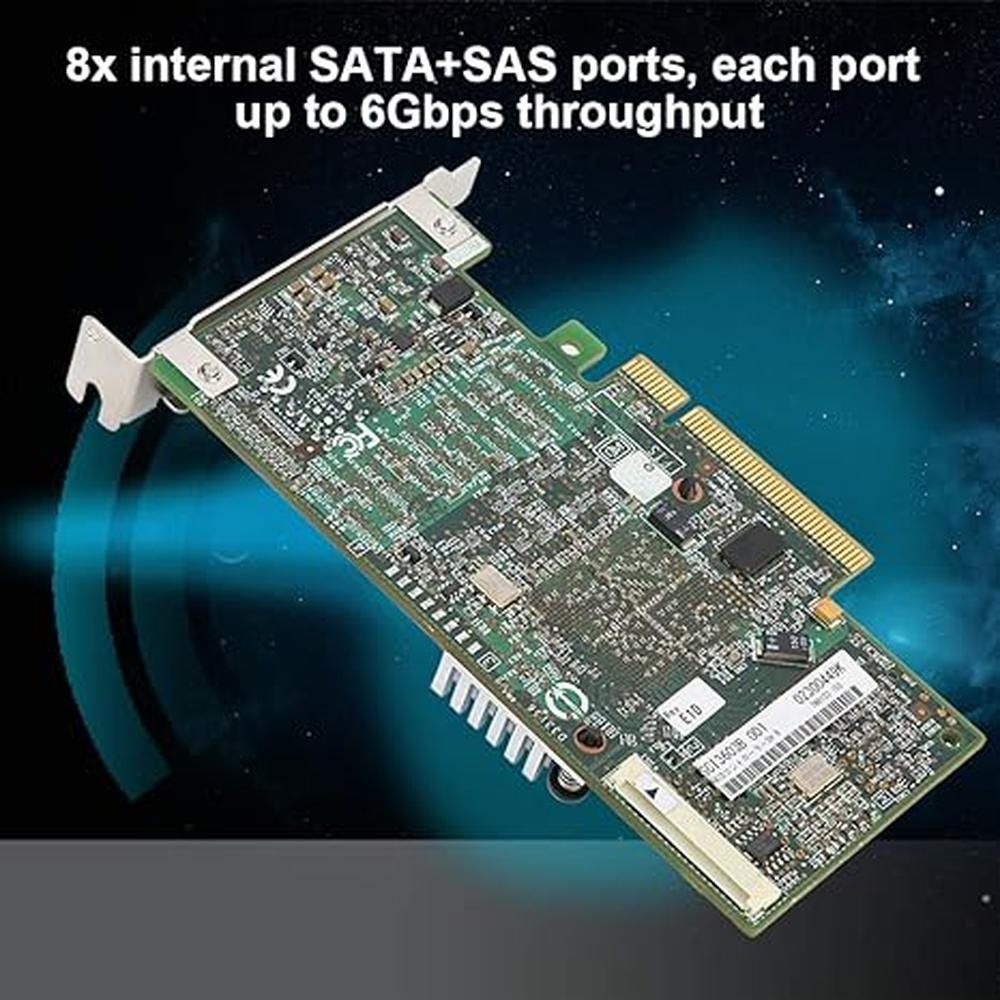

- • 8x internal SATA+SAS ports and 2x mini-SAS SFF-8087x4 connector, each port up to 6Gbps throughput.
- • Support for RAID 0/1/5/6, with 512MB cache.
- • Equipped with low baffle for convenient installation in 2U chassis.
Specifications & Details
| SKU | PIB082SWYPGV |
|---|---|
| Brand | ASHATA |
| Item model number | ASHATAdyco53b2zp |
| Operating System | Windows, macOS, Linux |
| Item Weight | 0.130 kgs |
| Color | default |
| Manufacturer | ASHATA |
Product description

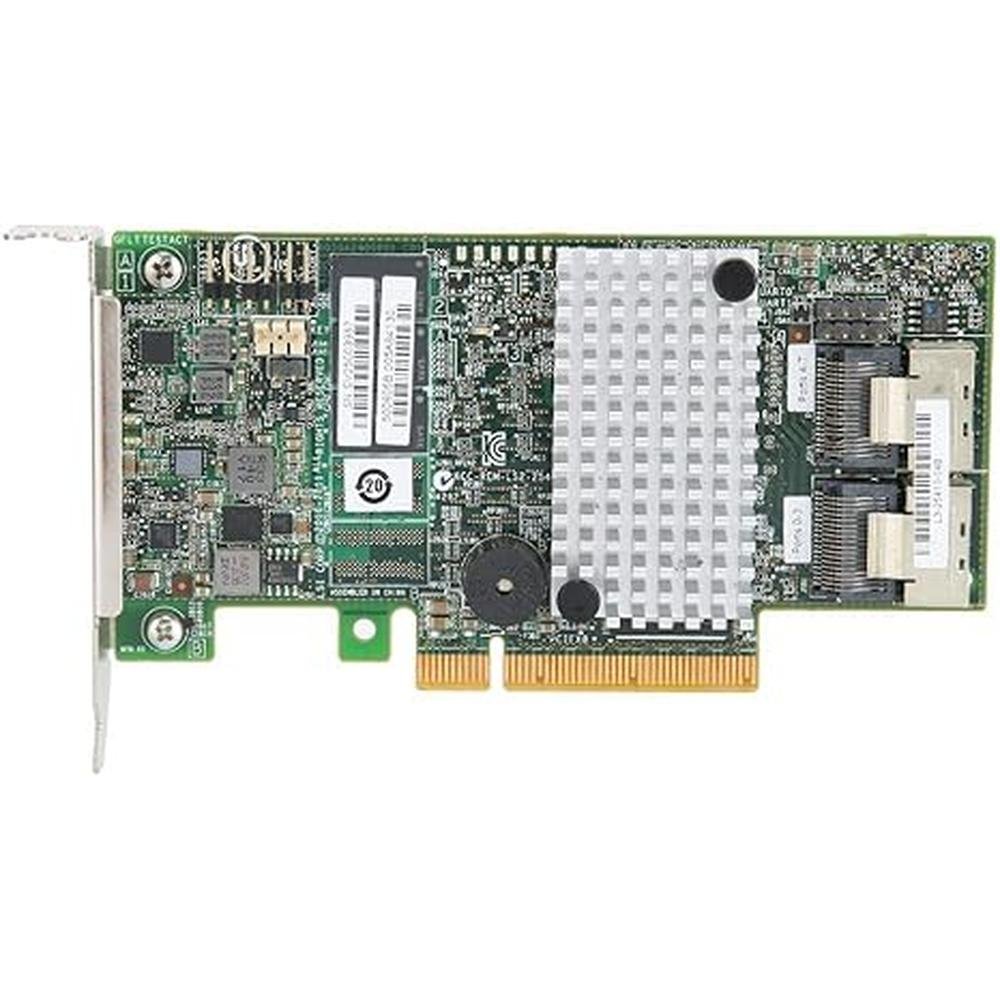

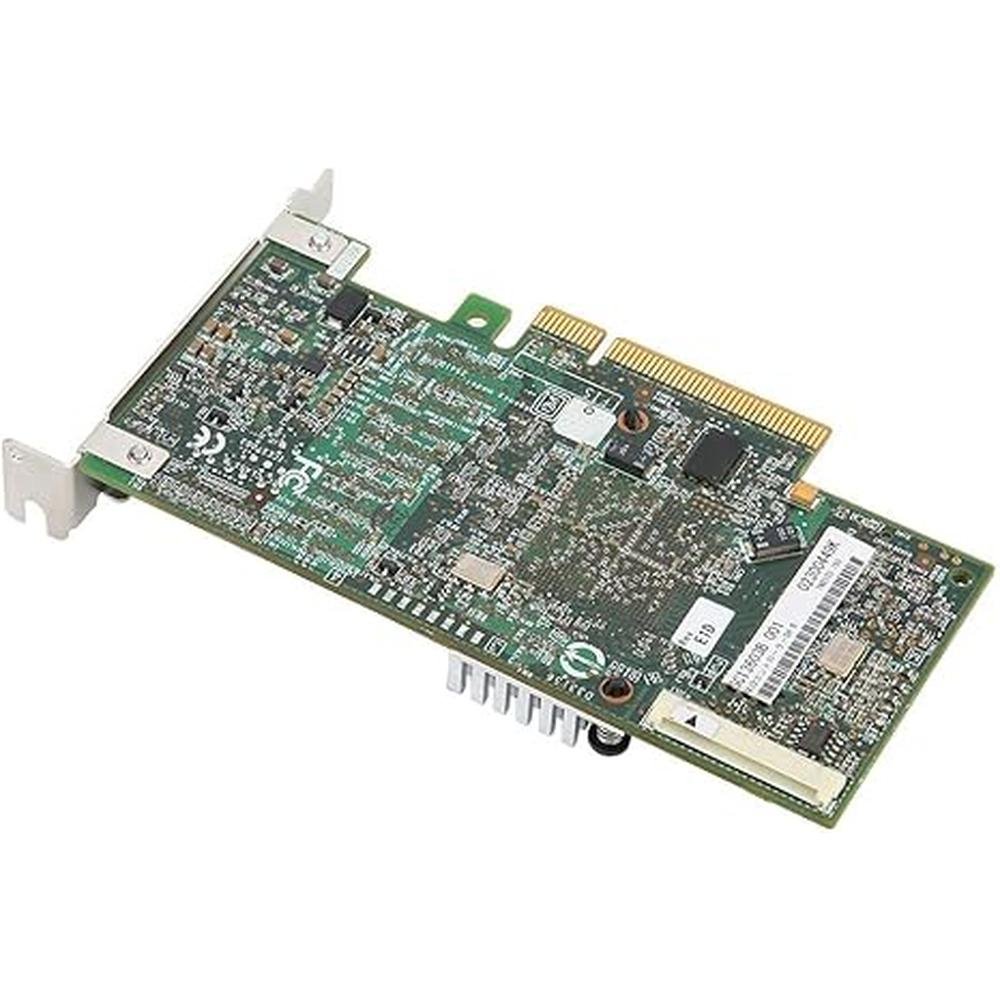

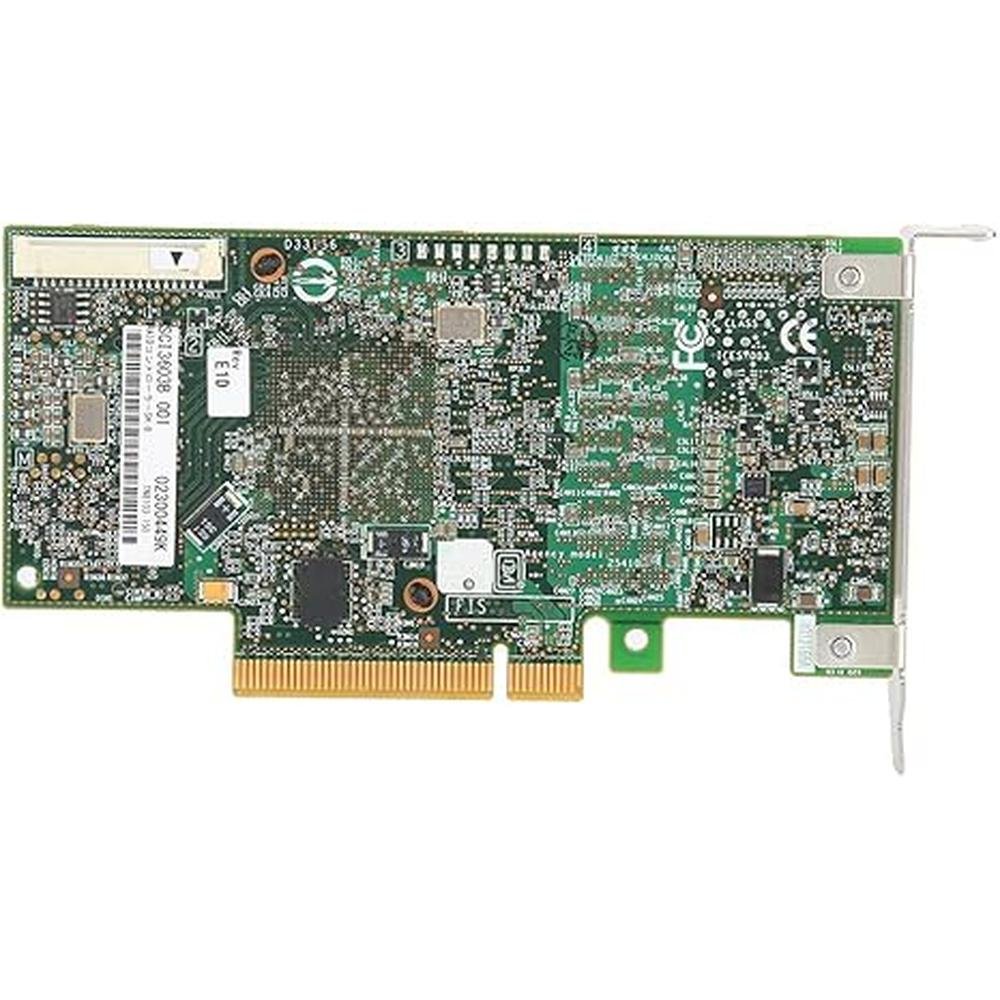

ASHATA SAS Controller Card, 8 Port SATA + SAS Ports Expansion Card, LSI 9267-8i 2208 6Gbps 512MB PCI E 2.0 8 Port SATA/SAS
Equipped with a low baffle for convenient installation in a 2U chassis.
Support RAID 0/1/5/6 with 512 MB Cache.
8 internal SATA + SAS ports and 2x -SAS SFF-8087x4 connector, each port with a throughput of up to 6 Gbit/s.
Specification:
Item type: RAID card
Port: 8 internal SATA + SAS ports
Connection: 2 x SAS SFF 8087x4 connector
Throughput: 6 Gbit/s for each port
Master chip: For Dual-ROC LSISAS2208, 800MHz Power PC
MD2: Approximately 6.6 inches x 2.536 inches
Host interface: x8 PCI Express 2.0
Cache: 512MB DDRIII 1333MHz high speed cache
Optional battery backup unit: LSIiBBU09
Connect up to 128 SATA and/or SAS devices
RAID level: 0, 1, 5
RAID area: 10, 50
Automatic recovery when restoring; Automatic recovery during conversion; Online Capacity Expansion (OCE); Online RAID Level Migration (RLM); Provide SSD support with SSD Guard; Global and dedicated spare with recoverable spare support Automatic rebuild; Storage Cabinet Affinity; Emergency SATA hot spare for SAS arrays; Single Controller Multipath (Failover); I/O load balancing; Complete RAID management kit;
Package list: 1 x RAID Card
A notice: Product Condition: Open the box, pull it out of the working environment, not brand new, low baffle standard
