- About this Item
- • Pixel-level accuracy: powerful depth/distance measurement.
- • Large working range: 2m/4m optional, and a 10-meter broader coverage with our cable extension kit.
- • Outdoor usable: No worry of interference from ambient light.
- • Any MV library works: 3 languages applicable. C, C++ or Python.
Product description

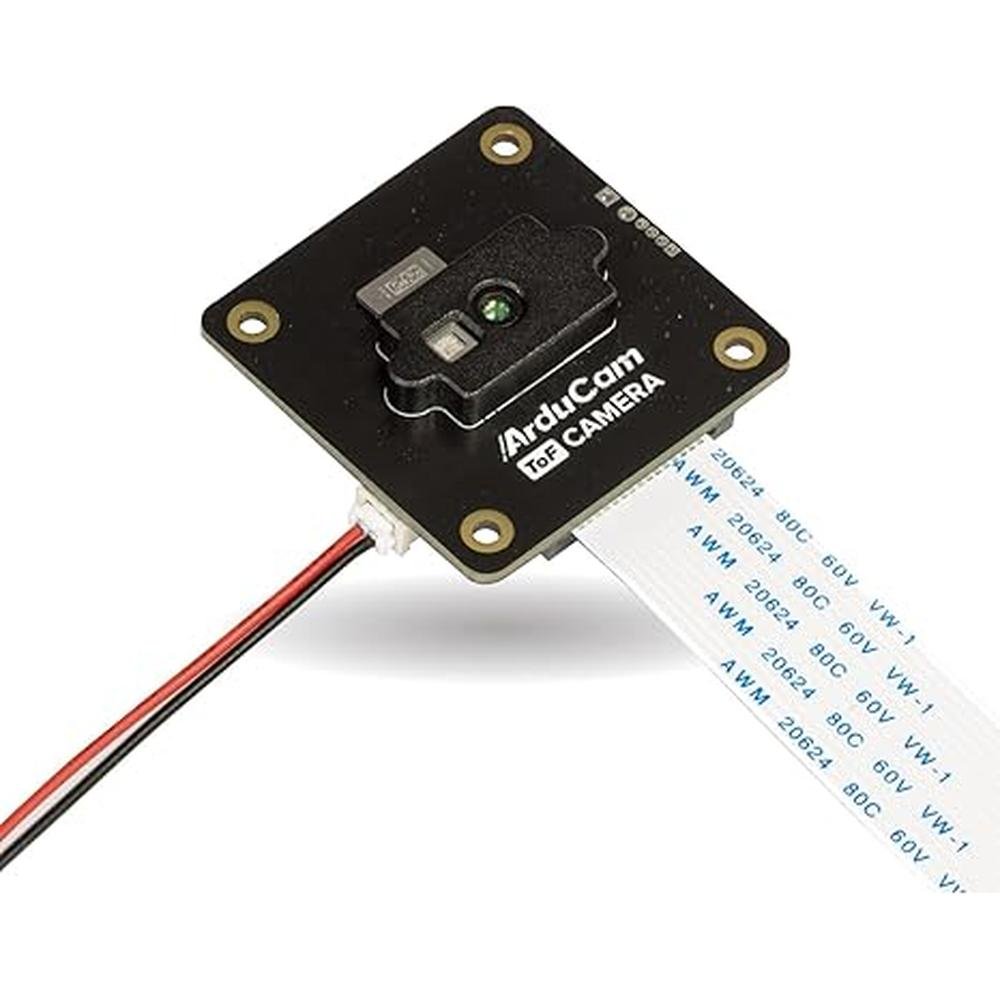

Arducam ToF Camera for Raspberry Pi and Jetson
Arducam has developed and designed this camera based on advanced technology. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the sensor, enabling the camera to realize your various projects. The camera is featured Point Clouds and 3D Imaging. We equip the camera with an IR emitter, allowing you to use it under different light conditions.
This camera is based on a 0.43MP Rolling Shutter image sensor. The camera has excellent Infrared Distance Measurement and Depth Sensing performance at Distance Measure and 3D Image aspects.
Note:
No platform board (Raspberry Pi/NX board) is included in the package.
This camera will need a corresponding driver to operate, please refer to the documentation for details.
3 languages are applicable, C, C++, or Python. For more details, please refer to bit.ly/github-B0410
Package Included:
1 x Arducam ToF Camera Module
1 x FPC Cable (15cm)

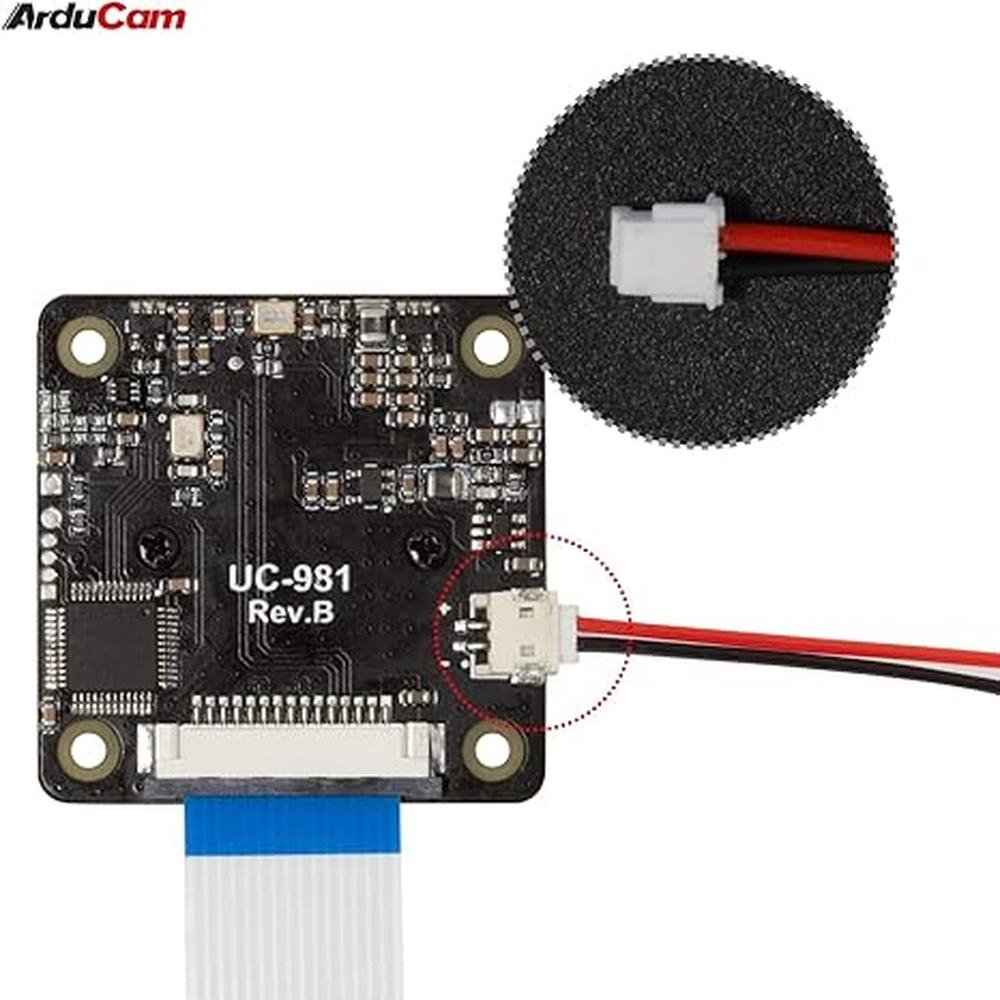

1 x 2-pin Dupunt Cable

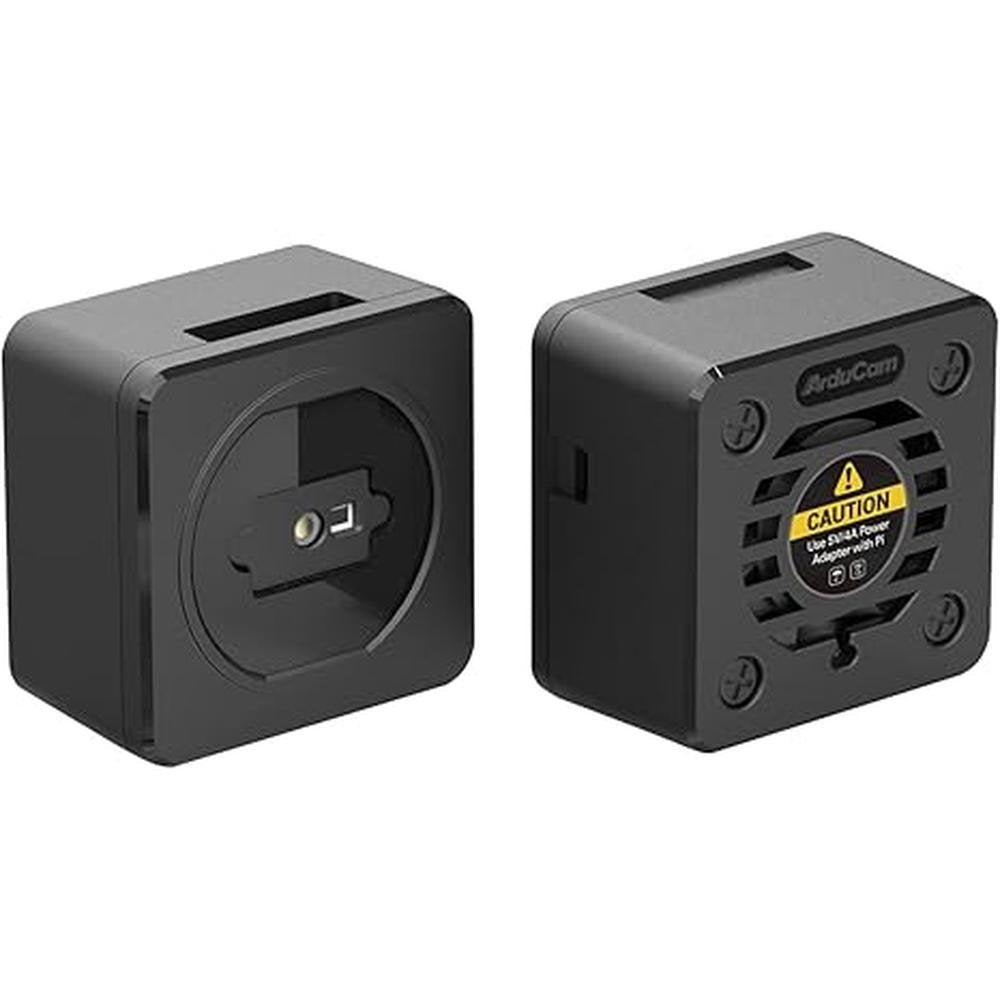

1 x Acrylic Case
Large Working Range
2m/4m optional, and a 10-meter broader coverage with our cable extension kit.
Wide Compatible

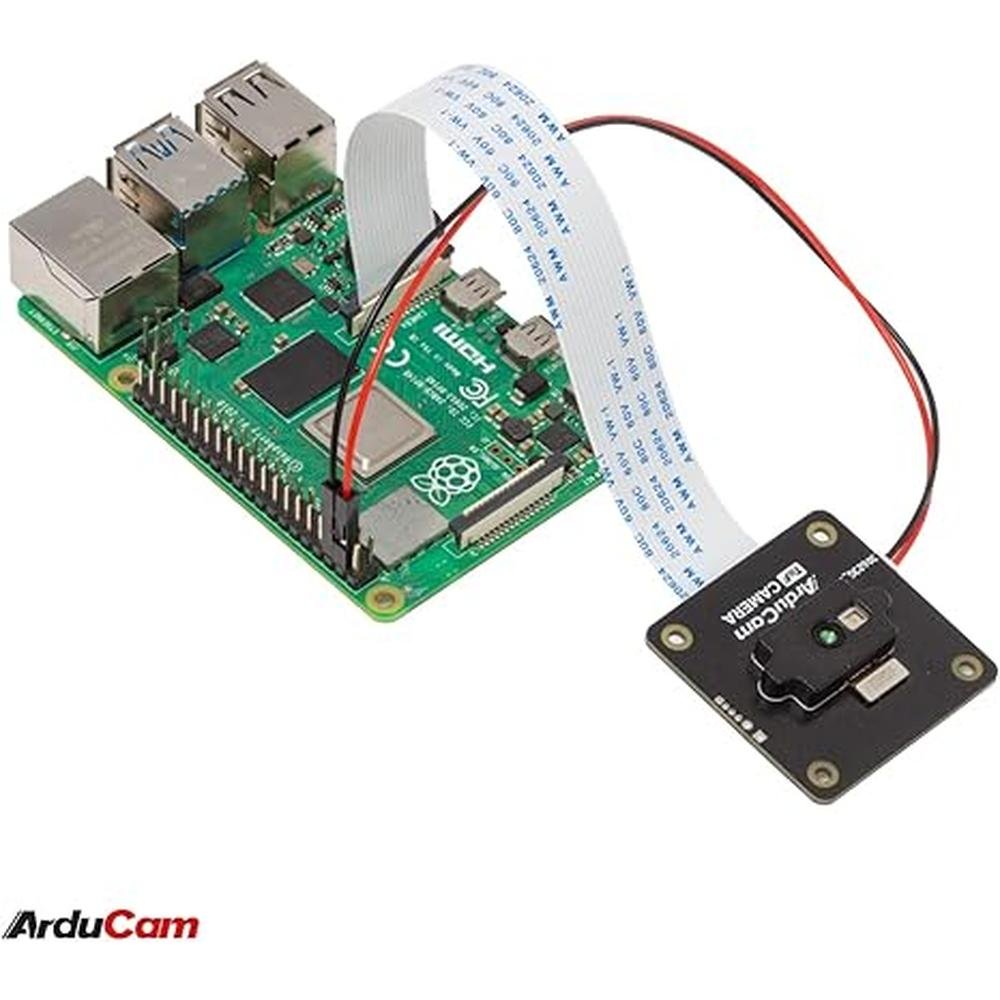

Compatible with Rasberry Pi and Jetson Board
3 languages are applicable, C, C++, or Python. For more details, please refer to bit.ly/github-B0410
Indoor/Outdoor Usable
Application:
VR&AR
Logistics
Automotive
Surveillance
Robotics
Specification
Optical Size 1/6''
Number of effective pixels 240(H)×180(V)
Frame Rate 30fps, 4-phase
Interface MIPI 2-Lane
Shutter Type Rolling Shutter
Output Format 4-phases RAW Frame, Depth Frame, Grayscale Amplitude Frame
Lens Type Stock Lens
Field of View 70° Diagonal

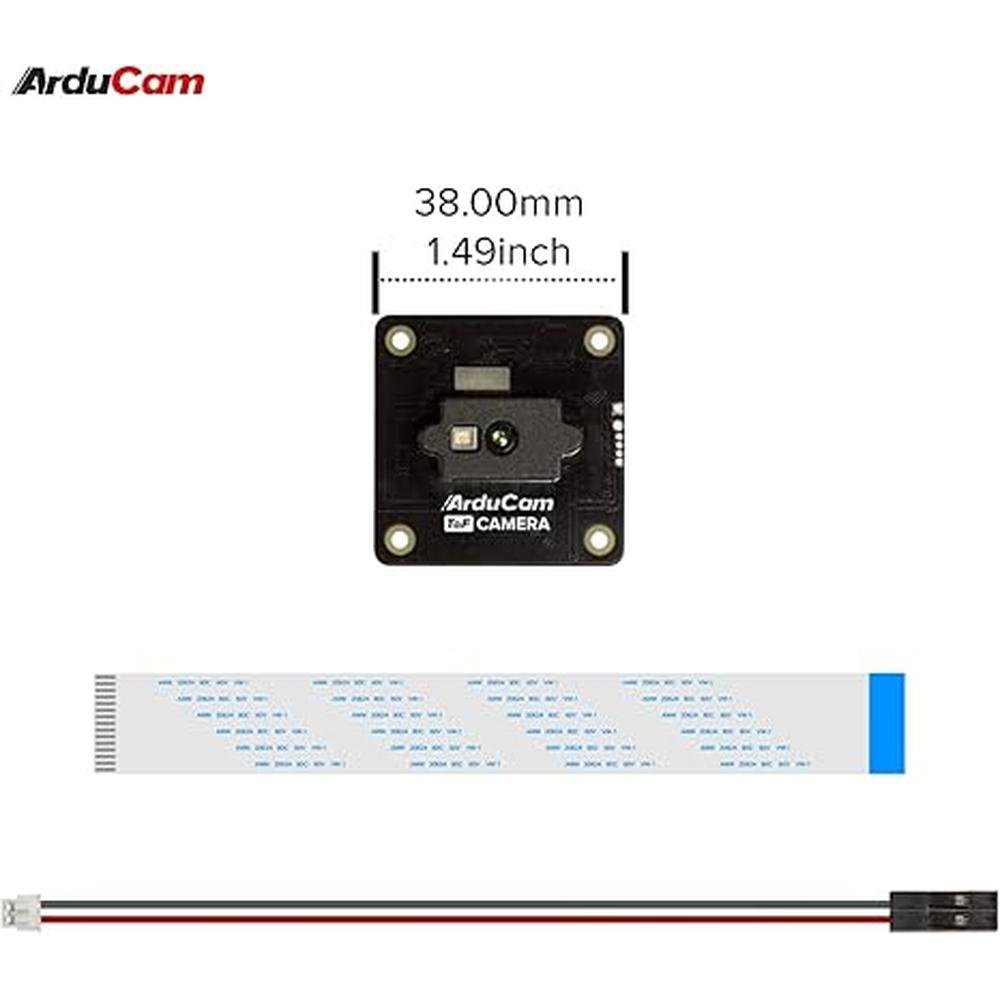

Camera Board Size 38mm x 38mm
EFL 2.14(AT 940nm)
F.NO 1.14±5%
Distortion <1.0%
Focusing Range 0.14m-inf (AT 50cm)
