- About this Item
- • 240W Ultra-Fast Charging Equip your workspace with this powerful 240W charging station, designed to handle all your devices effortlessly.

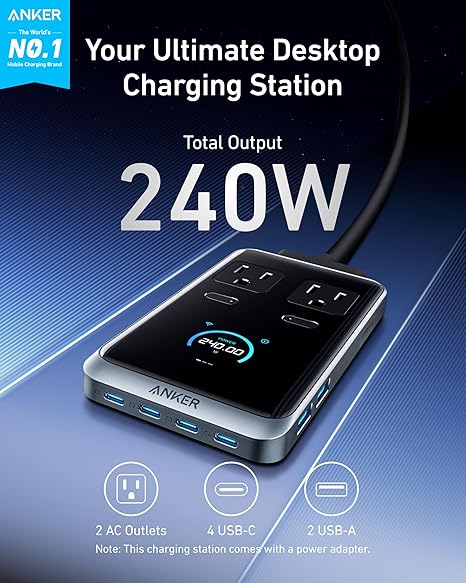

- • 8 Ports of Power Access all the power you need with 2 AC outlets, 4 USB-C ports, and 2 USB-A ports in one compact charging station.

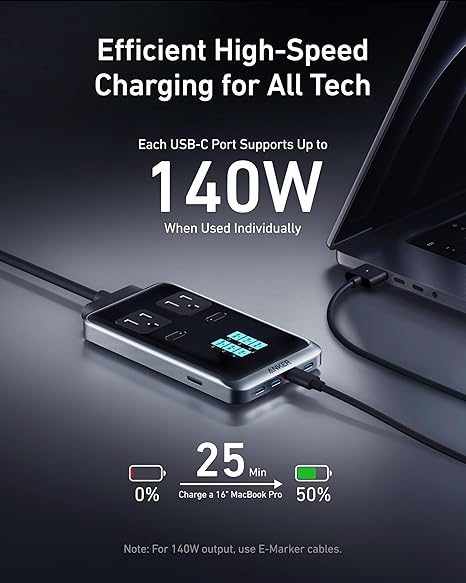

- • 140W Max Per USB-C Port Leverage the 140W output available on each USB-C port to rapidly charge your high-demand devices such as a 16-inch MacBook Pro, efficiently reaching 53 in just 30 minutes.

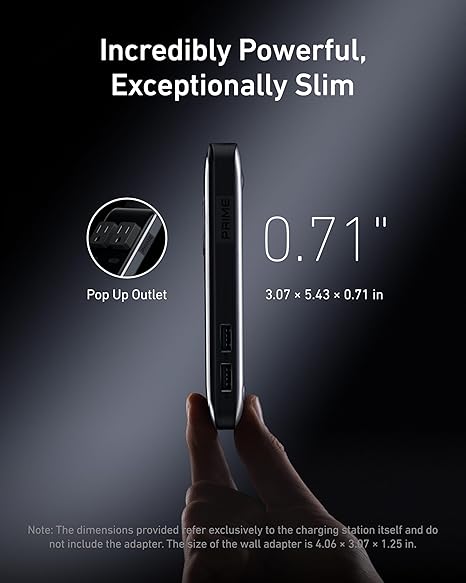

- • Minimal Space, Maximum Power This ultra-compact charging station measures only 3.07 5.43 0.71 inches and includes a pop-up outlet for easy access.
Specifications & Details
| SKU | PIB0CYT4LC2M |
|---|---|
| Product Dimensions | 5.43 x 0.71 x 3.07 inches |
| Item Weight | 0.835 kgs |
| Item model number | A91B2 |
| Manufacturer | Anker |
Product description
GaNPrime Tech 240W Desktop Power 8-in-1 Compact Design ActiveShield 3.0
One-Port Charging Two-Port Charging Three-Port Charging Four-Port Charging Multiple-Port Charging
Model Number A91B2
1-Port Output: USB-A1 / A2: 5V?2A (2.4A Max Per Port); USB-C1 / C2 / C3 / C4: 5V?3A / 9V?3A / 15V?3A / 20V?5A / 28V?5A (140W Max Per Port)
2-Port Output: 2× USB-C: 240W Max; USB-C + USB-A: 152W Max; 2× USB-A: 12W Max
3-Port Output: 3× USB-C: 240W Max; 2× USB-C + USB-A: 232W Max; USB-C + 2× USB-A: 152W Max
4-Port Output: 4× USB-C: 240W Max; 3× USB-C + USB-A: 237W Max; 2× USB-C + 2× USB-A: 232W Max
5-Port Output: 4× USB-C + USB-A: 237W Max; 3× USB-C + 2× USB-A: 237W Max
6-Port Output: 4× USB-C + 2× USB-A: 237W Max
Dimensions/Weight: 3.07 × 5.43 × 0.71 in / 78 × 138 × 18 mm (Charging Station Only) 4.06 × 3.07 × 1.25 in / 103 × 78 × 31.7 mm (With Wall Adapter)?Charging Station 230g/0.51lb + Wall Adapter 605g/1.33lb
Notes1: The USB ports support an input voltage of 100V-240V~, 50-60Hz.
Notes2: This charging station has a 300J surge protection.
Notes3: Use a 5A current E-Marker cable to achieve charging speeds of 60W or above.
Notes4: Apple's 5.9-foot Thunderbolt cable is not compatible with select models from Samsung, Dell, and Lenovo.
FAQ1: Q: Does the charging station support a wide voltage range? A: It supports an input voltage range of 100-240V.
FAQ2: Q: What should I do if the product overheats? A: It is normal for high-power multi-port chargers to generate heat. The product has seven protective measures and is certified by cTUVus for safe use.
FAQ3: Q: What is the purpose of the metal pin in the adapter connector? A: The pin is used for transmitting temperature sensing signals.
FAQ4: Q: Why does the USB-A port show 5V/0A when idle, while the corresponding USB-C port shows 0V/0A? A: According to USB-IF association requirements, the USB-A port must remain always on, thus displaying 5V/0A on the voltage and current interface.
Comparison
Anker 240W Power Strip
Buying Options
Anker 250W Desk Charger
Buying Options
Anker Prime Dock Station
Buying Options
Anker 200W Desk Charger
Buying Options
Anker 100W Prime Charger
Buying Options
Anker Prime USB C Cable
Buying Options
Anker 65W Power Bank
Buying Options
Customer Reviews
192
284
89
596
332
301
171
Main Feature
Smart Control & 240W Max Power LCD Display&Smart Control Dial 160W 14-in-1 Docking Station Ultra-Fast Charging Station Foldable and Compact Ultra-Durable 2-in-1 Power Bank and Charger
Total Output(Max)
240W 250W 160W 200W 100W 240W 65W
Single USB-C Output(Max)
140W 140W 100W 100W 100W 240W 65W
Ports and Connections
4x USB-C / 2x USB-A / 2x AC 4x USB-C 2x USB-A 4 Charging Ports 10 Data Ports 4x USB-C 2x USB-A 2x USB-C 1x USB-A USB-C to USB-C 2x USB-C
Data Transfer(Max)
/ / 10Gbps / / 480 Mbps /
App Support
Yes Yes Supports Dock Manager App / / / /
Screen Display
Yes Yes Yes / / / Yes
Physical Button
Yes Yes Yes / / / Yes
Safety Feature
ActiveShield 3.0 ActiveShield 3.0 ActiveShield 2.0 ActiveShield 3.0 ActiveShield 2.0 / ActiveShield 3.0
Size
3.07 × 5.43 × 0.71 in 4.18 × 1.58 × 3.64 in 5.51 × 3.82 × 1.85 in 4.4 × 3.0 × 1.4 in 1.7 × 1.1 × 2.7 in 6 ft 4.53 x 1.65 x 1.71 in
Weight
0.51 lb / 230 g 1.41 lb / 640 g 1.96 lb / 888 g 1.24 lb / 563 g 0.37 lb / 170 g / 0.67 lb / 303 g
