Specifications & Details
| SKU | PIB0B1MCGBZK |
|---|---|
| Product Dimensions | 3.7 x 2.24 x 0.91 inches |
| Item Weight | 0.090 kgs |
| Manufacturer | SOLLAE SYSTEMS |
| Item model number | SIG-5431 |
Product description
What's in the box:
SIG-5431 Body only (a power adapter is required)

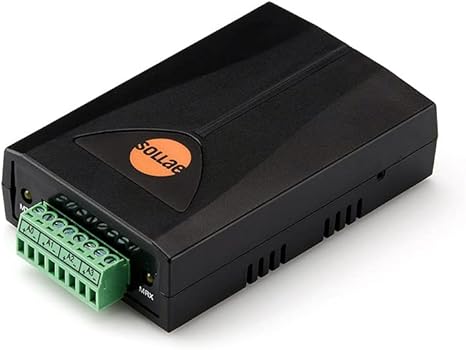

SIG-5431 is a remote I/O gateway equipped with 4 analog input ports and an Ethernet interface. It is connected securely to Sollae IoT Cloud via the MQTT protocol. The device allows monitoring data of various analog sensors from anywhere via a web interface.
Each port has three selectable measuring modes: voltage (0~5V), current (4~20mA), and current (0~20mA). This makes a single SIG-5431 able to work with many kinds of analog sensors.
FEATURES:
- 4 analog input ports (12-bit ADC): voltage(0~5V), current (4~20mA), and current (0~20mA)
- Protocol: MQTT over TLS
- Authentication: TLS Client certificate
- Support multiple accesses via Cloud
- Free to use Sollae Cloud
- Customizable web User Interface for monitoring with Sollae Studio

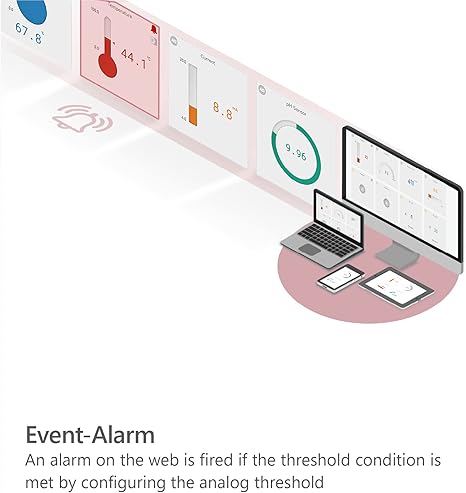

- Configurable analog threshold to control relay in other devices
- Multiple access via Cloud
- Industrial temperature range (-40? ~ +85?)

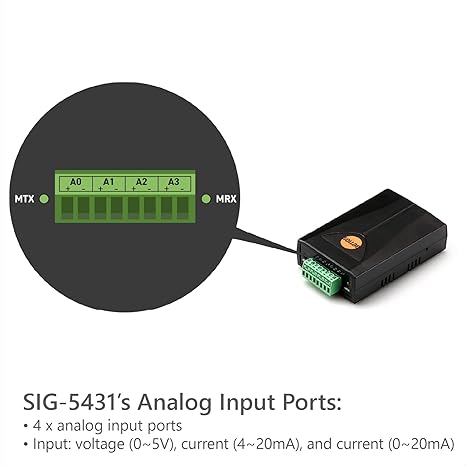

ANALOG INPUT PORTS:
- Connector: Terminal block
- 4 analog input ports (12-bit ADC): voltage(0~5V), current (4~20mA), and current (0~20mA)

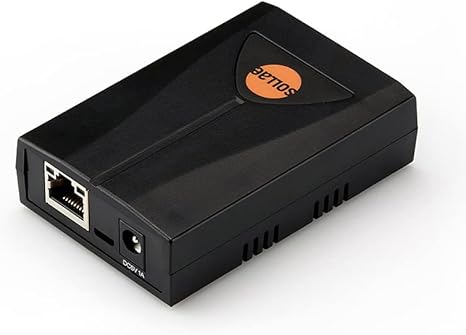

NETWORK INTERFACE:
- 10Base-T/100Base-TX Ethernet (RJ45)
- Ethernet Speed Auto Sense
- 1:1 or Cross-over Cable Auto Sense
SIG-5431 / 4-Port Analog Input I/O Gateway to Sollae Cloud SIG-5441 / 4-Port Digital Input I/O Gateway to Sollae Cloud SIG-5451 / 2-Port Digital Output I/O Gateway to Sollae Cloud SIG-5561 / Temperature Gateway to Sollae Cloud SIG-5601 / 4-Port I/O Gateway to Sollae Cloud
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Buying Options
Price
$160
71
$114
31
$114
31
$114
31 —
Protocol MQTT MQTT MQTT MQTT MQTT
Analog Input 4 ? ? 1 4
Digital Input ? 4 ? ? 4
Digital Output ? ? 2 (NC NO) ? 4 (NC NO)
Network Connectivity Ethernet Ethernet Ethernet Ethernet Ethernet
Power Supply 5V 5V 5V 5V 5V 8.5~38V
Counter ? ? ? ? ?
Automatic Control ? ? Schedules ? Schedules
Event-Based Control ? ? ? ? ?
Web Monitoring & Control ? (via Sollae Cloud) ? (via Sollae Cloud) ? (via Sollae Cloud) ? (via Sollae Cloud) ? (via Sollae Cloud)
SMG-5511 / RS232 Modbus Gateway to Sollae Cloud SMG-5521 / RS422/RS485 Modbus Gateway to Sollae Cloud
Add to Cart
Add to Cart
Price
$219
05
$219
05
Network Protocol MQTT MQTT
Network Connectivity Ethernet Ethernet
Serial Protocol Modbus RTU/ASCII Modbus RTU/ASCII
Serial Interface RS232 RS422/485
Power Supply 5V 5V
Case Plastic Plastic
Event-Based Control ? ?
Device Data Logging ? ?
Email Notification ? ?
Web Monitoring & Control ? (via Cloud) ? (via Cloud)

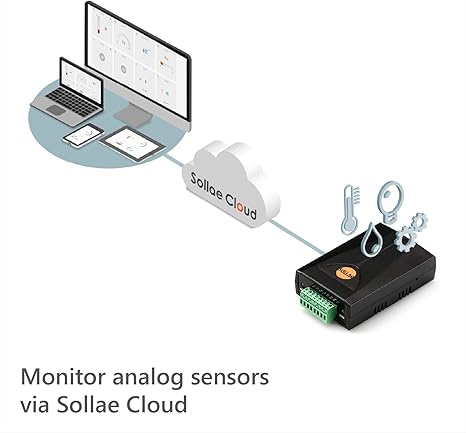

What is Sollae Cloud?
Sollae Cloud is an IoT Cloud that acts as a hub between users and Sollae devices.
With Sollae devices and Sollae Cloud, the data from various sensors or devices in multiple locations can be collected in one place, allowing users to monitor and control safely.
Cloud is designed to work with Sollae IoT Gateway devices which have built-in analog input ports, digital input ports, and digital output ports.
SIG-5431 - Analog Input I/O Gateway
Monitor analog sensor values from anywhere.
How does it work?
You can easily access the Cloud via your browser anytime, anywhere to check your data, or set up an automated system.
With the help of Sollae Cloud, you can remotely monitor/control your devices, configure them, and a lot more.
All you need to do is access the Cloud through your browser to check your data.
In addition, with the help of Sollae Cloud, you can remotely monitor your devices, configure them, and many more.
Main features
Explore different features.
