Specifications & Details
| SKU | PIB07KPLZ5Q2 |
|---|---|

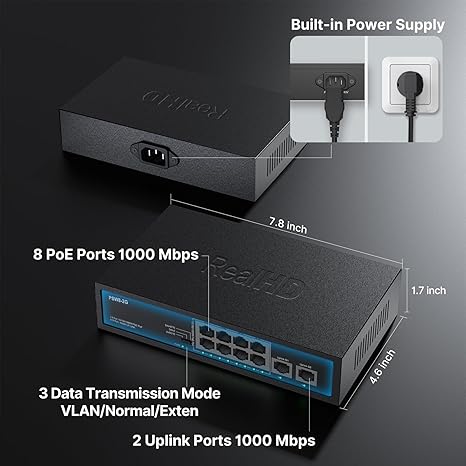

| Product Dimensions | 7.8"L x 4.6"W x 1.7"H |
| Item Weight | 1.120 kgs |
| Platform | Not Machine Specific |
| Voltage | 48 Volts (DC) |
| Case Material | Metal |
| Maximum Power | 120 Watts |
| Upper Temperature Rating | 131 Degrees Fahrenheit |
| Interface Type | PoE |
| Data Transfer Rate | 100 Megabits Per Second |
| Manufacturer | Real HD |
| Item Weight | 1.116 kgs |
| Item model number | 8 port poe gigabit switch |
| Is Discontinued By Manufacturer | No |
Product description
FAQs
Q: The ports on the switch is 100mbps instead of 1000mbit.
A: We have both 100mbps and gigabit for 4/8/16/24 port poe switch, please choose the right one you need.
Q: What kind of cameras can be connected to the POE switch?
A: All POE cameras that support IEEE 802.3AF/AT can be supported. If it is not a POE camera, a POE splitter can be added to connect the switch and the camera.

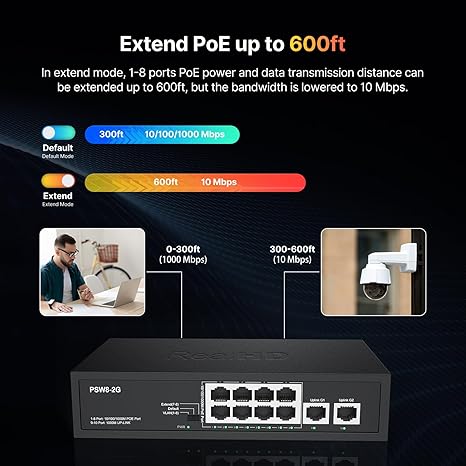

Q: What situation is suitable for extend mode?
A: The extend mode can be turned on when the distance exceeds 100 meters. The image transmission to be stuck because of camera signal is interfered or signal is not enough, it can be turned on.
Q: The distance is 50 meters, camera is normal during the day, but there is no image at night.
A: Insufficient power supply. Please make sure that the network cable that meets the international standard or above. It is recommended to use a multimeter to test cable resistance.
Note: RealHD active POE switchs support passive & non poe devices, but when the switch is directly connected to passive poe devices or non-poe devices, the switch can only transmit data and cannot power the device, so the device needs to be powered separately. Or use an active poe splitter between the switch and your passive poe or non-poe device, in this time switch can transmit data and power at the same time.
RealHD CCTV wholesaler provide a various of cctv products, for monitor please search for Asin B09T269QB4, and NVR search for B0B5S8RNCF
Technical Specification

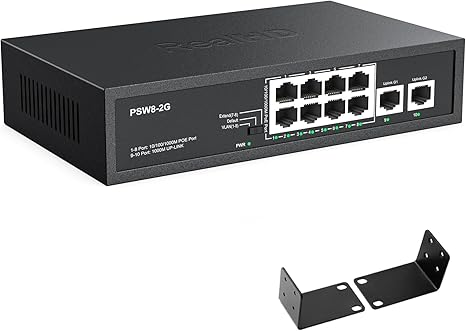

Port 8×10/100/1000M PoE Ports and 2 Uplink Ports
PoE Protocol IEEE 802.3af/at
Network Port IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af/at DTE Power via MDI; IEEE 802.3af/at

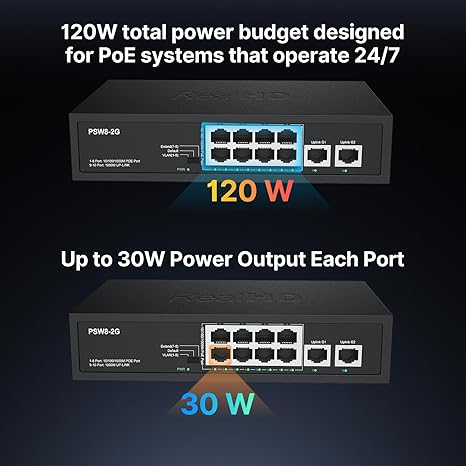

PoE Port Power 30W for each?120Wfor total)
Transmission Distance 100m support
Bandwidth 20Gbps (non-blocking)
MAC adress 2K
Net Weight 0.92kg
Fan Fanless
Working Environment Operating Temperature: -20° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 10% ~ 95%, non-condensing
Power Supply Power input: AC100-240V 50/60Hz
Product Dimension (L*W*H):22cm*16cm*3.5cm
8 Port 100Mbps Ethernet Unmanaged PoE Switch 16 Port 100Mbps Ethernet Unmanaged PoE Switch 24 Port 100Mbps Ethernet Unmanaged PoE Switch 24 Port Gigabit Ethernet Unmanaged PoE Switch 4 Port 100Mbps Ethernet Unmanaged PoE Switch 4 Port Gigabit Ethernet Unmanaged PoE Switch
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Buying Options
Customer Reviews
296
296
296
333
296
333
Price
$26
99
$79
99
$89
99
$149
99
$19
99 —
PoE Port 8x10/100Mbps 16x10/100Mbps 24x10/100Mbps 24x100/1000Mbps 4x10/100Mbps 4x100/1000Mbps
UpLink Port 2x100/1000Mbps 2x100/1000Mbps 2x100/1000Mbps 1x SFP 2x1000Mbps SFP 2x100/1000Mbps 2x100/1000Mbps 1xSFP
Extend function YES YES YES YES YES YES
PoE Power Output 120W 300W 300W 300W 65W 65W
Case Material Metal Metal Metal Metal Metal Metal
