Specifications & Details
| SKU | PIB091HZ6R6F |
|---|---|
| Indoor/Outdoor Usage | Outdoor |
| Compatible Devices | Smartphone |
| Power Source | Corded Electric |
| Connectivity Protocol | ONVIF, RTSP, Wi-Fi 2.4G |
| Controller Type | Android |
| Mounting Type | Wall Mount |
| Video Capture Resolution | 1920p |
| Color | PTZ |
| Number of Items | 1 |
| Included Components | Camera, Power adapter,Manual book |
| Number of Channels | 2 |
| Wireless Communication Technology | Wi-Fi |
| Form Factor | Dome |
| Frame Rate | 25 fps |
| Voltage | 12 Volts |
| Item dimensions L x W x H | 4.7 x 4.7 x 6.6 inches |
| Water Resistance Level | Waterproof |
| Batteries Required? | No |
| Item Weight | 1.120 kgs |
| Focus Type | Auto Focus |
| Low light technology | Night Color |
| Zoom Type | Optical Zoom |
| Alert Type | Motion Only |
| Room Type | Office, Kitchen, Living Room, Classroom |
| Light Source Type | Infrared |
| Video Capture Format | MP4 |
| Specific Uses For Product | Outside |
| Unit Count | 1 Count |
| Effective Still Resolution | 5 MP |
| International Protection Rating | IP66 |
| Maximum Webcam Image Resolution | 5 MP |
| Product Dimensions | 4.7 x 4.7 x 6.6 inches |
| Item Weight | 1.120 kgs |
| Item model number | TD-S21C |
| Manufacturer | Topodome Technology |
Product description

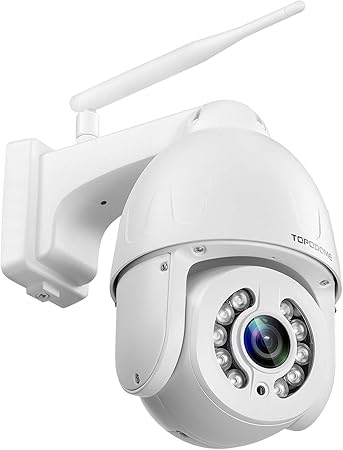

TD-S21C: Intelligent color night vision 5x optical zoom security camera
Topodome S21C home security camera is a feature-rich product. It has infrared night vision and full-color night vision. The 5MP Sony image sensor is equipped to capture very clear pictures. The 5x optical automatic zoom lens allows users to easily zoom in on distant scenes.
The TD-S21C can rotate 355 degrees horizontally and 0-120 degrees vertically. Users can freely check the surrounding conditions. When the default position is set, you only need to enter the corresponding number to automatically switch the monitoring angle and zoom state.
The camera has a built-in SD card slot, and you can insert a microSD card just by opening the waterproof cover of the housing. A 64G memory card can realize 20 days of continuous high-definition video recording.
The camera can turn on the automatic tracking function on the APP. When the human-shaped target moves, the camera will automatically rotate so that the target is in the center of the image. When smart night vision starts, human-shaped objects will trigger floodlights to more accurately track movement.
IP66 Full Metal Housing
The advantage of the metal shell is fast heat dissipation and longer working life of internal components; S21C has IP66 waterproof function, adapt to rain, snow and low temperature weather.
Package List
PTZ Security Camera x 1
AC/DC Adapter x 1 (100-240V input)
Quick Installation Guide x1
Antenna x 1
Net Cable x 1
Screw pack x 1
Multi-platform support, easy to install
This IP Camera has the free-to-use APP software CamhiPro, which supports IOS and Android phones; at the same time, users can access the camera through a browser and PC/Mac software (download available on the website).
After the bracket of this surveillance camera, there are accessories that can be separated. Users can install the accessories on the wall first, and then hook the camera, which is very convenient.
Multi users can visit this home security camera at the same time.
This outdoor camera support 24/7 full day SD card recording.
Support motion alert, humanoid alert, audio alert, and push message to mobile phone.
Visit this webcam from anywhere via internet.
Product Features
Sensor 5MP Sony Sensor (Low Lux/ WDR)
HD Lens 2.7- 13.5mm optical Zoom Lens (Auto Focus), View angle: 96 degree - 26.2 degree
PTZ Pan 355 degree, Tilt 120 degree, 5X optical Zoom
Night Vision Floodlight color night vision: 130ft; IR night vision: 196ft ; 10x PCS powerful LED
Preset Up to 32x preset positions ; 2x patrol lines
Power Max 24W
Audio Built Microphone and Speaker
Waterproof IP66
WiFi 2.4Ghz Support
Alexa, POE, Cloud Storage Not Support
Auto Motion Tracking Support Auto Tracking
App Camhi, CamhiPro
S21C White S21C Black S10C White J10A Black Warning Sign
Buying Options
Buying Options
Buying Options
Buying Options
Buying Options
Customer Reviews
413
413
413
126
10
Sensor 5MP 5MP 5MP 2MP
Zoom Optical Zoom Optical Zoom Digital Zoom Digital Zoom
Auto Tracking ? ? ?
2-Way Audio ? ? ? ?
IR LED 850nm 850nm 940nm 850nm
Frequently Asked Questions
Q: Why is there no image display after the camera is connected to Blue Iris and Synology?
A: Topodome cameras supports both H264 and H265 video encoding formats. The factory default is H265. However, the current general RTSP stream of Blue Iris and Synology only supports H264. So please log in to the advanced settings of the camera through a browser, and modify the video encoding option to H264.
Q: How to test the infrared light or white light function of S21C?
A: The 10x LEDs of TD-S21C can emit infrared light or white light. Its default night vision mode is smart mode, which is infrared mode when no human activity is detected at night, and white light mode when someone enters the surveillance area.
If you want to manually control the night vision mode (infrared/full color/smart) through the Camhi Pro APP, please download the latest firmware from Topodome official website.
In addition, please note that the photosensitive element of TD-S21C is under the bracket and not close to the LED light.
Q: Why does the automatic tracking function of S21C work poorly?
A: Please do not install the camera too close to the ideal monitoring area (at least 10 meters away), the installation height must be more than 3-4 meters, otherwise it will reduce the sensitivity of automatic tracking.
