Specifications & Details
| SKU | PIB08RDGFH33 |
|---|---|
| Product Dimensions | 8.8 x 5.9 x 1.1 inches |
| Item Weight | 0.198 kgs |
| Item model number | VG-XL710-QDA2 |
| Manufacturer | Vogzone |
Product description
XL710-40G-2QS-X8 X710-10G-4S-X8 X710-10G-2S-X8 X520-10G-2S-X8 X520-10G-1S-X8 X540-10G-2T-X8
Buying Options
Buying Options
Buying Options
Buying Options
Buying Options
Buying Options
Customer Reviews
249
249
249
249
249
249
Controller Intel XL710-BM2 Intel XL710-BM1 Intel X710-BM2 Intel 82599ES Intel 82599EN Intel X540
Port Configure QSFP+(x2) SFP+(x4) SFP+(x2) SFP+(x2) SFP+(x1) RJ45(x2)
Data Rate / Port 40 GbE/10 GbE/s 10 GbE/1 GbE/s 10 GbE/1 GbE/s 10 GbE/1 GbE/s 10 GbE/1 GbE/s 10 GbE/1 GbE/100 Mb/s
PCle PCIe 3.0 X8 PCIe 3.0 X8 PCIe 3.0 X8 PCIe 2.0 X8 PCIe 2.0 X8 PCIe 2.1x8
Jumbo Frames Yes Yes Yes Yes Yes Yes
SR - IOV (Single Root I/O Virtualization) Yes Yes Yes Yes Yes Yes
PXE Yes Yes Yes Yes Yes Yes
Operating Systems Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12
Un-supported Mac OS Mac OS Mac OS QNAP QSA-308-Series Switch; Mac OS, Bypass Mode QNAP QSA-308-Series Switch; Mac OS, Bypass Mode Mac OS, Bypass Mode
Windows 10 Teaming Yes Yes Yes Yes / Yes

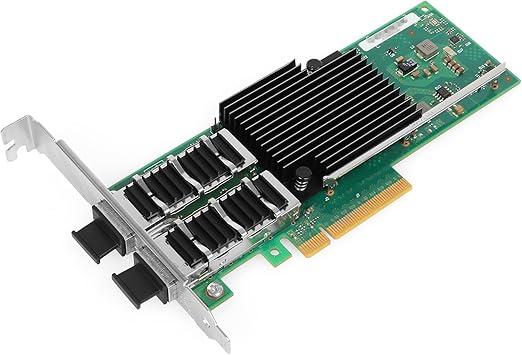

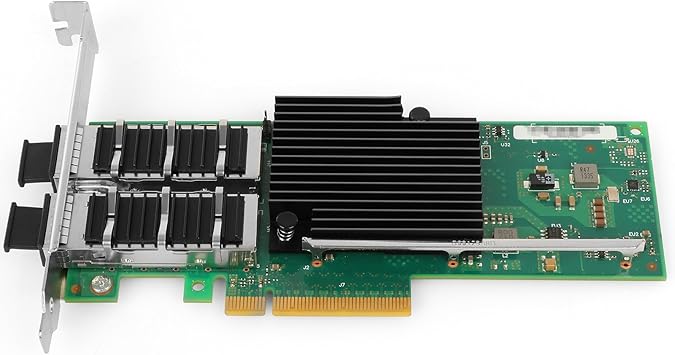

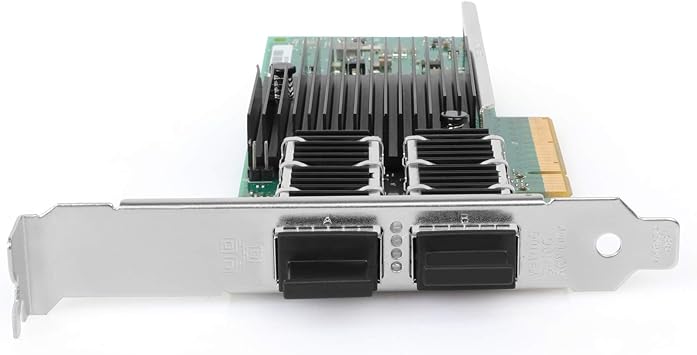

Dual QSFP+ Ports 40G optical fiber interface, high speed network transmission, enhanced scalability and reliability, fully meet the needs of customers.
Equipped with Original Intel XL710-BM2 controller chip which supports ALAN network convergence, QOS, VMDq, PCI-SIG * SR-IOV and improve servers stability.
PCI Express 3.0.?8.0 G T/s?x 8 Lane, compatible with PCIE X8, X16 Slot.

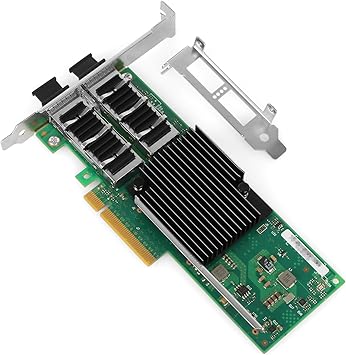

Coming with Low Profile Bracket as well as Full Height Bracket,which support on Standard and Slim computer/server.

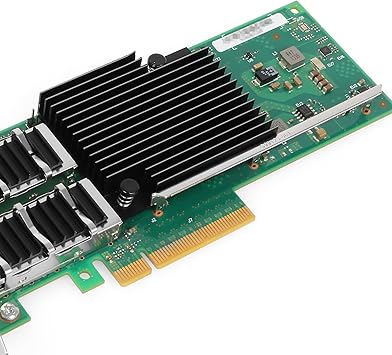

Goldfinger adopts sinking gold process, which makes transmission is more stable.
And the hardness of thickened electrogold is more wear-resistant than that of ordinary electrogold, stable performance, data is not prone to packet loss and distortion.
10 GbE/40 Gb, auto-Negation technology, auto-detect full-duplex/ half-duplex mode, auto-match network transmission rate.
Delivering extreme speeds of up to 40 Gbps and providing a reliable, high-performance 40GbE connectivity.
Gold-plated shielding interface can effectively prevent interference and make data transmission more smooth.
Thicken gold-plated interface, more reliable contact, and transmit more stable.
