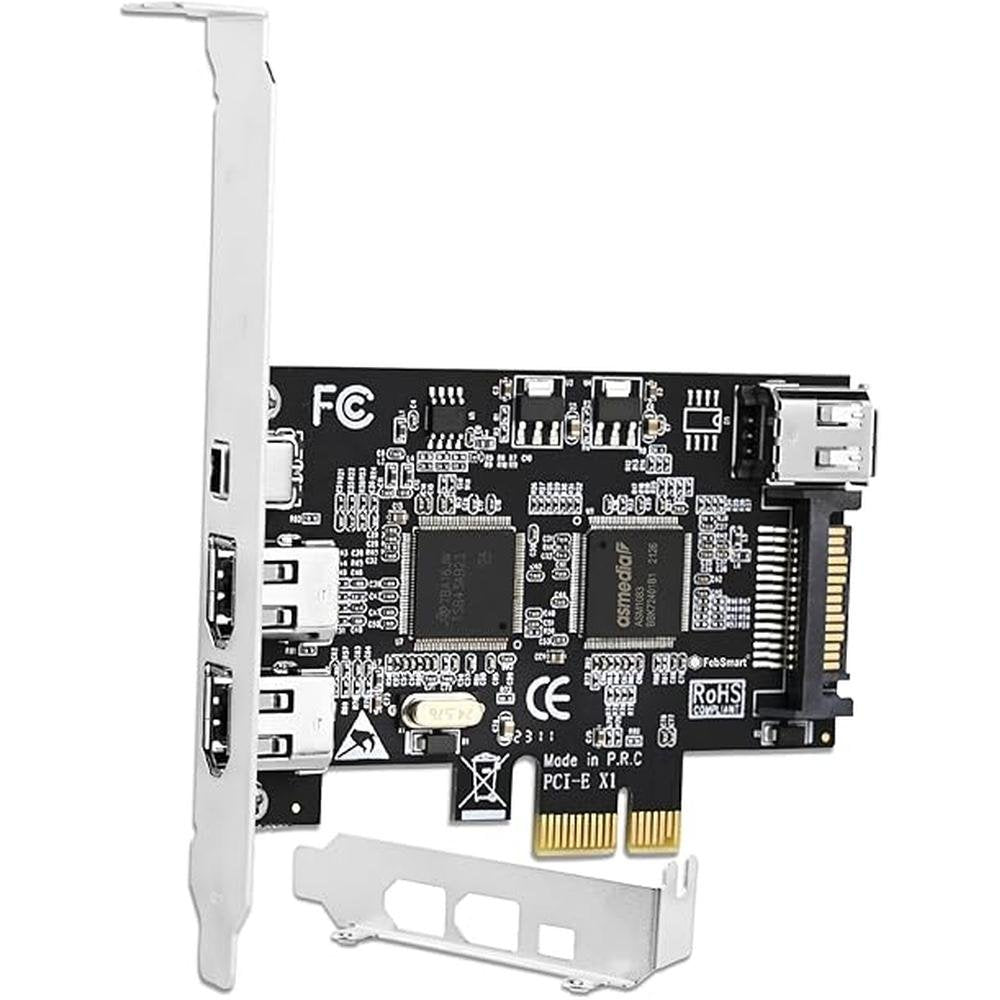

4 Ports PCIE Firewire 400 1394A Expansion Card, Texas Instruments TI TSB43AB23, Plug and Play on Windows and MAC Desktop PCs, 3X 6Pin and 1X 4Pin 1394A Ports, 400Mbps Max Speed (FS-FW400)

Specifications & Details

Product description

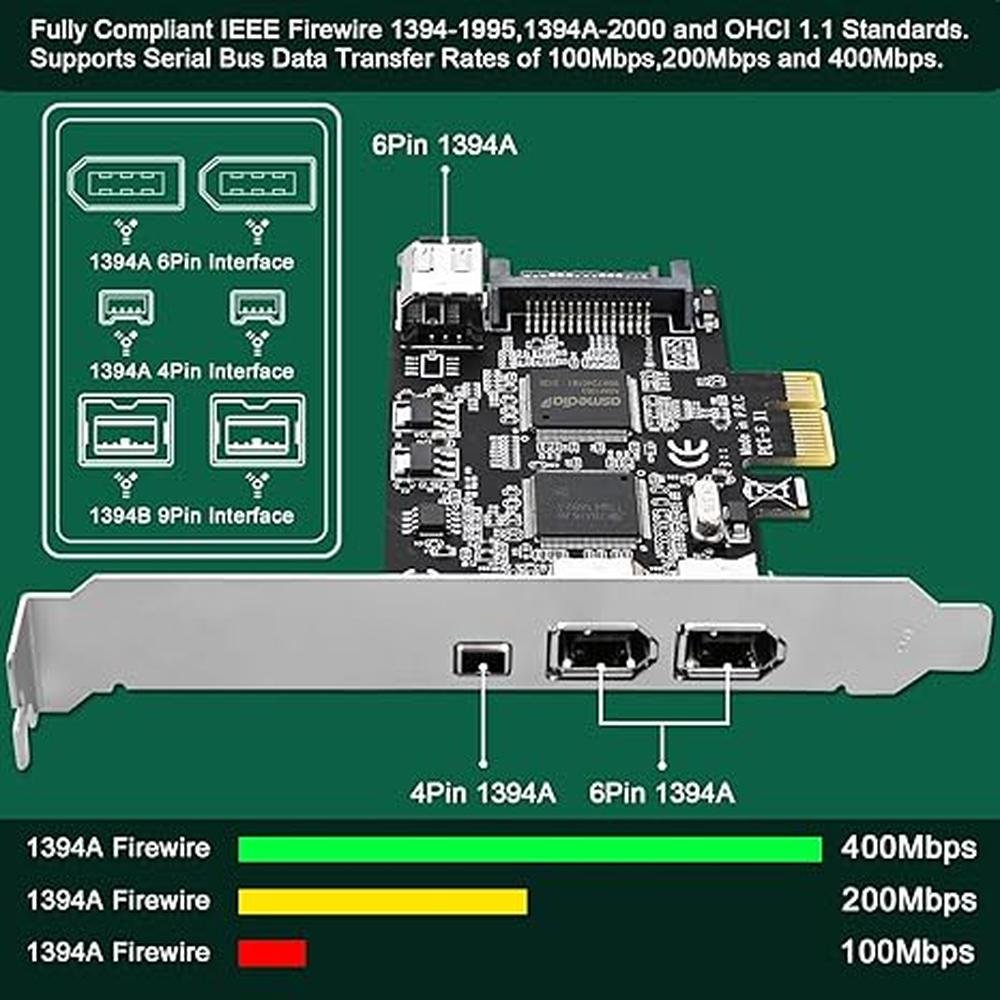

4-Ports PCIE Firewire 1394A Expansion Card, Firewire 400, 3X 1394A 6Pin and 1X 1394A 4Pin Interface
FebSmart FS-FW400 is a PCIE X1 to 4-Ports firewire 1394A expansion card. It will provide 3X 6Pin and 1X 4Pin firewire 1394A interface on Windows and MAC OS desktop PCs, will light up 4X 1394A devices on Desktop PCs which include 394A industrial cameras, 1394A HDD storage enclosures, 1394A sound card and 1394A DV camcorders. It is designed on PCIE 1.1 standard, will provide 2.5Gbps total bandwidth. The added on 1394A interface will fully support IEEE 1394-1995, 1394A-2000 and OHCI 1.1 standards, supports data transfer rates of 100Mbps, 200Mbps and 400Mbs, and supports up to 63 1394A devices connection. It is based on Texas Instruments TSB43AB23 1394A firewire host controller and ASMedia AS1083 PCIE bridge controller will compatible with AMD, ARM, MAC and Intel hardware platform.
Product Advantage:
1. Texas Instruments TI TSB43AB23 1394A firewire ports host controller, Supports MAC OS, Linux and Windows Desktop PCs. Supports Intel, AMD, ARM and MAC hardware platform.
2. Support IEEE 1394-1995, 1394A-2000 and OHCI (Open Host Controller Interface) 1.1 standards, compatible with almost all 1394A devices and light 63 max devices(endpoint).
3. Supports data transfer rates of 100Mbps, 200Mbps and 400Mbs, works more stable and faster than USB 2.0 does.
4. 1394A 12V power supply, easy to extend 1394A data in longer working range without losing speed than USB 5V power supply.

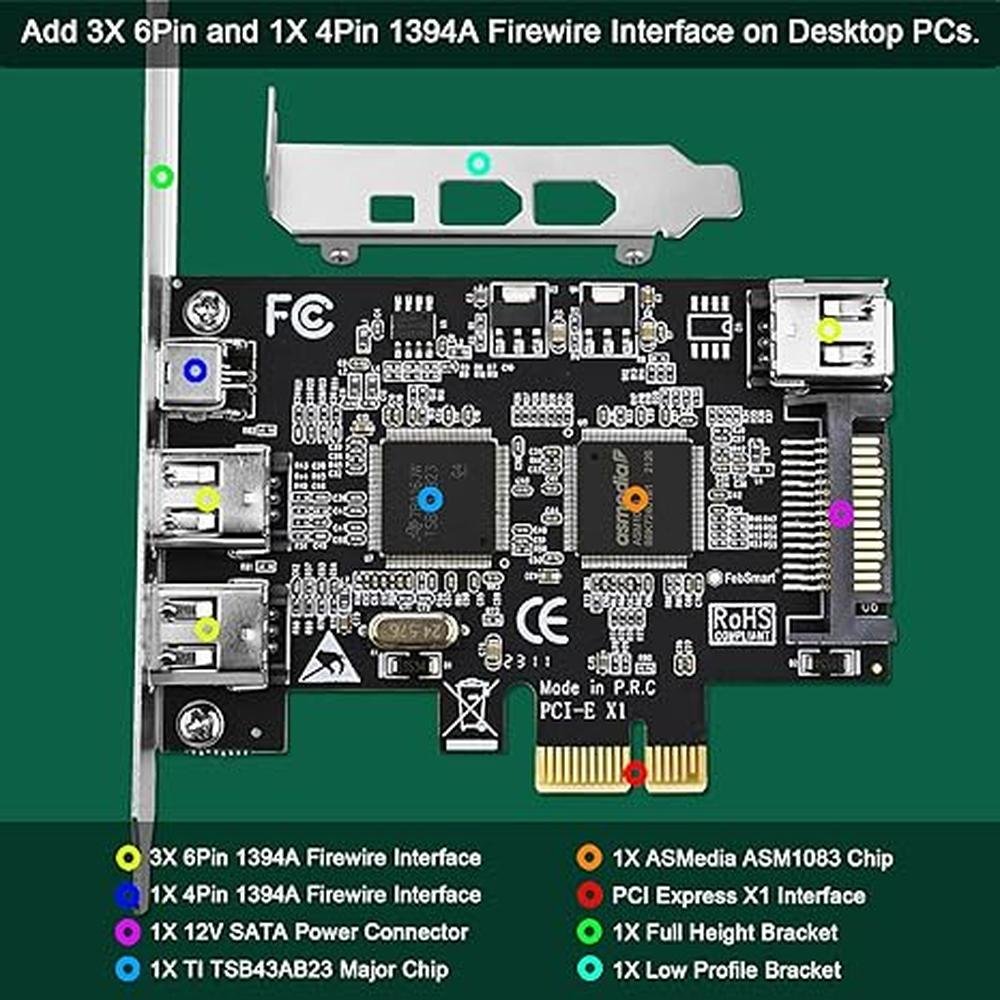

5. Add-on 3X 6Pin and 1X 4Pin 1394A Interface. Compatible with 6Pin and 4Pin 1394A devices. Provide enough interface for 1394A devices connection.
6. PCIE X1 Interface, compatible with PCIE X1, X2, X4, X8, X16 slot. Will works on almost all Desktop PCs.
7. Full height bracket and low profile bracket in the package, will works on Standard Size PCs and Slim PCs.
Product Specifications:
IEEE 1394A 400Mbps Max Speed
1. Compatible with IEEE 1394-1995, 1394A-2000 and OHCI 1.1 standards.
2. Supports data transfer rates of 100Mbps, 200Mbps and 400Mbs. More stable and faster than USB 2.0.
3. Supports up to 63 1394A devices connection.

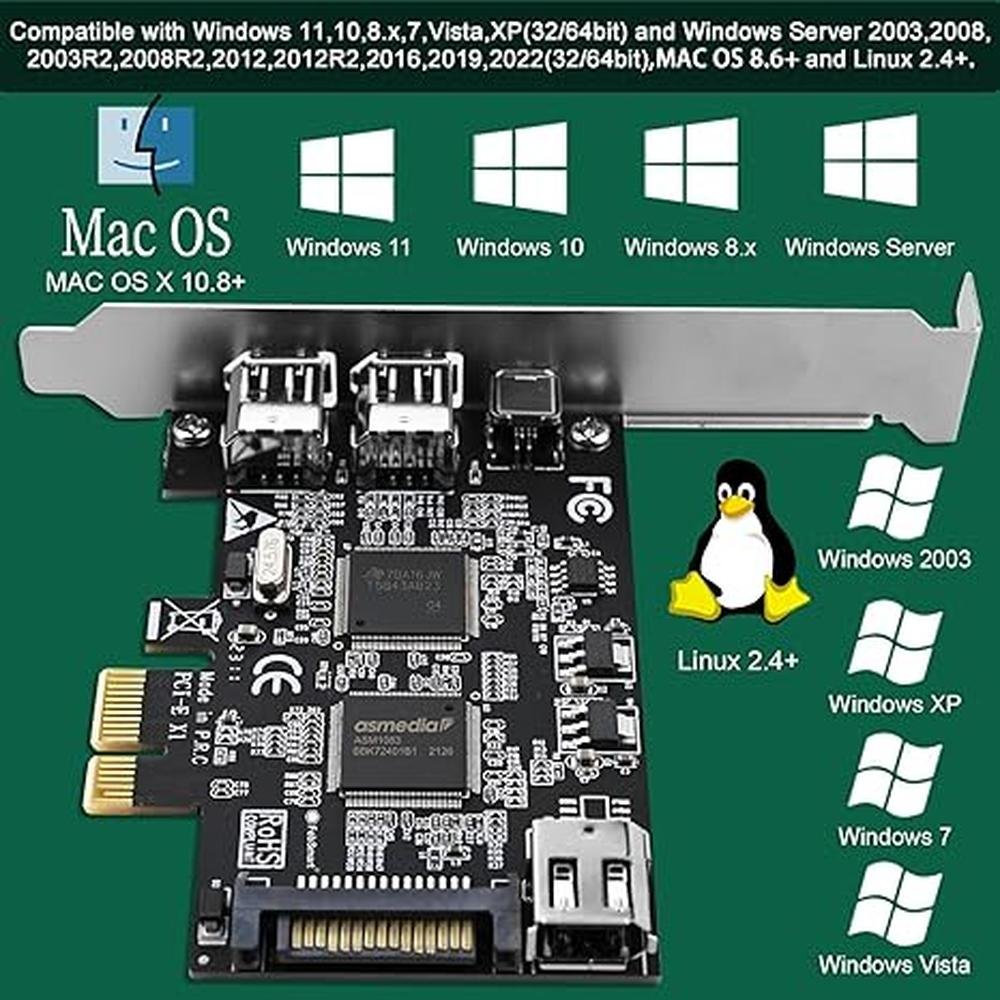

MAC OS X, Windows and Linux
1. Plug and Play on Windows 11, 10, 8.x,7, Vista, XP, 2003, 2000, 98(32/64bit)
and Windows Server 2003, 2003R2, 2008, 2008R2, 2012, 2012R2, 2016, 2019, 2022.
2. Plug and Play on MAC OS X 8.6 and later versions.
3. Plug and Play on Linux kernels 2.4+.
Easy & Safe Import Video Source
1. Super easy to install on users desktop PCs.Just support plug and play on most Windows, MAC OS X and Linux Desktop PCs.
2. Easy to communicate with old type DV cameraders, get back users data on new desktop PCs.
TI TSB 43AB23 and ASMedia ASM1083
1. Based on TEXAS INSTRUMENT TSB43AB23 PCIE Firewire 1394A host controller and ASMedia ASM1083 bridge controller.
2. Will compatible with Intel, AMD, ARM and MAC hardware platforms.

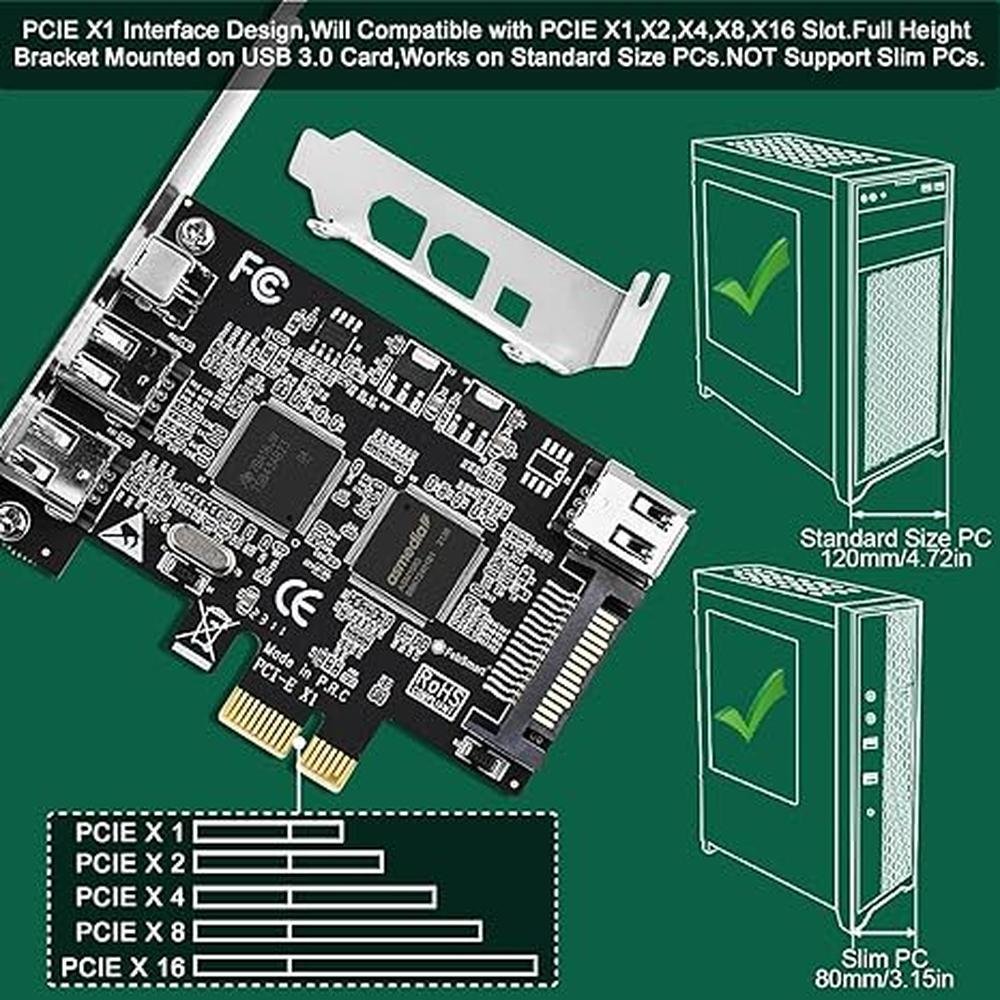

PCIE 1.1 Standard, X1 Interface
1. PCI Express version 1.1 standard, will works on PCIE 1.x, 2.x, 3.x and 4.0 stahdard.
2. PCIE X1 Interface, compatible with PCIE X1, X2, X4, X8, X16 slot. Will works on almost all Desktop PCs.
Full Size PCs and Slim PCs
1. Full height bracket mounted on the PCIE firewire card, will works on Standard Size PCs.
2. Low profile bracket in the package, will works on Slim PCs.
Light Up Classic Style 1394A Devices on the New Desktop PCs:
1394A DV Camercorders
1394A Sound Card
1394A Industrial Cameras
1394A HDD Enclosures
ATTENTION:
1.Slim PCs must change to low profile bracket by hand.
2.4X 1394A firewire ports share 400Mbps total bandwidth.
3.Must make sure Desktop PCs have 1X empty PCIE X1 slot before purchase.
4.It may need to install 1394A deices manufactures software, when connect to 1394A firewire DV camcorders.
Product Descriptions:
FebSmart FS-FW400 is a PCIE X1 to 4-Ports firewire 1394A expansion card. It will provide 3X 6Pin and 1X 4Pin firewire 1394A interface on Windows and MAC OS desktop PCs, will light up 4X 1394A devices on Desktop PCs which include 394A industrial cameras, 1394A HDD storage enclosures, 1394A sound card and 1394A DV camcorders. It is designed on PCIE 1.1 standard, will provide 2.5Gbps total bandwidth. The added on 1394A interface will fully support IEEE 1394-1995, 1394A-2000 and OHCI 1.1 standards, supports data transfer rates of 100Mbps, 200Mbps and 400Mbs, and supports up to 63 1394A devices connection. It is based on Texas Instruments TSB43AB23 1394A firewire host controller and ASMedia AS1083 PCIE bridge controller will compatible with AMD, ARM, MAC and Intel hardware platform.
Product Advantage:
1. Texas Instruments TI TSB43AB23 1394A firewire ports host controller, Supports MAC OS, Linux and Windows Desktop PCs. Supports Intel, AMD, ARM and MAC hardware platform.
2. Support IEEE 1394-1995, 1394A-2000 and OHCI (Open Host Controller Interface) 1.1 standards, compatible with almost all 1394A devices and light 63 max devices(endpoint).
3. Supports data transfer rates of 100Mbps, 200Mbps and 400Mbs, works more stable and faster than USB 2.0 does.
4. 1394A 12V power supply, easy to extend 1394A data in longer working range without losing speed than USB 5V power supply.
5. Add-on 3X 6Pin and 1X 4Pin 1394A Interface. Compatible with 6Pin and 4Pin 1394A devices. Provide enough interface for 1394A devices connection.
6. PCIE X1 Interface, compatible with PCIE X1, X2, X4, X8, X16 slot. Will works on almost all Desktop PCs.
7. Full height bracket and low profile bracket in the package, will works on Standard Size PCs and Slim PCs.
Compatible System:
1. Plug and Play on Windows 11, 10, 8.x,7, Vista, XP, 2003, 2000, 98(32/64bit)
and Windows Server 2003, 2003R2, 2008, 2008R2, 2012, 2012R2, 2016, 2019, 2022.
2. Plug and Play on MAC OS X 8.6 and later versions.
3. Plug and Play on Linux kernels 2.4+.
Package: 1X FS-FW400 1X 1394A 6Pin-4Pin Cable 1X Mount Screw 1X Low Profile Bracket 1X User Manual
