Specifications & Details
| SKU | PIB0D936MDWT |
|---|---|
| Brand | ICY DOCK |
| Item model number | MB204MP-B |
| Hardware Platform | PC |
| Operating System | Windows, macOS, Linux |
| Item Weight | 0.371 kgs |
| Product Dimensions | 6.1 x 2.25 x 9 inches |
| Item Dimensions LxWxH | 6.1 x 2.25 x 9 inches |
| Color | Black |
| Manufacturer | ICYDOCK |
Product description

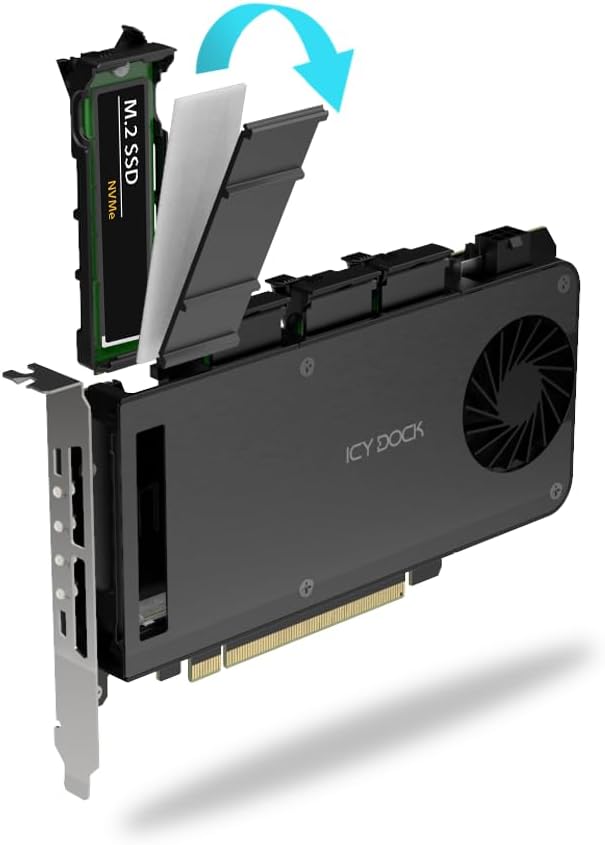

Introducing the innovative Removable 4 x M.2 NVMe PCIe 5.0 x4 SSD Mobile Rack Adapter Card, ExpressSlot MB204MP-B, designed for the PCIe 5.0 x16 Expansion Slot. Achieve remarkable data transfer speeds of up to 128Gbps per drive within a single PCIe slot.

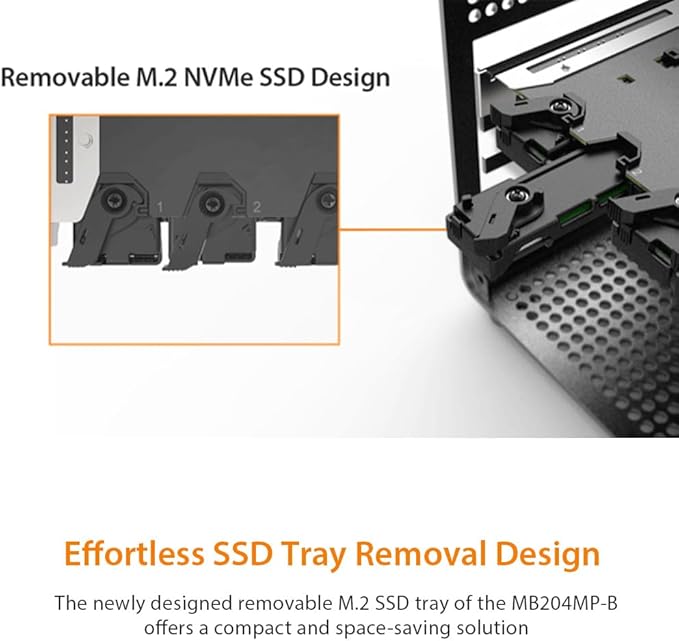

Effortless SSD Tray Removal Design
The newly designed removable M.2 SSD tray of the MB204MP-B offers a compact and space-saving solution. Its quick-release knob is ergonomically designed for easy operation. Users can swiftly open the side panel of their computer case and slide the quick-release knob to the left to extract the M.2 SSD tray with minimal effort.
Play Video
Play Video

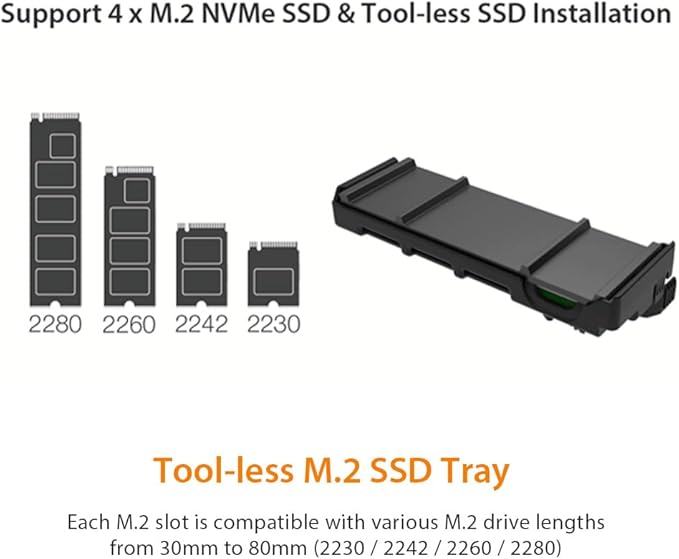

Innovative Tool-less M.2 SSD Tray Design
The MB204MP-B is equipped with removable drive trays that allow tool-less drive removal and installation. Simply unlock the quick-release knob to release the drive tray and access the M.2 NVMe SSDs without dealing with any tools or screws. Each M.2 slot is compatible with various M.2 drive lengths from 30mm to 80mm (2230 / 2242 / 2260 / 2280).

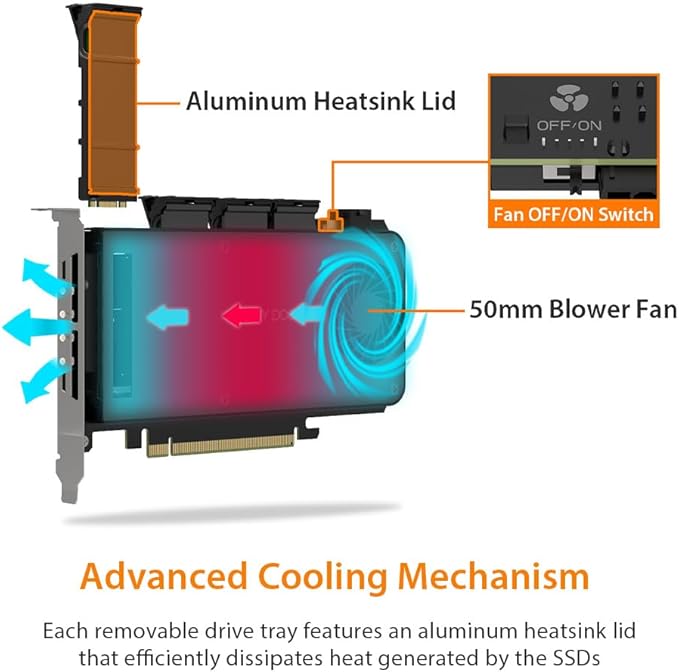

Advanced Cooling Mechanism
The MB204MP-B incorporates an advanced cooling mechanism to maintain the optimal operating temperature of M.2 NVMe SSDs. Each removable drive tray features an aluminum heatsink lid that efficiently dissipates heat generated by the SSDs.
Superior PCIe 5.0 Performance
The advantage of utilizing the PCIe 5.0 interface is that it provides power and data through a single PCIe slot, reducing the system’s cable clutter. In addition, the blazing-fast 64Gbps transfer speed is significantly faster than SATA III.
Individual Drive Status Indicators
The MB204MP-B is equipped with LED indicators on each drive tray to show the status of drive power and activity. The LED will automatically power off when no drive is detected to save energy.

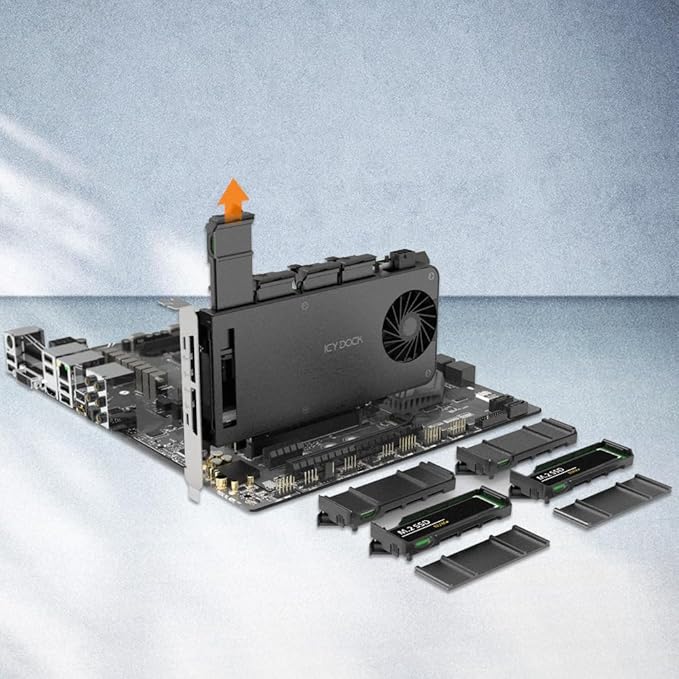

Removable Multi-Drive RAID Solution
The MB204MP-B is compatible with VROC (Virtual RAID-on-CPU) function and AMD PCIe 5.0 NVMe RAID, allowing you to create bootable RAID 0/1/5/10 array with up to four M.2 NVMe 4.0 SSDs without needing a pricey RAID controller card.
Comparison Products
MB204MP-B
Add to Cart
MB204MP-1B
Add to Cart
MB840M2P-B
Add to Cart
MB839SP-B
Add to Cart
MB842MP-B
Add to Cart
MB111VP-B
Add to Cart
Customer Reviews
—
—
94
31
6
3
Price
$339
95
$244
95
$94
99
$54
95
$159
95
$99
95
Number of Drive(S)
4 4 1 1 2 1
Support Drive Type
M.2 NVMe M.2 NVMe M.2 NVMe SATA M.2 NVMe U.2 NVMe
Compatible PCIe Slot
PCIe 5.0 or 4.0 x16 PCIe 4.0 or 3.0 x16 PCIe 3.0 or 4.0 x4 / x8 / x16 PCIe 2.0 x1 or above PCIe 3.0 or 4.0 x4 / x8 / x16 PCIe 3.0 or 4.0 x4 / x8 / x16
Supported Drive Height
30mm to 80mm 30mm to 80mm 30mm to 110mm 7mm to 9.5mm 30mm to 110mm 7mm to 9.5mm
Power Input
Via PCIe Via PCIe Via PCIe Via PCIe Via PCIe Via PCIe
