- About this Item

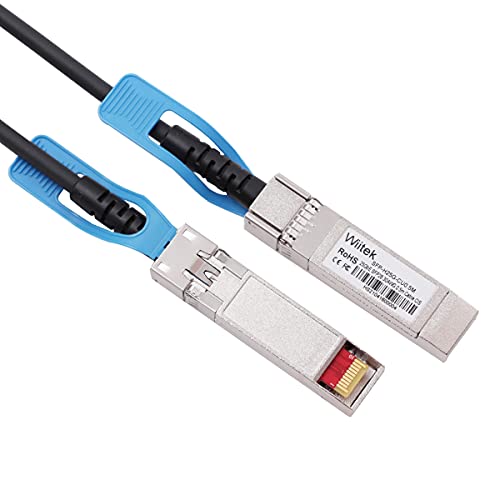

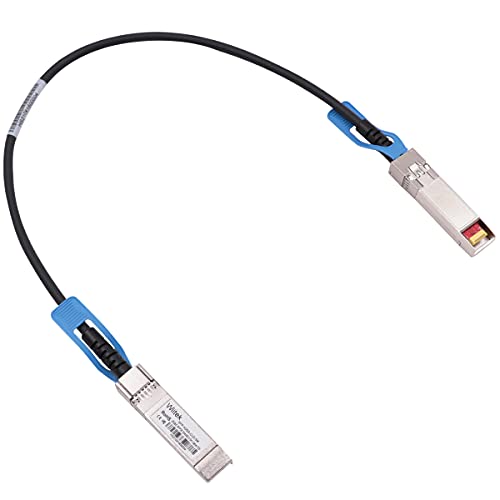

- • 0.5 meter, Passive Copper, 25G SFP28 to SFP28 dac, 30AWG, Cisco SFP-H25G-CU0.5M, 100 compatible with Cisco, Ubiquiti, unifi, D-link, Supermicro, Netgear, Mikrotik, ZTE, Quanta, Solarflare, PaloAlto, F5, etc open source devices
- • Compatible to SFP28 MSA, SFF-8402 and SFF-8432, Up to 25.88243 Gbps data rate, hot-pluggable SFP 20PIN footprint, backward compatible with SFP DAC
- • Low Corsstalk, Minimum Bend Radius 25mm, Jacket Material PVC (OFNR), Working Temp 0 to 70C (32 to 158F), Improved Pluggable Form Factor(IPF), compliant for enhanced EMIEMC
- • Widely used in 25G Ethernet, 32G Fibre Channel, InfiniBand SONET Solution SFP28 DAC can connect ethernet switch, gigabit router, 25GbE nas storage server, NIC, or other ethernet card and adapter with SFP28 ports
Specifications & Details
| SKU | PIB092CKK9R7 |
|---|---|
| Is Discontinued By Manufacturer | No |
| Product Dimensions | 4.72 x 4.72 x 1.18 inches ; 0.068 kgs |
| Item model number | SFP-H25G-CU0.5M |
| Manufacturer | Wiitek Technology |
Product description
bProduct Descriptionbbr br SFP28 (Small Form-Factor Pluggable) or 25GBASE-CR4 was designed for differential IO interconnections for servers, routers, switches and storage systems. br Active and passive SFP28 copper cables from Wiitek minimise cost, power and latency in the connection of network ports used in high density data centres br and high performance computing environments. They confirm to IEEE 802.3bj, SFF 8402, InfiniBand and the 25 Gbs Ethernet network protocol. br Wiitek provides SFP28 DAC cables in AWG sizes 26 and 30 as passive solutions with transmission lengths of up to 5 m.br br bFeaturesbbr br Up to 25.88243 Gbps data ratebr Up to 5 meter transmissionbr Hot-pluggable SFP 20PIN footprintbr Improved Pluggable Form Factor(IPF), compliant for enhanced EMIEMCbr Compatible to SFP28 MSA, SFF-8402 and SFF-8432br Single 3.3V supply voltagebr Temperature Range 0 70 C, RoHS Compatiblebr br bApplicationbbr br 25G Ethernetbr 32G Fiber Channelbr InfiniBandbr SONETbr br
