- About this Item
- • Mellanox controller Mellanox ConnectX-4 chip. Support 11025G connection for virtualization applications of network facilities, local hardware support based on Ethernet stateless uninstallation engine, direct connection technology, etc.
- • System Support Windows 8.11011Windows Server 2016 R22019 R22022 R2 or laterCentOS RHEL 7.2 or laterUbuntu 16.04 or laterSLES 12 SP2SP3 or laterOracle Linux 7.87.9 or laterLinux Stable Kernel version 3.10.x or laterVmware ESXESXi 6.5 or laterCitrix XenServer Host 7.1.
- • Technical Support iPXEDPDKiSCSIJumbo FramesFCoERDMARoCE v1, RoCE V2
- • Easy Installation Install the operating system with its driver CD or download it from the official website. Includes low-profile and full-height stands to support standard and ultra-thin computersservers.
Specifications & Details
| SKU | PIB0D398HBYP |
|---|---|
| Product Dimensions | 5.5 x 2.7 x 1.1 inches |
| Item Weight | 0.198 kgs |
| Item model number | Mellanox ConnectX-4 |
| Manufacturer | shenzhen lianrui electronics Co.,LTD |
Product description
Data rate per port 25/10/1GbE

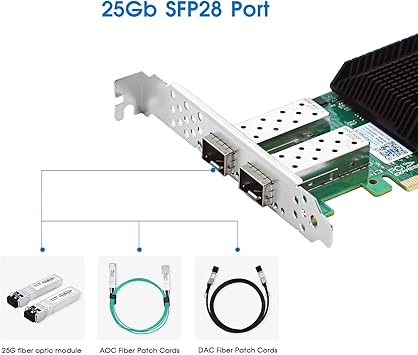

Connector 2*25G SFP28
Bus Type PCIe v3.0 x8
Protocol Support IEEE 802.3by-2016 25GBASE-X Ethernet IEEE 802.3ae 10GBASE-X Ethernet IEEE 802.3z 1GBASE-X Ethernet IEEE 802.3ap IEEE 802.3ad IEEE 802.1Q IEEE 802.1Qaz IEEE 802.1Qbb IEEE 802.1Qbg IEEE 1588 PTP v2 IEEE 802.3az - Energy Efficient Ethernet
Adapted to a variety of accessories to meet daily work needs and provide stable and high-speed broadband transmission.
delivering extreme speeds of up to 25 Gbps and providing a reliable, high-performance 25GbE connectivity.

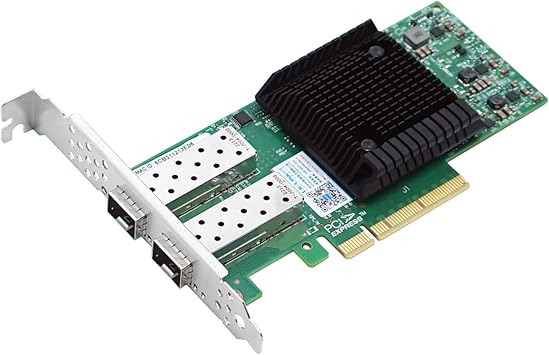

Base on original Mellanox ConnectX-4 chip, which improve servers stability.
Windows 8.1/10/11?Windows Server 2016 R2/2019 R2/2022 R2 or later?CentOS / RHEL 7.2 or later;Ubuntu 16.04 or later;SLES 12 SP2/SP3 or later;Oracle Linux 7.8/7.9 or later;Linux Stable Kernel version 3.10.x or later;Vmware ESX/ESXi 6.5 or later;Citrix XenServer Host 7.1

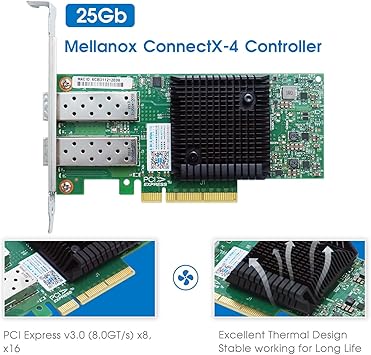

PCIe v3.0 (8GT/s) x8; Compatible x16.
Equipped with port which can set up a long-distance link with a file server or a remote workstation, Improve computer network utilization, network bandwidth, and network control ability.
