- About this Item
- • 4 x RJ45 copper port I340T4BLK card supports for multi-core processors and server virtualization for your networking requirements
- • Interface Type PCIe v2.0 (5.0 GTs) X4,Compatible x8,x16 lane. Low profile bracket and driver CD will be packaged.
- • Cabling Type It offers high-speed transmission over CAT5e UTP cable or CAT3 UTP(10Mbps only)cable. (Cat5e Cat6 Cat6A or higher cable is recommended.)Transmission rate 101001000Mbps.
- • Supported Operating SystemsWindows 10 7 8, Windows Server 2012 2012 R2, Windows Server 2008 2008 R2, Windows Vista, Windows Server 2003 2003 R2, Windows XP Professional, Linux Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux 5, 6, SUSE Linux Enterprise Server 10, 11, FreeBSD 9 , VMware ESXESXi.
Specifications & Details
| SKU | PIB091CJZGXG |
|---|---|
| Product Dimensions | 5.9 x 3.1 x 0.3 inches |
| Item Weight | 0.179 kgs |
| Item model number | I340T4 |
| Manufacturer | Splensun |
Product description

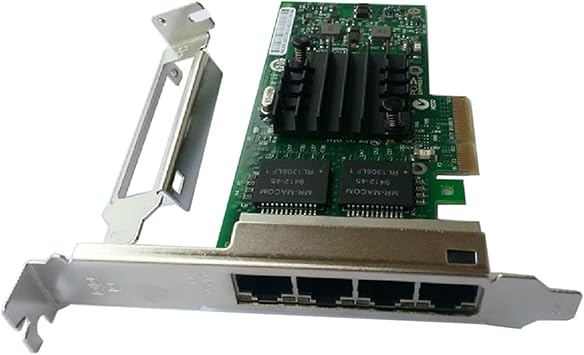

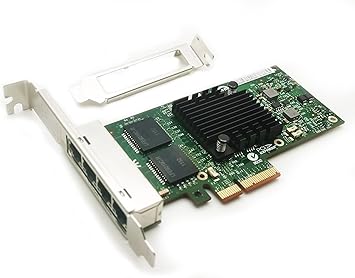

Gigabit PCI-Express x4 Ethernet Converged Server Adapter with Quad RJ45 Ports

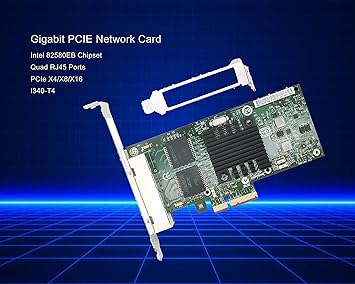

The network card is equipped with Intel I340 82580EB Gigabit Ethernet Controller chip, let you connect to network cable and upgrade your ethernet speed to gigabit easily.
The transmission rate can not only reach up to 1gbps, but also backward compatible with 10/100Mbps. This makes the 1gb network server can auto negotiate between high-speed and low-speed connection.
Compared to single rj45 port network card, the E1G44H I340T4 come with 4x rj45 ports, which allow Gigabit Ethernet x 4 first fully integrate quad-port PCIe Gen2 GbE controller, providing a smaller footprint and lower power dissipation.
Scalable iSCSI performance delivering cost-effective SAN connectivity.
On-chip QoS and Traffic Management
Virtual Machine Device Queues (VMDq)

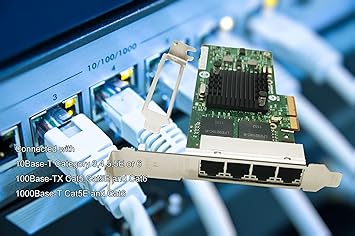

RJ45 Ports 4 X RJ45 Ports apply to Category-5 up to 100m for meeting the demands of data center environments for servers and high-end devices, providing speed expansion for servers and delivering high-speed networking.
PCI-Express Slot Slot: PCI-Express v2.0 (5.0 GT/s) X4,Compatible x8,x16 lane.
Support Multiple System Windows 7/8/10,Windows Server 2008/2012/2016/2019, Linux, VMware ESX, FreeBSD ect.

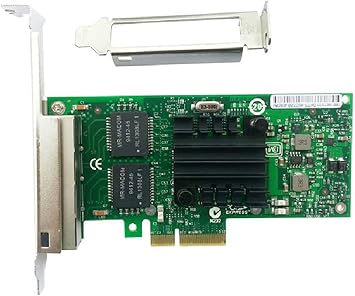

Full and Low-profile Brackets Standard and Low-profile Brackets will be packaged to make the card can be better fit for different computer cases /server installation. TIP: The driver CD will be packaged in the box.
