- About this Item
- • Equipped with original Intel X710-BM2 controller chip which supports IO virtualization. Network Virtualization offloads Including Geneve, VXLAN and NVGRE, make the servers more stable.

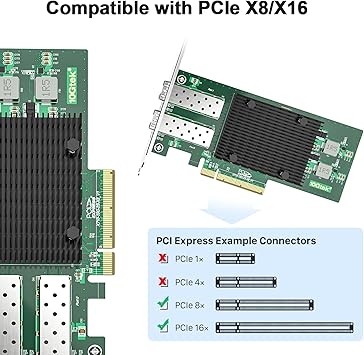

- • Dual SFP ports let you connect to 10 Gigabit SFP moduleDACAOC for meeting the demands of data center environments. System interface type is PCI Express (PCIe) 3.08.0GTs, ultra low power consumption. PCI-E X8 Lane is suitable for both PCI-E X8 and PCI-E X16 slots.
- • Compatible with Windows Server 2003 2008 2012, Windows7810Visa, Linux, VMware ESX. Unified networking?providing?a?single?wire?support?for?LAN?and?storage?NAS?(SMB,?NFS)?and?SAN?(iSCSI).
- • With profile bracket and additional low profile bracket that makes it easy to install the card in a small form factorlow profile computer caseserver.NOT support hot swaping.
Specifications & Details
| SKU | PIB07PM4QCZR |
|---|---|
| Package Dimensions | 8.94 x 5.98 x 1.26 inches |
| Item Weight | 0.258 kgs |
| Item model number | X710-DA2(Intel-1pc) |
| Manufacturer | 10Gtek |
Product description
X710-10G-2S-X8
Buying Options
XL710-10G-4S-X8
Add to Cart
X520-10G-1S-X8
Buying Options
X520-10G-2S-X8
Buying Options
57810S-10G-2S-X8
Buying Options
Customer Reviews
815
815
815
815
815
Price
—
$215
99 — — —
Replacement for
X710-DA2 X710-DA4 X520-DA1 X520-DA2 BCM57810S
Controller
X710-BM2 XL710-BM1 82599EN 82599ES Broadcom 57810S
Port Configure
(2x) SFP+ (4x) SFP+ (1x) SFP+ (2x) SFP+ (2x) SFP+
System Interface Type
PCIe X8 PCIe X8 PCIe X8 PCIe X8 PCIe X8
WOL
X X X X No
SR - IOV
Yes Yes Yes Yes Yes
Jumbo Frames
Yes , up to 9.5KB Yes , up to 9.5KB Yes , up to 15.5KB Yes , up to 15.5KB Yes
Windows 10 Teaming
Yes Yes Yes Yes No
X550-10G-1T-X4
Buying Options
X550-10G-2T-X4
Add to Cart
X540-10G-1T-X8
Buying Options
X540-10G-2T-X8
Buying Options
Customer Reviews
815
815
815
815
Price
—
$151
99 — —
Replacement for
X550-T1 X550-T2 X540-T1 X540-T2
Controller
Intel X550-AT Intel X550-AT2 X540-AT2 X540-AT2
Port Configure
(1x) RJ-45 (2x) RJ-45 (1x) RJ-45 (2x) RJ-45
System Interface Type
PCIe X4 PCIe X4 PCIe X8 PCIe X8
WOL
X X X X
SR - IOV
Yes Yes Yes Yes
Jumbo Frames
Yes, Up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB
Unsupported Note
Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode
Windows 10 Teaming
Yes — — Yes
Thick Gold Finger
Advanced electroplating process applied on the connecting finger, greatly improve corrosion resistance and stability.

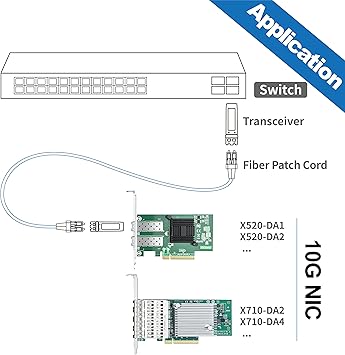

Dual 10G SFP+
Insert 10G SFP+ transceiver to enjoy high-speed network.
Alloy Heat Sink
Excellent heat dissipation performance can eliminate excess heat and keep the stability of network transmission.

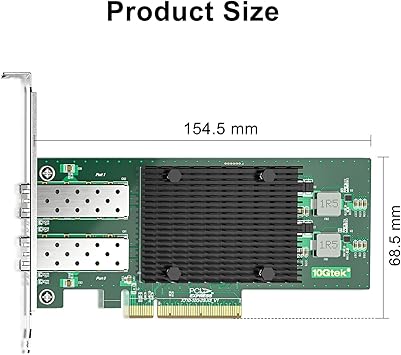

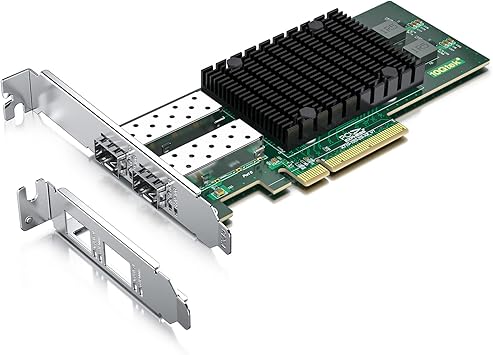

2 Kinds of Profile Bracket
Comes with high and low profile bracket, supports different computer case/server.
Intel Original Chip Wide Compatibility Easy to Use
