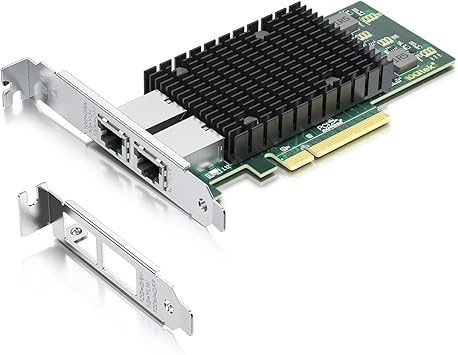

- About this Item
- • Equipped with original Intel X540 controller chip which supports Intelligent Offloads and make the servers more stable.
- • Compatible with Windows Server 2003 2008 2012, Windows7810Visa, Linux, ESXESXi. Storage over Ethernet iSCSI, FCoE, NFS. (Note that this card can be used with Windows 11, but it needs to be manually set up. If you buy it for Windows 11, please contact us for installation guide before using.)

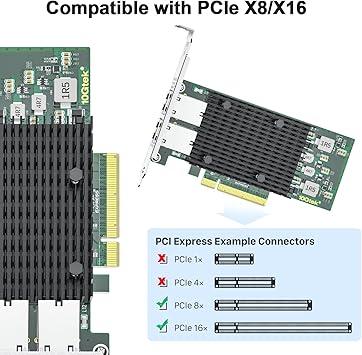

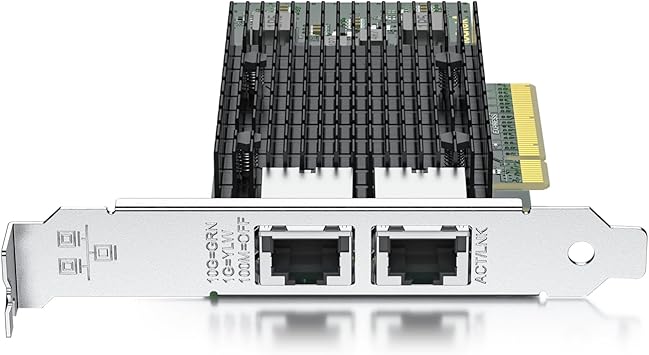

- • Dual copper RJ45 ports let you connect to Category-6A and up to 100m((Category-6 up to 55 m) for meeting the demands of data center environments. PCI Express 2.1. 5.0 G Ts X8 Lane is suitable for both PCI-E X8 and PCI-E X16 slots.
- • With profile bracket and additional low profile bracket that makes it easy to install the card in a small form factorlow profile computer caseserver.NOT support hot swaping.
Specifications & Details
| SKU | PIB01HMGWOU8 |
|---|---|
| Product Dimensions | 8.8 x 5.7 x 1.2 inches |
| Item Weight | 0.221 kgs |
| Item model number | X540-T2(Intel-1pc) |
| Is Discontinued By Manufacturer | No |
| Manufacturer | 10Gtek |
Product description
X540-10G-1T-X8 X540-10G-2T-X8 X550-10G-1T-X4 X550-10G-2T-X4
Buying Options
Buying Options
Buying Options
Add to Cart
Customer Reviews
815
815
815
815
Price — — —
$151
99
Replacement for X540-T1 X540-T2 X550-T1 X550-T2
Controller X540-AT2 X540-AT2 Intel X550-AT Intel X550-AT2
Port Configure (1x) RJ-45 (2x) RJ-45 (1x) RJ-45 (2x) RJ-45
System Interface Type PCIe X8 PCIe X8 PCIe X4 PCIe X4
WOL X X X X
SR - IOV Yes Yes Yes Yes
Jumbo Frames Yes, Up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB Yes, Up to 15.5KB
Operating Systems Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12
Unsupported Note Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode
Windows 10 Teaming Yes Yes
X520-10G-1S-X8 X520-10G-2S-X8 57810S-10G-2S-X8 X710-10G-2S-X8 XL710-10G-4S-X8
Buying Options
Buying Options
Buying Options
Buying Options
Add to Cart
Customer Reviews
815
815
815
815
815
Price — — — —
$215
99
Replacement for X520-DA1 X520-DA2 BCM57810S X710-DA2 X710-DA4
Controller 82599EN 82599ES Broadcom 57810S X710-BM2 XL710-BM1
Port Configure (1x) SFP+ (2x) SFP+ (2x) SFP+ (2x) SFP+ (4x) SFP+
System Interface Type PCIe X8 PCIe X8 PCIe X8 PCIe X8 PCIe X8
WOL X X No X X
SR - IOV Yes Yes Yes Yes Yes
Jumbo Frames Yes , up to 15.5KB Yes , up to 15.5KB Yes Yes , up to 9.5KB Yes , up to 9.5KB
Operating Systems Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12 Windows 7/8/10, Windows Server 2008/2012/2016/2019, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware Esxi 6/7, SLSE 11/12
Unsupported Note Windows os is not support SFP-LX, QNAP QSW-308-Series Switch, Mac OS, Bypass Mode Windows os is not support SFP-LX, QNAP QSW-308-Series Switch, Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode
Windows 10 Teaming Yes Yes No Yes Yes
