- About this Item

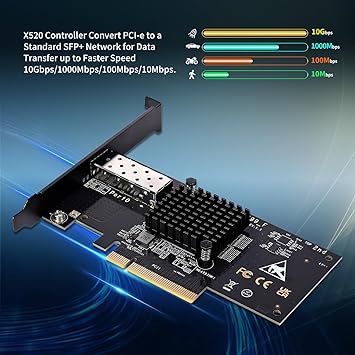

- • 10Gbe Single SFP NIC 10G PCI-E NIC adopts X520 (82599EN) controller, single SFP port can realize high-speed fiber connection, providing up to 10 Gbps transmission speed, effectively preventing packet loss and making the server more stable.

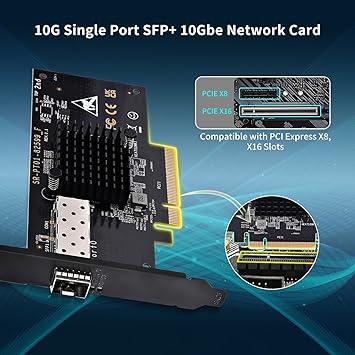

- • 10Gb PCI-E Slot (X816) 10G PCIe network adapter with a single SFP port for connecting 10Gb SFP moduleAOCDAC, compatible with PCIE X8 and X16 slots, providing stable and efficient data connectivity for data centers. Note For PCIe ports only, not for PCI slots.
- • Easy Installation Simply insert the card into the PCI-Express X8X16 slot and scan the driver QR code on the card to download and install the driver. Standard and low profile brackets are included in the package to meet the needs of different computer or server chassis.
- • Multi-OS The card supports auto backward negotiation Compatible with IEEE 802.3an, 802.3,802.3u and 802.3ab, fully compatible with WindowsWindows ServerVMware, meets your diversified operating system needs in data center or home use.
Specifications & Details
| SKU | PIB0D21L7GWL |
|---|---|
| Package Dimensions | 8.19 x 5.67 x 1.14 inches |
| Item Weight | 0.159 kgs |
| Item model number | X520-1S |
| Manufacturer | GigaPlus |
Product description

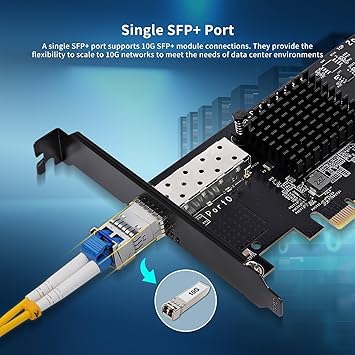

1 x SFP+ Port Provide efficient and stable transmission

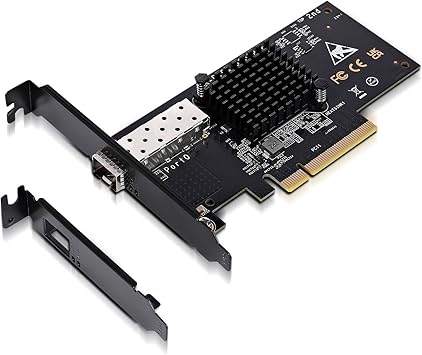

Include standard and low-profile bracket makes it easily to install in pc or other mini chassis
Outstanding heat dissipation performance effectively removes heat for more stable operation of the card.
The NIC sticker has a driver QR code and a download connection sticker. Easy to download the driver.
GiGaPlus Network Card Product List
GP-X520-1S
Buying Options
GP-X520-2S
Buying Options
GP-X540-1T
Buying Options
GP-X540-2T
Buying Options
GP-AQC113
Buying Options
GP-2.5G NIC
Buying Options
Customer Reviews
253
253
253
253
253
253
Data Rate
10G/1G/100Mbps 10G/1G/100Mbps 10G/1G/100Mbps 10G/1G/100Mbps 10G/5G/2.5G/1Gbps 2.5G/1G/100Mbps
Port
1 x 10Gbe SFP+ 2 x 10Gbe SFP+ 1 x 10Gbe RJ45 2 x 10Gbe RJ45 1 x 10Gbe RJ45 1 x 2.5Gbe RJ45
Controller
Intel X520 Intel X520 Intel X540 Intel X540 Marvell AQC113 Realtek RTL8125B
Interface Type(PCIe)
PCIe X8/X16 PCIe X8/X16 PCIe X8/X16 PCIe X8/X16 PCIe X4/X8/X16 PCIe X1/X4/X8/X16
Operating Systems
Windows/Linux/VMware Windows/Linux/VMware Windows/Linux/VMware/ESX Windows/Linux/VMware/ESX Windows 10/11 /Windows Server Windows7/8Windows Server/Linux
Un-supported OS
Mac OS Mac OS Mac OS Mac OS Mac OS Mac OS
Low-Profile Bracket
? ? ? ? ? ?
Wake-on-LAN?WoL)
? ? ? ? ? ?
