Specifications & Details
| SKU | PIB07F8RM56G |
|---|---|
| Product Dimensions | 5.98 x 4.72 x 0.67 inches |
| Item Weight | 0.198 kgs |
| Item model number | VG-I-X540-T2 |
| Is Discontinued By Manufacturer | No |
| Manufacturer | Vogzone |
Product description
X540-10G-2T-X8 X540-10G-1T-X8 X550-10G-2T-X4 X550-10G-1T-X4 X520-10G-2S-X8 X520-10G-1S-X8
Buying Options
Buying Options
Buying Options
Buying Options
Buying Options
Buying Options
Customer Reviews
249
249
249
249
249
249
Controller Intel X540 Intel X540 Intel ELX550AT2 Intel ELX550AT Intel 82599ES Intel 82599EN
Port Configure RJ45(x2) RJ45(x1) RJ45(x2) RJ45(x1) SFP+(x2) SFP+(x1)
Data Rate / Port 10 GbE/1 GbE/100 Mb/s 10 GbE/1 GbE/100 Mb/s 10 GbE/5 GbE/2.5 GbE/1 GbE/100 Mb/s 10 GbE/5 GbE/2.5 GbE/1 GbE/100 Mb/s 10 GbE/1 GbE/s 10 GbE/1 GbE/s
PCle PCIe2.1x8 PCIe2.1x8 PCIe3.0x4 PCIe3.0x4 PCIe2.0x8 PCIe2.0x8
Jumbo Frames Yes Yes Yes Yes Yes Yes
SR - IOV (Single Root I/O Virtualization) Yes Yes Yes Yes Yes Yes
PXE Yes Yes Yes Yes Yes Yes
Operating Systems Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12
Un-supported Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode Mac OS, Bypass Mode QNAP QSA-308-Series Switch; Mac OS, Bypass Mode QNAP QSA-308-Series Switch; Mac OS, Bypass Mode
Windows 10 Teaming Yes / Yes / Yes /

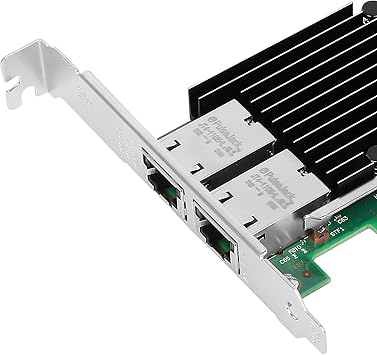

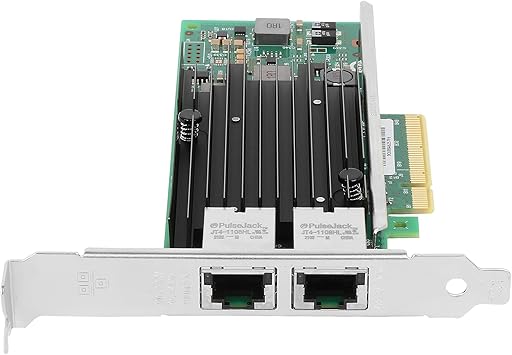

100MbE/1GbE/10GbE RJ45 ports, connected with CAT6A up to 100m (CAT6 up to 55 m). They are flexible and scalacble to 10G Network which meet the demands of today’s data center environments.
Original Intel chip X540-BT2, supports Intelligent Offloads, same as intel X540-T2. Storage over Ethernet: iSCSI, FCoE, NFS.
PCIe v2.1 (5.0GT/s), X8 Lane,compatible with PCIE X8, X16 Slot.

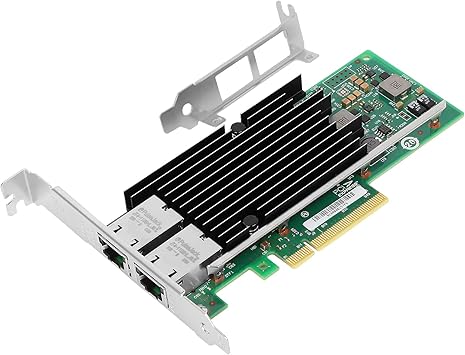

Coming with Low Profile Bracket as well as Full Height Bracket,which support on Standard and Slim computer/server.

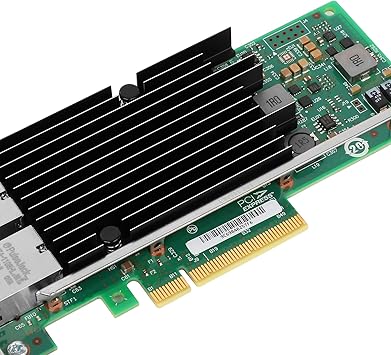

Goldfinger adopts sinking gold process, which makes transmission is more stable.
And the hardness of thickened electrogold is more wear-resistant than that of ordinary electrogold, stable performance, data is not prone to packet loss and distortion.
1 GbE/10 Gb, full Duplex / half-duplex auto-negotiation, delivering extreme speeds of up to 10 Gbps and providing a reliable, high-performance 10GbE connectivity.
Gold-plated shielding interface can effectively prevent interference and make data transmission more smooth.
Thicken gold-plated interface, more reliable contact, and transmit more stable.
