Product description
X520-10G-1S-X8 X520-10G-2S-X8 X710-10G-2S-X8 X710-10G-4S-X8 X540-10G-1T-X8 XL710-40G-2QS-X8
Buying Options
Buying Options
Buying Options
Buying Options
Buying Options
Buying Options
Customer Reviews
249
249
249
249
249
249
Controller Intel 82599EN Intel 82599ES Intel X710-BM2 Intel XL710-BM1 Intel X540 Intel XL710-BM2
Port Configure SFP+(x1) SFP+(x2) SFP+(x2) SFP+(x4) RJ45(x1) QSFP+(x2)
Data Rate / Port 10 GbE/1 GbE/s 10 GbE/1 GbE/s 10 GbE/1 GbE/s 10 GbE/1 GbE/s 10 GbE/1 GbE/s 40 GbE/10 GbE/s
PCle PCIe 2.0 X8 PCIe 2.0 X8 PCIe 3.0 X8 PCIe 3.0 X8 PCIe 2.1x8 PCIe 3.0 X8
Jumbo Frames Yes Yes Yes Yes Yes Yes
SR - IOV (Single Root I/O Virtualization) Yes Yes Yes Yes Yes Yes
PXE Yes Yes Yes Yes Yes Yes
Operating Systems Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12
Un-supported QNAP QSA-308-Series Switch; Mac OS, Bypass Mode QNAP QSA-308-Series Switch; Mac OS, Bypass Mode Mac OS Mac OS Mac OS, Bypass Mode Mac OS
Windows 10 Teaming / Yes Yes Yes / Yes
Data Rate / Port 10/1 Gb/s
Function Support iSCSI, PXE, VLAN, SR-IOV, Jumbo Frames, DPDK, FCoe, Intelligent offloads, Windows 10 Teaming.
Standard IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad
Technical parameters On-chip QoS and Traffic management; Load balancing on multiple CPUs; TCP checksum offloading capabilities; Virtual Machine Device queue(VMDq); PCI-SIG* SR-IOV implementation.
Certification FCC, CE, RoHS

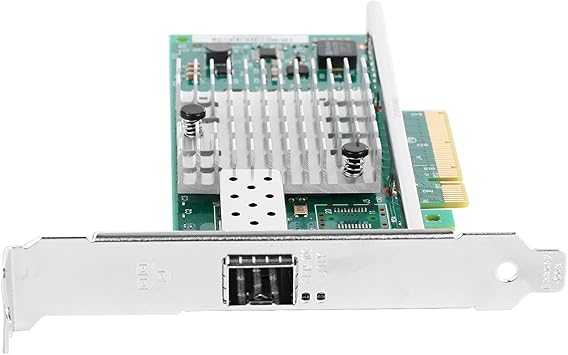

Single SFP+ port supports 10 Gigabit SFP+ module/DAC/AOC connection, which meet the demands of data center environments.
Equipped with original Intel 82599EN Chip which supports Single Root I/O virtualization and improve servers stability.
PCI Express 2.0.?5.0 G T/s?x 8 Lane, compatible with PCIE X8, X16 Slot.
Coming with Low Profile Bracket as well as Full Height Bracket,which support on Standard and Slim computer/server.
Goldfinger adopts sinking gold process, which makes transmission is more stable.
And the hardness of thickened electrogold is more wear-resistant than that of ordinary electrogold, stable performance, data is not prone to packet loss and distortion.
1 GbE/10 Gb, full Duplex / half-duplex auto-negotiation, delivering extreme speeds of up to 10 Gbps and providing a reliable, high-performance 10GbE connectivity.
Gold-plated shielding interface can effectively prevent interference and make data transmission more smooth.
Thicken gold-plated interface, more reliable contact, and transmit more stable.
