- About this Item
- • Built in Intel Ethernet Controller X710 chipset, the ethernet Interface Card X710DA2 with 2 x SFP ports supports for multi-core processors and server virtualization for your networking requirements.
- • Interface Type PCIe v3.0 (8.0 GTs) x8,x16 slot. Cabling Type 10GBASE-SR10GBASE-LR SFP Transceiver, SFP DAC and AOC. Supported Ethernet Speeds 101GbE. Warm Tips it CAN NOT support 5G2.5G rate.
- • Standard and Low-profile Brackets will be packaged to make the wlan card can be better fit for different computer cases server installation.
- • Supported OSWindows 11 10 7 8, Windows Server 2012 2012 R2, Windows Server 2008 2008 R2, Windows Vista, Windows Server 2003 2003 R2, Windows XP Professional, Linux Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux 5, 6, SUSE Linux Enterprise Server 10, 11, FreeBSD 9 , VMware ESXESXi, UEFI, etc.
Specifications & Details
| SKU | PIB0B975CK6N |
|---|---|
| Product Dimensions | 6.69 x 2.64 x 0.39 inches |
| Item Weight | 0.173 kgs |
| Item model number | X710DA2BLK |
| Manufacturer | Splensun |
Product description

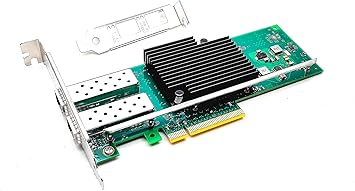

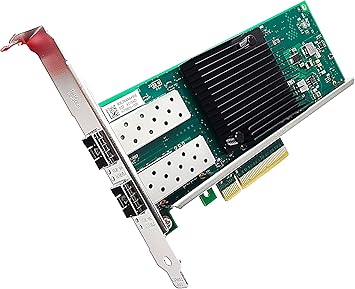

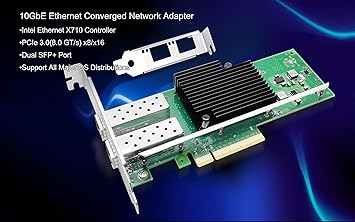

10 Gigabit Dual Port SFP+ Ethernet Network Interface Card Compatible with Intel X710-DA2
Equipped with Intel Ethernet Controller X710 chipset, this dual-port 10Gb network interface card (NIC) provides sufficient bandwidth for line rate traffic on dual 10Gb ports and effectively prevents packet loss for server connectivity and network virtualization (including VMDq and SR-IOV), so that you will enjoy a high-speed networks.
It is designed to provide broad interoperability, critical performance optimisations, and increased agility for communications, cloud, and enterprise IT network solutions.
Supported Most Network OS:
Windows 11/ 10 / 7 / 8, Windows Server 2012 /2012 R2, Windows Server 2008 / 2008 R2, Windows Vista, Windows Server 2003/ 2003 R2, Windows XP Professional, Linux Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux 5, 6, SUSE Linux Enterprise Server 10, 11, FreeBSD 9 , VMware ESX/ESXi, UEFI, etc.
2 x SFP+ Port
Dual sfp+ port can be connected with SFP+ Direct Attach Cable/SFP+ Module/SFP+ AOC.
The transmission rate can not only reach up to 10gbps, but also backward compatible with 10/100/1000Mbps. This makes the 10gb network server can auto negotiate between high-speed and low-speed connection.
Warm Tips: it CAN NOT support 5G/2.5G rate.

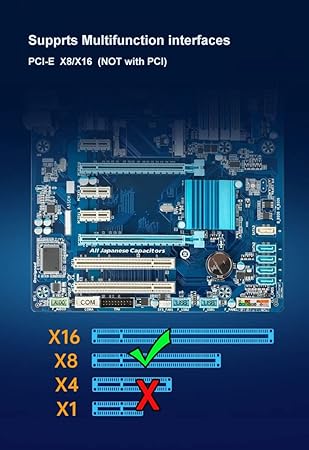

PCIe 3.0 x 8 Host Interface and 10GbE Dual-Port Transmission
Dynamic Device Personalization (DDP) Increases Packet Processing Efficiency
Data Plane Development Kit (DPDK) Optimised for Efficient Packet Processing
Unified Networking Delivering LAN, iSCSI, NFS and FCoE in One Low Cost CNA
Support Network Virtualization Offloads Including Geneve, VXLAN and NVGRE
PXE Support
SNMP and RMON statistic counters
iSCSI Boot
