- About this Item
- • 10 gbps Faster Transmission Equipped with Intel X520 82599EN Ethernet Controller,it supports Single Root IO virtualization, improves servers stability and provides up to 10Gbps transmission speed, effectively prevent packet loss,so that you will enjoy a high-speed networks.
- • Interface PCI Express V2.0 x8,x16 Lane. Single lan SFP PORTScan reach 10 Gigabit. SFP Direct Attach CableSFP ModuleSFP AOC can be connected.
- • Data transfer rate 10100100010000Mbps. The 10gbps enthernet adapter includes a number of advanced features that allow it to provide industry-leading performance and reliability, which can be wide and different applications such as pc gaming, desktops, workstations, servers, and mini-tower computers.
- • Support OS Windows 781011Visa, Windows Server 2008201220162019, Linux, CentosRHEL 678, Ubuntu 16181920, Debian 91011, FreeBSD 101112, Vmware ESXEsxi 67, SLSE 1112,etc.
Specifications & Details
| SKU | PIB0BF9STWVT |
|---|---|
| Product Dimensions | 5.5 x 2.7 x 0.07 inches |
| Item Weight | 0.150 kgs |
| Item model number | x520da1 |
| Manufacturer | Splensun |
Product description

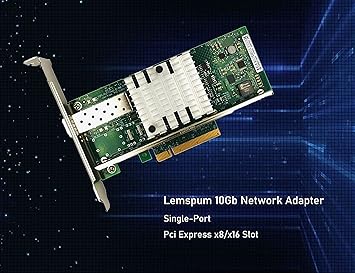

Equipped with Intel X520 82599EN Ethernet Controller, Lemspum 10Gigabit Network Adapter supports Single Root I/O virtualization, improves servers stability and provides up to 10Gbps extreme transmission speed and effectively prevents packet loss, so that you will enjoy a high-speed networks.
Controller: Intel X520 82599EN chipset
Transfer Rate: 10Gbps/1000Mbps/100Mbps/10Mbps
Standard: IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad
Wide Compatibility
Supported OS: Windows 7/8/10/11/Visa; Windows Server 2008/2012/2016/2019; Linux; Centos/RHEL 6/7/8; Ubuntu 16/18/19/20; Debian 9/10/11; FreeBSD 10/11/12; Vmware ESX/Esxi 6/7; SLSE 11/12; Mac OS etc.
NOT Supported: QNAP Switch.
Warm Reminder: There will be no drivers for X520 under Windows 11* if you would like download X520 drivers into a Windows 11 desktop. But the latest version 28.0 Complete Driver Pack will solve this issue. Complete Driver Pack Name: Release_28.0.zip.

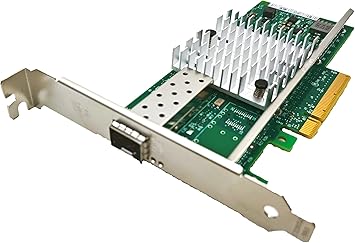

1x SFP+ Port
Single sfp+ port can be connected with SFP+ Direct Attach Cable/SFP+ Module/SFP+ AOC.
The transmission rate can not only reach up to 10gbps, but also backward compatible with 10/100/1000Mbps. This makes the 10gb network server can auto negotiate between high-speed and low-speed connection.
Warm Tips: it CAN NOT support 5G/2.5G rate.

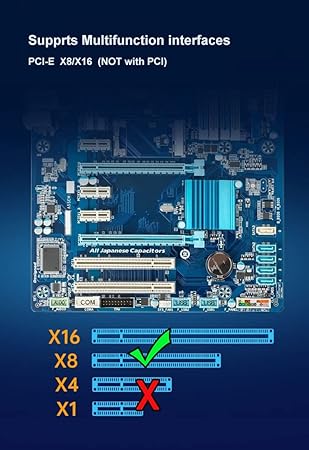

PCI-Express X8
Interface: PCI Express 2.0 (5.0 G T/s) X8,X16 Lane (NOT PCI slot)
Stable Transmission NIC
The 10gbps Ethernet adapter includes a number of advanced features that allow it to provide industry-leading performance and reliability, which can be wide and different applications such as pc gaming, desktops, workstations, servers, and mini-tower computers.

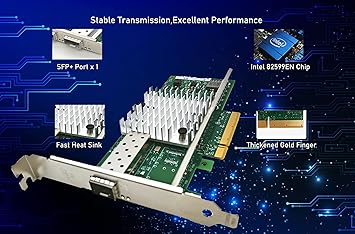

Fast Heat Sink
The silver aluminum little-tree heat sink will help to efficiently transfer heat away from the nic to further improve heat dissipation, which will quickly reduce the temperature and keep the stability of network transmission.

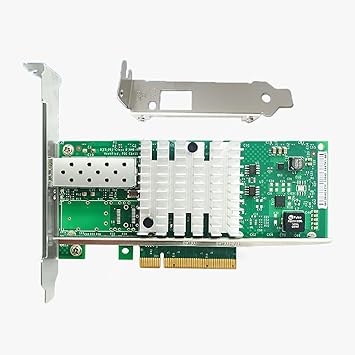

Standard and Low-profile Brackets
Standard and Low-profile Brackets will be packaged to make the wlan card can be better fit for different computer cases /server installation.
TIP: The driver CD won't packaged in the box. Our support team will be hear to meet your demands in 12-hour.
2.5g NIC with 1xRJ45 Port 10G NIC with 2xRJ45 Ports 1G NIC with 1xRJ45 Port 10G SFP+ to RJ45 Copper Module
Buying Options
Buying Options
Buying Options
Buying Options
Customer Reviews
12
38
69
17
Support Device/OS Windows 10 32/64bit, Win 7/Win 8,8.1, Windows Servers 2003/2008/2012,Linux, Mac OS, DOS. Windows Server 2008 R2,2008 R2 Core/Windows Server 2012,2012 R2,2012 R2 Core/UEFI* 2.1,2.3/FreeBSD* 9,10/Linux* RHEL 6.5,7.0/VMware ESXi 5.1,5.5/Linux* SLES 11 SP3,12/Linux* Stable Kernel version 2.6.32/3x ect. Windows XP SP3, Windows Server 2003/ 2008/ 2000, Windows Vista* SPI, Linux* RHEL 4.6, Linux* Kernel version 2.6.24/ 2.4.36.2 Cisco, Fortinet, Ubiquiti, Netgear, D-Link, TP-Link, Linksys, Broadcom, Edge-core, EMC, F5, Meraki, Norkia, QTC, Supermicro, and Other Open Switches.
