- About this Item

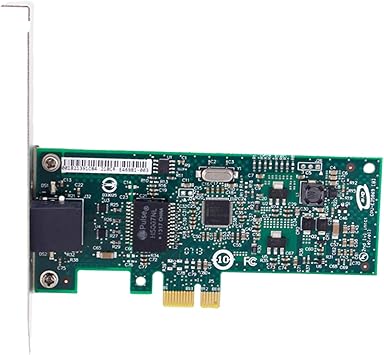

- • Based on the low-power Intel 82574L Gigabit Ethernet Controller, this 1GbE desktop adapter offers optimal performance in a low-cost, low-power, compact profile.
- • Network interface1 x RJ45. The network server transmission rate can not only reach up to 1gbps,but also backward compatible with 10100Mbps. This makes the 1gbe network server can auto negotiate between high-speed and low-speed connection.
- • It offers high-speed transmission over CAT5e UTP cable or CAT3 UTP(10Mbps only)cable. (Cat5e Cat6 Cat6A or higher cable is recommended.)
- • Slot PCI-Express v1.1 (2.5 GTs) x1x4x8x16. Compatible with full and half duplex to make the wlan card can be better fit for different computer cases server installation.
Specifications & Details
| SKU | PIB08DFYK6M4 |
|---|---|
| Package Dimensions | 8.94 x 5.79 x 1.18 inches |
| Item Weight | 0.139 kgs |
| Item model number | 1GbE| EXPI9301CT |
| Manufacturer | Splensun |
Product description
Fast Gigabit Ethernet Transmission

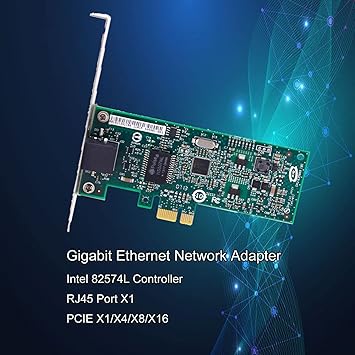

Ethernet Controller
By adopting Intel 82574L Ethernet controller chip, the card is compatible with Intel EXPI9301CT / EXPI9301CTBLK, providing a fast and delay-free transfer up to 1000Mbps, more responsive performance, and greater stability.

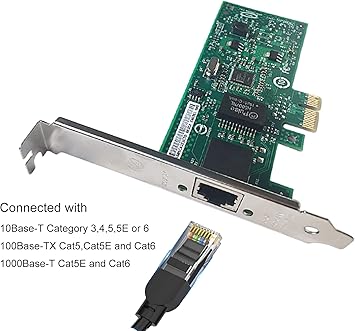

Single Copper RJ45 Port
Connected to Category-5 and up to 100m for meeting the demands of data center environments for servers and high-end devices, providing speed expansion for servers and delivering high-speed networking.
PCI Express* 1.1. 2.5 G T/s X1 Lane is suitable for PCI-E X1/ X4/ X8/ X16 slots.
Thickened Goldfinger
Thickened gold fingers utilizes the gold-plating tech, ensuring stable and accurate data packet transmission. The thickened gold-plating enhances the durability of the network card, resulting in more stable performance and reducing the risk of data packet loss.
Packing List

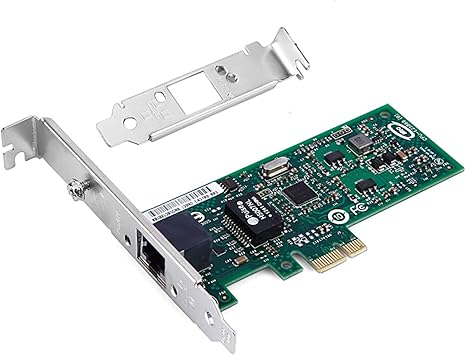

1 x EXPI9301CT NIC
1 x Low Profile Bracket
