- About this Item
- • Integrated PCIe, MAC, and PHY solution enables power- and space-efficient connectivity for client systems
- • IEEE 802.3bz and NBASE-T compliant AQrate PHY supporting 10GBASE-T5GBASE-T2.5GBASE-T1000BASE-T100BASE-TX
- • SD-PEX24055 is ideally suited for client PCs used for data intensive computing in numerous verticals including multimedia, education, medical, financial, industrial design and gaming applications
- • Compliance - IEEE 802.3bz NBASE-T, IEEE 802.3x flow control, IEEE 802.1P quality of service, IEEE 802.1QAV AVB
Specifications & Details
| SKU | PIB07G2DV9K2 |
|---|---|
| Product Dimensions | 3.25 x 4.8 x 0.75 inches |
| Item Weight | 0.054 kgs |
| Item model number | SD-PEX24055 |
| Is Discontinued By Manufacturer | No |
| Manufacturer | Syba |
| Country of Origin | China |
Product description

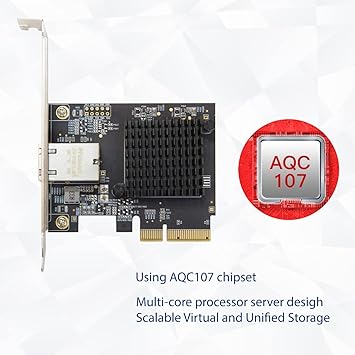

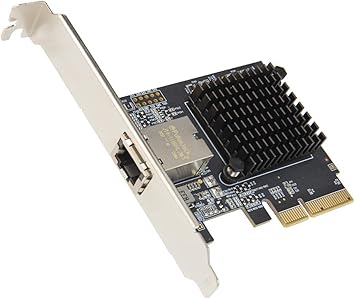

The SD-PEX24055 NIC supports 10GBASE-T Ethernet in compliance with the IEEE 802.3an standard, as well as 5 Gbps and 2.5 Gbps Ethernet speeds over standard Cat 5e and Cat 6 copper cables. Compliant to the IEEE 802.3bz standard ratified in September 2016, the SD-PEX24055 NIC is also backwards-compatible with legacy 1000BASE-T Ethernet. The AQN-107 is a single-chip, single-port, high-performance PCIe 3.0 Multi-Gig 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX Ethernet adapter. It incorporates Aquantia's AQrate PHY technology to deliver 10 GbE, 5 GbE and 2.5 GbE network connectivity speeds over 100 m with zero change required for legacy cabling. Speeds ranging from 5 GbE to 100 M are supported by Cat 5e cabling while 10GbE requires a minimum of Cat6 with Cat 6a running up to 100 m.
