- About this Item

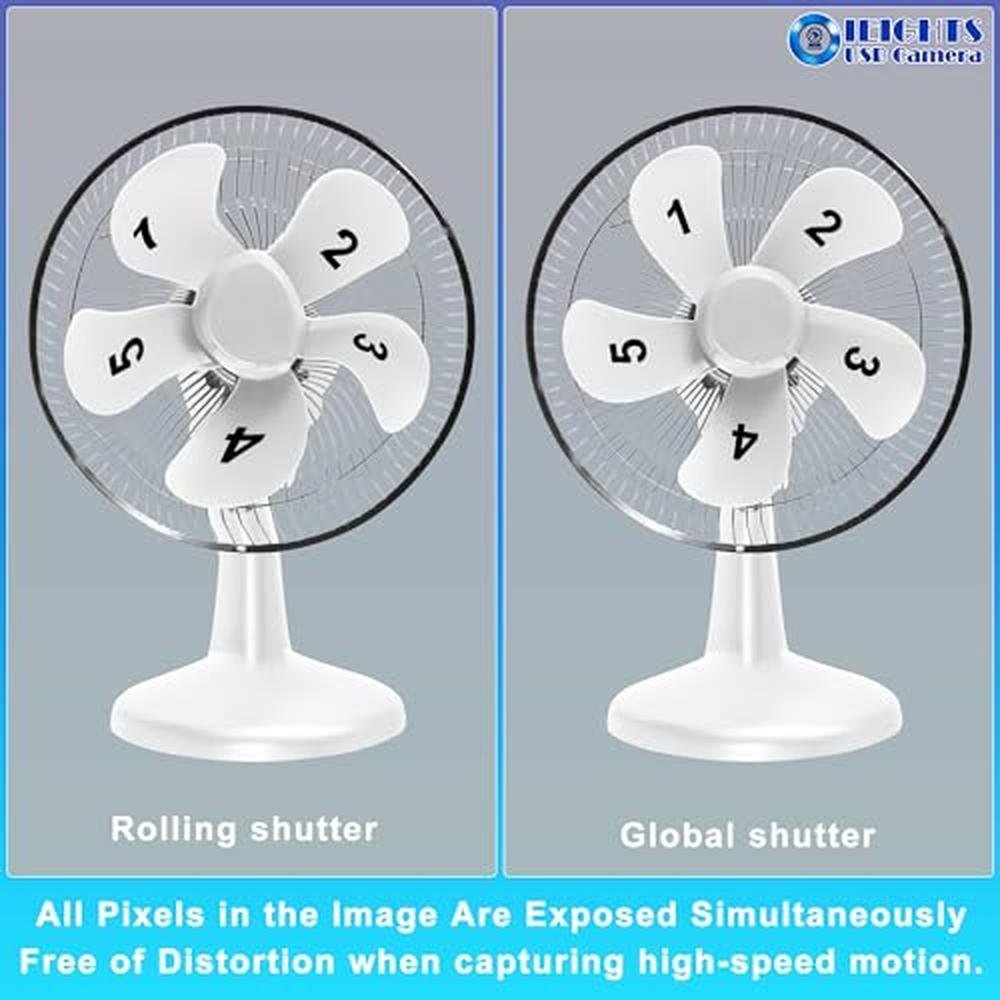

- • Global shutter manual focus camera shoot high-speed moving objects in crisp sharp images. Avoid the rolling distortion to get a much more accurate complete picture than the rolling shutter cameras.

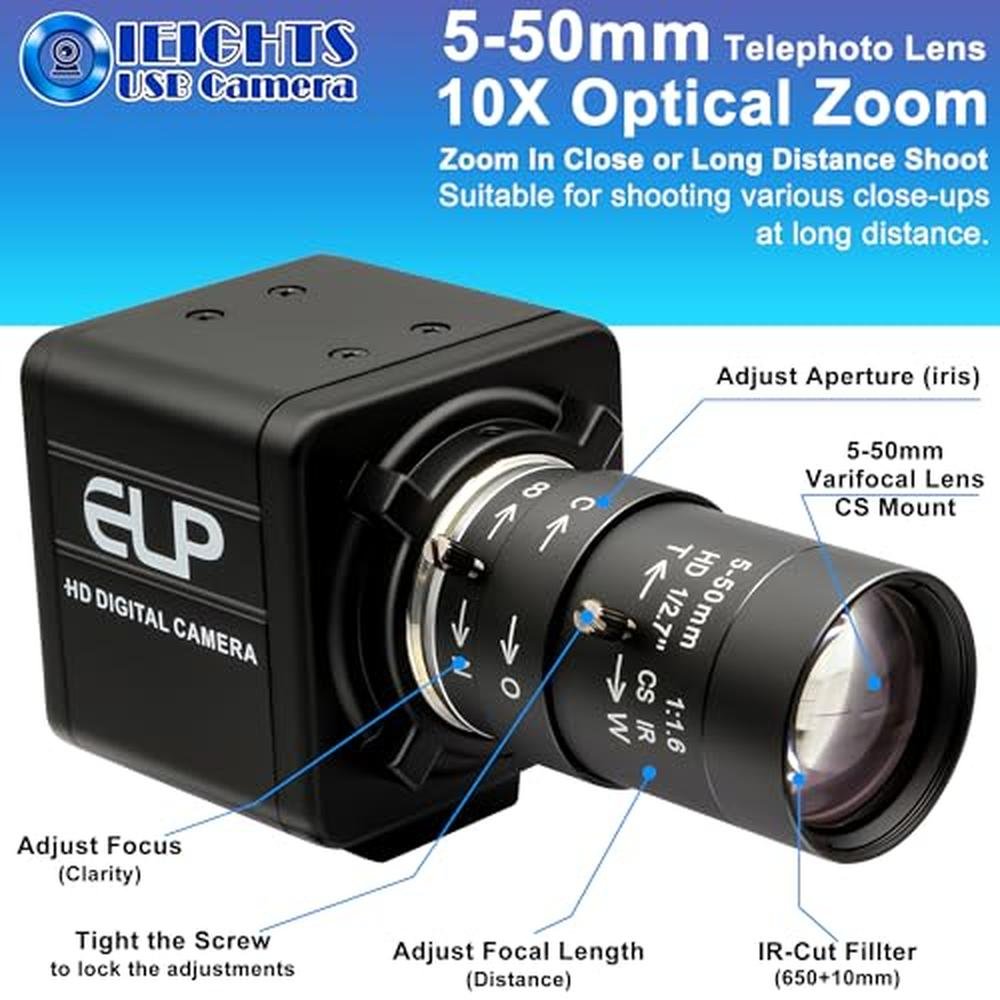

- • 5-50mm zoom lens telephoto camera CS mount 5mm-50mm telephoto lens, 10X optical zoom adjustable for all kinds of distance, ideal for capturing various close-ups at a long distance.
- • Fast frame up to 60fps This 5MP usb camera can drive 1944P50fps, 1440P60fps, can deliver smooth images while capturing fast-moving objects, ideal for video recording, studio filming, sports analysis, industrial inspections and DIY project.
- • FHD Resolution 2592x1944 full and high resolution, providing sharp, clear and smooth images effectively and accurate color reproduction, also adopted IR filter at 650nm.
Specifications & Details
| SKU | PIB0DHY8TJGW |
|---|---|
| Brand Name | IEights |
| Item Weight | 0.320 kgs |
| Product Dimensions | 1.96 x 1.96 x 4.13 inches |
| Item model number | ELP-USBGS5MP01-MFV |
| Color Name | black |
| Special Features | 5-50mm 10X zoom variable focus, global shutter, camera with UVC for computer, laptop, pc, raspberry pi, Jetson Nano, Mini size, light weight, fast frame 1944P@50fps, 1440P@@60fps |
Product description
brModel ELP-USBGS5MP01-MFV(5-50) brSensor 12.5 OmniVision OX05B1S (Global Shutter) brMax Resolution (Default) 2592 (H) 1944 (V) brSensor Size 12.5 inch (43) brImage Array Area 5737?m x 4312?m brPixel Size 2.2?m x 2.2?m brCompression Format MJPEG YUV2 (YUYV) brResolution Frame Rate br2592x194450fps MJPEG2592x144060fps MJPEG 2560x144060fps MJPEG br2304x129660fps MJPEG2048x153650fps MJPEG1920x108060fps MJPEG br1600x120050fps MJPEG1600x90060fps MJPEG1280x96050fps MJPEG br1280x72060fps MJPEG1024x76850fps MJPEG1024x57660fps MJPEG br960x72050fps MJPEG960x54060fps MJPEG 800x60050fps MJPEG br800x45060fps MJPEG 848x48060fps MJPEG640x48050fps MJPEG 640x36060fps MJPEG brSurface Mount Technology SMT brFocus Fixed Focus brCentral Definition 1000LWPH (Center) brSN Ratio 38dB brDynamic Range 72dB brSensitivity 1.4Vlux-sec550nm brMin Illumination 0.1 Lux brShutter Global Shutter brInterface USB2.0 High Speed brAECAWBAGC Support brAdjustable Parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White brbalance, Backlight Compensation, Exposure brLens Parameters 5-50mm CS mount 10X zoom lens brLED board power connector Support 2P-2.0mm socket brPower Supply USB BUS POWER 4P-2.0mm socket brOperating Voltage DC 5V Working Current 180mA- 230mA brWorking Temperature 0C to 60C brStorage Temperature -20C to 80C brUSB Cable 3M brOperating System Request brWinXPVistaWin7Win8Win9Win10Win11 etc. brLinux with UVC (above linux-2.6.26) brMAC-OS X 10.4.8 or later, Android.
