- About this Item

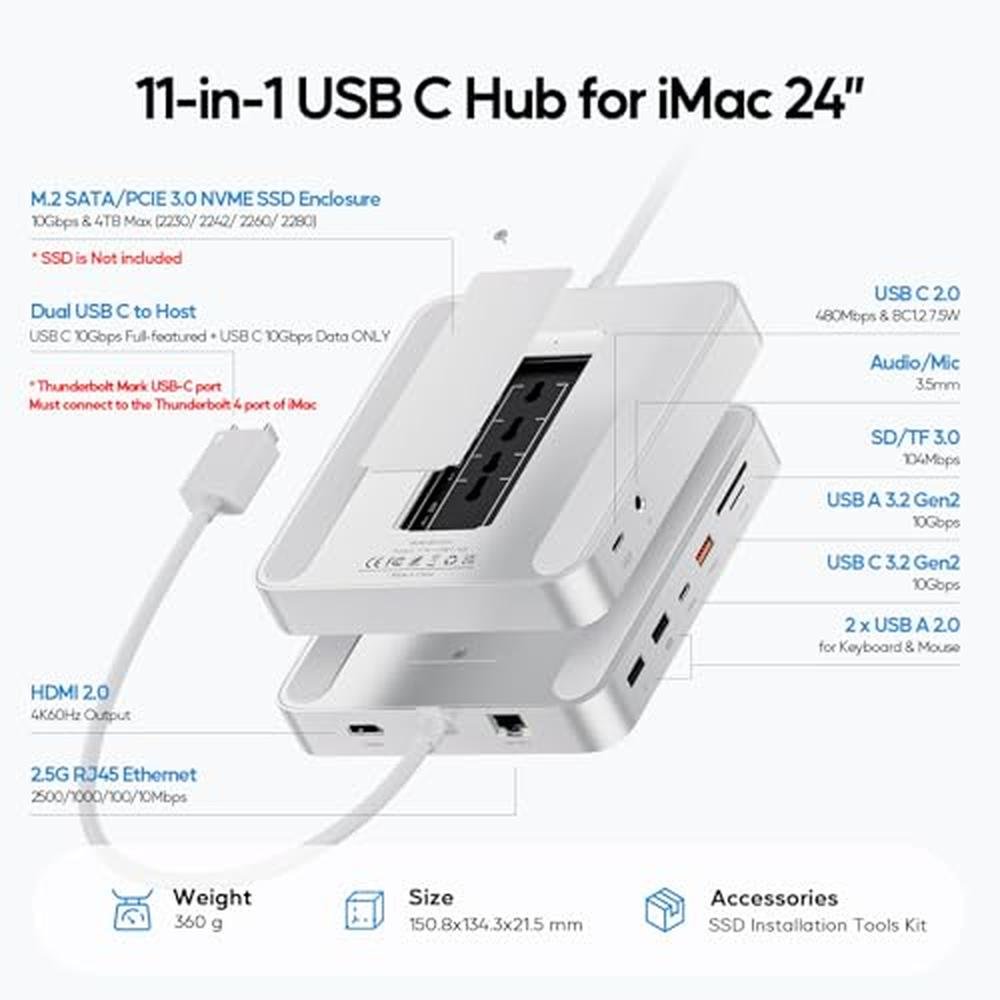

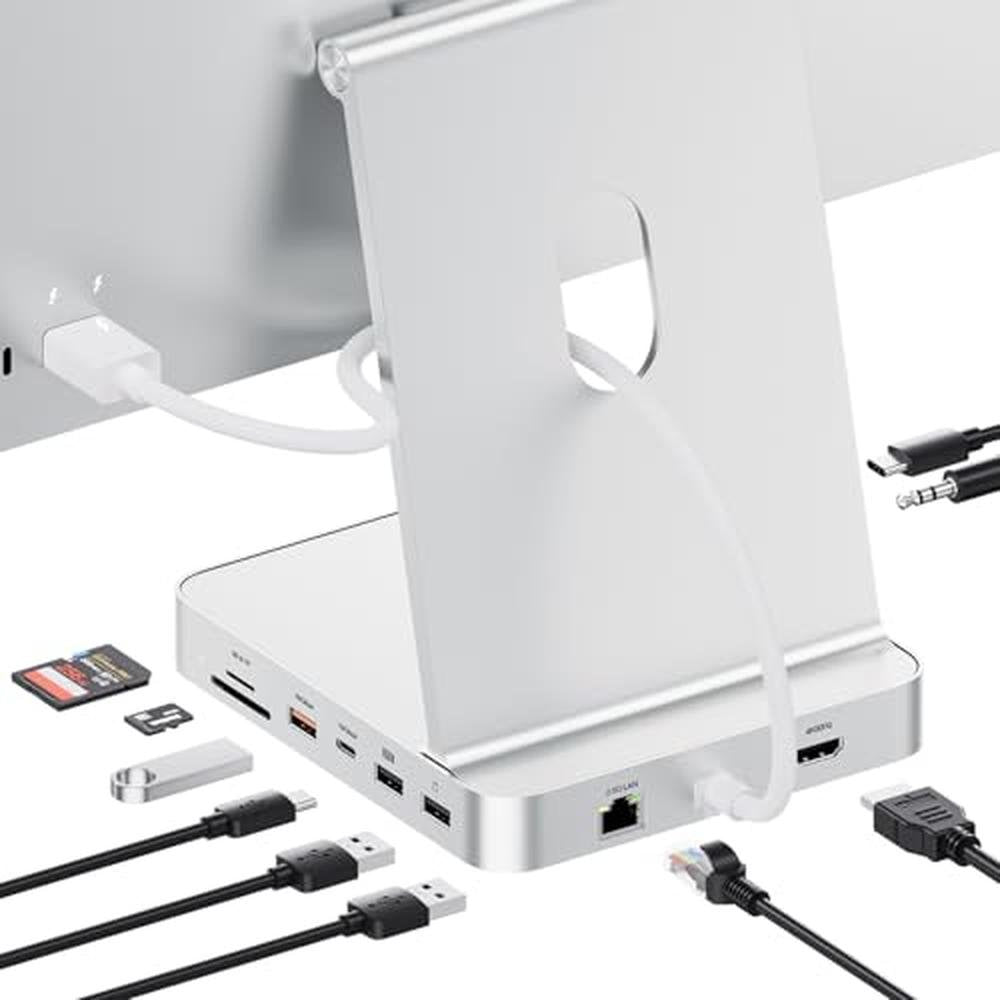

- • 11-IN-1 USB C HUB DESIGNED FOR IMAC 24 INCH - Custom-designed for iMac 24 inch 2021/2023/2024, both an iMac dock stand and an iMac hub docking station. As a functional imac 24 inch accessories, this imac hub features a 4K 60Hz HDMI, M.2 SSD enclosure, 2.5G ethernet, USB C 3.2 Gen2 10Gbps, USB A 3.2 Gen2 10Gbps, USB C 2.0 with BC1.2 7.5W charging, 2 x USB A 2.0, SD/TF card reader, 3.5mm audio/mic jack, providing comprehensive connectivity and powerful productivity for your iMac

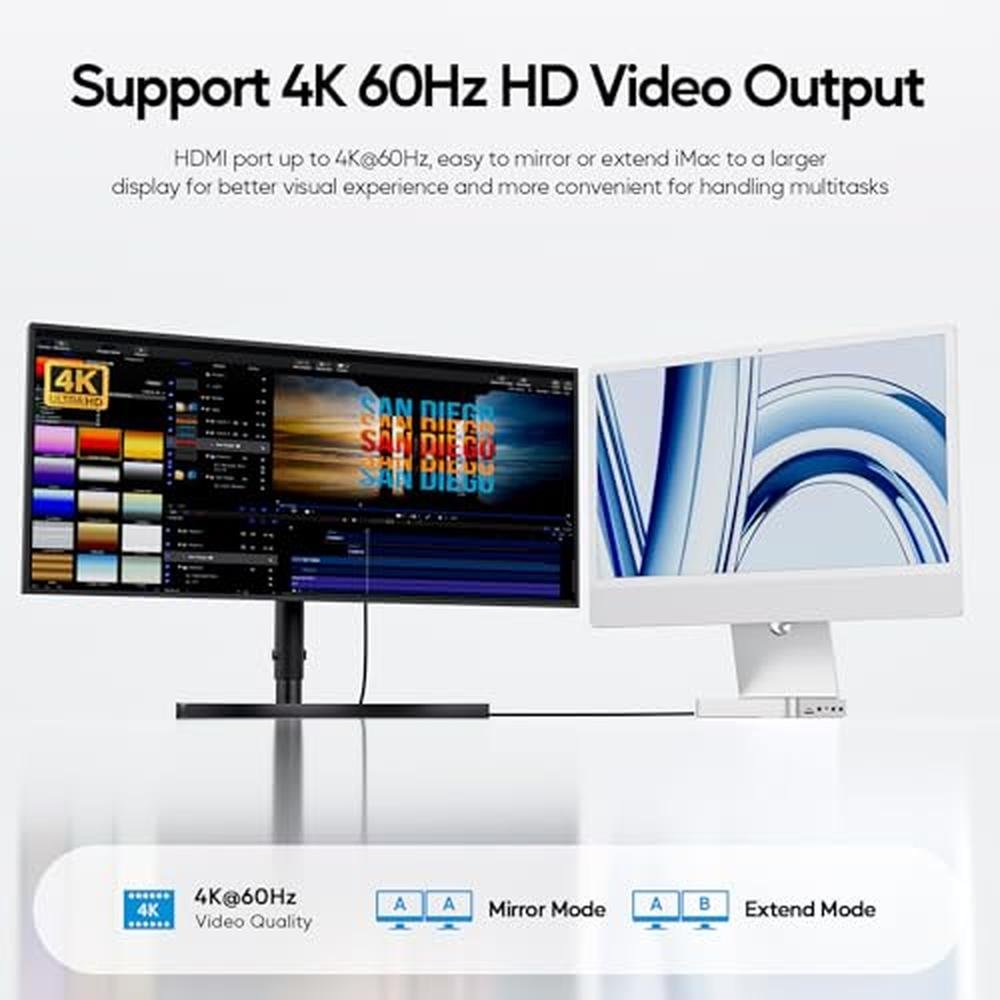

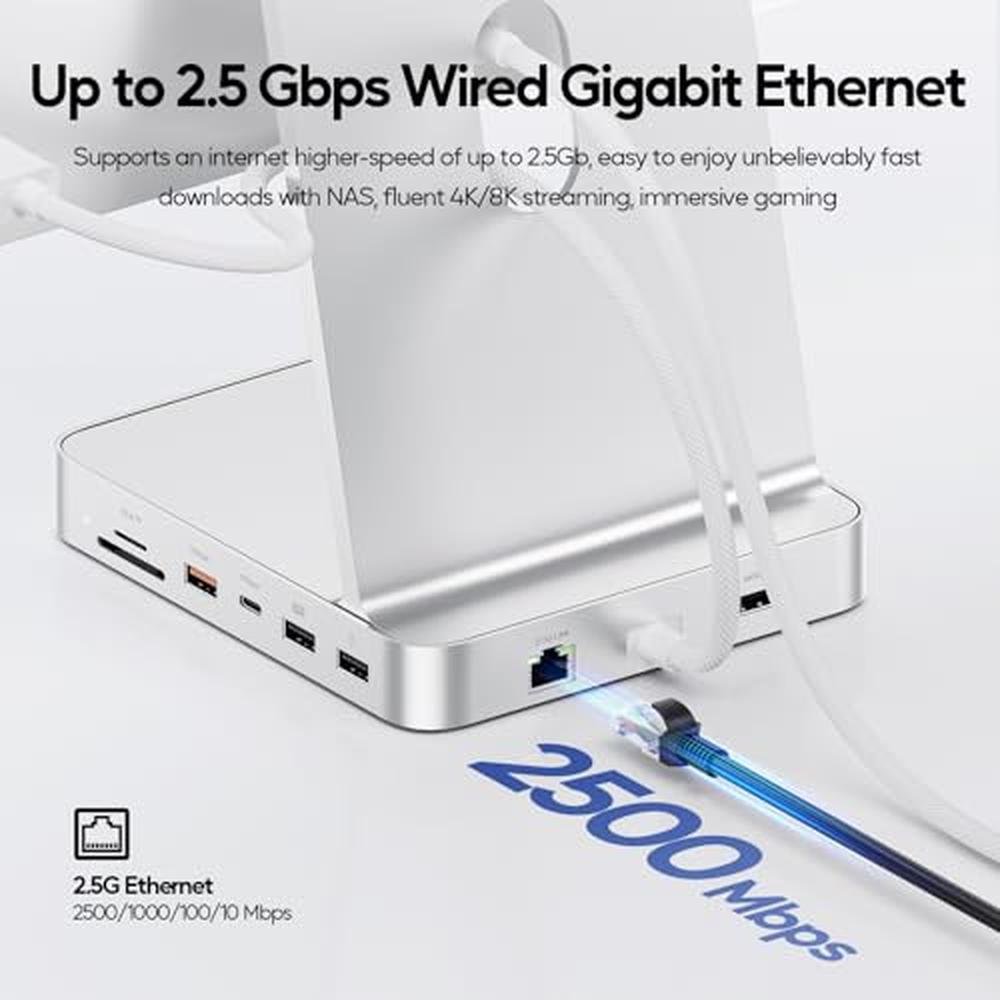

- • 4K HDMI HD OUTPUT & 2.5G WIRED ETHERNET - HDMI output up to 4K@60Hz, the imac usb hub with HDMI is easy to mirror or extend your imac 24 inch M1 M3 M4 to a larger HDTV, monitor or projector to improve your work effiency and elevate your movie or gaming experience. A wired gigabit ethernet port up to 2.5 Gbps enables fast, steady network connection for full HD movies, 3D video games, online meetings, entertainment, etc. NOTE: The imac hub MUST connect to one of iMac's Thunderbolt ports to extend external display

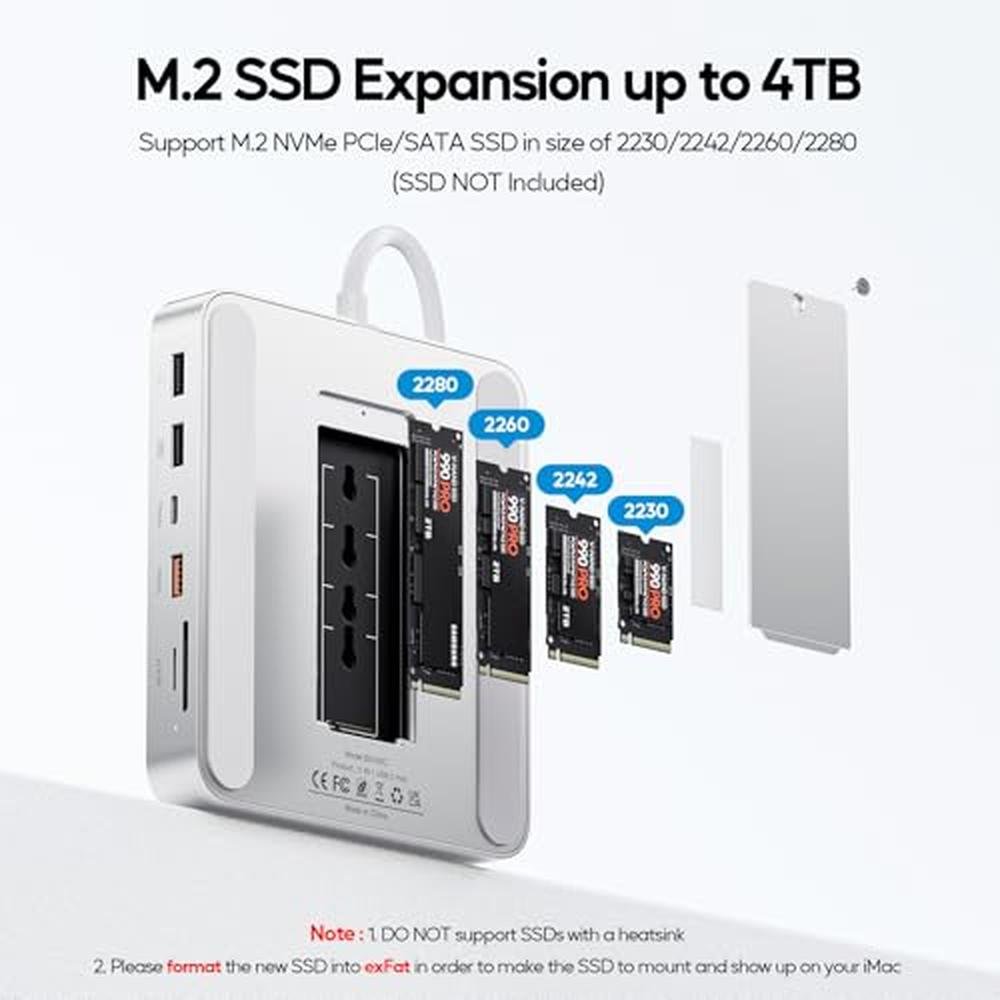

- • SUPPORTS M.2 NVME SSD EXPANSION - Equipped with an external hard drive slot at the bottom, this imac m4 docking station supports up to 4TB/10Gbps M.2 NVMe PCIe or SATA SSD in size of 2230/ 2242/ 2260/ 2280 (SSD NOT included). An ideal imac usb dock for the imac 24 inch users who needs additional storage. NOTE: 1) DO NOT support SSDs with a heatsink. 2) Please initialize the new SSD because SSDs must be formatted to work with host in order for SSD to mount and show up; 3) Please format your new SSD into "exFat" or "apfs " format
- • UP TO 10GBPS SUPER SPEED & 7.5W SIMULTANEOUS CHARGING - The imac multiport adapter features with 10Gbps USB-A/C 3.2 Gen2 data ports that support read and write speed up to 1000-1200MB/s, transmiting 1G large files in seconds. Connect your phone or other USB-C device to the 7.5W USB C 2.0 data port to get simultaneous charging. 2 x USB A 2.0 ports, 3.5mm audio/mic jack and SD/Micro SD card readers for seamlessly access to mouse, keyboard, and other essential peripherals at once
Specifications & Details
| SKU | PIB0DSJ794NR |
|---|---|
| Hardware Interface | Ethernet, HDMI, MicroSD, USB 2.0, USB Type C |
| Additional Features | Anti-Slip, Fast Data Transfer, Indicator Light, Pass Through Charge, Plug and Play |
| Compatible Devices | iMac 24 inch 2021 2023 2024, iMac 24 inch M1 M3 M4 |
| Total Usb Ports | 5 |
| Data Transfer Rate | 10 Gigabits Per Second |
| Number of Ports | 11 |
| Minimum Required Operating System Version | Mac OS 12 Monterey |
| Operating System | macOS |
Product description
USB C Hub for iMac 24 inch 2021/2023/2024, iMac Accessories for iMac M1/M3/M4 with M.2 NVMe SSD Enclosure, HDMI port, USB-A & USB-C, 2.5G Ethernet, SD/TF Specification Model: BD182C Product Name: USB C Hub for iMac 24 inch Material: Aluminum Support SSD Type: SATA M.2 SSD / PCIe NVMe M.2 SSD Compatible SSD Sizes: 2230/2242/2260/2280 Non-detachable Cable: 50cm TPE cable Dimension: 135 x 88 x 59mm Weight: 350g Input: 2 x USB C Male 3.2 Gen2 (Dual Type C to Dual Open,USB C 10Gbps Full-featured + USB C 10Gbps Data only) Output: 2 x USB A 2.0 480Mbps 1 x USB C 2.0 480Mbps & BC1.2 7.5W 1 x USB A 3.2 Gen2 10Gbps 1 x USB C 3.2 Gen2 10Gbps 1 x SD/TF 3.0 104Mbps 1 x RJ45 Ethernet 2500/1000/100/10Mbps 1 x HDMI 2.0 4K@60Hz 1 x 3.5mm Audio & Mic jack 1 x M.2 SATA / PCIe 3.0 NVMe SSD enclosure 10Gbps Exclusive Design Custom-designed for 2021/2023/2024 24 inch iMac, both a iMac 2024 stand desk mount and a USB-C docking station. The same color aluminium alloy shell makes the usb c dock mount feel like a natural extension of your iMac, also helps to expand the function and extend memory for your iMac M4 to turn it into a creative workstation. Built-in M.2 NVME SSD Enclosure The iMac accessories supports expanding iMac 24 storage with blazing 10Gbps speeds SSD (NOT Included) up to 4TB to meet different needs or data-intensive tasks. The USB c hub multiport adapter supports the M.2 NVMe SSD or M.2 SATA SSD 10Gbps and size of 2242/2260/2280 M.2 SSD.*NOTE: SSD is NOT included. 4K HDMI HD Output With the 4K@60Hz HDMI output, easily connect your Apple iMac to a larger high-resolution HDTV, monitor or projector to enjoy vivid video synchronization and better image without any converter dongle. Support seamlessly mirror or extend an external display. 2.5G Wired Gigabit Ethernet The 2.5G Wired Gigabit Ethernet port enables steady network connection of up to 2.5 Gbps, making this iMac USB Hub an ideal solution for buffering online gaming, data transfer, and video conferencing. High-speed Transfers The super speed USB C & USB-A data ports deliver up to 10Gb/s transfer speed, which allows you to transfer large files in seconds between iMac and tablets, smartphones, flash drives, and other external storage devices. 7.5w Simultaneous Charging Connect your phone or other USB-C device to the 7.5W USB C 2.0 data port to get simultaneous charging.Support connecting multiple USB devices to transfer kinds of data at once, such as smartphone, hard drive, printer, and more, keeping you away from the trouble of plugging & unplugging your devices repeatedly Legacy USB A 2.0 Ports for Keyboard and Mouse The 2 USB-A ports provide more connectivity options for USB A flash drives, printers, while USB A 2.0 is efficient for mouse/ keyboard with lower latency. 104MB/S SD/TF Card Reader SD/TF slots support simultaneous reading and writing, with a speed of up to 104 Mbp/s, allowing you to quickly view your photos or videos, perfect for professional photographer, video editor, or graphic designer. Sleek Aluminum Construction Sleek aluminum construction with all-in-one embedded design, making the usb-c dock & desk mount to feel like a natural extension of your iMac M4 2024 and maintain a clean, organized workspace. Compatibility The iMac 24 inch 2023 accessories is compatible with iMac 2021/2023/2024.
