- About this Item
- • 4K USB HDMI manual zoom camera, USB Type-C Power Supply, Type-C HDMI Display Simultaneous.

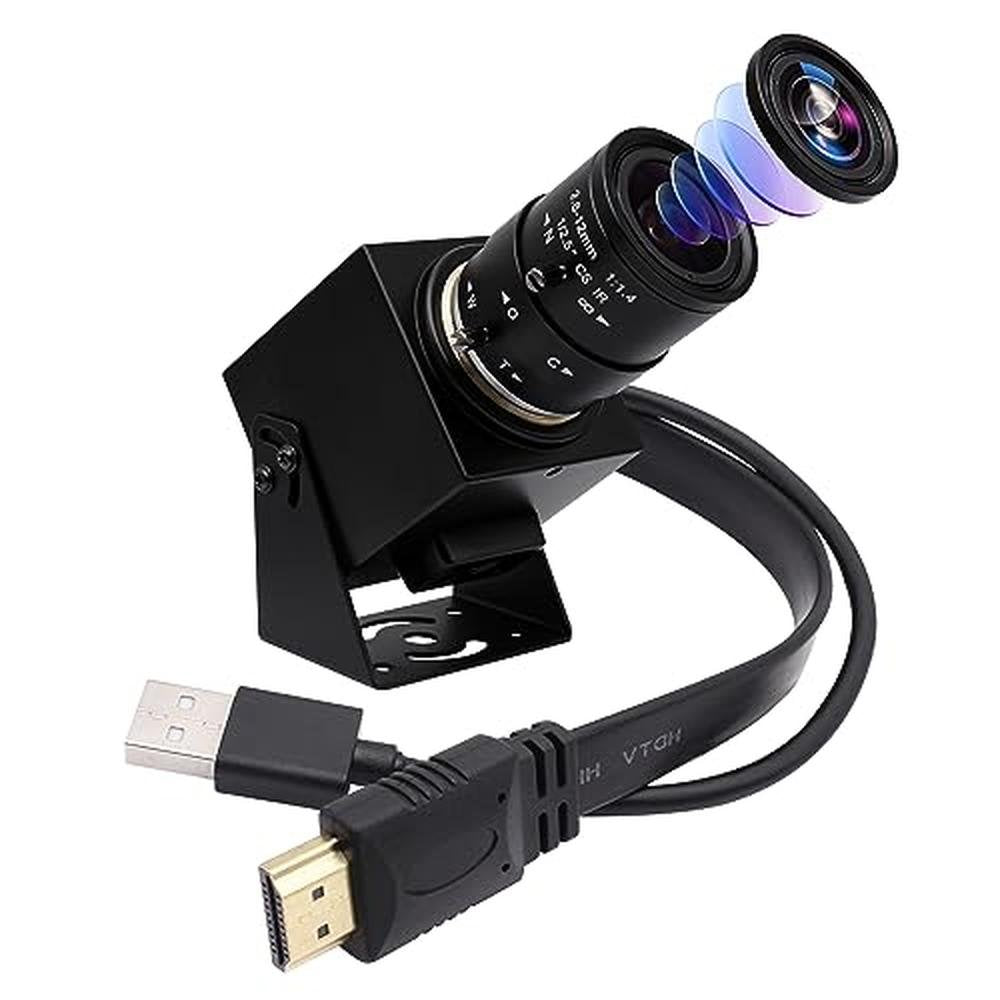

- • 2.8-12mm variable focus camera for all kinds of distance shooting, zoom, brightness, clarity can be adjust by rotating the lens.
- • Ultra Clear, Max Resolution 3840(H) 2160 (V), High Speed 2160P30fps.
- • Adopt high quality 12.8 IMX415 sensor image sensor.
Specifications & Details
| SKU | PIB0CDGVZWQM |
|---|---|
| Brand Name | ELP |
| Item Weight | 0.397 kgs |
| Product Dimensions | 1.65 x 1.69 x 3.34 inches |
| Item model number | ELP-USB4KCAM01H-CFV(2.8-12) |
| Is Discontinued By Manufacturer | No |
| Color Name | 2.8-12mm 4X zoom lens |
| Special Features | H.264/MJPEG/YUY2 optional, 2.8-12mm variable focus lens, 4K USB & HDMI camera, simultaneous output., Camera with UVC for computer, laptop, pc, Mini size, light weight |
Product description
brModel ELP-USB4KCAM01H-CFV(5-50) brSensor 12.8 IMX415 brMax Resolution 3840(H)2160(V) brSensitivity 0.65Vlux-sec550nm brPixel Size 1.45µm x 1.45µm brVideo Compression MJPEG YUY2(YUYV) H.264 br brbResolution Frame Rateb br3840x2160 MJPEG 30fps H.264 30fpsbr2560x1440 MJPEG 30fps H.264 30fpsbr1920x1080 MJPEG 30fps H.264 30fps YUY25fps br1280x720 MJPEG 30fps H.264 30fps YUY2 10fps br1024x576 MJPEG 30fps H.264 30fps YUY215fps br960x540 MJPEG 30fps H.264 30fps YUY2 15fps br640x480 MJPEG 30fps H.264 30fps YUY2 30fps br640x360 MJPEG 30fps H.264 30fpsYUY2 30fps br brImage Processing Time About 8 seconds after opening the preview software brCentral Definition 1000 LWPH(Center) brSN Ratio 30 dB brMin illumination 0.2 Lux brShutter Type Electronic Rolling Shutter Frame Exposure brConnecting Port Type USB 2.0 Interface HDMI V1.4 Interface brAEC Support brAWB Support brAGC Support brAdjustable Parameters brBrightness, Contrast, Saturation, Hue, Sharpness, Gamma,White Balance, brBacklight Compensation, Exposure brLens Parameter HD CS 5-50mm (CS 2.8-12mm optional) brPower Supply Interface USB Type-C Power Supply, Type-C HDMI Display Simultaneous brOperating Voltage DC 5V brWorking Current 480-500mA brStorage Temperature -20C to 80C brWorking Temperature -10C to 70C brUSB Cable 2 pieces cables br(1PCS 1.2m cable with Type-C port, 1PCS 1.5m cable with HDMI port) br brbOperating System Requestb brWin7Win8Win9Win10Win11 etc. Linux with UVC brMAC-OSX10.4.8 or later brAndroid 5.x or above
