Specifications & Details
| SKU | PIB0BWJS8MNC |
|---|---|
| Product Dimensions | 7.5 x 7.8 x 11.8 inches |
| Item Weight | 1.905 kgs |
| Item model number | ZXR-JL246PS-US |
| Manufacturer | JOYALENS |
Product description
JOYALENS--JOY YOU ALL LENS?

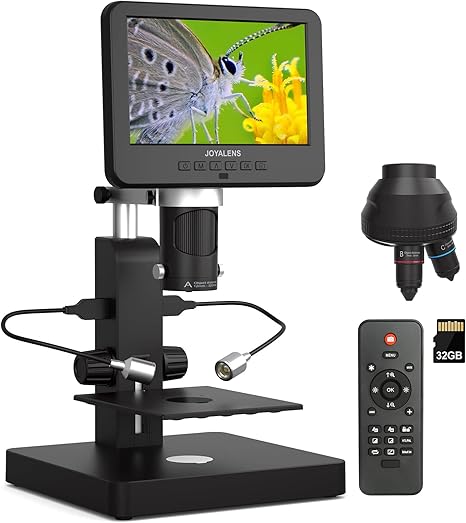

JL246PS——3 Lens 7 inch HDMI Digital Microscope with Plastic Stand
Screen Size: 7-inch LCD screen
Video Format & resolution: MP4, UHD 2880x2160 24fps; FHD 1920x1080 60fps/30fps; HD 1280x720 120fps
Magnification: Lens A: 18-720x; Lens B: 1560-2040x; Lens C: 2760-4080x (with 3 times digital zoom, output to 28-inch HDMI monitor)
Working Distance: Lens A: 12mm-320mm; Lens B: 7mm-8mm; Lens C: 3mm-4mm
Photo Format & Resolution: JPG, Max 5600*4200 (24M 5600*4200)
Frame Rate: Max 120fps (600 Lus illumination &HDP120)
PC Support: Windows XP/7/8/10, PC software with measurement
Power Supply: USB 5V DC
Storage: Micro-SD card, up to 32G
Stand Size: 20cm*19cm*30cm
Package Included: 7-inch Microscope host, Plastic stand, Lens A (has been fixed), Lens B&C, USB spotlights, USB cable, HDMI cable, Switch cable, Remote control, Prepared Slides kit, Observation box, Backdrop board, 32G SD card, Tweezers, Screwdriver, Instructions
Product Highlights

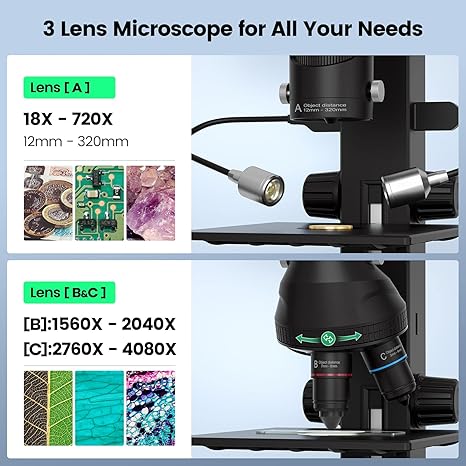

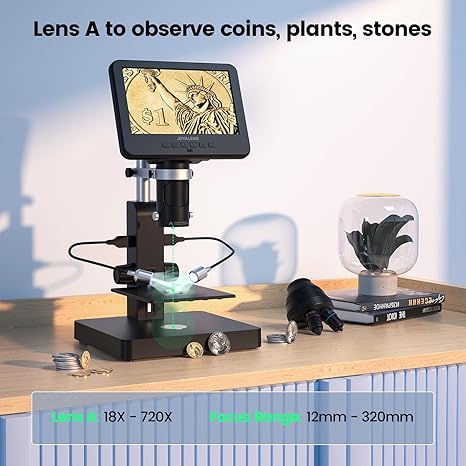

Lens A for Coins/Stones/PCB Observation
Lens A with 18X-720X magnification. It is perfect for coin collectors to get a full view and detail of coins. And whole or partial coins can be observed within a working distance of 12-320 mm. Kids can use it to observe little worms, rocks, and plants. Adults use it for simple circuit board repair.

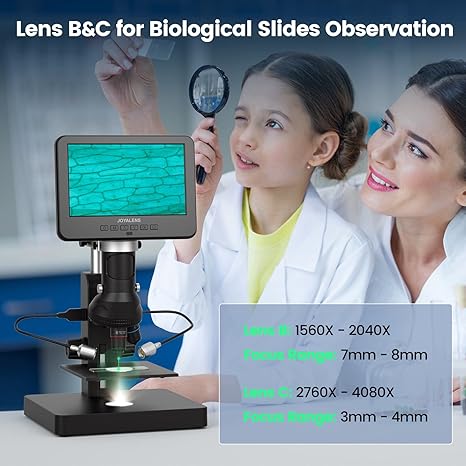

Lens B for Biological Slide Observation
Lens B with 1560X-2040X magnification, the working distance is 7mm-8mm. The cells and tissues on the slides can be clearly spotted, making it a good educational and scientific tool to learn about biological slides.
Lens C for Closer Observation of Biological Slide
Lens C has a maximum magnification of 2760X-4080X and can be magnified to about 4000 times when connected to an HDMI 28-inch screen with 3 times digital magnification. The working distance is 3mm-4mm, which is very suitable for more detailed observation of biological slides.
Easy to Use
By rotating the focusing wheel to focus, and rotating the stand knob to adjust the object distance. Easy to use and set up in just a few steps.
Take Photos and Videos
Support photo and video recording function to record your observation process in real time. Capture and record with the Micro-SD card. (32 GB Card Included)
Convenient Remote Controller
You can take photos and videos, zoom in and zoom out via the infrared remote control. A convenient and practical assistant for long-distance operations, suitable for demonstrations and other occasions.
Multiple Light Sources
The side lights and the light source on the bottom provide enough illumination from all directions for better observation of details. The brightness of the lights can be adjusted to the appropriate light.
Multiple Accessories Included
Comes with a variety of accessories: 5 prepared slides, tweezers, and an observation box, which kids can use to get and keep their specimens, adding a lot of fun to using this microscope. This is suitable for students and children who are ready to explore the micro-world.
Specimen Stage and Backdrop
Place different background boards on the stage loopholes to observe different objects. The translucent board is used for sample slide observation, the blackboard can be used to place coins and PCB, and the whiteboard is used for stone and plant observation.

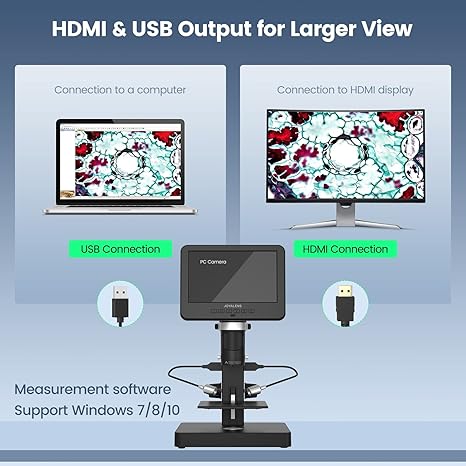

HDMI & USB Output for Larger View
Expand your view to a larger screen with an external monitor, such as a TV, relaxing your eyes and facilitating your work and research experience.
USB Microscope: Support Windows XP/7/8/10. Download our measurement software, and connect the microscope to your Windows PC. Then you can measure the length and area for easy data sharing and analysis.
HDMI Digital Microscope: The JL246PS microscope can be connected to an external monitor via HDMI. It supports simultaneous dual-screen display on both the HDMI monitor and the built-in microscope monitor, so users can enjoy exploring with more people in real-time. With Lens C and 3 times digital magnification and extended onto a 28-inch display, it can be magnified up to 4000 times.
Step to switch lenses
1. Unscrew the screws and remove the original lens.
2. Assemble the new lens.
3. Fasten the screws.
JL246PS JL249PS JL249P JL249MS AD409
Add to Cart
Add to Cart
Buying Options
Buying Options
Buying Options
Customer Reviews
41
41
41
2
14
Price
$139
99
$188
98 — — —
Lens number 3 3 3 3 1
Max Magnifications 4080× ?Lens C only)? 4080× ?Lens C only)? 1020× ?Lens C only) 2040× ?Lens D only) 300 ×
Max Video Res. 2160 UHD 2160 UHD 1080 FHD 2160 UHD 2160 UHD
Screen size 7 inch 10 inch 10 inch 10 inch 10 inch
HDMI output ? (support duel screen display) ? (only HDMI monitor display) × ? (only HDMI monitor display) ? (only HDMI monitor display)
PC output ? ? × ? ?
Bracket Height 30 CM 30 CM 30 CM 30 CM 19 CM
Bracket Material Plastic Plastic Plastic Metal Metal
