- About this Item
- • 20x - 50x, 200x True Optical Magnification 640 x 480 (0.3MP) Image Resolution 30 FPS Video
- • USB Connectivity for easy setup and operation. Compatible with WF-20 (sold separately)
- • Includes MicroTouch for easy image capture. Measurement features support units like inches, millimeters, and micrometers.
Specifications & Details
| SKU | PIB07P6MSXW7 |
|---|---|

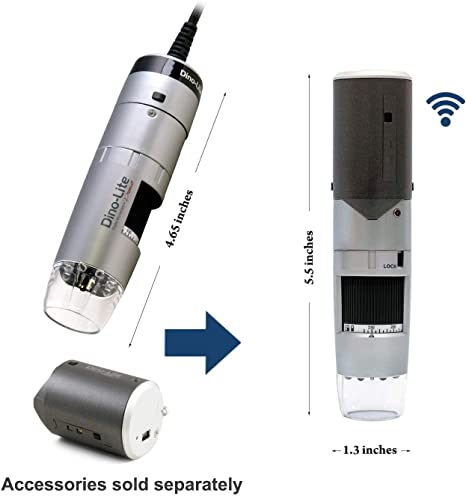

| Product Dimensions | 1.3 x 1.3 x 4.49 inches |
| Item Weight | 0.298 kgs |
| Item model number | AF3113T |
| Is Discontinued By Manufacturer | No |
| Manufacturer | Dino-Lite |
Product description
The Dino-Lite is the most popular handheld digital microscope in the world. Our hardware and software sets these microscopes apart from the rest. Now we're bringing a powerful scope with a completely wireless solution.
Get premium imaging with Dino-Lite quality hardware and software features.
WF-20 Compatible
Seamlessly transition use between iOS or Android devices or stream to multiple devices simultaneously with the battery-powered WF-20 wireless module (sold separately).

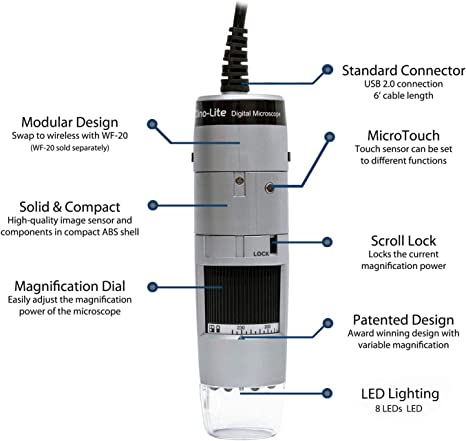

Features Include...
Magnification range of 10x - 50x, 230x. No lens change needed.

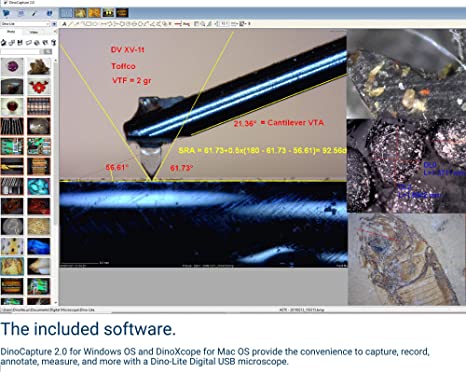

Take images and videos using the included software (PC or Mac). All while sitting in a comfortable and upright position.
Scroll lock is useful for users who wish to remain at a constant magnification. The scroll lock can be disengaged by changing the lock to the unlocked position easily, however, it is secure enough to not disengage on its own.
Measurements can be performed in different units (inch/mil/mm/um) and types including straight lines, circles, angles, arches grids and more.
MicroTouch feature is a touch sensitive area which can be used to capture images instead of using a keyboard and mouse. The software also allows users to disable the MicroTouch, or set to single or double touch to trigger.
Dimmable LEDs
Use the software to dim or brighten LEDs as needed.
Original Design
Dino-Lite series microscopes are the original patent design for handheld microscopes, beware of possible design copies. Designed to meet various applications.
Variable Magnification
Variable magnification means that Dino-Lite handheld microscopes have a range of magnification based on the distance from the subject.
Glass Lenses
Dino-Lite glass lenses and original form factor are patented and still the best in the market. Dino-Lite uses quality glass lenses and an optical magnification for a crisper, cleaner, and more accurate image.
AF3113T AM4111T AF4115ZT WF3113T Wireless
Magnification Range 10x-50x,230x 10x - 50x, 220x 20x - 220x 10x-50x,230x
Working Distance Standard Standard Standard Standard
Resolution 640 x 480 pixels 1280 x 1024 pixels 1280 x 1024 pixels 640 x 480 pixels
Connectivity USB 2.0 USB 2.0 USB 2.0 USB 2.0 & Wireless
Measurement ? ? ?
Polarization ?
AMR
EDOF (Windows Only)
LEDs 8 (Dimmable) 4 (Cannot turn off) 8 (FLC) 8 (Dimmable)
WF-20 Compatible ? ? Included
