- About this Item

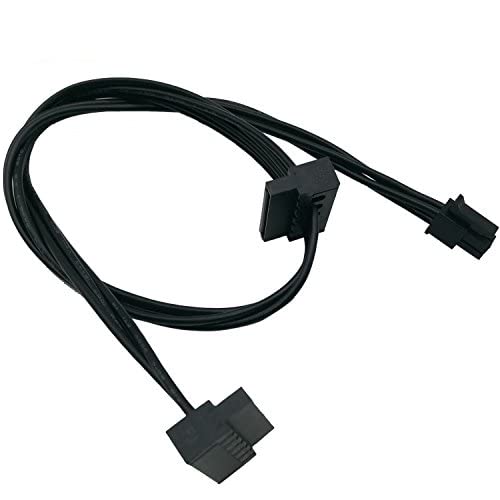

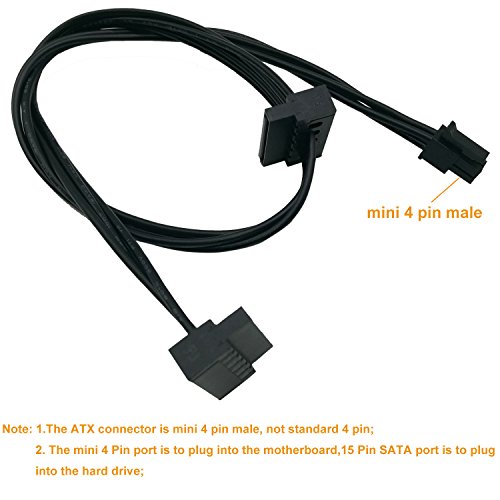

- • SATA Power Cable for Lenovo MotherboardMini 4 Pin port plugs into Lenovo motherboard (NOTE It is mini 4 pin port, not standard 4 pin port. Please refer to the image 2nd for mini 4 pin ports dimension.), Right-angle 15 Pin SATA port plugs into the hard drive
- • ConnectorsConnector A ATX 12V mini 4 pin (NOTE not standard 4 pin. Please refer to the image 2nd for mini 4 pin ports dimension), Connector B 2x Right-angle SATA 15 pin (compatible with the equipment with sata port such as liquid CPU cooler, mechanical hhd and ssd)
- • CompatibilityONLY compatible with Lenovo motherboard with mini 4 pin port including M410 M415 M510 M510S M510A M610 M710 B415 B250, Thinkcentre m720 tower, ThinkSystem ST50 Servers, ThinkCentre M710t (NOTE It is mini 4 pin port, not standard 4 pin port. Please refer to the image 2nd for mini 4 pin ports dimension.)

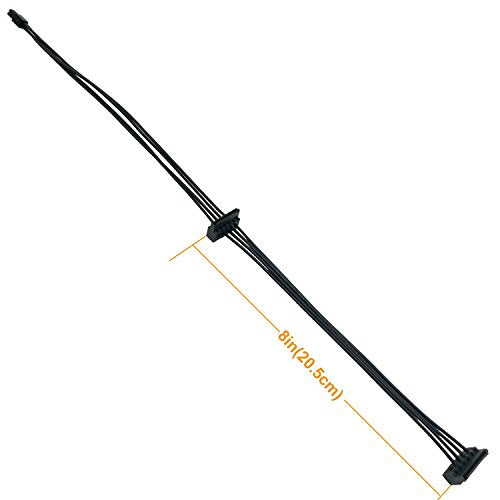

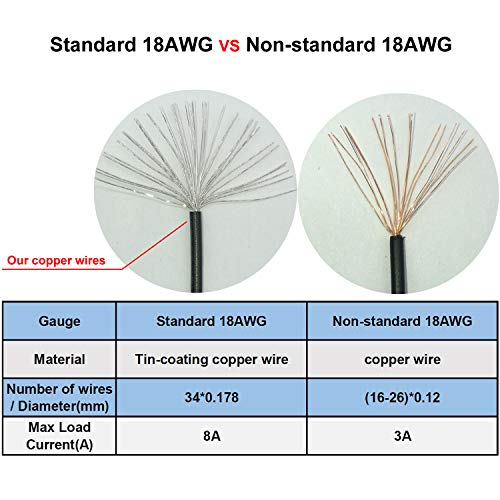

- • ParameterGauge 18AWG, Length(including connectors) 17.7 inches(45cm)Between 2 SATA 2.36 inches(6cm),Between 2 SATA 8 inches(20.5cm), Quantity 2 pieces, Self-adhesive tape1pcs
Specifications & Details
| SKU | PIB07CK2FFW1 |
|---|---|
| Brand | COMeap |
| Connector Type | Sata |
| Cable Type | SATA |
| Compatible Devices | PC, Server |
| Special Feature | Tangle Free |
| Color | to 2X Right-angle |
| Connector Gender | Male-to-Male |
| Shape | Round |
| Unit Count | 3 Feet |
| Item Weight | 0.020 kgs |
| Gauge | 18.0 |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Customer Package Type | Standard Packaging |
| Manufacturer | COMeap |
| UPC | 714983218696 |
| Package Dimensions | 10.28 x 5.67 x 0.79 inches |
| Item Weight | 0.017 kgs |
| Item model number | 4348427950 |
| Is Discontinued By Manufacturer | No |
Product description
bFeaturesbbrbr The COMeap SATA Power Cable for Lenovo Motherboard is used to connect Lenovo PC motherboard to hard drive.brbr bSpecificationbbrbr Cable Length 17.7inches(45cm),Between 2 SATA 8 inches(20.5cm)brbr Connectors 1 x mini 4 pin port, 2 x Right-angle 15 pin SATA portbrbr bIncludingbbrbr Mini 4 Pin to Right-angle 15 Pin SATA hard drive power supply cable2pcsbrbr Self-adhesive tape1pcsbrbr bNotebbrbr This cable is only compatible with Lenovo M410 M415 M510 M510S M510A M610 M710 B415 B250.brbr
