Product description

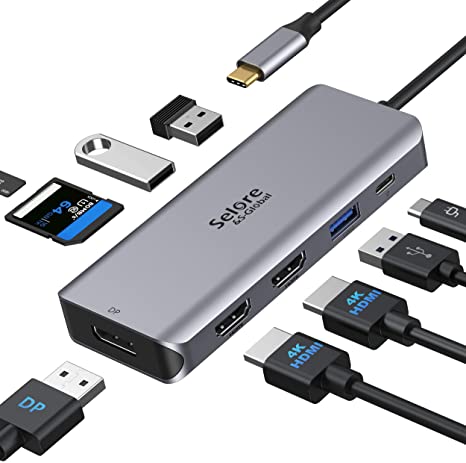

Triple Display USB C Docking Station Video Resolution Configurations:
Single Display HDMI 2 or DP up to 4K 60HZ 3840 x 2160 , while source is DP1.4.
Dual Monitors Display up to 4K 30HZ 3840 x 2160 ( HDMI 2+ DP ).
Triple Display up to 4K 30HZ 1920 x 1080 ( HDMI 1+HDMI 2+ DP ).
Dual Monitor Display
Crystal 4K ultra-high definition for large monitors, Optimize your work zone at home or your office with this multi-port docking station; With this usb c dual hdmi docking station each type of connection become easier!
For Windows OS: it support A to A / A , or A to B / C
For Mac OS: it support A to A / A, or A to B / B
Triple Display on Windows OS
Works flawlessly with Windows laptop and it supports MST triple display.
To connect four external monitors, your resolution will be limited to 1920 x 1080 displays at 30hz.
For Intel Graphics Card, it only supports 3 screens display, thus one screens (including laptop screen) will not be displayed.
For AMD Graphics Card, all of four screens will be displayed.

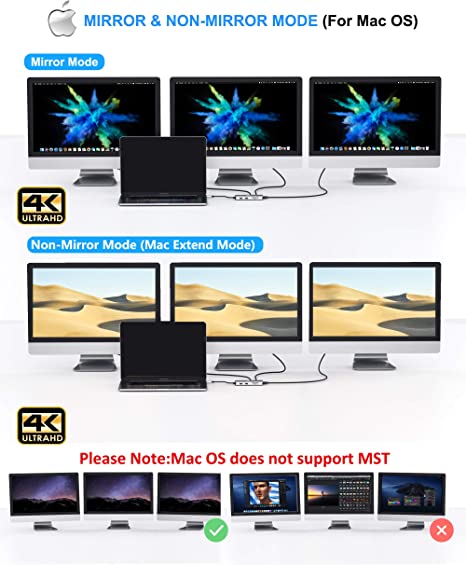

Mirror & Non-mirror Mode on Mac OS
A great docking station for Apple laptop (OS system) that extend laptop triple displays.
Note: For Apple computer users (MAC OS), extend mode can only extend laptop's images. Other monitors only mirror each other. It is the Mac OS system restriction.
For Mac OS it support Extend mode (A to B/B/B)
Setting: Display>Arrangement>Mirror Displays
Read more
Standard USB A ports
2* USB 2. 0 ports provide a more stable connection without wireless interference; Due to the USB 3. 0 radio frequency interference to the wireless connection, It is advisable to connect your wireless device to the USB 2. 0 ports.

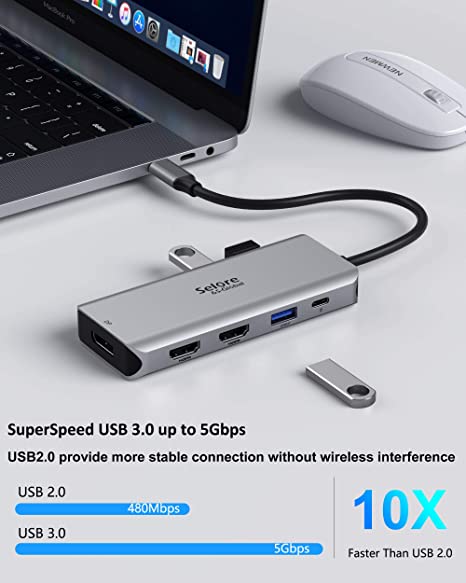

High Speed 3*USB 3.0 Ports
You can connect hard drive, printer, mouse and more USB devices to your USB C laptop; And all of USB device can be used simultaneously;Backwards compatible with USB 2.0 devices.
100 W Power Delivery
Maximum input of 100W minus 9W for the hub’s operation allows the hub to give your laptop up to an 87W pass-through charge while using other hub functions.
SD TF Card Reader
Easily expand SD and TF slots to your PC, supports up to 256G SD card; When want to read your TF SD card, it only takes a few seconds to complete the reading speed.
Read more
Before you purchase it Please Note:
On Mac devices: CAN NOT support MST Display, ONLY Mirror Mode due to Mac OS limitation; Not support Macbook pro air mini M1
Resolution: The final resolution of HDMI output depends on your host devices. (ONLY when your devices support 4K resolution, the video output will be 4K).
Compatible: This usb c triple display docking station ONLY work with those devices that the USB Type C Port supports video output or DP Alt Mode, please check if your laptop owns a USB Type-c Thunderbolt 3 port and support DisplayPort Alternate Mode.
Can NOT work with (Tested): HP EliteBook 745 G4 / HP Elitebook 820 G3 / HP EliteBook 828 G4 / HP 14s-be102TX / HP 14-ce1004TX 14 / HP Probook 650 G2 / HP Probook 455 G4 / HP Probook 430 G5 / HP Pavilion-14 bf116tx / HP Pavilion 15 ck009 / HP Pavilion Power Laptop 15-cb / Lenovo ideapad 340s Tablets / Google Pixel phones / Nintendo Switch / Acer Aspire A5 / Oneplus 5T Phone
Laptop will not be displayed. For Intel Graphics Card, it only supports 3 screens display, thus one screens (including laptop screen) will not be displayed. For AMD Graphics Card, all of four screens will be displayed.
Charge laptop via the PD port: If your laptop own a AC adapter, you'd better use the original charger directly connect the laptop to charge, because the it will provide the fastest charge speed and HP/Dell do not allow 3rd party charger to charge their laptop.
Need Help? If your laptop not included in the list,please let us know, we are very gladly to help you check if the adapter can work with your device.
Compatible with (Tested):
For Dell: Dell XPS12(9250) /Dell XPS13(9350) /Dell XPS15(9550), Dell Latitude 13 7000/Latitude 13 E7370L
For Lenovo: Lenovo Yoga 720-13IKB/ Yoga 900-13ISK/ Yoga 910/ Yoga 920/ Yoga 930
For HP: HP Spectre Laptop 13-af001TU
For LG: LG G5, LG gram 14Z990-V.AA52C
For ASUS: 13'' ASUS Zenbook UX330UA
For Surface: Microsoft Surface Book 2/ Surface Go/ Surface Laptop 3
For Huawei: Huawei Macbook Mate10/ Mate10 pro/ Mate20/ Mate20 pro / Mate30/ Mate30Pro
For Samsung: Samsung Galaxy S10+/S10/S9+ /S9 /S8+ /S8 Plus, Note 10 / 9 / 8
For Apple: MacBook/ MacBook Pro (2020/2019/2018/2017/2016), Macbook Air 2018-2020, Mac mini 2018-2020, iPad Pro 2018
If your laptop not included in the list,please let us know, we are very gladly to help you check if the adapter can work with your device.
