- About this Item
- • This RIITOP NVMe to USB Adapter is Designed for those who own Multiple NVMe M.2 SSDs that need to be frequently pluging and unpluging. No mounting screws need, simply insert the NVMe M.2 device and connect USB-C cable, you can start using it as external SSD immediately.
- • RIITOP NVMe to USB Docking Station Compatibility Support most of M.2 PCI-e M key NVMe SSDs (Capacity 2TB), Compatible with Samsung 970 EVO 950Pro 960Evo XP941 PM951 PM961 SM951 SM962, WD Black NVMe SSD and so on. Only Support M.2 PCI-e Based M Key NVMe SSD
- • NVMe Dock Installation 1. Insert NVMe SSD into Slot 2. Connect USB Cable to Computer
Specifications & Details
| SKU | PIB089JXSMB8 |
|---|---|
| Hard Drive | For NVMe SSD |
| Brand | RIITOP |
| Item model number | NVME2DT |
| Item Weight | 0.059 kgs |
| Product Dimensions | 61 x 32.7 x 6.3 inches |
| Item Dimensions LxWxH | 61 x 32.7 x 6.3 inches |
| Color | Gray |
| Hard Drive Interface | Solid State |
| Manufacturer | RIITOP |
Product description

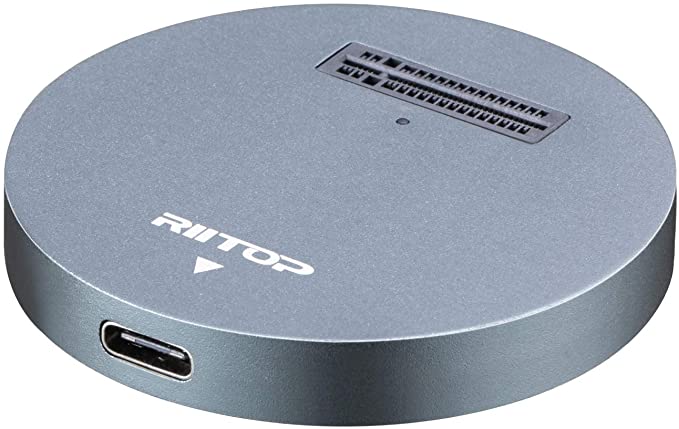

Convert Your NVMe M.2 SSD to USB 3.1 as an external drive
RIITOP NVMe to USB Adapter is ideal for those who own multiple NVMe M.2 SSDs that need to be frequently plug and unplug.
No mounting screws need, simply insert the NVMe M.2 device and connect the USB cable, and you can start using immediately.
The SSD docking base is a USB 3.1 Type-C adapter that allows users to insert NVMe M.2 devices vertically. Please insert carefully to avoid damaging the connector of SSD Designed Exclusively for NVMe M.2 SSD Supports the non-volatile memory express (NVMe) SSD,
The connector standard adopts NVMe M.2 SSD
Compatible with M.2 NVMe SSD ONLY:
Samsung SM951- NVMe, PM951-NVMe, 950 Pro NVMe SSD, SM961, PM961, 960 EVO, 960 Pro, 970 EVO, 970 Pro. INTEL 600P. Liteon T10. And other PCIE M.2 NVMe SSD.
NOT Support PCI-e Based M Key AHCI SSD, or any B/B+M Key SATA Based SSD.
Please Note:
1. The temperature of the entire operating SSD may exceed 60 ° C. Please do not touch the SSD during operation.
2. It can NOT support "Hot-Plugging". Please don't exchange the SSDs when connecting. USB 3.1 (Gen 2) Type-C Interface The docking Station adopts USB 3.1 (Gen2), Type-C interface which supports high-speed transfer rates of up to 10 Gbps.
Chipset: JMS583
USB 3.1 Gen 2 to PCIe Gen3 x2 Bridge Controller
The JMS583 is a USB 3.1 Gen 2 to PCIe Gen3 x 2 bridge controller between USB host and PCIe storage device.
The USB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate.
Meanwhile, the downstream port of the JMS583 is compatible with storage device with PCIe interface, such as SSD.
The PCIe port is compliant with PCIe Gen3 x 2 specifications.
Support Windows XP / 7 / 8 / 10 and Mac OS. No driver required.
Installation Steps
1. Insert NVMe SSD into Slot 2. Connect USB Cable to Dock 3. Connect USB Cable to Computer
Please note: it can NOT be identified if insert SSD after USB Cable connected to Computer.
Package Including
1x M2 NVMe to USB Dock
1x USB C to USB C Cable
1x USB C to A Adapter
