- About this Item

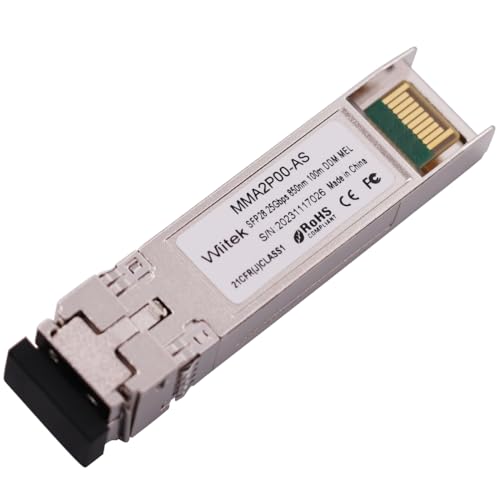

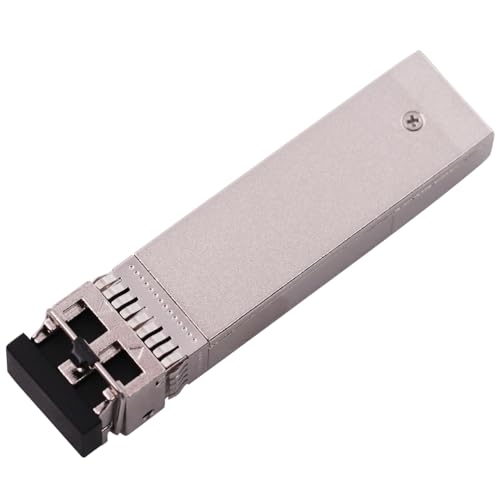

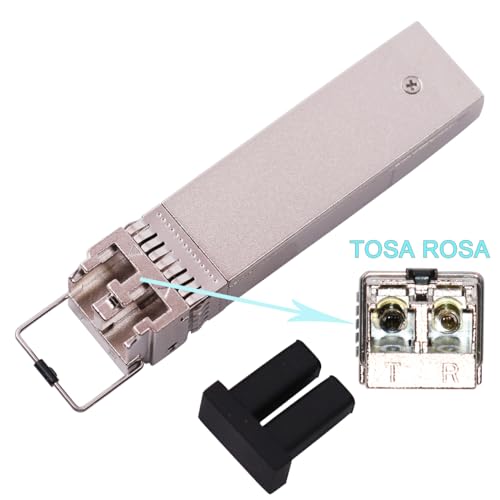

- • 25GBase-SR SFP28 to duplex LC multimode fiber transceiver, Data Rate25Gbps, Wavelength 850nm, Connector Type Dual LC, Reach up to 100m over OM4 MMF (70m over OM3)
- • 100 Compatible with Mellanox MMA2P00-AS, Each SFP28 module is individually tested on a series of Mellanox switches, this 25G transceiver is ideal for 25G Switch, 25G NIC network card, 25G SFP28 PCIE Card
- • Hot Pluggable, compliant to SFP28 MSA, IEEE 802.3by and IEEE 802.3cc
- • Low Power Consumption below 1W, Easy installation
Specifications & Details
| SKU | PIB0CPJF9KB9 |
|---|---|
| Package Dimensions | 4.6 x 2.5 x 0.9 inches ; 0.038 kgs |
| Item model number | MMA2P00-AS |
| Manufacturer | Wiitek Technology |
Product description
bWiitek 25G SFP28 SFP Optical Transceiver, 25GBase-SR Module, 850nm MMF, up to 100meters, Compatible for Mellanox MMA2P00-ASbbr br bFeaturesbbr br Compatible with CPRI option10 24.33Gbps and 25GBASE 25.78Gbpsbr 100m transmission over OM4 MMFbr 70m transmission over OM3 MMFbr 850nm VCSEL laser transmitterbr 80nm high sensitivity PIN-TIA receiverbr SFP28 MSA compliantbr Built-in digital diagnostic functionsbr Single 3.3V power supply br Operating case temperature 0 to 70 Cbr RoHS 6 Compliantbr br bApplicationbbr br 25GBASE-SRbr 24.33Gbps CPRIbr InfiniBand QDR, SDR, DDRbr Servers, switches, storage and host card adaptersbr br
